Building Micro Proxies in Rust and Go

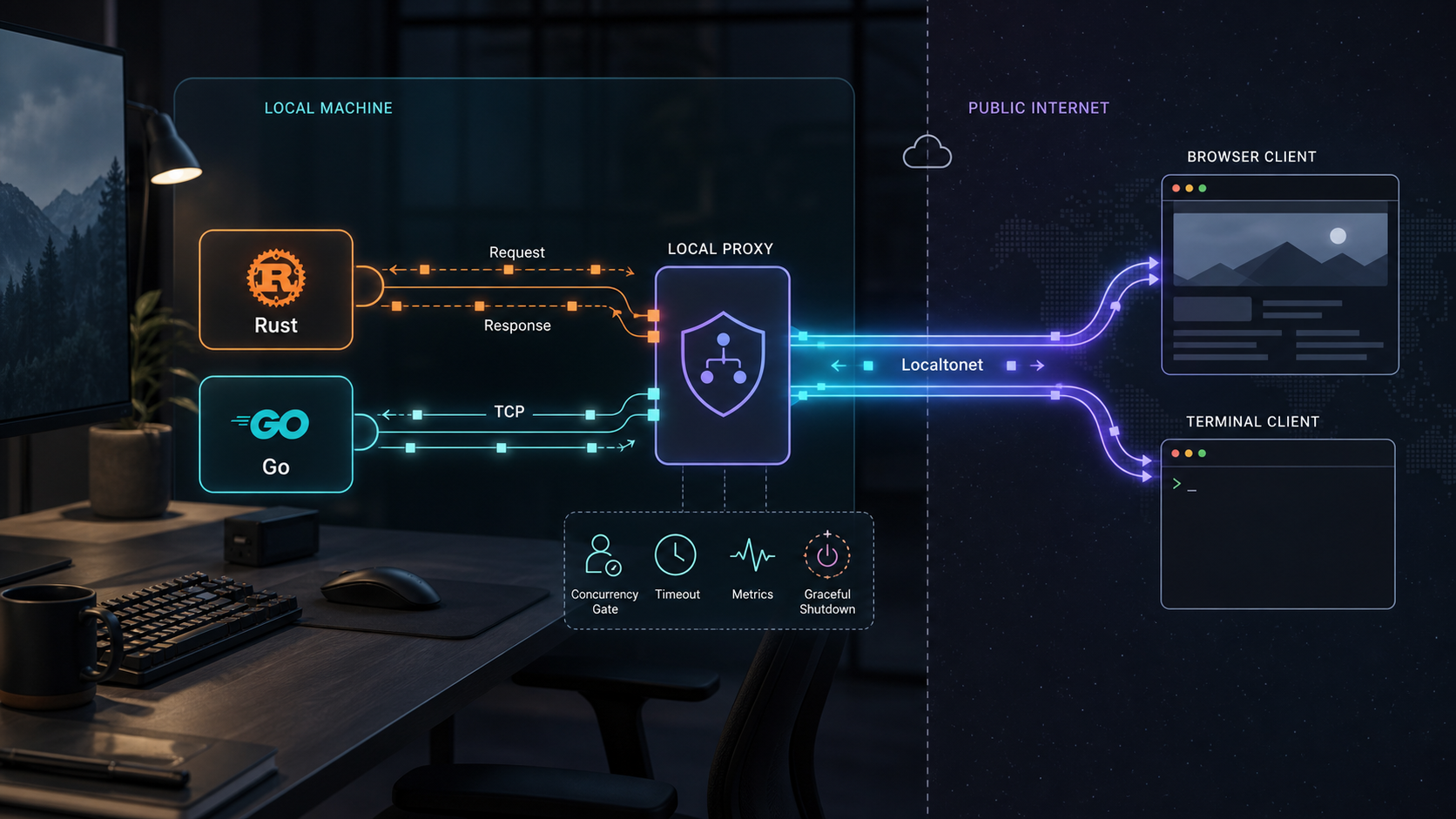

What these micro proxies build

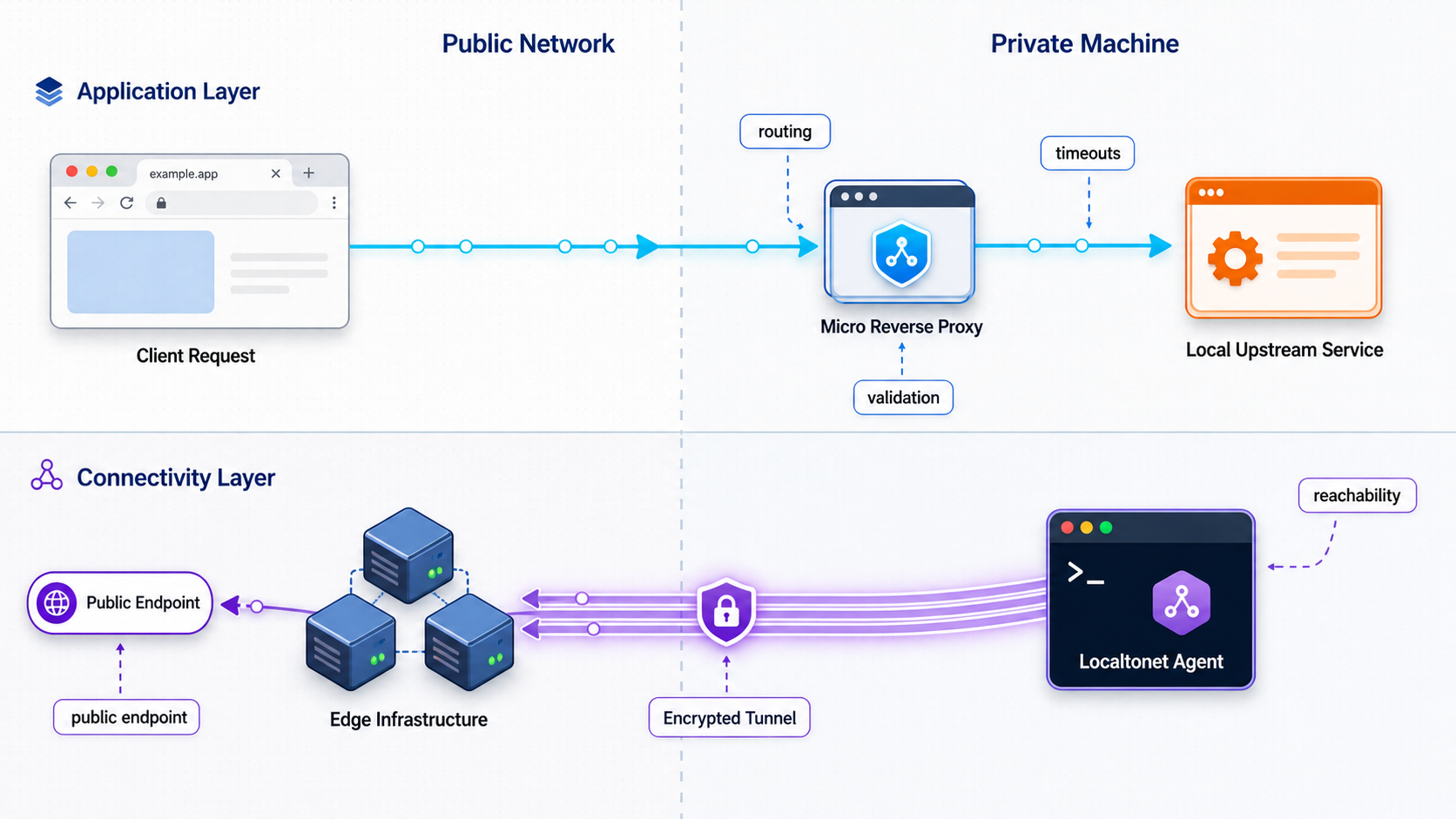

A reverse proxy accepts a client connection, opens or selects a connection to an upstream service, forwards traffic, and returns the upstream result. “Micro” describes the deliberately narrow scope of the programs in this guide. Each listener has one fixed upstream, configuration comes from a small set of environment variables, and there is no dynamic route administration interface.

The HTTP examples understand requests and responses. They remove hop-by-hop headers, replace untrusted forwarding metadata, apply a request-body limit, use an upstream timeout, and preserve the requested path and query string. The TCP examples treat traffic as an opaque bidirectional byte stream. They limit concurrent connections, time out upstream dialing, enforce a maximum connection lifetime, support TCP half-close where the platform permits it, and stop accepting new connections during shutdown.

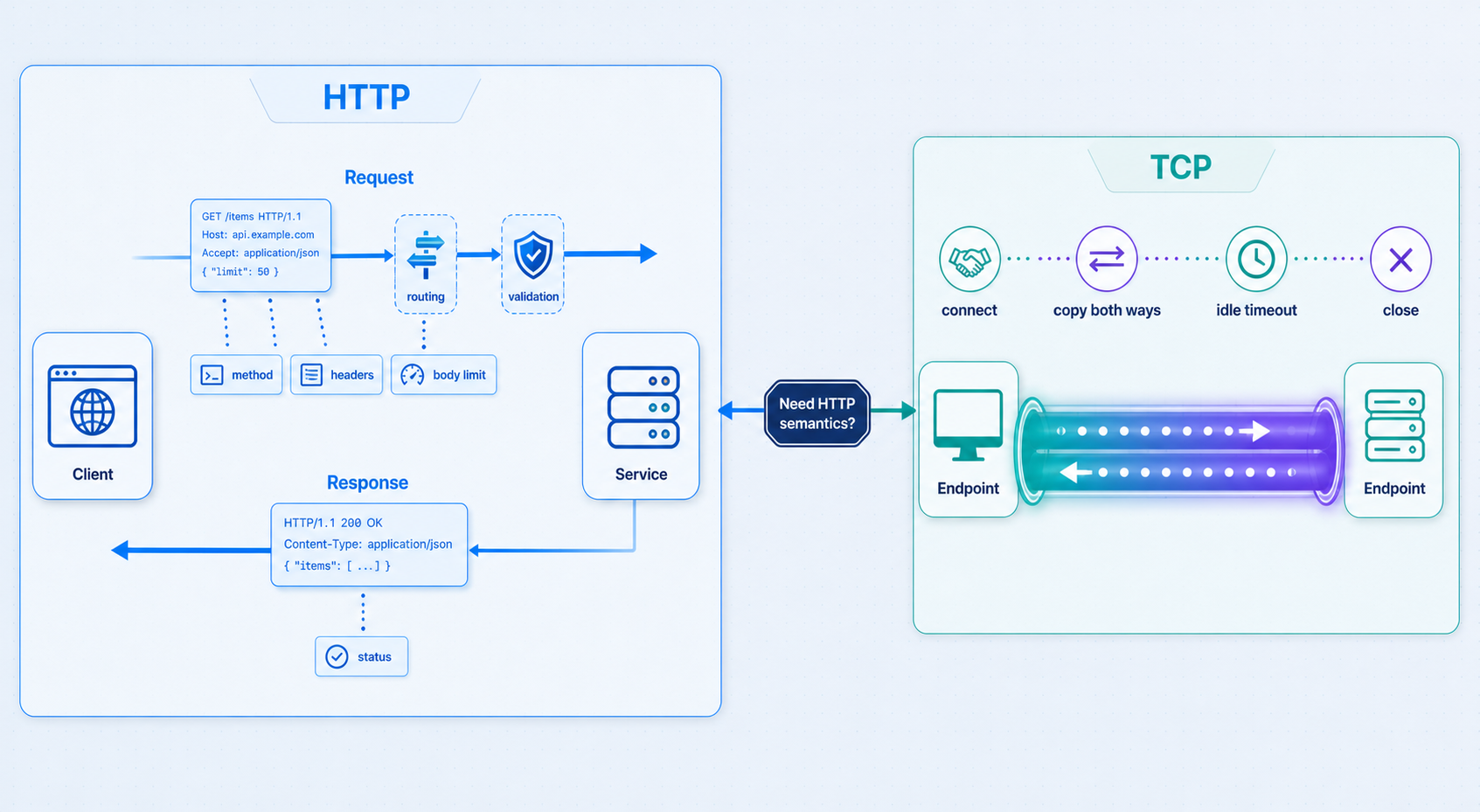

HTTP and TCP are different implementation boundaries

HTTP is not simply text copied over TCP. HTTP intermediaries must follow message framing, connection-header, method, target, and response semantics. The examples rely on maintained HTTP libraries rather than implementing a parser. The relevant protocol behavior is standardized in HTTP Semantics, RFC 9110 and HTTP/1.1, RFC 9112.

A TCP relay does not know whether it carries HTTP, an echo protocol, a database connection, or a custom binary exchange. It copies bytes in both directions and must handle partial reads, disconnects, blocked peers, and one direction finishing before the other. Application authentication and protocol validation remain the responsibility of the service carried through the relay.

Prerequisites, layout, and toolchain assumptions

You need a Rust toolchain with Cargo, a Go toolchain, a terminal, and curl. The TCP checks also use a short Python 3 echo server so the verification process works without relying on a platform-specific Netcat variant. Consult the official Rust documentation for toolchain installation and the official Go installation guide for supported Go installation paths.

The Rust manifest below targets the Rust 2021 edition and uses Tokio 1, Axum 0.8, Reqwest 0.12, Futures Util 0.3, and Async Stream 0.3 compatibility lines. The Go examples use standard-library APIs available in modern supported Go releases, including httputil.ReverseProxy.Rewrite. Dependency declarations are not timeless compatibility guarantees. Keep Cargo.lock for executable projects, review updates, and run the complete tests whenever a toolchain or dependency changes.

Verify the tools currently selected by your shell:

rustc --version
cargo --version
go version
python3 --version
curl --version

Create the following workspace:

mkdir micro-proxies
cd micro-proxies
cargo new rust-proxies
mkdir -p rust-proxies/src/bin
mkdir go-proxies

micro-proxies/
├── rust-proxies/
│   ├── Cargo.toml
│   └── src/
│       └── bin/
│           ├── http_proxy.rs
│           └── tcp_proxy.rs
└── go-proxies/
    ├── go.mod
    ├── http_proxy.go
    └── tcp_proxy.go

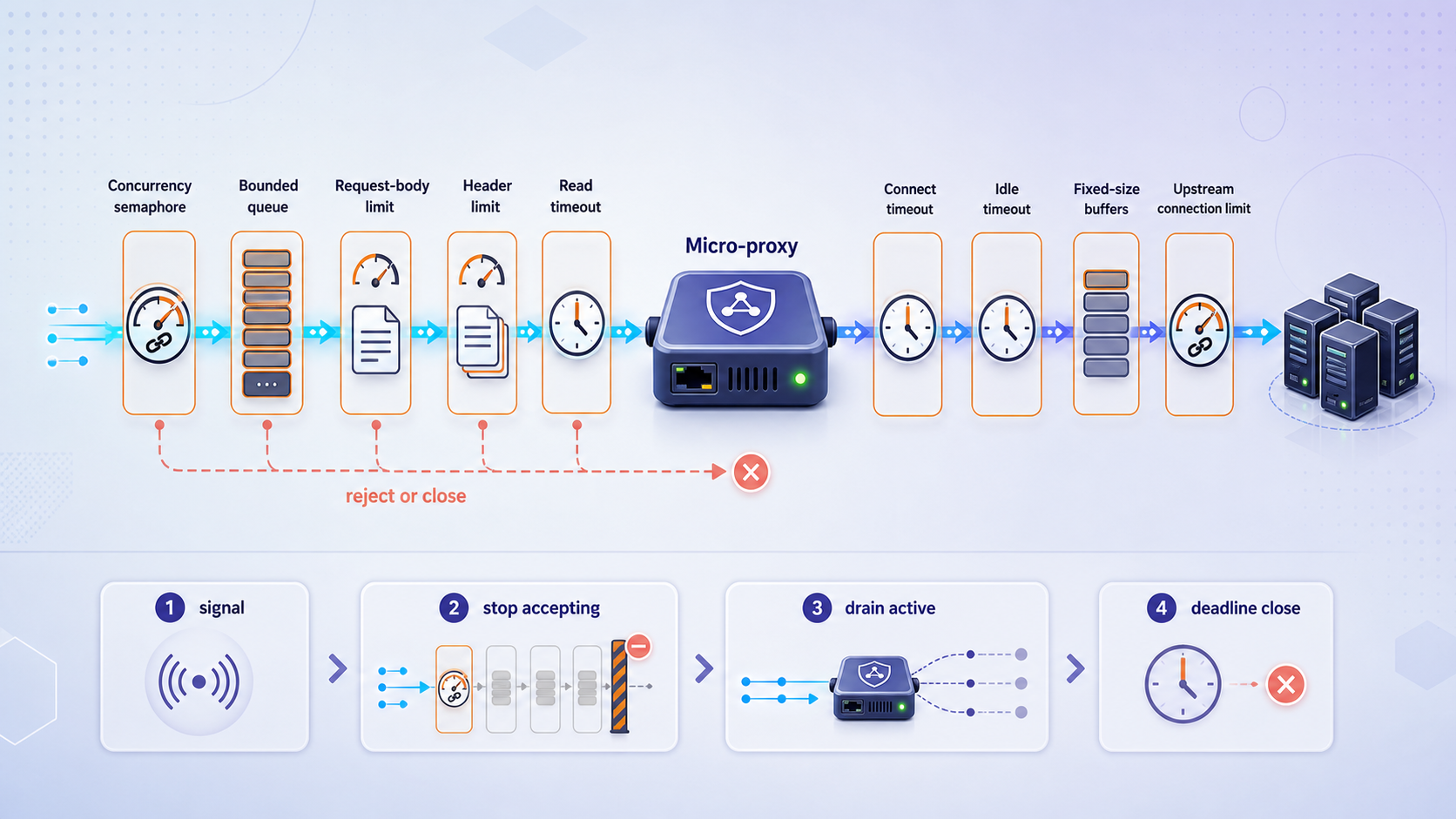

Listener and upstream safety constraints

The examples default to listeners on 127.0.0.1. This is the safest default when Localtonet runs on the same device because the listener is not automatically offered to the entire LAN. If the Localtonet client runs on another device, use a deliberately selected LAN address and enforce host firewall and application access policies.

The default HTTP upstream is http://127.0.0.1:9000. The default TCP upstream is 127.0.0.1:9001. Do not point either proxy back to its own listener. Doing so creates a forwarding loop that consumes connections until a limit is reached.

Build the HTTP and TCP proxies in Rust

Tokio supplies asynchronous sockets, timers, signals, task coordination, and bidirectional copying. Axum provides the inbound HTTP server, while Reqwest supplies the outbound HTTP client. The implementation does not hand-parse HTTP. Tokio cancellation is cooperative, so the code connects shutdown signals to listener termination and applies deadlines to network operations rather than assuming that dropping an unrelated value will stop all work.

Replace rust-proxies/Cargo.toml with:

[package]
name = "rust-proxies"
version = "0.1.0"
edition = "2021"

[dependencies]
async-stream = "0.3"
axum = "0.8"
futures-util = "0.3"
reqwest = { version = "0.12", default-features = false, features = ["rustls-tls", "stream"] }
tokio = { version = "1", features = ["full"] }

Rust HTTP reverse proxy

Save this as rust-proxies/src/bin/http_proxy.rs. It accepts HTTP, rejects requests above the configured limit, removes hop-by-hop and client-supplied forwarding headers, sends the request to a fixed upstream, and streams the response through a byte counter. The response stream is terminated if it exceeds MAX_RESPONSE_BYTES.

use async_stream::try_stream;
use axum::{
    body::{to_bytes, Body},
    extract::{ConnectInfo, State},
    http::{
        header::{CONNECTION, CONTENT_LENGTH, HOST},
        HeaderMap, HeaderName, Request, Response, StatusCode,
    },
    response::IntoResponse,
    routing::any,
    Router,
};
use futures_util::{pin_mut, StreamExt};
use reqwest::redirect::Policy;
use std::{
    env,
    io,
    net::SocketAddr,
    sync::Arc,
    time::Duration,
};
use tokio::{net::TcpListener, signal, sync::Semaphore};

#[derive(Clone)]
struct AppState {
    upstream: String,
    client: reqwest::Client,
    permits: Arc<Semaphore>,
    max_request_bytes: usize,
    max_response_bytes: usize,
}

fn env_usize(name: &str, default: usize) -> usize {
    env::var(name)
        .ok()
        .and_then(|v| v.parse().ok())
        .unwrap_or(default)
}

fn is_hop_by_hop(name: &HeaderName) -> bool {
    matches!(
        name.as_str().to_ascii_lowercase().as_str(),
        "connection"
            | "keep-alive"
            | "proxy-authenticate"
            | "proxy-authorization"
            | "te"
            | "trailer"
            | "transfer-encoding"
            | "upgrade"
    )
}

fn connection_tokens(headers: &HeaderMap) -> Vec<String> {
    headers
        .get(CONNECTION)
        .and_then(|v| v.to_str().ok())
        .map(|v| {
            v.split(',')
                .map(|s| s.trim().to_ascii_lowercase())
                .filter(|s| !s.is_empty())
                .collect()
        })
        .unwrap_or_default()
}

async fn proxy(
    State(state): State<AppState>,
    ConnectInfo(peer): ConnectInfo<SocketAddr>,
    request: Request<Body>,
) -> Response<Body> {
    let _permit = match state.permits.clone().try_acquire_owned() {
        Ok(permit) => permit,
        Err(_) => {
            return (
                StatusCode::SERVICE_UNAVAILABLE,
                "proxy concurrency limit reached\n",
            )
                .into_response();
        }
    };

    let (parts, body) = request.into_parts();
    let request_bytes = match to_bytes(body, state.max_request_bytes + 1).await {
        Ok(bytes) if bytes.len() <= state.max_request_bytes => bytes,
        Ok(_) => {
            return (StatusCode::PAYLOAD_TOO_LARGE, "request body too large\n")
                .into_response();
        }
        Err(_) => {
            return (StatusCode::BAD_REQUEST, "unable to read request body\n")
                .into_response();
        }
    };

    let path = parts
        .uri
        .path_and_query()
        .map(|v| v.as_str())
        .unwrap_or("/");
    let target = format!("{}{}", state.upstream.trim_end_matches('/'), path);
    let named_by_connection = connection_tokens(&parts.headers);

    let mut outbound_headers = HeaderMap::new();
    for (name, value) in &parts.headers {
        let lower = name.as_str().to_ascii_lowercase();
        if *name == HOST
            || *name == CONTENT_LENGTH
            || is_hop_by_hop(name)
            || named_by_connection.iter().any(|token| token == &lower)
            || lower == "forwarded"
            || lower == "x-forwarded-for"
            || lower == "x-forwarded-host"
            || lower == "x-forwarded-proto"
        {
            continue;
        }
        outbound_headers.append(name.clone(), value.clone());
    }

    outbound_headers.insert(
        HeaderName::from_static("x-forwarded-for"),
        peer.ip().to_string().parse().unwrap(),
    );
    outbound_headers.insert(
        HeaderName::from_static("x-forwarded-proto"),
        "http".parse().unwrap(),
    );

    let upstream = match state
        .client
        .request(parts.method, target)
        .headers(outbound_headers)
        .body(request_bytes)
        .send()
        .await
    {
        Ok(response) => response,
        Err(error) => {
            eprintln!("upstream request failed: {error}");
            return (
                StatusCode::BAD_GATEWAY,
                "upstream request failed\n",
            )
                .into_response();
        }
    };

    let status = upstream.status();
    let named_by_connection = connection_tokens(upstream.headers());
    let mut builder = Response::builder().status(status);

    for (name, value) in upstream.headers() {
        let lower = name.as_str().to_ascii_lowercase();
        if *name == CONTENT_LENGTH
            || is_hop_by_hop(name)
            || named_by_connection.iter().any(|token| token == &lower)
        {
            continue;
        }
        builder = builder.header(name, value);
    }

    let max = state.max_response_bytes;
    let source = upstream.bytes_stream();
    let limited = try_stream! {
        pin_mut!(source);
        let mut total = 0usize;

        while let Some(item) = source.next().await {
            let chunk = item.map_err(io::Error::other)?;
            total = total.saturating_add(chunk.len());

            if total > max {
                Err(io::Error::new(
                    io::ErrorKind::InvalidData,
                    "upstream response exceeded configured limit",
                ))?;
            }

            yield chunk;
        }
    };

    builder
        .body(Body::from_stream(limited))
        .unwrap_or_else(|_| {
            (
                StatusCode::INTERNAL_SERVER_ERROR,
                "unable to build response\n",
            )
                .into_response()
        })
}

#[tokio::main]
async fn main() -> Result<(), Box<dyn std::error::Error>> {
    let listen: SocketAddr = env::var("LISTEN_ADDR")
        .unwrap_or_else(|_| "127.0.0.1:8080".into())
        .parse()?;
    let upstream =
        env::var("UPSTREAM_URL").unwrap_or_else(|_| "http://127.0.0.1:9000".into());

    let timeout_secs = env_usize("UPSTREAM_TIMEOUT_SECS", 30) as u64;
    let state = AppState {
        upstream,
        client: reqwest::Client::builder()
            .timeout(Duration::from_secs(timeout_secs))
            .redirect(Policy::none())
            .build()?,
        permits: Arc::new(Semaphore::new(env_usize("MAX_CONCURRENT", 128))),
        max_request_bytes: env_usize("MAX_REQUEST_BYTES", 1_048_576),
        max_response_bytes: env_usize("MAX_RESPONSE_BYTES", 8_388_608),
    };

    let app = Router::new()
        .route("/", any(proxy))
        .route("/{*path}", any(proxy))
        .with_state(state);

    let listener = TcpListener::bind(listen).await?;
    println!("Rust HTTP proxy listening on http://{listen}");

    axum::serve(
        listener,
        app.into_make_service_with_connect_info::<SocketAddr>(),
    )
    .with_graceful_shutdown(async {
        let _ = signal::ctrl_c().await;
        eprintln!("shutdown signal received");
    })
    .await?;

    Ok(())
}

This implementation intentionally disables automatic redirects so an upstream redirect is returned to the caller rather than followed by the proxy. It buffers each request body up to the configured limit, which keeps the example simple but is not suitable for large streaming uploads. The response is streamed, but a response that crosses the cap can end after headers have already reached the client. A production design may instead reject responses from an upstream with trusted length metadata or use an application-specific streaming policy.

Rust TCP reverse proxy

Save this as rust-proxies/src/bin/tcp_proxy.rs. Tokio’s copy_bidirectional drives both directions until EOF or error. A semaphore bounds active connections, an upstream connection attempt has a deadline, and the entire relay receives a maximum lifetime. During shutdown, the listener stops admitting work and active tasks receive a drain period.

use std::{
    env,
    net::SocketAddr,
    sync::Arc,
    time::Duration,
};
use tokio::{
    io::copy_bidirectional,
    net::{TcpListener, TcpStream},
    signal,
    sync::Semaphore,
    task::JoinSet,
    time::{timeout, Instant},
};

fn env_u64(name: &str, default: u64) -> u64 {
    env::var(name)
        .ok()
        .and_then(|v| v.parse().ok())
        .unwrap_or(default)
}

async fn relay(
    mut client: TcpStream,
    upstream: SocketAddr,
    dial_timeout: Duration,
    lifetime: Duration,
) {
    let peer = client.peer_addr().ok();
    let started = Instant::now();

    let mut server = match timeout(dial_timeout, TcpStream::connect(upstream)).await {
        Ok(Ok(stream)) => stream,
        Ok(Err(error)) => {
            eprintln!("upstream refused for {peer:?}: {error}");
            return;
        }
        Err(_) => {
            eprintln!("upstream dial timed out for {peer:?}");
            return;
        }
    };

    match timeout(lifetime, copy_bidirectional(&mut client, &mut server)).await {
        Ok(Ok((client_to_upstream, upstream_to_client))) => {
            println!(
                "closed {peer:?}: sent={client_to_upstream} received={upstream_to_client} elapsed={:?}",
                started.elapsed()
            );
        }
        Ok(Err(error)) => {
            eprintln!("relay error for {peer:?}: {error}");
        }
        Err(_) => {
            eprintln!("connection lifetime exceeded for {peer:?}");
        }
    }
}

#[tokio::main]
async fn main() -> Result<(), Box<dyn std::error::Error>> {
    let listen: SocketAddr = env::var("LISTEN_ADDR")
        .unwrap_or_else(|_| "127.0.0.1:7000".into())
        .parse()?;
    let upstream: SocketAddr = env::var("UPSTREAM_ADDR")
        .unwrap_or_else(|_| "127.0.0.1:9001".into())
        .parse()?;

    let dial_timeout = Duration::from_secs(env_u64("DIAL_TIMEOUT_SECS", 5));
    let lifetime = Duration::from_secs(env_u64("CONNECTION_LIFETIME_SECS", 300));
    let drain_timeout = Duration::from_secs(env_u64("DRAIN_TIMEOUT_SECS", 15));
    let max_connections = env_u64("MAX_CONNECTIONS", 128) as usize;

    let listener = TcpListener::bind(listen).await?;
    let permits = Arc::new(Semaphore::new(max_connections));
    let mut tasks = JoinSet::new();

    println!("Rust TCP proxy listening on {listen}, upstream {upstream}");

    loop {
        tokio::select! {
            result = listener.accept() => {
                let (client, peer) = result?;
                let permit = match permits.clone().try_acquire_owned() {
                    Ok(permit) => permit,
                    Err(_) => {
                        eprintln!("connection rejected at limit: {peer}");
                        drop(client);
                        continue;
                    }
                };

                tasks.spawn(async move {
                    let _permit = permit;
                    relay(client, upstream, dial_timeout, lifetime).await;
                });
            }
            _ = signal::ctrl_c() => {
                eprintln!("shutdown signal received; stopping admission");
                break;
            }
        }
    }

    let drained = timeout(drain_timeout, async {
        while tasks.join_next().await.is_some() {}
    }).await;

    if drained.is_err() {
        eprintln!("drain deadline reached; aborting remaining connections");
        tasks.abort_all();
        while tasks.join_next().await.is_some() {}
    }

    Ok(())
}

The connection-lifetime timer is an absolute cap, not a true idle timer. A true idle timeout must reset whenever bytes move in either direction, which requires a more specialized copy loop or protocol-aware framing. Use the absolute cap only when it matches the expected sessions. Long-lived database, terminal, or subscription connections may need a different policy.

Build the HTTP and TCP proxies in Go

The Go HTTP implementation uses net/http and httputil.ReverseProxy. Its Rewrite callback selects the fixed upstream and rebuilds forwarding metadata after Go removes inbound forwarding headers. The TCP implementation uses two io.Copy operations, half-closes each destination after its source reaches EOF, and waits for both directions.

Create go-proxies/go.mod:

module example.com/micro-proxies

go 1.22

The module’s go directive records the intended language compatibility level for this tutorial. Use a currently supported Go release in maintained deployments and rerun all tests when changing it.

Go HTTP reverse proxy

Save this as go-proxies/http_proxy.go:

package main

import (
	"context"
	"errors"
	"log"
	"net"
	"net/http"
	"net/http/httputil"
	"net/url"
	"os"
	"os/signal"
	"strconv"
	"syscall"
	"time"
)

func envInt(name string, fallback int) int {
	value, err := strconv.Atoi(os.Getenv(name))
	if err != nil || value <= 0 {
		return fallback
	}
	return value
}

func main() {
	listen := os.Getenv("LISTEN_ADDR")
	if listen == "" {
		listen = "127.0.0.1:8080"
	}

	upstreamText := os.Getenv("UPSTREAM_URL")
	if upstreamText == "" {
		upstreamText = "http://127.0.0.1:9000"
	}

	upstream, err := url.Parse(upstreamText)
	if err != nil || upstream.Scheme == "" || upstream.Host == "" {
		log.Fatalf("invalid UPSTREAM_URL: %q", upstreamText)
	}

	maxBody := int64(envInt("MAX_REQUEST_BYTES", 1_048_576))
	maxConcurrent := envInt("MAX_CONCURRENT", 128)
	upstreamTimeout := time.Duration(envInt("UPSTREAM_TIMEOUT_SECS", 30)) * time.Second
	drainTimeout := time.Duration(envInt("DRAIN_TIMEOUT_SECS", 15)) * time.Second

	transport := &http.Transport{
		Proxy:                 http.ProxyFromEnvironment,
		DialContext:           (&net.Dialer{Timeout: 5 * time.Second}).DialContext,
		ForceAttemptHTTP2:     true,
		MaxIdleConns:          128,
		MaxIdleConnsPerHost:   32,
		IdleConnTimeout:       60 * time.Second,
		TLSHandshakeTimeout:   5 * time.Second,
		ResponseHeaderTimeout: upstreamTimeout,
		ExpectContinueTimeout: 1 * time.Second,
	}

	proxy := &httputil.ReverseProxy{
		Rewrite: func(request *httputil.ProxyRequest) {
			request.SetURL(upstream)
			request.SetXForwarded()
			request.Out.Host = upstream.Host
		},
		Transport: transport,
		ErrorHandler: func(writer http.ResponseWriter, request *http.Request, err error) {
			log.Printf("upstream request failed: %v", err)
			http.Error(writer, "upstream request failed", http.StatusBadGateway)
		},
	}

	permits := make(chan struct{}, maxConcurrent)

	handler := http.HandlerFunc(func(writer http.ResponseWriter, request *http.Request) {
		select {
		case permits <- struct{}{}:
			defer func() { <-permits }()
		default:
			http.Error(writer, "proxy concurrency limit reached", http.StatusServiceUnavailable)
			return
		}

		request.Body = http.MaxBytesReader(writer, request.Body, maxBody)
		proxy.ServeHTTP(writer, request)
	})

	server := &http.Server{
		Addr:              listen,
		Handler:           handler,
		ReadHeaderTimeout: 5 * time.Second,
		ReadTimeout:       30 * time.Second,
		WriteTimeout:      45 * time.Second,
		IdleTimeout:       60 * time.Second,
		MaxHeaderBytes:    1 << 20,
	}

	signals := make(chan os.Signal, 1)
	signal.Notify(signals, os.Interrupt, syscall.SIGTERM)

	go func() {
		<-signals
		log.Print("shutdown signal received")
		ctx, cancel := context.WithTimeout(context.Background(), drainTimeout)
		defer cancel()

		if err := server.Shutdown(ctx); err != nil {
			log.Printf("graceful shutdown failed: %v", err)
			_ = server.Close()
		}
	}()

	log.Printf("Go HTTP proxy listening on http://%s", listen)
	err = server.ListenAndServe()
	if err != nil && !errors.Is(err, http.ErrServerClosed) {
		log.Fatal(err)
	}

	transport.CloseIdleConnections()
}

Go’s reverse-proxy implementation removes hop-by-hop headers and supports cancellation through the request context. The Rewrite API removes inbound Forwarded and X-Forwarded-* headers before the callback and SetXForwarded constructs new values. This is safer than appending to arbitrary client claims, but the direct peer might itself be a trusted relay. Define the identity boundary for your deployment rather than interpreting an address header as authentication.

The example limits request bodies but does not impose a universal response-body byte cap. It uses a response-header timeout and server write timeout. If your application requires a strict response size, add a protocol-aware response policy and test streaming behavior before publication.

Go TCP reverse proxy

Save this as go-proxies/tcp_proxy.go:

package main

import (
	"context"
	"io"
	"log"
	"net"
	"os"
	"os/signal"
	"strconv"
	"sync"
	"syscall"
	"time"
)

func envInt(name string, fallback int) int {
	value, err := strconv.Atoi(os.Getenv(name))
	if err != nil || value <= 0 {
		return fallback
	}
	return value
}

func copyHalfClose(destination net.Conn, source net.Conn, done chan<- error) {
	_, err := io.Copy(destination, source)
	if tcp, ok := destination.(*net.TCPConn); ok {
		_ = tcp.CloseWrite()
	}
	done <- err
}

func relay(client net.Conn, upstream string, dialTimeout, lifetime time.Duration) {
	defer client.Close()

	dialer := net.Dialer{Timeout: dialTimeout}
	server, err := dialer.Dial("tcp", upstream)
	if err != nil {
		log.Printf("upstream dial failed for %s: %v", client.RemoteAddr(), err)
		return
	}
	defer server.Close()

	deadline := time.Now().Add(lifetime)
	_ = client.SetDeadline(deadline)
	_ = server.SetDeadline(deadline)

	done := make(chan error, 2)
	go copyHalfClose(server, client, done)
	go copyHalfClose(client, server, done)

	first := <-done
	second := <-done
	if first != nil {
		log.Printf("relay direction ended with error: %v", first)
	}
	if second != nil {
		log.Printf("relay direction ended with error: %v", second)
	}
}

func main() {
	listen := os.Getenv("LISTEN_ADDR")
	if listen == "" {
		listen = "127.0.0.1:7000"
	}

	upstream := os.Getenv("UPSTREAM_ADDR")
	if upstream == "" {
		upstream = "127.0.0.1:9001"
	}

	dialTimeout := time.Duration(envInt("DIAL_TIMEOUT_SECS", 5)) * time.Second
	lifetime := time.Duration(envInt("CONNECTION_LIFETIME_SECS", 300)) * time.Second
	drainTimeout := time.Duration(envInt("DRAIN_TIMEOUT_SECS", 15)) * time.Second
	maxConnections := envInt("MAX_CONNECTIONS", 128)

	listener, err := net.Listen("tcp", listen)
	if err != nil {
		log.Fatal(err)
	}

	ctx, stop := signal.NotifyContext(
		context.Background(),
		os.Interrupt,
		syscall.SIGTERM,
	)
	defer stop()

	permits := make(chan struct{}, maxConnections)
	var active sync.WaitGroup

	go func() {
		<-ctx.Done()
		log.Print("shutdown signal received; stopping admission")
		_ = listener.Close()
	}()

	log.Printf("Go TCP proxy listening on %s, upstream %s", listen, upstream)

	for {
		client, err := listener.Accept()
		if err != nil {
			if ctx.Err() != nil {
				break
			}
			log.Printf("accept failed: %v", err)
			continue
		}

		select {
		case permits <- struct{}{}:
			active.Add(1)
			go func() {
				defer active.Done()
				defer func() { <-permits }()
				relay(client, upstream, dialTimeout, lifetime)
			}()
		default:
			log.Printf("connection rejected at limit: %s", client.RemoteAddr())
			_ = client.Close()
		}
	}

	drained := make(chan struct{})
	go func() {
		active.Wait()
		close(drained)
	}()

	select {
	case <-drained:
		log.Print("active TCP connections drained")
	case <-time.After(drainTimeout):
		log.Print("drain deadline reached; active connections will end with process exit")
	}
}

As in the Rust TCP example, SetDeadline applies an absolute lifetime. It does not reset when traffic moves. The two copy goroutines complete independently, allowing one side to finish sending while the opposite direction drains. Process exit after the drain deadline closes any remaining operating-system sockets.

Start the test services and verify every proxy locally

Local verification separates proxy defects from tunnel configuration problems. Start the upstream first, then one proxy implementation, then issue the client request. Expected results are included below.

Start the HTTP upstream

From an empty temporary directory, start Python’s static HTTP server:

mkdir -p /tmp/micro-proxy-http
printf 'micro proxy upstream is working\n' > /tmp/micro-proxy-http/index.html
cd /tmp/micro-proxy-http
python3 -m http.server 9000 --bind 127.0.0.1

In another terminal, verify the upstream directly:

curl -i http://127.0.0.1:9000/

Expect HTTP/1.0 200 OK or HTTP/1.1 200 OK, depending on the Python version, followed by micro proxy upstream is working.

Run and test the Rust HTTP proxy

cd micro-proxies/rust-proxies
cargo run --bin http_proxy

In another terminal:

curl -i http://127.0.0.1:8080/

Expect a successful status and the same upstream body. To inspect the resolved dependency graph and preserve it for review, use:

cargo tree
cargo test
cargo clippy --all-targets --all-features

Run and test the Go HTTP proxy

Stop the Rust HTTP proxy with Ctrl+C, then run:

cd micro-proxies/go-proxies
go run http_proxy.go

Test the same listener:

curl -i http://127.0.0.1:8080/
go vet ./...

The response should match the direct upstream result. If it returns 502 Bad Gateway, confirm that the Python service is still running on port 9000.

Start a TCP echo upstream

Stop any process using port 9001, then run this small standard-library echo server:

python3 - <<'PY'
import socket
import threading

def echo(conn):
    with conn:
        while True:
            data = conn.recv(65536)
            if not data:
                return
            conn.sendall(data)

with socket.socket() as server:
    server.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
    server.bind(("127.0.0.1", 9001))
    server.listen()
    print("TCP echo upstream listening on 127.0.0.1:9001")
    while True:
        conn, _ = server.accept()
        threading.Thread(target=echo, args=(conn,), daemon=True).start()
PY

Run and test the Rust TCP proxy

cd micro-proxies/rust-proxies
cargo run --bin tcp_proxy

Use Python as the client:

python3 - <<'PY'
import socket

with socket.create_connection(("127.0.0.1", 7000), timeout=5) as sock:
    sock.sendall(b"hello through rust\n")
    print(sock.recv(4096).decode(), end="")
PY

Expect hello through rust. The proxy should also log transferred byte counts when the connection closes.

Run and test the Go TCP proxy

Stop the Rust TCP proxy, then run:

cd micro-proxies/go-proxies
go run tcp_proxy.go

Test it:

python3 - <<'PY'
import socket

with socket.create_connection(("127.0.0.1", 7000), timeout=5) as sock:
    sock.sendall(b"hello through go\n")
    print(sock.recv(4096).decode(), end="")
PY

Expect hello through go.

Verify limits, malformed input, and shutdown

Test the one-megabyte HTTP request limit with a body slightly above the default:

python3 - <<'PY' | curl -i --data-binary @- http://127.0.0.1:8080/
import sys
sys.stdout.buffer.write(b"x" * 1100000)
PY

The Rust implementation returns 413 Payload Too Large. The Go server also rejects an oversized body when the reverse proxy attempts to read it, although the exact connection presentation can vary with client and transport behavior.

Send malformed HTTP directly over a socket:

python3 - <<'PY'
import socket

with socket.create_connection(("127.0.0.1", 8080), timeout=5) as sock:
    sock.sendall(b"GET / HTTP/1.1\r\nBroken Header\r\n\r\n")
    print(sock.recv(4096).decode(errors="replace"))
PY

Expect the HTTP server library to reject the malformed request rather than forward it. The exact error body is library-specific and should not be used as an application contract.

For graceful shutdown, begin a request or TCP session, press Ctrl+C in the proxy terminal, and observe that the listener stops accepting new work. HTTP shutdown waits for active requests according to the server behavior and configured drain period. TCP shutdown waits for active tasks until its drain deadline. Test this again with an intentionally slow upstream before relying on it operationally.

Security, resource controls, and observability

Do not treat forwarding headers as identity

X-Forwarded-For and Forwarded are metadata, not authentication credentials. A direct internet client can submit either header. The examples discard the inbound values and reconstruct forwarding information from the connected peer. If another trusted proxy sits in front of the micro proxy, define exactly which hop is trusted and how its metadata is validated.

Avoid authorizing administrative operations from a claimed client IP alone. Use application authentication, least privilege, explicit route policy, and separate private listeners for metrics, debugging, profiling, or administration.

Understand HTTP limitations

These examples are suitable for learning, controlled development exposure, and narrow internal tools after review. They do not implement dynamic routing, retries, circuit breaking, WebSocket-specific policy, cache behavior, rate limiting by authenticated identity, distributed tracing, access-control rules, certificate management, or response transformation.

The Rust HTTP proxy buffers request bodies, so it is not intended for large uploads. The Go proxy relies on the standard reverse proxy for streaming and connection management, but a general server write timeout can conflict with legitimately long streaming responses. Neither example should be assumed to support every upgrade or long-lived streaming workflow without dedicated tests.

Understand TCP limitations

A raw TCP relay cannot inspect application messages or enforce HTTP methods, paths, body limits, or status-code policy. The maximum connection lifetime prevents indefinite retention, but it can interrupt valid long-running sessions. A strict idle timeout needs activity-aware deadline renewal. TLS, authentication, and application authorization must be supplied by the carried protocol or another deliberately configured layer.

Log outcomes, not secrets

Useful telemetry includes accepted and rejected connections, active requests, upstream dial failures, timeout counts, broad response-status groups, transferred byte totals, and graceful-shutdown duration. Do not log authorization headers, cookies, authentication tokens, full sensitive URLs, request or response payloads, or arbitrary user-controlled strings without sanitization.

Metric labels should have bounded cardinality. A raw URL, client-supplied request identifier, arbitrary hostname, or complete error string can generate an unbounded number of label values. Record stable route categories and sanitized error classes instead.

Rust and Go implementation tradeoffs

Both languages can implement efficient concurrent proxies. The examples differ mainly in how they express ownership, cancellation, and network lifecycle. Rust makes task ownership and shared permits explicit, while Go uses goroutines, channels, contexts, and server shutdown APIs. Neither language automatically prevents unlimited concurrency, missing deadlines, forwarding-header mistakes, or application-level denial of service.

Choose based on team expertise, deployment constraints, dependency policy, and measurements from representative traffic. Rust’s ownership model can make resource relationships explicit. Go’s standard networking APIs can keep a small service concise. Generic language benchmarks do not replace testing with realistic body sizes, connection churn, upstream latency, failure rates, and shutdown conditions.

Publish a tested proxy with Localtonet

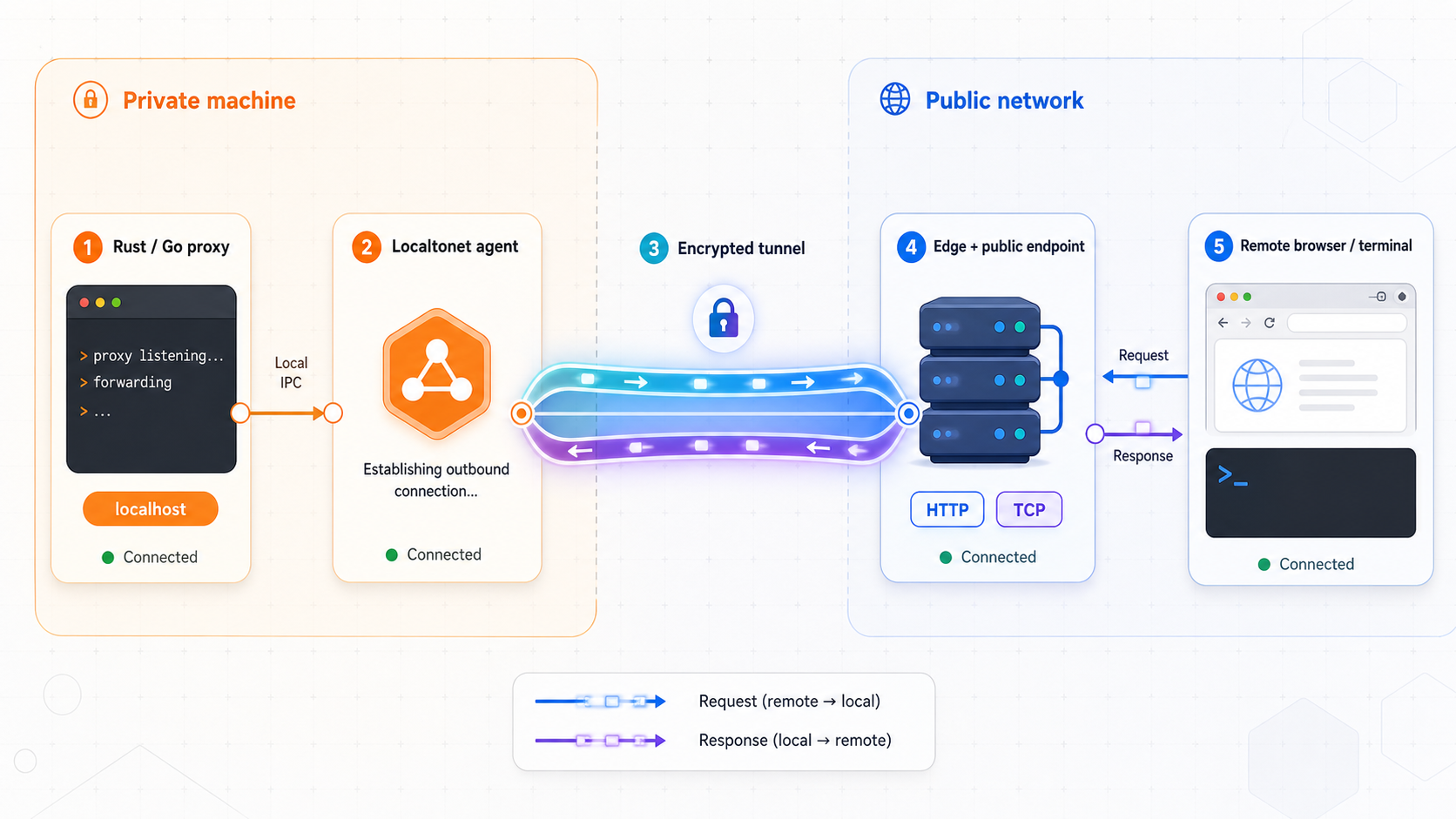

A reverse proxy and an outbound tunnel solve separate problems. Your Rust or Go process owns upstream selection, HTTP handling, connection limits, timeouts, logging, and shutdown. With Localtonet, our client application establishes an outbound connection to a Localtonet relay server. The resulting tunnel supplies a public URL or a public host and port without inbound router port forwarding, firewall changes, VPN setup, or a public IP address.

Complete local verification before creating public reachability. For current interface details, consult the Localtonet HTTP tunnel documentation or Localtonet TCP tunnel documentation alongside the workflow below.

Verify an HTTP tunnel publicly

Substitute the public HTTPS URL displayed by the dashboard:

curl -i https://your-assigned-public-url.example/

The placeholder is not a real Localtonet address. Use only the assigned URL shown for your running tunnel. Expect the same successful body returned during local testing. Also test an unknown path, an oversized request, an upstream outage, and any application authentication requirement.

Verify a TCP tunnel publicly

Substitute the assigned host and port:

PUBLIC_HOST="assigned-host-from-dashboard"
PUBLIC_PORT="assigned-port-from-dashboard"

python3 - "$PUBLIC_HOST" "$PUBLIC_PORT" <<'PY'
import socket
import sys

host = sys.argv[1]
port = int(sys.argv[2])

with socket.create_connection((host, port), timeout=10) as sock:
    sock.sendall(b"hello through public tcp tunnel\n")
    print(sock.recv(4096).decode(), end="")
PY

Expect the echo message to return through the TCP proxy. Do not paste a token into these commands. The public host and port are endpoint coordinates, while the device token is a secret used to identify the Localtonet client.

Troubleshooting and routine operation

The listener reports that the address is already in use

Another process already owns the configured port, or the previous proxy is still running. Stop that process or select another listener. For example:

LISTEN_ADDR=127.0.0.1:8081 cargo run --bin http_proxy
LISTEN_ADDR=127.0.0.1:8081 go run http_proxy.go

If the Localtonet tunnel already exists, update its local target to the listener you actually selected. Do not accidentally point an HTTP tunnel at the TCP listener or vice versa.

The proxy returns a refused connection or 502 response

Test the upstream directly. For HTTP, run curl -i http://127.0.0.1:9000/. For TCP, connect directly to port 9001 with the Python client. Confirm that UPSTREAM_URL includes the correct HTTP scheme and that UPSTREAM_ADDR contains a valid host and port.

Check for a forwarding loop. The upstream must not equal the proxy listener. A proxy listening on port 8080 cannot safely use http://127.0.0.1:8080 as its own upstream.

Requests or connections time out

Determine which phase timed out: client-to-proxy, upstream dialing, response headers, body transfer, or total TCP lifetime. A slow HTTP upstream may exceed UPSTREAM_TIMEOUT_SECS. A legitimate long-lived TCP session may exceed CONNECTION_LIFETIME_SECS. Increase limits only after confirming that the traffic is expected and that concurrency remains bounded.

Connections appear leaked or stalled

Inspect whether the client or upstream is waiting indefinitely for the other side to send or close. The TCP examples impose an absolute deadline, which eventually releases the connection. For a maintained service, add active-connection metrics and activity-aware idle deadlines. Verify that termination reaches the drain path and that repeated restarts are not leaving old processes behind.

Forwarding headers show an unexpected address

The directly connected peer may be the Localtonet client path or another local relay rather than the original public client. Do not use the header as proof of identity. If the application needs verified user identity, use application authentication. Header provenance and client-address behavior should be tested in the exact deployment rather than assumed.

The public endpoint does not connect

Test the proxy locally first. Then confirm that the Localtonet client is running on the selected device, the correct device token was used, the local target address is reachable from that device, and the tunnel was started. A created but stopped tunnel is unavailable. A running tunnel also becomes unavailable if its selected client or device disconnects.

How to stop and restart safely

For temporary exposure, stop the Localtonet tunnel first so new public traffic no longer arrives. Send Ctrl+C or a normal termination signal to the proxy and allow the drain deadline to complete. Restart the upstream if necessary, start the proxy, repeat the direct local test, then start the tunnel and repeat public verification.

Final validation checklist

Before treating either implementation as an operational service, verify all of the following:

• The listener binds only to the intended local or LAN interface.
• The upstream is fixed by trusted operator configuration and cannot be replaced by client input.
• The upstream does not point back to the proxy listener.
• HTTP request-body, header, concurrency, and timeout behavior has been tested.
• TCP concurrency, dial failure, half-close, lifetime, and drain behavior has been tested.
• Malformed HTTP is rejected by the HTTP library rather than forwarded as an ambiguous message.
• Client-supplied forwarding headers are not accepted as authenticated identity.
• Authentication and authorization are enforced by the appropriate application or proxy layer.
• Logs omit tokens, cookies, authorization headers, payloads, and other secrets.
• The proxy drains active work when it receives a normal termination signal.
• The Localtonet tunnel targets the proxy listener rather than a metrics or administrative endpoint.
• HTTP publication is tested with the assigned public URL and TCP publication with the assigned public host and port.
• The tunnel is stopped when temporary public access is no longer required.

Frequently asked questions
