T-Mobile Home Internet Port Forwarding Explained: CGNAT, Limits, and Alternatives

The short answer

Traditional IPv4 port forwarding generally cannot produce a publicly reachable port when a T-Mobile Home Internet connection is behind carrier-grade NAT, usually shortened to CGNAT. A rule on your home gateway controls only the translation performed by that gateway. It cannot create an inbound mapping on an upstream carrier gateway that you do not administer.

This limitation applies to unsolicited inbound IPv4 traffic. It does not mean ordinary internet access will stop working. Web browsing, streaming, cloud-managed devices, and many online games initiate outbound sessions and can operate through NAT. The problem appears when an outside user or system must initiate a connection to something inside your home, such as a self-hosted website, webhook receiver, game server, TCP application, UDP service, or file server.

There are several possible responses. You can ask the provider whether a publicly reachable address is available for your specific service, evaluate end-to-end IPv6, place the application on an external host, operate your own relay, use a private mesh VPN, or create an outbound managed tunnel. The correct choice depends on whether the service should be public or limited to authorized devices.

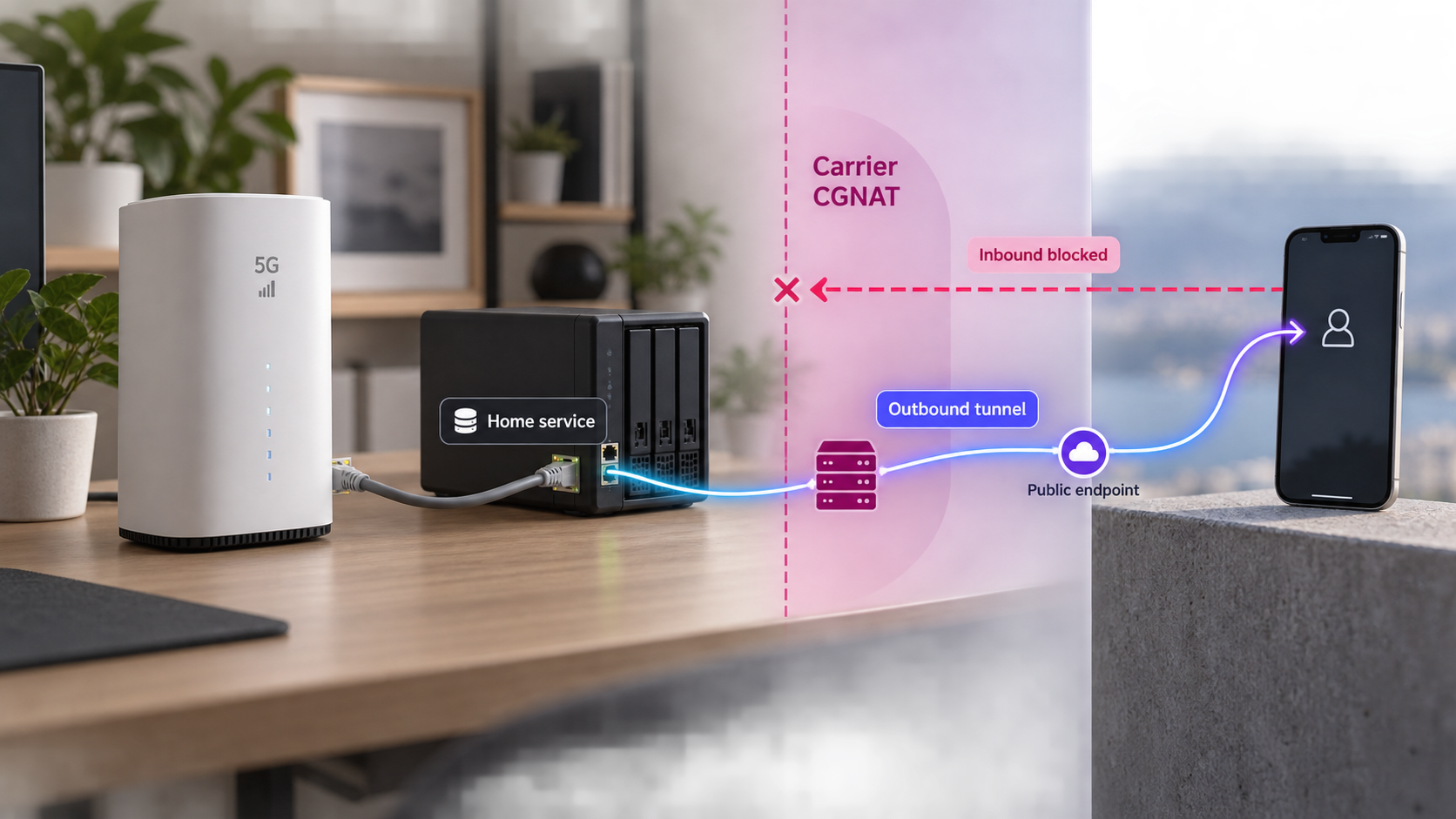

With Localtonet, our client runs on a device that can reach the local service and establishes an outbound connection to a Localtonet relay. The tunnel provides a public URL or public host and port. This workflow does not require inbound router port forwarding, firewall changes at the carrier boundary, VPN setup, or a public IP address. It does not remove CGNAT. It creates a separate path around the inbound limitation.

What CGNAT changes in the network path

Network Address Translation allows devices using internal addresses to communicate through another address. In a conventional home IPv4 arrangement, computers and phones receive private LAN addresses from the router. The router translates their outbound connections to an IPv4 address assigned by the internet provider.

If the router receives a publicly reachable IPv4 address, it may be possible to configure a port-forwarding rule. For example, the router could direct an incoming TCP connection on a selected public port to a web server on a fixed LAN address. The rule works because the public packet reaches a device you control before it needs to be translated to the internal destination.

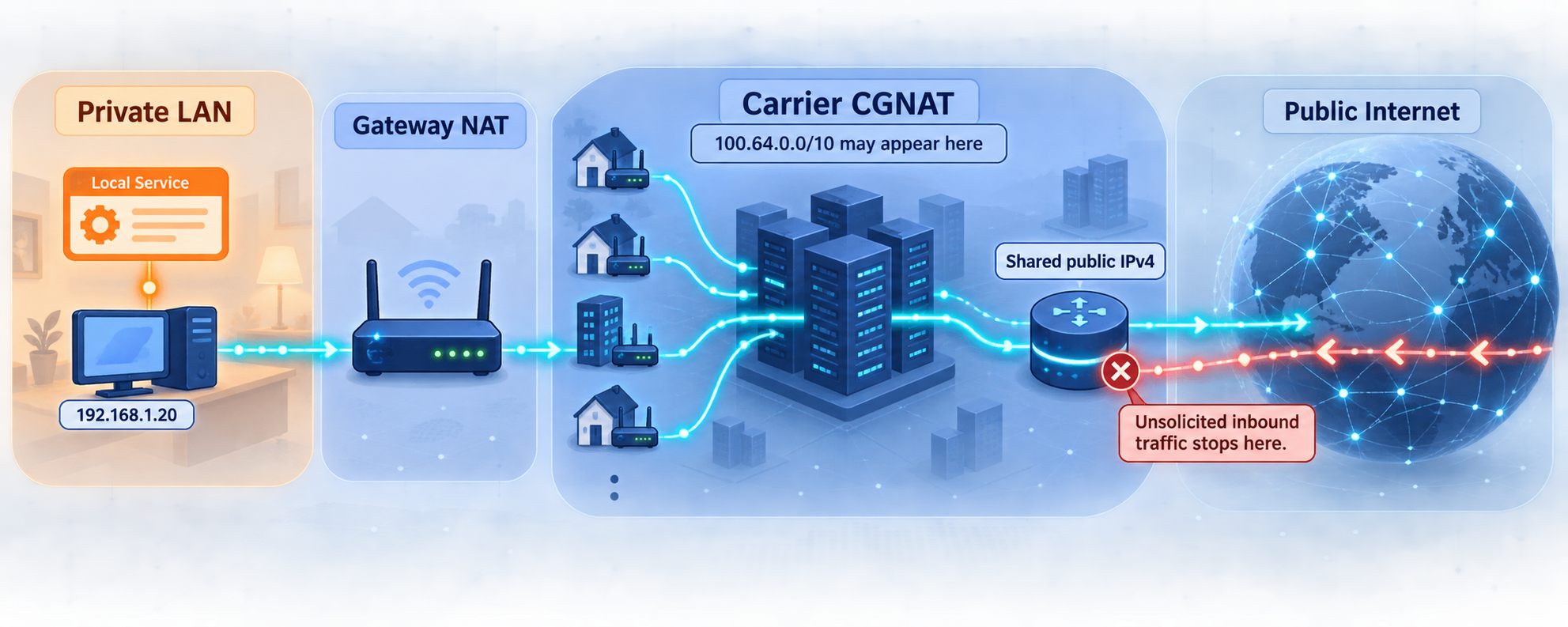

CGNAT adds another translation layer inside the provider network. Your gateway receives an address that is not itself the final public IPv4 address used on the internet. The carrier translates traffic again, allowing multiple subscribers to share public IPv4 addresses. Outbound connections can be tracked because a device inside the network initiated them. An unsolicited inbound connection has no subscriber-specific mapping unless the carrier provides one.

The shared IPv4 block 100.64.0.0/10, covering 100.64.0.0 through 100.127.255.255, was reserved for service-provider shared address space by RFC 6598. It is not ordinary globally routable public address space, and it is distinct from the private address ranges commonly used on home LANs.

The resulting path can contain two translation boundaries:

1. Your home gateway translates between the LAN and its provider-facing address.
2. The provider translates between subscriber-facing shared addressing and a public IPv4 address.

A forwarding rule on the first device cannot configure the second device. That is why a gateway may accept and display a local port-forwarding rule even though outside traffic never reaches it.

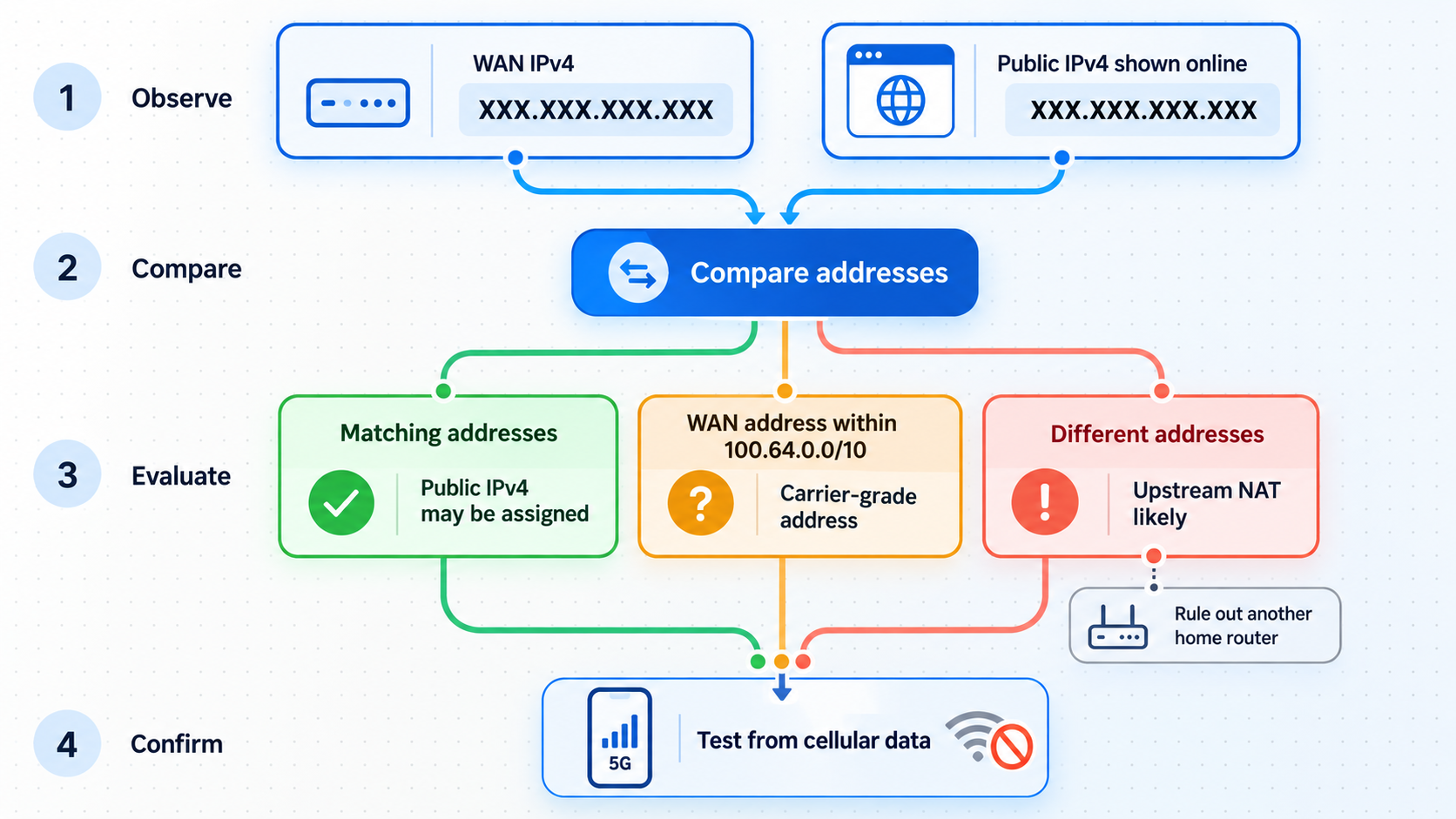

How to diagnose CGNAT accurately

A WAN-versus-public-address comparison is a useful diagnostic, but it must be interpreted carefully. It is evidence about the address path, not an absolute proof of every provider implementation.

Why the comparison has limits

Address mismatches can also arise from a second router installed inside the home, a modem-router combination, a managed security appliance, or another form of upstream translation. Conversely, provider networks can use transition mechanisms or internal routing that are not fully described by one displayed address. The comparison tells you that another boundary probably exists. It does not reveal every implementation detail or guarantee that a particular inbound feature is supported.

If your gateway does not display a meaningful provider-facing IPv4 address, do not guess from the LAN address. Treat the missing value as an inconclusive test and use the provider's current documentation, support channel, and practical external testing to establish what is possible.

Test IPv6 without assuming it solves the problem

IPv6 can provide globally scoped addresses without traditional IPv4 NAT, but a global IPv6 address does not automatically make an application reachable. The host firewall, gateway firewall, provider policy, application bind address, prefix stability, and the remote client's IPv6 connectivity all matter.

Use a deliberate dual-stack test:

1. On the server, inspect the network interfaces for a global IPv6 address. On Linux, ip -6 address can show configured addresses. Avoid treating link-local addresses beginning with fe80: as internet-routable destinations.
2. Confirm that the application is listening on IPv6, not only on IPv4 loopback. On Linux, ss -lntup can show listening TCP and UDP sockets.
3. Review the host firewall and current gateway firewall controls. Permit only the required protocol and port if direct IPv6 exposure is intended.
4. From a separate network with working IPv6, connect to the service using its IPv6 destination. For an HTTP service on a nonstandard port, IPv6 URL syntax uses brackets, such as http://[2001:db8::10]:8080/. The documentation prefix in this example must be replaced with the server's real address.
5. Repeat the test after reconnecting or after enough time has passed to determine whether the address or delegated prefix remains suitable for your use case.

Why common router fixes do not remove carrier NAT

Several familiar techniques are useful when the home gateway owns the relevant public address. None can independently create a subscriber-specific inbound mapping at a carrier NAT layer.

These techniques are not inherently defective. They simply solve different problems. Dynamic DNS is useful when a publicly reachable address changes. UPnP can automate mappings on a router that owns the public address. Bridge mode can eliminate local double NAT. Their limitation is that the controlling device must have authority over the relevant inbound boundary.

When inbound connectivity is actually required

Before creating any public endpoint, determine whether the application truly needs one. Cloud-managed products and client applications often keep outbound sessions open to a vendor service. They do not require a stranger on the internet to initiate a connection to your gateway.

Compare alternatives to traditional port forwarding

A public tunnel and a private VPN answer different questions. Use a tunnel when an external service or member of the public needs a reachable endpoint. Use VPN Manager when only enrolled devices or connected private networks should have access. Standard Localtonet HTTP, TCP, UDP, TLS, and File Server tunnels should not be described as VPN functionality.

Prerequisites before creating a Localtonet tunnel

Complete the local service setup before involving CGNAT or Localtonet. A tunnel can carry traffic to a reachable target, but it cannot repair an application that is stopped, listening on the wrong interface, blocked by the host firewall, or configured for another protocol.

• A Localtonet account and a device-specific authentication token.
• A supported Localtonet client environment. Current documented choices include Windows 64-bit, 32-bit, ARM, and ARM64 builds; Linux 64-bit, ARM, ARM64, and MUSL variants; macOS 64-bit and ARM64; Docker; Android; installable Linux DEB and RPM packages; Termux on ARM64 Android; and experimental x64 or ARM64 OpenWrt packages for listed firmware generations.
• A computer or device that will stay powered on and can reach the target service or folder.
• The target's local IP address, port, and transport protocol, or the local folder path for File Server.
• Application-level authentication and authorization suitable for remote access.
• An external test network that is separate from the T-Mobile Home Internet connection.

Package requirements vary. The current Linux DEB and RPM packages require systemd 247 or newer and OpenSSL 3, with documented examples including Debian 12, Ubuntu 22.04 or newer, and RHEL 9. OpenWrt packages are experimental, architecture-specific, and limited to the currently listed firmware and CPU combinations. Check the current Localtonet download and installation documentation before choosing a build.

Verify the application locally first

Test from the same device whenever possible. Then, if the Localtonet client will run on another LAN device, repeat the test from that client device. This second test catches bind-address and local firewall problems before they are mistaken for tunnel failures.

For an HTTP application on port 8080:

curl -i http://127.0.0.1:8080/

An HTTP response such as 200, 301, 302, 401, or 403 proves that an HTTP server answered. An authentication response can be expected and is different from a connection refusal or timeout.

For a TCP service, use the service's native client when available. A basic connection test from another machine can also establish whether a TCP listener accepts connections:

nc -vz 192.168.1.50 25565

Replace the example LAN address and port with the actual target. A successful TCP connection does not prove that the application's full protocol exchange works, so complete a native-client login or request as well.

UDP has no TCP-style connection handshake. A generic port probe can therefore be inconclusive. Use the application's native client and confirm an application-level response, server log entry, or known request and response exchange. Also verify that the server is configured for UDP rather than assuming that a TCP listener on the same port is sufficient.

Choose the correct Localtonet tunnel family

Select the tunnel according to what the local application actually speaks. Availability of a particular option, relay, region, or capability can vary by plan, client version, or deployment, so confirm current choices in the dashboard.

Proxy Server is another Localtonet family, but its purpose is different. HTTP and SOCKS5 proxy tunnels make the connected device the proxy exit node. They do not forward public traffic to a conventional local IP address and port, so they are not the normal choice for publishing a home server.

Game compatibility must be evaluated separately. A game may rely on TCP, UDP, both transports, peer discovery, platform matchmaking, source-port behavior, or proprietary NAT traversal. Creating a reachable port does not guarantee an “open NAT” classification, lower latency, console compatibility, or successful matchmaking.

Install and run the Localtonet client

Download the appropriate client from the Localtonet documentation. Windows, macOS, Docker, Android, Linux archive, Linux package, Termux, and experimental OpenWrt paths are currently documented. Follow the instructions shown for the exact operating system and architecture rather than substituting a binary intended for another platform.

Exact Debian or Ubuntu x64 package workflow

The following three-step sequence matches the current documented x64 DEB package workflow. It requires systemd 247 or newer and OpenSSL 3.

sudo apt install ./localtonet-linux-x64.deb

sudo chmod 600 /etc/localtonet/auth-token
sudo localtonet --headless --authtoken-file /etc/localtonet/auth-token --check-config

sudo systemctl enable --now localtonet.service
sudo journalctl -u localtonet.service

The ARM64 Debian and Ubuntu package follows the same three actions with the documented ARM64 package filename. RPM packages are available for the documented Fedora and RHEL x64 and ARM64 environments and use the corresponding dnf install command. For upgrades, install the new package and restart localtonet.service; the package workflow preserves the configuration.

Configure the appropriate public or private access path

Network service lifecycle for HTTP, TCP, UDP, combined UDP/TCP, or TLS

For a network service, first select the corresponding tunnel family in the current dashboard. Select the authenticated device that can reach the local target and choose a relay server or region from the values currently offered. Do not copy a server code from an old tutorial because available values can change.

Enter the local target IP address and port. If the application runs on the same machine as the client and listens on loopback, its target may be a loopback address. If it runs on another LAN device, enter that device's stable LAN address and ensure the client machine can already reach it. Choose the applicable process or public-address option where the selected tunnel family presents one.

Create the tunnel, then explicitly press Start. Creation and startup are separate lifecycle actions. The public endpoint becomes usable only while the selected client is connected and the tunnel is running.

The exact fields differ between tunnel families. Use the protocol-specific page reached through the current documentation navigation for field names and options shown by the current product. This guide does not combine those different forms into an artificial universal sequence.

Exact File Server setup workflow

File Server is different because it publishes a local folder rather than forwarding to a listening IP address and port. The documented setup sequence is:

Current File Server sub-types include Default, SFTP, and WebDAV. Default provides a browser-based file manager, SFTP supports standard SFTP clients and automation, and WebDAV can mount the folder as an operating-system network drive. Features documented for the Default web manager should not automatically be assumed to apply to SFTP or WebDAV unless current product documentation says so.

Use VPN Manager for private access

If the destination should be reachable only by your authorized devices or connected private networks, configure VPN Manager rather than publishing a public service tunnel. VPN Manager provides a private mesh VPN with granular firewall rules and can bridge local LANs. It is separate from standard HTTP, TCP, UDP, TLS, and File Server tunneling.

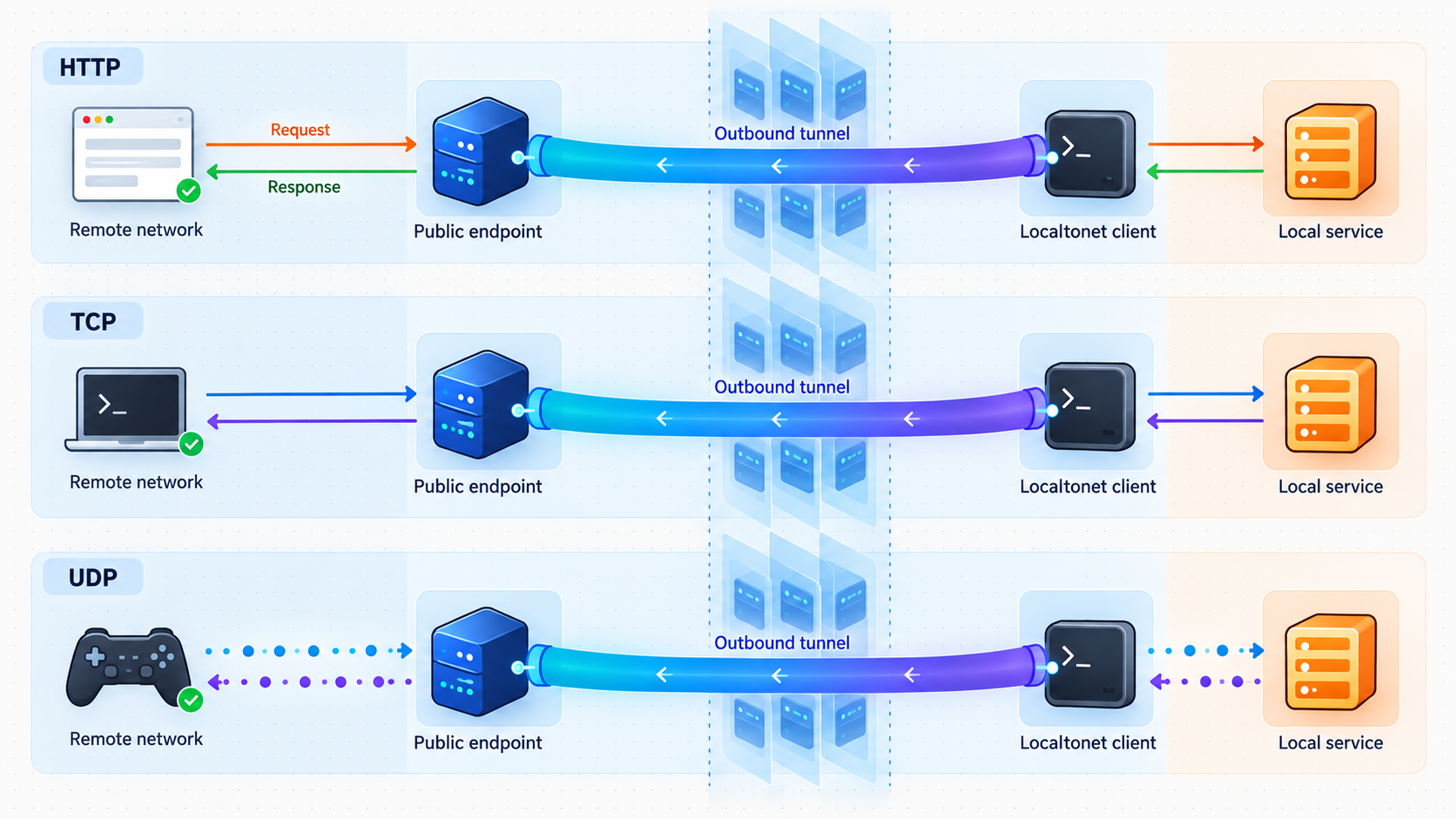

Verify HTTP, TCP, and UDP access remotely

Use a network outside the T-Mobile Home Internet connection. Disable Wi-Fi on a phone before using mobile data, or test from a remote system you control. Confirm that the public hostname and port are the exact values assigned to the running tunnel.

Verify an HTTP or HTTPS application

1. Open the assigned public URL in a browser from the external network.
2. Use curl to inspect the response status and headers if the browser shows an ambiguous error.
3. Complete an application-level action, such as signing in with a test account or sending a non-destructive API request.
4. Inspect the local application log to confirm that the request reached the intended process.

curl -i https://your-assigned-public-host/

Replace the example with the endpoint assigned by Localtonet. A 401 Unauthorized or 403 Forbidden response may prove that routing works while application authorization is denying the request. Do not mistake an expected authentication response for a tunnel failure.

Verify a TCP service

1. Use the assigned public host and public port, not the private LAN address.
2. Test whether a TCP connection can be established.
3. Use the application's native client to complete its actual handshake, login, or request.
4. Check both Localtonet client status and local application logs while testing.

nc -vz your-assigned-public-host 12345

A successful generic connection proves only that the TCP path accepted a connection. It does not validate credentials, protocol negotiation, application permissions, or compatibility.

Verify a UDP service

UDP verification must be application-specific. A lack of response to an arbitrary datagram does not establish that the port is closed, because many UDP applications ignore unknown payloads. Use the real client or a documented protocol request, then verify one or more of the following:

• The client receives a valid application response.
• The server records the request in its logs.
• The application reports a successful session or registration.
• A packet capture on the local host shows the expected request reaching the service.

If software requires both TCP and UDP, verify each transport separately. A successful TCP test says nothing about the UDP path on the same numeric port.

Routine operation and outage expectations

A tunnel is not permanently available merely because its configuration exists in the dashboard. Four components must remain healthy: the local application, the device running the Localtonet client, the device's internet connection, and the running tunnel.

• Confirm that the Localtonet client starts after an intended reboot. The documented Linux package can run as a systemd service.
• Keep the target application's address and port stable. Use an appropriate LAN address strategy if the target runs on another device.
• Review application and client logs after updates or network changes.
• Test the public endpoint after changing the application, firewall, operating system, gateway, or tunnel configuration.
• Stop the tunnel when public access is no longer needed. Delete obsolete configurations that should not be started again.
• Restart the documented Localtonet service after a Linux package upgrade.

A local power outage, application crash, client shutdown, home internet interruption, or stopped tunnel can make the endpoint unavailable. Localtonet does not make the home service independent of the device or connection hosting it. If the workload needs availability that should not depend on a residential connection, consider external hosting or another architecture designed for that requirement.

Do not publish assumed uptime, performance, latency, or geographic coverage. Relay and region choices must be taken from the current product, and availability may vary by plan or deployment.

Secure the service before publishing it

CGNAT may have prevented unsolicited IPv4 traffic from reaching the service, but it should not be treated as an application security control. Once a public endpoint exists, the application needs deliberate protection.

• Require application authentication. A secret URL is not a substitute for a login or signed request.
• Use unique credentials and multi-factor authentication where the application supports it.
• Grant the smallest permissions required for remote users or integrations.
• Update the application, operating system, runtime, and dependencies before exposure.
• Restrict access by application policy or available tunnel controls where appropriate.
• Protect device AuthTokens, API credentials, webhook secrets, and private endpoint details.
• Do not expose a database port, router administration page, or remote desktop listener directly when a safer authenticated application layer or private VPN is available.
• Monitor application logs for failed authentication and unexpected requests.
• Stop or delete the tunnel when the task is complete.

HTTP applications also need correct reverse-proxy awareness. Some applications reject an unfamiliar Host header, generate redirects to a private hostname, require an explicit list of trusted proxy addresses, or need configuration before accepting forwarded scheme and client-address information. Follow the application's own reverse-proxy documentation. Do not broadly trust forwarded headers from arbitrary network peers.

Troubleshooting a Localtonet endpoint behind T-Mobile Home Internet

The service is unreachable even on the local machine

Stop troubleshooting the tunnel and repair the application first. Confirm that the process is running, identify the actual port, inspect its logs, and use its native client locally. A connection refusal usually means nothing is listening at that address and port. A timeout can indicate a firewall, routing issue, or unresponsive application.

The service works on localhost but not from the Localtonet client device

The application may be bound only to 127.0.0.1 or ::1. Loopback listeners accept connections only from the same host. If the client runs on another LAN machine, configure the application to listen on an appropriate LAN interface and secure it with a narrow firewall rule. Do not bind indiscriminately to every interface without understanding the exposure.

The local target IP address or port is wrong

Verify the target from the machine running the Localtonet client. A stale LAN address is common when the application runs on another device. Confirm that the numeric port belongs to the intended service and that the tunnel does not point to an old development process.

The tunnel protocol does not match the application

An HTTP tunnel is for an HTTP application. It is not a universal wrapper for arbitrary TCP or UDP traffic. Likewise, a TCP tunnel does not carry UDP merely because both services use the same port number. Choose UDP/TCP only when the application requires both transports and verify each path independently.

The Localtonet client is disconnected

Check that the client process or service is running and authenticated with the intended device token. On a documented Linux package installation, inspect the service and journal:

sudo systemctl status localtonet.service
sudo journalctl -u localtonet.service

Also confirm that the device has working outbound internet access. Revalidate the configuration if the token file or installation changed.

The tunnel exists but was never started

Creating a configuration does not start it. Open the dashboard, select the correct device and tunnel, and press Start. Check that the status reflects a connected client and running tunnel before testing the public endpoint.

The local firewall blocks the client-to-service path

A service can work on loopback while a host firewall rejects connections from another LAN device. Add only the rule needed for the Localtonet client device and service port. Avoid disabling the entire firewall as a diagnostic shortcut. If the client runs on the same machine and targets loopback, confirm that local security software is not blocking that process or port.

The public web endpoint returns an application error

An HTTP status response usually means traffic reached an HTTP server. Investigate the application rather than immediately changing the tunnel. Common causes include missing authentication, an untrusted proxy configuration, a rejected host header, an incorrect base URL, redirects to a private hostname, or an application that expects HTTPS information from a trusted reverse proxy.

Compare the public response with the local response, inspect application logs, and follow that application's reverse-proxy guidance. Configure trusted proxies narrowly. Never disable host validation or trust all forwarding headers merely to suppress an error.

The browser works, but a webhook provider fails

Check whether the provider requires a particular method, path, response code, signature, or timeout. Confirm that the public URL includes the full callback path and that application authentication is compatible with automated requests. Review both provider delivery logs and local application logs.

A TCP probe succeeds, but the application client fails

The network path may be open while protocol negotiation fails. Check server version compatibility, TLS expectations, application credentials, source restrictions, and whether the client is connecting to the assigned public port rather than the local service port.

A UDP test gives no clear result

Use the native client and watch the server log or a packet capture. Confirm that the application is listening on UDP, that the Localtonet tunnel is UDP or combined UDP/TCP as required, and that the request format is valid. Generic UDP scans often report ambiguous results because there is no connection handshake.

Testing succeeds only from the home Wi-Fi

You may be reaching a private address, a local DNS override, or a locally routed hostname instead of the public tunnel. Turn off Wi-Fi on the test phone and verify that it is using an independent network. Re-enter the exact assigned public URL or host and port.

Testing fails only from one external network

The remote network may block the destination port, lack IPv6, filter UDP, or enforce an application policy. Test from a second independent network. If one path works and another does not, investigate the remote network rather than changing a working local target.
