How to Integrate a Barcode Scanner with a Local WMS and Access It from the Cloud

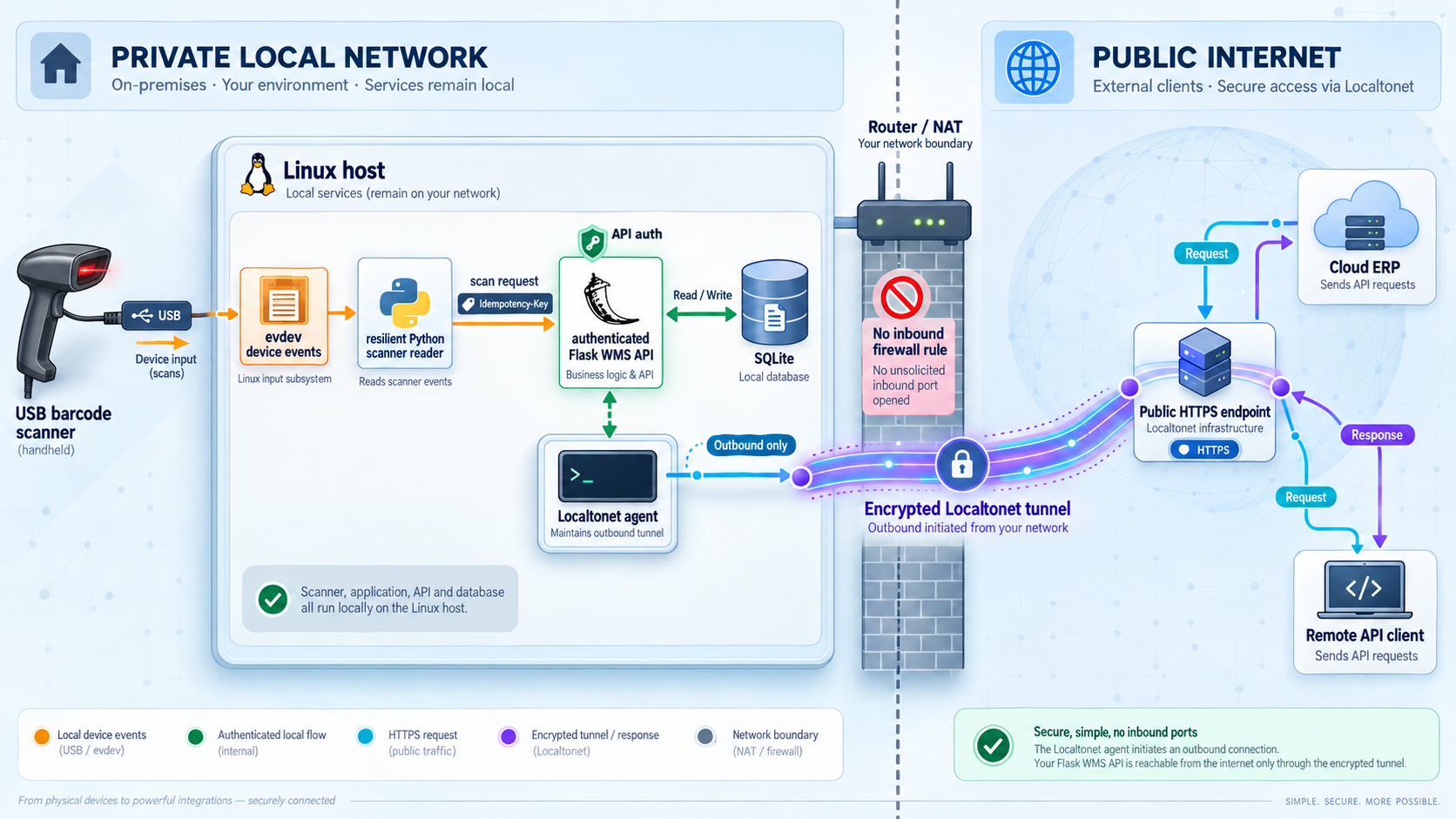

Architecture, data paths, and project scope

This project has two separate network paths. The first is the local scan path: a scanner sends HID keyboard events to a Linux reader, the reader durably records the decoded scan, and it submits that event to a WMS API on the same machine. The second is the cloud access path: an external client sends an authenticated HTTPS request to the public Localtonet address, the Localtonet relay carries that request over the client-initiated tunnel, and the local WMS processes it.

Optional WMS webhooks form a third, outbound path. The WMS sends those requests directly to a configured cloud webhook URL. They do not travel through the inbound Localtonet HTTP tunnel. Keeping these paths distinct makes failures easier to understand. A tunnel outage should not stop local scanning, and a webhook outage should not erase the locally committed event.

Linux-focused prerequisites

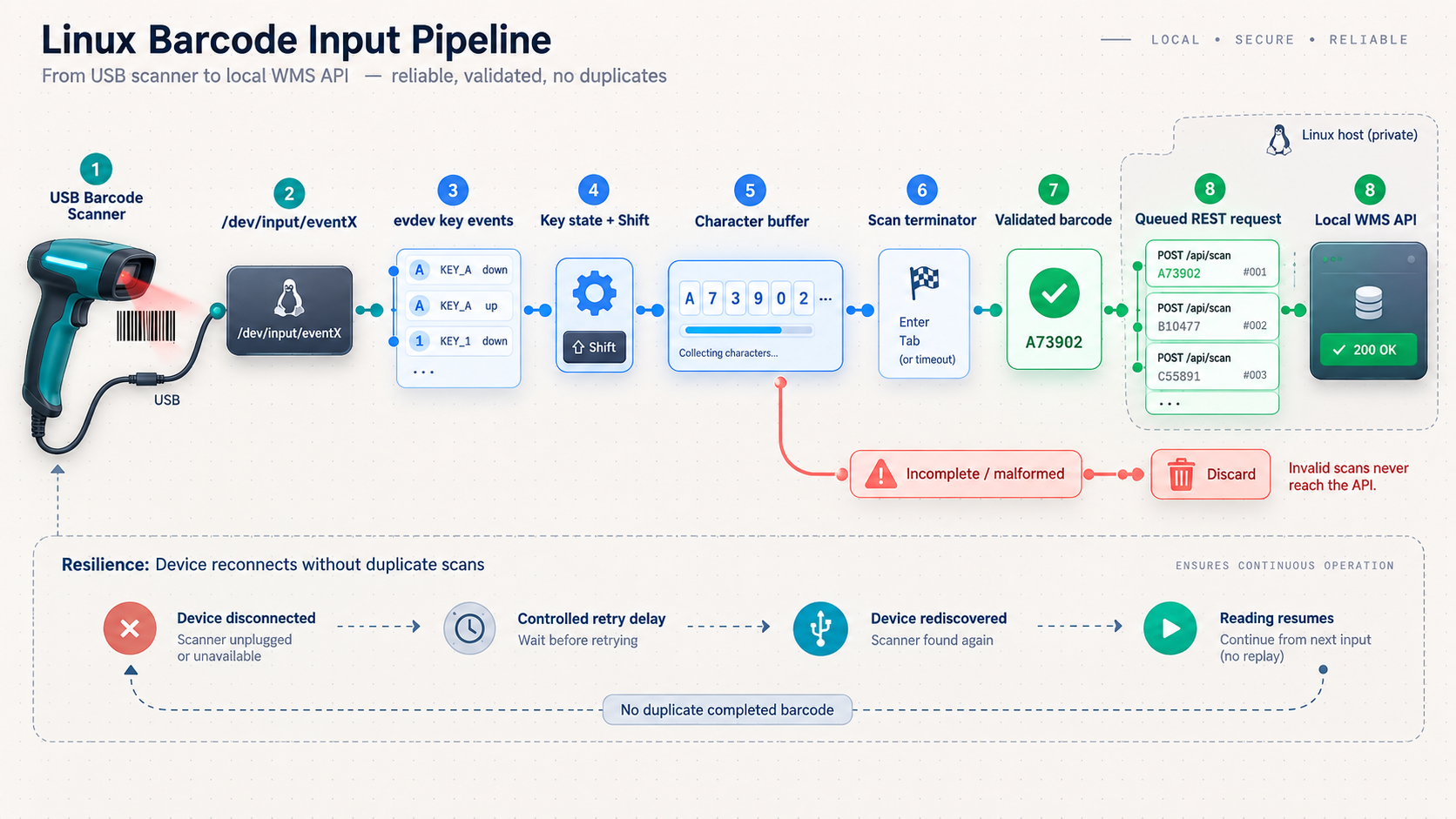

The scanner implementation in this guide uses Linux input devices and the Python evdev package. The API can run on other operating systems, but the reader and service examples below are specifically for a Linux host using systemd and udev.

Scanner mode and suffix configuration

Configure the scanner for USB HID keyboard mode, or pair a Bluetooth scanner that exposes a keyboard-compatible Linux input device. Bluetooth behavior depends on the scanner, its firmware, the pairing profile, and the host Bluetooth stack, so verify that the paired device actually appears under /dev/input before continuing.

Configure the scanner to append either Enter or Tab after every decoded value. The reader treats that suffix as the end of a scan. Scanner configuration barcodes and menu names are vendor-specific, so use the hardware manual for the exact procedure.

Host and software requirements

• A Linux machine that can reach the scanner and the local network.
• Python 3 with the venv module and pip.
• systemd for the persistent service examples.
• udev for stable scanner naming and least-privilege device permissions.
• Outbound access from the host to Localtonet relay services.
• Outbound HTTPS access if optional cloud webhooks are enabled.
• A Localtonet account and the Localtonet client installed on the device that will run the tunnel.
• An available device authentication token and relay server selected from the current Localtonet dashboard.

Network placement

The simplest arrangement runs the scanner reader, WMS API, and Localtonet client on the same Linux machine. The API can then listen only on 127.0.0.1:5000, reducing exposure on the warehouse LAN.

If the Localtonet client runs on another device, that device must be able to reach the WMS host and port. The API would also have to listen on an appropriate LAN interface instead of loopback. Apply host firewall rules and network segmentation so only approved systems can reach it. The public tunnel does not replace API authentication or local network controls.

Identify the scanner before creating a service

First list the stable input aliases provided by the operating system:

ls -l /dev/input/by-id/

A scanner alias ending in -event-kbd is usually preferable to a raw path such as /dev/input/event2. Raw event numbers can change after a reboot, kernel update, USB move, or reconnection.

If no useful by-id alias exists, list the current input devices:

python3 - <<'PY'
import evdev

for path in evdev.list_devices():
    device = evdev.InputDevice(path)
    print(path, device.name, device.phys)
PY

The command above requires evdev, which is installed in the next section. Run it from the project virtual environment after installation. Once you identify the temporary event path, inspect its vendor and product attributes:

udevadm info --attribute-walk --name=/dev/input/eventX

Record the exact idVendor and idProduct values for your scanner. Some scanners expose multiple input interfaces, so confirm that the selected event device is the keyboard interface by scanning only in a controlled test session.

Create an isolated and reproducible installation

Do not install application packages into the system Python interpreter and do not use --break-system-packages. A virtual environment keeps the application dependencies separate from packages managed by the Linux distribution.

sudo groupadd --system wms
sudo useradd --system --gid wms --home-dir /var/lib/wms \
  --shell /usr/sbin/nologin wms

sudo install -d -o "$USER" -g "$USER" /opt/wms
sudo install -d -o wms -g wms -m 0750 /var/lib/wms
sudo install -d -o root -g wms -m 0750 /etc/wms

cd /opt/wms
python3 -m venv .venv
. .venv/bin/activate

cat > requirements.in <<'EOF'
Flask
waitress
requests
evdev
EOF

python -m pip install --upgrade pip
python -m pip install -r requirements.in
python -m pip freeze > requirements.lock

The direct dependencies are:

• Flask for routing, request handling, and JSON responses.
• waitress for a production-serving approach suitable for this demonstration.
• requests for local API and optional webhook HTTP delivery.
• evdev for Linux input event access.
• sqlite3, hmac, hashlib, and related utilities from the Python standard library.

Preserve requirements.lock with the reviewed application version. To reproduce the tested environment on another compatible Linux host, create a fresh virtual environment and run:

python3 -m venv .venv
. .venv/bin/activate
python -m pip install --requirement requirements.lock

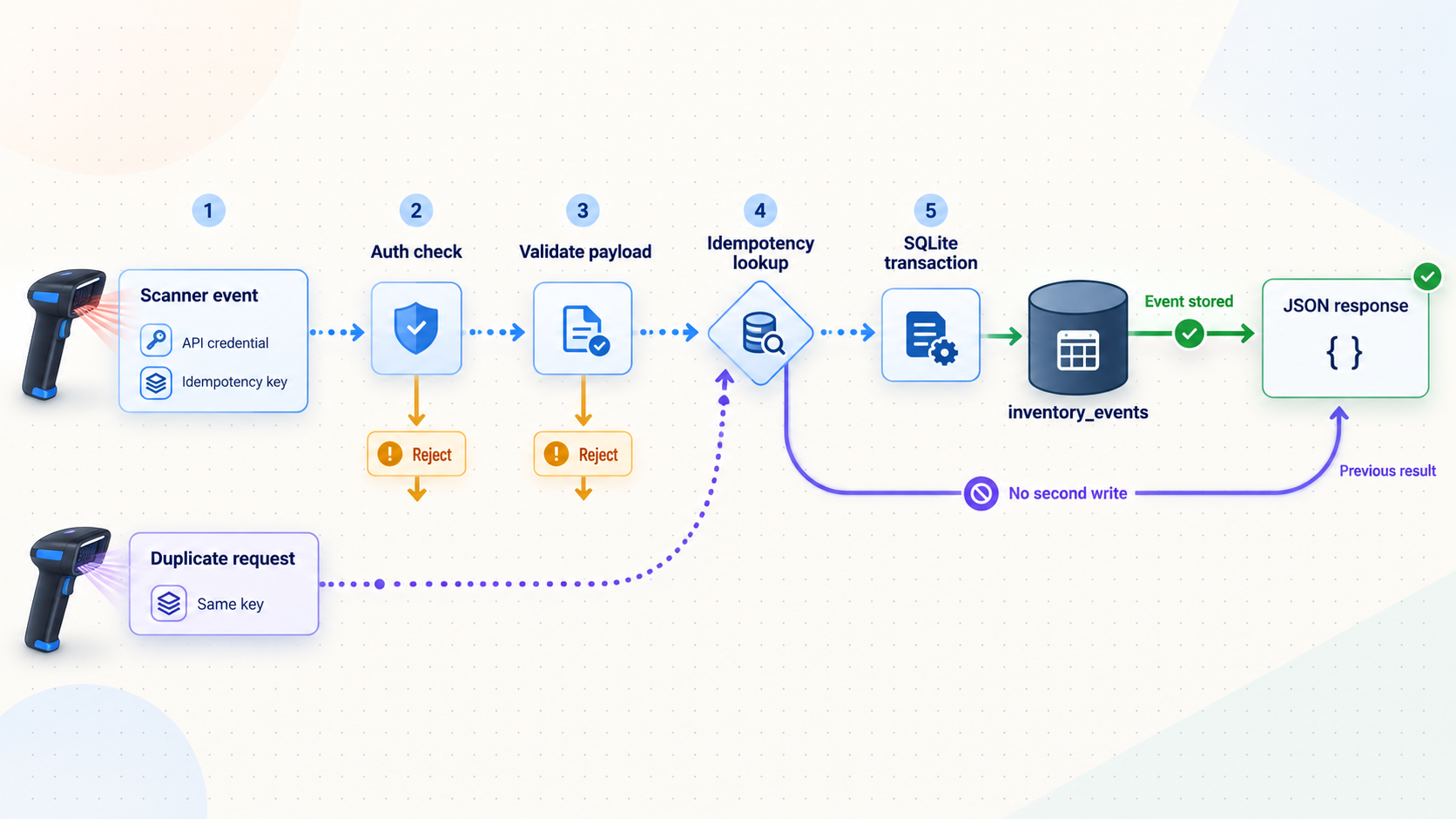

Build the authenticated and idempotent local WMS API

Save the following as /opt/wms/wms_api.py. Authentication is part of the runnable application, not an optional fragment. The application refuses to start without a sufficiently long API key. If a webhook URL is configured, it also requires a webhook signing secret.

The server assigns the authoritative receipt timestamp. Each scanner request carries a UUID event ID, and the database stores that value under a unique constraint. A retry with the same ID returns the original response without changing inventory a second time.

#!/usr/bin/env python3
import hashlib
import hmac
import json
import logging
import os
import re
import sqlite3
import threading
import time
from datetime import datetime, timezone

import requests
from flask import Flask, g, jsonify, request

logging.basicConfig(
    level=logging.INFO,
    format="%(asctime)s %(levelname)s %(message)s",
)
logger = logging.getLogger("wms-api")

app = Flask(__name__)

DB_PATH = os.environ.get("WMS_DB_PATH", "/var/lib/wms/wms.db")
API_KEY = os.environ.get("WMS_API_KEY", "")
WEBHOOK_URL = os.environ.get("WMS_WEBHOOK_URL", "")
WEBHOOK_SECRET = os.environ.get("WMS_WEBHOOK_SECRET", "")

if len(API_KEY) < 32:
    raise RuntimeError("WMS_API_KEY must be set and at least 32 characters")

if WEBHOOK_URL and len(WEBHOOK_SECRET) < 32:
    raise RuntimeError(
        "WMS_WEBHOOK_SECRET must be at least 32 characters when webhooks are enabled"
    )

BARCODE_RE = re.compile(r"^[\x20-\x7E]{1,128}$")
STATION_RE = re.compile(r"^[A-Za-z0-9_.:-]{1,64}$")
EVENT_ID_RE = re.compile(
    r"^[0-9a-f]{8}-[0-9a-f]{4}-[1-5][0-9a-f]{3}-"
    r"[89ab][0-9a-f]{3}-[0-9a-f]{12}$",
    re.IGNORECASE,
)
ALLOWED_ACTIONS = {"scan", "inbound", "outbound"}

def utc_now():
    return datetime.now(timezone.utc).isoformat()

def connect_db():
    db = sqlite3.connect(DB_PATH, timeout=10)
    db.row_factory = sqlite3.Row
    db.execute("PRAGMA foreign_keys = ON")
    db.execute("PRAGMA journal_mode = WAL")
    return db

def get_db():
    if "db" not in g:
        g.db = connect_db()
    return g.db

@app.teardown_appcontext
def close_db(_error):
    db = g.pop("db", None)
    if db is not None:
        db.close()

def init_db():
    os.makedirs(os.path.dirname(DB_PATH), exist_ok=True)
    with connect_db() as db:
        db.executescript(
            """
            CREATE TABLE IF NOT EXISTS items (
                barcode TEXT PRIMARY KEY,
                name TEXT NOT NULL,
                sku TEXT NOT NULL,
                quantity INTEGER NOT NULL DEFAULT 0 CHECK (quantity >= 0),
                location TEXT NOT NULL
            );

            CREATE TABLE IF NOT EXISTS scan_events (
                id INTEGER PRIMARY KEY AUTOINCREMENT,
                event_id TEXT NOT NULL UNIQUE,
                barcode TEXT NOT NULL,
                station_id TEXT NOT NULL,
                action TEXT NOT NULL,
                quantity INTEGER NOT NULL,
                status TEXT NOT NULL,
                received_at TEXT NOT NULL,
                response_json TEXT NOT NULL
            );

            CREATE TABLE IF NOT EXISTS webhook_outbox (
                event_id TEXT PRIMARY KEY,
                payload_json TEXT NOT NULL,
                attempts INTEGER NOT NULL DEFAULT 0,
                next_attempt_at INTEGER NOT NULL DEFAULT 0,
                last_error TEXT,
                delivered_at TEXT,
                FOREIGN KEY (event_id) REFERENCES scan_events(event_id)
            );

            INSERT OR IGNORE INTO items
                (barcode, name, sku, quantity, location)
            VALUES
                ('1234567890128', 'Widget A', 'SKU-001', 100, 'A-01-01'),
                ('9780201379624', 'Component B', 'SKU-002', 50, 'B-03-02'),
                ('5901234123457', 'Assembly Part', 'SKU-003', 75, 'C-02-04');
            """
        )

@app.before_request
def authenticate():
    if not request.path.startswith("/api/"):
        return None

    supplied = request.headers.get("X-API-Key", "")
    if not supplied or not hmac.compare_digest(supplied, API_KEY):
        return jsonify(error="unauthorized"), 401
    return None

def validation_error(message):
    return jsonify(error=message), 400

@app.post("/api/scans")
def receive_scan():
    data = request.get_json(silent=True)
    if not isinstance(data, dict):
        return validation_error("a JSON object is required")

    event_id = str(data.get("event_id", "")).strip().lower()
    barcode = str(data.get("barcode", "")).strip()
    station_id = str(data.get("station_id", "")).strip()
    action = str(data.get("action", "scan")).strip().lower()
    quantity = data.get("quantity", 1)

    if not EVENT_ID_RE.fullmatch(event_id):
        return validation_error("event_id must be a UUID")
    if not BARCODE_RE.fullmatch(barcode):
        return validation_error(
            "barcode must contain 1 to 128 supported printable characters"
        )
    if not STATION_RE.fullmatch(station_id):
        return validation_error("station_id is missing or invalid")
    if action not in ALLOWED_ACTIONS:
        return validation_error("action must be scan, inbound, or outbound")
    if isinstance(quantity, bool) or not isinstance(quantity, int):
        return validation_error("quantity must be an integer")
    if quantity < 1 or quantity > 10000:
        return validation_error("quantity must be between 1 and 10000")

    db = get_db()
    db.execute("BEGIN IMMEDIATE")

    existing = db.execute(
        "SELECT response_json FROM scan_events WHERE event_id = ?",
        (event_id,),
    ).fetchone()

    if existing:
        db.commit()
        result = json.loads(existing["response_json"])
        result["duplicate"] = True
        return jsonify(result), 200

    item = db.execute(
        "SELECT * FROM items WHERE barcode = ?",
        (barcode,),
    ).fetchone()

    received_at = utc_now()

    if item is None:
        result = {
            "status": "unknown_barcode",
            "event_id": event_id,
            "barcode": barcode,
            "station_id": station_id,
            "action": action,
            "quantity": quantity,
            "received_at": received_at,
        }
    else:
        current_quantity = int(item["quantity"])

        if action == "outbound" and quantity > current_quantity:
            db.rollback()
            return jsonify(
                error="insufficient inventory",
                available=current_quantity,
            ), 409

        new_quantity = current_quantity
        if action == "inbound":
            new_quantity += quantity
        elif action == "outbound":
            new_quantity -= quantity

        if new_quantity != current_quantity:
            db.execute(
                "UPDATE items SET quantity = ? WHERE barcode = ?",
                (new_quantity, barcode),
            )

        result = {
            "status": "ok",
            "event_id": event_id,
            "barcode": barcode,
            "station_id": station_id,
            "action": action,
            "quantity": quantity,
            "item_name": item["name"],
            "sku": item["sku"],
            "location": item["location"],
            "inventory_quantity": new_quantity,
            "received_at": received_at,
        }

    payload_json = json.dumps(result, separators=(",", ":"), sort_keys=True)

    db.execute(
        """
        INSERT INTO scan_events
            (event_id, barcode, station_id, action, quantity,
             status, received_at, response_json)
        VALUES (?, ?, ?, ?, ?, ?, ?, ?)
        """,
        (
            event_id,
            barcode,
            station_id,
            action,
            quantity,
            result["status"],
            received_at,
            payload_json,
        ),
    )

    if WEBHOOK_URL:
        db.execute(
            """
            INSERT INTO webhook_outbox
                (event_id, payload_json, next_attempt_at)
            VALUES (?, ?, ?)
            """,
            (event_id, payload_json, int(time.time())),
        )

    db.commit()
    return jsonify(result), 200

@app.get("/api/inventory")
def inventory():
    rows = get_db().execute(
        "SELECT barcode, name, sku, quantity, location "
        "FROM items ORDER BY location, sku"
    ).fetchall()
    return jsonify([dict(row) for row in rows]), 200

@app.get("/api/inventory/<barcode>")
def inventory_item(barcode):
    if not BARCODE_RE.fullmatch(barcode):
        return validation_error("invalid barcode")

    row = get_db().execute(
        "SELECT barcode, name, sku, quantity, location "
        "FROM items WHERE barcode = ?",
        (barcode,),
    ).fetchone()

    if row is None:
        return jsonify(error="not found"), 404
    return jsonify(dict(row)), 200

@app.get("/api/scans/recent")
def recent_scans():
    raw_after_id = request.args.get("after_id", "0")
    raw_limit = request.args.get("limit", "100")

    try:
        after_id = int(raw_after_id)
        limit = int(raw_limit)
    except ValueError:
        return validation_error("after_id and limit must be integers")

    if after_id < 0 or limit < 1 or limit > 500:
        return validation_error(
            "after_id must be non-negative and limit must be between 1 and 500"
        )

    rows = get_db().execute(
        """
        SELECT id, event_id, barcode, station_id, action,
               quantity, status, received_at
        FROM scan_events
        WHERE id > ?
        ORDER BY id ASC
        LIMIT ?
        """,
        (after_id, limit),
    ).fetchall()

    return jsonify([dict(row) for row in rows]), 200

@app.get("/api/webhooks/status")
def webhook_status():
    row = get_db().execute(
        """
        SELECT
            SUM(CASE WHEN delivered_at IS NULL THEN 1 ELSE 0 END) AS pending,
            SUM(CASE WHEN delivered_at IS NOT NULL THEN 1 ELSE 0 END) AS delivered
        FROM webhook_outbox
        """
    ).fetchone()

    return jsonify(
        pending=int(row["pending"] or 0),
        delivered=int(row["delivered"] or 0),
    ), 200

@app.get("/api/health")
def health():
    get_db().execute("SELECT 1").fetchone()
    return jsonify(status="ok", server_time=utc_now()), 200

def sign_webhook(timestamp, body):
    message = timestamp.encode("utf-8") + b"." + body
    return hmac.new(
        WEBHOOK_SECRET.encode("utf-8"),
        message,
        hashlib.sha256,
    ).hexdigest()

def dispatch_webhooks():
    while True:
        if not WEBHOOK_URL:
            time.sleep(30)
            continue

        now = int(time.time())
        with connect_db() as db:
            row = db.execute(
                """
                SELECT event_id, payload_json, attempts
                FROM webhook_outbox
                WHERE delivered_at IS NULL
                  AND next_attempt_at <= ?
                ORDER BY next_attempt_at, rowid
                LIMIT 1
                """,
                (now,),
            ).fetchone()

        if row is None:
            time.sleep(2)
            continue

        body = row["payload_json"].encode("utf-8")
        timestamp = str(int(time.time()))
        signature = sign_webhook(timestamp, body)

        try:
            response = requests.post(
                WEBHOOK_URL,
                data=body,
                headers={
                    "Content-Type": "application/json",
                    "X-WMS-Event-ID": row["event_id"],
                    "X-WMS-Timestamp": timestamp,
                    "X-WMS-Signature": "sha256=" + signature,
                },
                timeout=(3, 10),
            )
            if not 200 <= response.status_code < 300:
                raise RuntimeError(
                    f"webhook returned HTTP {response.status_code}"
                )

            with connect_db() as db:
                db.execute(
                    """
                    UPDATE webhook_outbox
                    SET delivered_at = ?, last_error = NULL
                    WHERE event_id = ?
                    """,
                    (utc_now(), row["event_id"]),
                )
                db.commit()

        except Exception as exc:
            attempts = int(row["attempts"]) + 1
            delay = min(300, 2 ** min(attempts, 8))
            with connect_db() as db:
                db.execute(
                    """
                    UPDATE webhook_outbox
                    SET attempts = ?,
                        next_attempt_at = ?,
                        last_error = ?
                    WHERE event_id = ?
                    """,
                    (
                        attempts,
                        int(time.time()) + delay,
                        str(exc)[:500],
                        row["event_id"],
                    ),
                )
                db.commit()
            logger.warning(
                "Webhook %s failed: %s",
                row["event_id"],
                exc,
            )

init_db()
threading.Thread(
    target=dispatch_webhooks,
    name="webhook-dispatcher",
    daemon=True,
).start()

What the webhook receiver must verify

The cloud receiver should reject stale timestamps according to its replay window, reconstruct the signed value as timestamp + "." + raw_request_body, calculate HMAC-SHA256 with the shared webhook secret, and compare signatures with a constant-time function. It should also store X-WMS-Event-ID under a unique constraint so a retried delivery cannot apply the same operation twice.

The queue survives API restarts because pending payloads and retry state are stored in SQLite. Delivery is still not an absolute guarantee. Disk failure, database corruption, deletion, credential loss, or an application defect can prevent delivery. Use the recent-events endpoint and the receiving system's last accepted ID for periodic reconciliation.

Create a resilient Linux scanner reader

Save the following as /opt/wms/scanner_reader.py. The reader uses a stable path supplied through configuration, recognizes Enter or Tab terminators, handles Shift for common characters, calls grab() for exclusive access, reconnects after device errors, and stores every completed scan in a local SQLite spool before attempting delivery.

#!/usr/bin/env python3
import json
import logging
import os
import sqlite3
import threading
import time
import uuid

import evdev
import requests
from evdev import ecodes

logging.basicConfig(
    level=logging.INFO,
    format="%(asctime)s %(levelname)s %(message)s",
)
logger = logging.getLogger("scanner-reader")

DEVICE_PATH = os.environ.get(
    "WMS_SCANNER_DEVICE",
    "/dev/input/by-id/replace-with-scanner-event-kbd",
)
API_URL = os.environ.get(
    "WMS_API_URL",
    "http://127.0.0.1:5000/api/scans",
)
API_KEY = os.environ.get("WMS_API_KEY", "")
STATION_ID = os.environ.get("WMS_STATION_ID", "station_01")
ACTION = os.environ.get("WMS_ACTION", "scan").lower()
SPOOL_PATH = os.environ.get(
    "WMS_SCANNER_SPOOL",
    "/var/lib/wms/scanner-spool.db",
)
TERMINATORS = {
    value.strip().upper()
    for value in os.environ.get(
        "WMS_SCAN_TERMINATORS",
        "KEY_ENTER,KEY_TAB",
    ).split(",")
    if value.strip()
}

if len(API_KEY) < 32:
    raise RuntimeError("WMS_API_KEY must be set and at least 32 characters")
if ACTION not in {"scan", "inbound", "outbound"}:
    raise RuntimeError("WMS_ACTION must be scan, inbound, or outbound")

BASE_MAP = {
    "KEY_0": "0", "KEY_1": "1", "KEY_2": "2",
    "KEY_3": "3", "KEY_4": "4", "KEY_5": "5",
    "KEY_6": "6", "KEY_7": "7", "KEY_8": "8",
    "KEY_9": "9",
    "KEY_A": "a", "KEY_B": "b", "KEY_C": "c",
    "KEY_D": "d", "KEY_E": "e", "KEY_F": "f",
    "KEY_G": "g", "KEY_H": "h", "KEY_I": "i",
    "KEY_J": "j", "KEY_K": "k", "KEY_L": "l",
    "KEY_M": "m", "KEY_N": "n", "KEY_O": "o",
    "KEY_P": "p", "KEY_Q": "q", "KEY_R": "r",
    "KEY_S": "s", "KEY_T": "t", "KEY_U": "u",
    "KEY_V": "v", "KEY_W": "w", "KEY_X": "x",
    "KEY_Y": "y", "KEY_Z": "z",
    "KEY_MINUS": "-", "KEY_EQUAL": "=",
    "KEY_LEFTBRACE": "[", "KEY_RIGHTBRACE": "]",
    "KEY_SEMICOLON": ";", "KEY_APOSTROPHE": "'",
    "KEY_GRAVE": "`", "KEY_BACKSLASH": "\\",
    "KEY_COMMA": ",", "KEY_DOT": ".", "KEY_SLASH": "/",
    "KEY_SPACE": " ",
    "KEY_KP0": "0", "KEY_KP1": "1", "KEY_KP2": "2",
    "KEY_KP3": "3", "KEY_KP4": "4", "KEY_KP5": "5",
    "KEY_KP6": "6", "KEY_KP7": "7", "KEY_KP8": "8",
    "KEY_KP9": "9", "KEY_KPDOT": ".",
}

SHIFT_MAP = {
    "KEY_0": ")", "KEY_1": "!", "KEY_2": "@",
    "KEY_3": "#", "KEY_4": "$", "KEY_5": "%",
    "KEY_6": "^", "KEY_7": "&", "KEY_8": "*",
    "KEY_9": "(",
    "KEY_MINUS": "_", "KEY_EQUAL": "+",
    "KEY_LEFTBRACE": "{", "KEY_RIGHTBRACE": "}",
    "KEY_SEMICOLON": ":", "KEY_APOSTROPHE": '"',
    "KEY_GRAVE": "~", "KEY_BACKSLASH": "|",
    "KEY_COMMA": "<", "KEY_DOT": ">", "KEY_SLASH": "?",
}

SHIFT_KEYS = {"KEY_LEFTSHIFT", "KEY_RIGHTSHIFT"}

def spool_db():
    db = sqlite3.connect(SPOOL_PATH, timeout=10)
    db.row_factory = sqlite3.Row
    return db

def init_spool():
    os.makedirs(os.path.dirname(SPOOL_PATH), exist_ok=True)
    with spool_db() as db:
        db.execute(
            """
            CREATE TABLE IF NOT EXISTS pending_scans (
                event_id TEXT PRIMARY KEY,
                payload_json TEXT NOT NULL,
                attempts INTEGER NOT NULL DEFAULT 0,
                next_attempt_at INTEGER NOT NULL DEFAULT 0,
                last_error TEXT
            )
            """
        )
        db.commit()

def queue_scan(barcode):
    payload = {
        "event_id": str(uuid.uuid4()),
        "barcode": barcode,
        "station_id": STATION_ID,
        "action": ACTION,
        "quantity": 1,
    }
    payload_json = json.dumps(payload, separators=(",", ":"))

    with spool_db() as db:
        db.execute(
            """
            INSERT INTO pending_scans
                (event_id, payload_json, next_attempt_at)
            VALUES (?, ?, ?)
            """,
            (payload["event_id"], payload_json, int(time.time())),
        )
        db.commit()

    logger.info(
        "Queued scan event %s for barcode %s",
        payload["event_id"],
        barcode,
    )

def delivery_loop():
    session = requests.Session()
    session.headers.update({
        "X-API-Key": API_KEY,
        "Content-Type": "application/json",
    })

    while True:
        with spool_db() as db:
            row = db.execute(
                """
                SELECT event_id, payload_json, attempts
                FROM pending_scans
                WHERE next_attempt_at <= ?
                ORDER BY next_attempt_at, rowid
                LIMIT 1
                """,
                (int(time.time()),),
            ).fetchone()

        if row is None:
            time.sleep(1)
            continue

        try:
            response = session.post(
                API_URL,
                data=row["payload_json"],
                timeout=(2, 5),
            )

            if not 200 <= response.status_code < 300:
                raise RuntimeError(
                    f"local API returned HTTP {response.status_code}: "
                    f"{response.text[:200]}"
                )

            with spool_db() as db:
                db.execute(
                    "DELETE FROM pending_scans WHERE event_id = ?",
                    (row["event_id"],),
                )
                db.commit()

            logger.info("Delivered scan event %s", row["event_id"])

        except Exception as exc:
            attempts = int(row["attempts"]) + 1
            delay = min(60, 2 ** min(attempts, 6))

            with spool_db() as db:
                db.execute(
                    """
                    UPDATE pending_scans
                    SET attempts = ?,
                        next_attempt_at = ?,
                        last_error = ?
                    WHERE event_id = ?
                    """,
                    (
                        attempts,
                        int(time.time()) + delay,
                        str(exc)[:500],
                        row["event_id"],
                    ),
                )
                db.commit()

            logger.warning(
                "Delivery of %s failed: %s",
                row["event_id"],
                exc,
            )
            time.sleep(1)

def key_name(value):
    if isinstance(value, list):
        return value[0]
    return value

def read_scanner():
    while True:
        scanner = None
        try:
            scanner = evdev.InputDevice(DEVICE_PATH)
            scanner.grab()
            logger.info(
                "Listening exclusively on %s at %s",
                scanner.name,
                DEVICE_PATH,
            )

            buffer = []
            malformed = False
            shift_down = False

            for event in scanner.read_loop():
                if event.type != ecodes.EV_KEY:
                    continue

                key_event = evdev.categorize(event)
                name = key_name(key_event.keycode)

                if name in SHIFT_KEYS:
                    shift_down = (
                        key_event.keystate != evdev.KeyEvent.key_up
                    )
                    continue

                if key_event.keystate != evdev.KeyEvent.key_down:
                    continue

                if name in TERMINATORS:
                    if buffer and not malformed:
                        barcode = "".join(buffer)
                        if 1 <= len(barcode) <= 128:
                            queue_scan(barcode)
                        else:
                            logger.warning(
                                "Discarded scan with invalid length"
                            )
                    elif malformed:
                        logger.warning(
                            "Discarded scan containing an unmapped key"
                        )

                    buffer = []
                    malformed = False
                    shift_down = False
                    continue

                if name == "KEY_BACKSPACE":
                    if buffer:
                        buffer.pop()
                    continue

                if name.startswith("KEY_") and len(name) == 5:
                    character = BASE_MAP.get(name)
                    if character and shift_down:
                        character = character.upper()
                else:
                    character = (
                        SHIFT_MAP.get(name)
                        if shift_down
                        else BASE_MAP.get(name)
                    )

                if character is None:
                    malformed = True
                    logger.warning("Unmapped scanner key: %s", name)
                    continue

                if len(buffer) >= 128:
                    malformed = True
                    continue

                buffer.append(character)

        except (FileNotFoundError, PermissionError, OSError) as exc:
            logger.warning(
                "Scanner unavailable at %s: %s; retrying",
                DEVICE_PATH,
                exc,
            )
            time.sleep(3)
        finally:
            if scanner is not None:
                try:
                    scanner.ungrab()
                except OSError:
                    pass
                scanner.close()

def main():
    init_spool()
    threading.Thread(
        target=delivery_loop,
        name="scan-delivery",
        daemon=True,
    ).start()
    read_scanner()

if __name__ == "__main__":
    main()

Create a scanner-specific udev rule

Replace the example vendor and product values below with the exact values returned for your device. Do not copy placeholder identifiers into an operational rule.

sudo tee /etc/udev/rules.d/70-wms-scanner.rules >/dev/null <<'EOF'
SUBSYSTEM=="input", KERNEL=="event*", \
ATTRS{idVendor}=="REPLACE_VENDOR", \
ATTRS{idProduct}=="REPLACE_PRODUCT", \
SYMLINK+="wms-scanner", GROUP="wms", MODE="0660"
EOF

sudo udevadm control --reload-rules
sudo udevadm trigger

Disconnect and reconnect the scanner, then verify the alias and ownership:

ls -l /dev/wms-scanner
sudo -u wms test -r /dev/wms-scanner && echo "scanner is readable"

If the rule matches more than one interface, refine it using attributes from udevadm info. A stable existing /dev/input/by-id/...-event-kbd alias can also be used in configuration, but the service user still needs narrowly scoped permission to read that device.

Configure secrets and run both components as persistent services

Create protected environment configuration

Generate separate random values for API authentication and webhook signing. The webhook secret is needed only if WMS_WEBHOOK_URL is set.

python3 -c 'import secrets; print(secrets.token_urlsafe(48))'
python3 -c 'import secrets; print(secrets.token_urlsafe(48))'

Put the generated values in /etc/wms/wms.env. Do not commit this file, paste it into source code, place credentials in a URL, or expose it through support logs.

sudo tee /etc/wms/wms.env >/dev/null <<'EOF'
WMS_API_KEY=REPLACE_WITH_GENERATED_API_KEY
WMS_DB_PATH=/var/lib/wms/wms.db
WMS_API_URL=http://127.0.0.1:5000/api/scans
WMS_STATION_ID=station_01
WMS_ACTION=scan
WMS_SCANNER_DEVICE=/dev/wms-scanner
WMS_SCAN_TERMINATORS=KEY_ENTER,KEY_TAB
WMS_SCANNER_SPOOL=/var/lib/wms/scanner-spool.db
WMS_WEBHOOK_URL=
WMS_WEBHOOK_SECRET=
EOF

sudo chown root:wms /etc/wms/wms.env
sudo chmod 0640 /etc/wms/wms.env
sudo chown -R root:root /opt/wms
sudo chmod -R go-w /opt/wms

Test the API locally before enabling systemd

Run Waitress as the service user. Flask's built-in development server is intentionally not used for persistent operation.

sudo -u wms sh -c '
  set -a
  . /etc/wms/wms.env
  set +a
  cd /opt/wms
  exec .venv/bin/waitress-serve \
    --listen=127.0.0.1:5000 \
    wms_api:app
'

In a separate terminal, read the API key without printing it and verify health, inventory, and an idempotent test event:

read -s -p "WMS API key: " WMS_API_KEY
echo

curl --fail-with-body \
  -H "X-API-Key: $WMS_API_KEY" \
  http://127.0.0.1:5000/api/health

curl --fail-with-body \
  -H "X-API-Key: $WMS_API_KEY" \
  http://127.0.0.1:5000/api/inventory

EVENT_ID="$(python3 -c 'import uuid; print(uuid.uuid4())')"

curl --fail-with-body \
  -X POST \
  -H "X-API-Key: $WMS_API_KEY" \
  -H "Content-Type: application/json" \
  --data "{
    \"event_id\":\"$EVENT_ID\",
    \"barcode\":\"1234567890128\",
    \"station_id\":\"test_station\",
    \"action\":\"scan\",
    \"quantity\":1
  }" \
  http://127.0.0.1:5000/api/scans

Repeat the final request with the same event ID. The response should include "duplicate": true, and the event must not be inserted or applied again.

Create the systemd units

sudo tee /etc/systemd/system/wms-api.service >/dev/null <<'EOF'
[Unit]
Description=Teaching WMS API
After=network.target

[Service]
Type=simple
User=wms
Group=wms
WorkingDirectory=/opt/wms
EnvironmentFile=/etc/wms/wms.env
ExecStart=/opt/wms/.venv/bin/waitress-serve \
  --listen=127.0.0.1:5000 \
  wms_api:app
Restart=on-failure
RestartSec=5
NoNewPrivileges=true
PrivateTmp=true
ProtectSystem=strict
ProtectHome=true
ReadWritePaths=/var/lib/wms

[Install]
WantedBy=multi-user.target
EOF

sudo tee /etc/systemd/system/wms-scanner.service >/dev/null <<'EOF'
[Unit]
Description=Warehouse barcode scanner reader
Requires=wms-api.service
After=wms-api.service
StartLimitIntervalSec=60
StartLimitBurst=10

[Service]
Type=simple
User=wms
Group=wms
WorkingDirectory=/opt/wms
EnvironmentFile=/etc/wms/wms.env
ExecStart=/opt/wms/.venv/bin/python /opt/wms/scanner_reader.py
Restart=on-failure
RestartSec=5
NoNewPrivileges=true
PrivateTmp=true
ProtectSystem=strict
ProtectHome=true
ReadWritePaths=/var/lib/wms
SupplementaryGroups=wms

[Install]
WantedBy=multi-user.target
EOF

sudo systemctl daemon-reload
sudo systemctl enable --now wms-api.service
sudo systemctl enable --now wms-scanner.service

The ordering directive starts the API unit before the reader, but it is not an HTTP readiness guarantee. The reader's durable spool and retry loop handle a short API startup delay. Verify both units rather than assuming that an enabled service is healthy:

systemctl status wms-api.service
systemctl status wms-scanner.service

journalctl -u wms-api.service -n 100 --no-pager
journalctl -u wms-scanner.service -n 100 --no-pager

Reboot the host during a planned test, confirm both services return to an active state, scan a controlled test label, and verify that it appears in /api/scans/recent.

Expose the authenticated WMS API with Localtonet

Localtonet exposes a service running on your machine without inbound router port forwarding, firewall changes, VPN setup, or a public IP address. The Localtonet client establishes an outbound connection to one of our relay servers. An HTTP tunnel then provides a public HTTPS address that forwards to the configured local IP address and port.

The authenticated verification can be performed without putting the key in the URL:

read -s -p "WMS API key: " WMS_API_KEY
echo
PUBLIC_URL='https://assigned-address-from-dashboard'

curl --fail-with-body \
  -H "X-API-Key: $WMS_API_KEY" \
  "$PUBLIC_URL/api/health"

curl --fail-with-body \
  -H "X-API-Key: $WMS_API_KEY" \
  "$PUBLIC_URL/api/inventory"

curl -i "$PUBLIC_URL/api/inventory"

The last request intentionally omits the API key and should return 401 Unauthorized. If it succeeds, stop the tunnel and investigate the application configuration before continuing.

Connect a cloud ERP, SaaS application, or remote client

A cloud integration can poll the inventory API, fetch events incrementally for reconciliation, or receive signed outbound webhooks. Which pattern is appropriate depends on the receiving platform's capabilities and the reliability requirements of the warehouse process.

Cloud-side inventory query

This one-shot Python example uses the already documented requests dependency. In a real cloud job, obtain the URL and key from the platform's protected secret configuration rather than embedding them in code.

import os
import requests

wms_url = os.environ["WMS_PUBLIC_URL"].rstrip("/")
api_key = os.environ["WMS_API_KEY"]

response = requests.get(
    f"{wms_url}/api/inventory",
    headers={"X-API-Key": api_key},
    timeout=(3, 15),
)
response.raise_for_status()

for item in response.json():
    print(
        f'{item["sku"]}: {item["quantity"]} '
        f'at {item["location"]}'
    )

Reconcile recent events

The receiving system can store the highest committed numeric id it has processed, then request subsequent events:

curl --fail-with-body \
  -H "X-API-Key: $WMS_API_KEY" \
  "$PUBLIC_URL/api/scans/recent?after_id=0&limit=100"

Process events in ascending order and advance the cloud checkpoint only after the corresponding cloud transaction commits. Event IDs remain the cross-system deduplication key. The numeric database ID is useful as a local ordered cursor, but should not replace the globally unique event ID.

Use webhooks without confusing them with the tunnel

To enable outbound webhooks, set WMS_WEBHOOK_URL and WMS_WEBHOOK_SECRET in the protected environment file, then restart the API. The dispatcher checks for a 2xx response and retries failed attempts with bounded exponential backoff. It signs the exact JSON request bytes and sends the event ID in a header.

sudo systemctl restart wms-api.service

curl --fail-with-body \
  -H "X-API-Key: $WMS_API_KEY" \
  http://127.0.0.1:5000/api/webhooks/status

This webhook mechanism belongs to the demonstration WMS. It is separate from Localtonet platform-wide Token and Tunnel webhooks, which report Connected and Disconnected status for selected token groups. It is also separate from Localtonet File Server file-event webhooks.

Avoid promising instantaneous or guaranteed delivery. Normal delivery may be prompt, but temporary network errors, receiver throttling, non-2xx responses, restarts, and outages introduce delay. Durable retry and reconciliation make the integration recoverable, not infallible.

Routine operations, backup, recovery, and troubleshooting

Daily and periodic checks

• Confirm the API and scanner services are active.
• Review scanner logs for reconnect loops, unmapped keys, and malformed scans.
• Review API logs for authentication failures, validation errors, database errors, and webhook failures.
• Check the scanner spool for pending rows after an API outage.
• Check /api/webhooks/status when outbound webhooks are enabled.
• Reconcile recent local events against the cloud system's stored event IDs.
• Confirm the Localtonet client is connected and the intended tunnel is running.
• Test recovery after planned host and network maintenance.

Inspect service logs and durable queues

journalctl -u wms-api.service --since today
journalctl -u wms-scanner.service --since today

sudo -u wms sqlite3 /var/lib/wms/scanner-spool.db \
  'SELECT event_id, attempts, next_attempt_at, last_error FROM pending_scans;'

sudo -u wms sqlite3 /var/lib/wms/wms.db \
  'SELECT event_id, attempts, next_attempt_at, last_error
   FROM webhook_outbox
   WHERE delivered_at IS NULL;'

The sqlite3 shell is an optional operating-system tool and is not a Python dependency. If it is unavailable, inspect queue state through a reviewed administrative script or the protected status endpoint. Never edit production queue rows manually without a documented recovery procedure and backup.

Backup and restore safely

Stop both services before making a simple file-level backup so the database files and their associated WAL state are consistent:

sudo systemctl stop wms-scanner.service wms-api.service

sudo install -d -m 0700 /var/backups/wms
sudo cp -a /var/lib/wms/wms.db* /var/backups/wms/
sudo cp -a /var/lib/wms/scanner-spool.db* /var/backups/wms/

sudo systemctl start wms-api.service
sudo systemctl start wms-scanner.service

Store backups according to your retention and access-control policy, and test restoration on an isolated host. A backup that has never been restored is not a verified recovery method. Before restoring, stop the services, preserve the damaged files for investigation, restore the complete tested database set, verify ownership, and run local API and scan tests before starting the public tunnel.

Focused troubleshooting

Scaling beyond the demonstration

Do not choose a database or worker architecture from an unsupported scans-per-hour rule. Measure transaction duration, lock wait time, queue growth, storage latency, request concurrency, and recovery objectives under a workload representative of your warehouse.

A production design may need a server database, migrations, dedicated background workers, dead-letter handling, queue monitoring, structured logs, metrics, alerting, per-client credentials, authorization scopes, secret rotation, rate limits, high availability, and tested disaster recovery. Multiple scanner stations can submit to one API if the deployment is designed and tested for that concurrency, but the teaching sample does not establish a universal capacity.

Frequently asked questions
