How to Monitor Factory Machines in Real Time with MQTT and a Self-Hosted Dashboard

What this monitoring system can and cannot do

The objective is to collect operational measurements without placing browser users, databases, or public-facing services on the machine network. Node-RED reads selected Modbus data, converts raw register values into explicit engineering values, and publishes telemetry to MQTT. Telegraf consumes those messages and writes them to InfluxDB. Grafana queries the stored series and presents them to authorized viewers.

Calling this architecture “real time” without qualification would be misleading. If a PLC is polled every two seconds, Telegraf flushes every ten seconds, and Grafana refreshes periodically, the displayed value can be several stages behind the physical process. Network retries, broker queues, database load, query time, clock error, and browser refresh behavior can increase that delay. Measure actual source-to-screen latency under normal and degraded conditions instead of assuming a fixed result.

This guide deliberately uses a read-only acquisition path. It does not include Modbus writes, remote setpoint changes, PLC programming, or Node-RED control outputs. If an organization later considers a write path, treat it as a separate engineering project with a formal risk assessment, independent authorization, fail-safe behavior, testing, and audit controls.

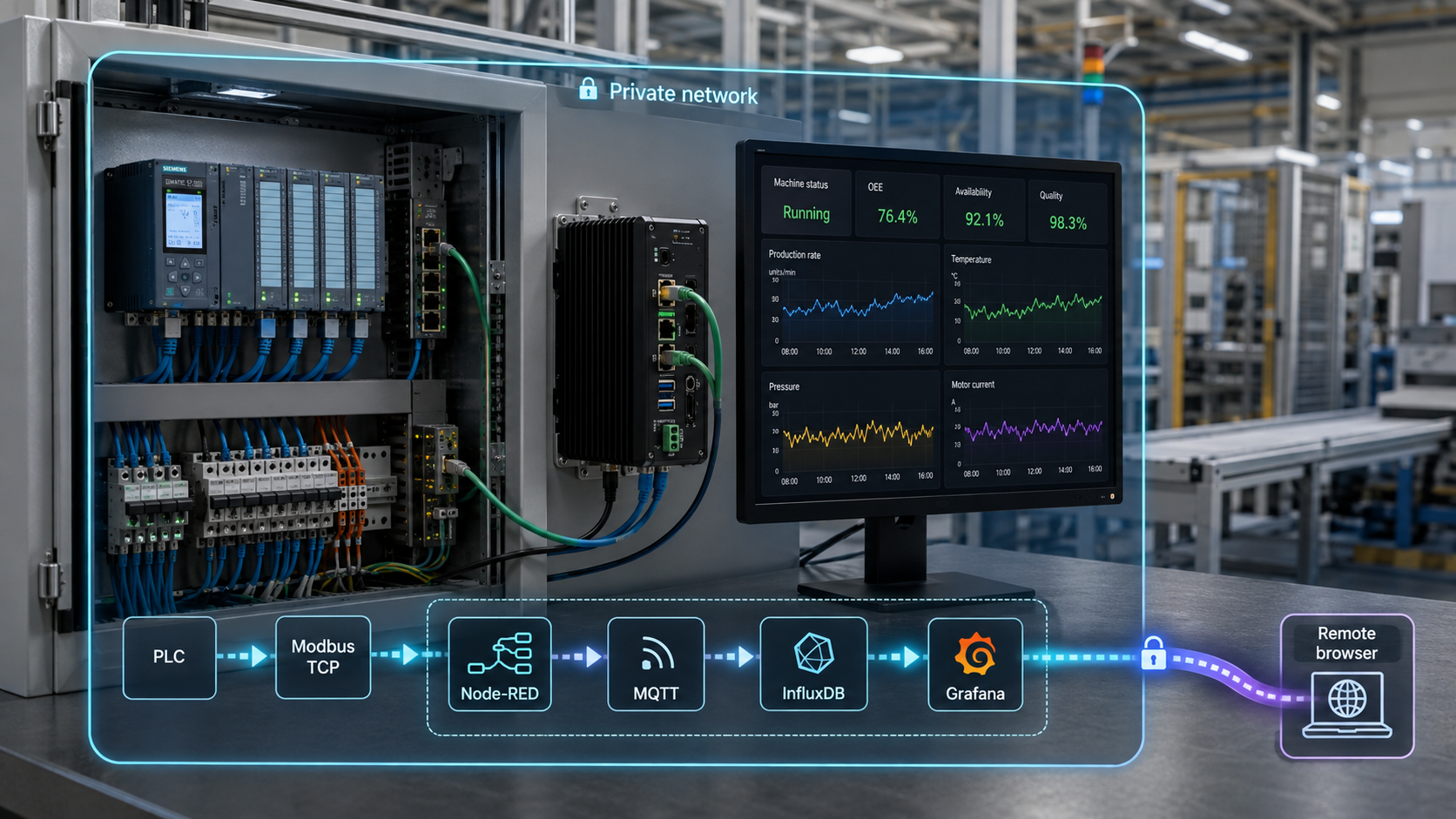

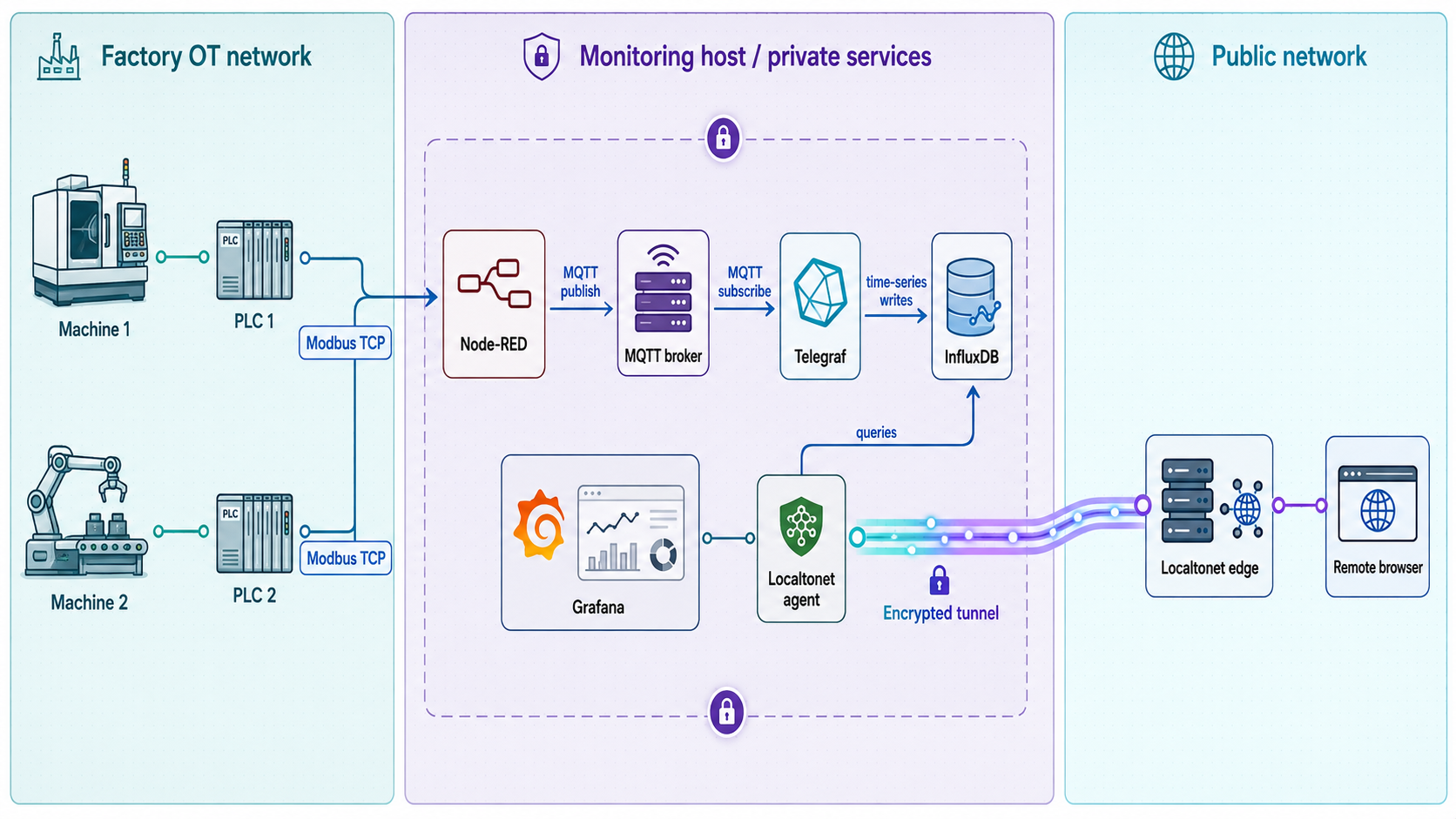

Architecture and trust boundaries

A production deployment should place the acquisition gateway in an OT DMZ or another segmented network zone approved by the site. The gateway needs only the minimum connectivity required to read the approved Modbus devices, communicate with its local services, obtain time and name resolution from approved infrastructure, retrieve controlled updates, and establish Localtonet's outbound connection.

Do not expose Mosquitto, Node-RED, InfluxDB, the PLC interface, or gateway management services through public tunnels. In this design, only the Grafana HTTP service is the Localtonet tunnel target. Administrative access should use a separately approved management path.

Prerequisites and tested-environment record

Package repositories, signing procedures, supported CPU architectures, menu names, and service definitions change between releases. The supplied evidence does not include a current editor-tested operating-system and component version matrix, so this revision does not claim that unverified repository commands are current. Before production deployment, follow each project's current upstream installation instructions for your exact platform, then record the versions and installation method in the site's change record.

You need all of the following:

• A currently supported Debian or Ubuntu release on an architecture supported by every selected component. Confirm whether the host is x86-64, ARM64, or another architecture before downloading repositories or binaries.
• Administrative access to the gateway and an approved maintenance window.
• A supported Node.js and npm combination for the selected Node-RED release. Do not assume the distribution's default Node.js package satisfies Node-RED's current requirements.
• An authorized Modbus TCP endpoint, or an appropriate serial integration method, with explicit permission for read-only polling.
• The vendor register map, including address notation, data type, scaling, units, byte order, word order, unit ID, and supported function codes.
• Network reachability from the gateway to the approved Modbus endpoint, without giving remote viewers direct OT-network access.
• Approved DNS and NTP or another reliable time-synchronization source. The gateway, database, and any timestamp-producing devices should agree closely enough for your monitoring and incident-analysis requirements.
• Disk capacity sized from measured ingestion and retention behavior, plus space for logs, package updates, temporary files, backups, and database maintenance.
• A Localtonet account and a Localtonet client device or authentication token for remote access. The dashboard, broker, and database remain self-hosted, but the remote path in this design depends on the Localtonet account, connected client, and relay service.
• Separate service credentials for Node-RED, Telegraf, Grafana, InfluxDB, and Localtonet where applicable. Do not reuse a common factory password.
• A backup destination outside the gateway's primary disk and a documented restore test.

Install and verify components without copying stale commands

Use the current official installation documentation for Mosquitto, InfluxDB, Node-RED, Telegraf, and Grafana. Verify repository signatures and package origins before installation. If a vendor repository requires GPG tooling, keyring directories, HTTPS transport support, or a distribution-specific repository entry, install and configure those prerequisites exactly as the current upstream documentation specifies.

After installation, configure Mosquitto, InfluxDB, Telegraf, and Grafana as managed services using the service units supplied by their verified packages. Node-RED must also have an approved startup method. Depending on the supported Node-RED installation path, that might be an upstream-provided service or a locally reviewed service definition. Do not launch it from an interactive shell and then assume it will restart after a reboot.

systemctl status mosquitto
systemctl status influxdb
systemctl status telegraf
systemctl status grafana-server

# Use the actual Node-RED unit name created by the approved installation method.
systemctl status <node-red-service-unit>

Enable services at boot only after configuration validation and local functional testing. Reboot during a maintenance window and prove that each required service returns, rather than relying solely on an “enabled” status.

Measure capacity instead of estimating from a device label

A gateway cannot be sized from RAM capacity or device count alone. Polling frequency, registers per request, response latency, number of devices, JSON size, MQTT delivery behavior, Telegraf batching, field cardinality, dashboard queries, retention, storage media, and backup activity all affect performance.

Begin with a representative pilot. Measure CPU, memory, disk write rate, database growth, I/O latency, MQTT queue behavior, Modbus timeout rate, and dashboard query duration during normal operation and a credible peak. Extrapolate storage from measured bytes written per day, apply the intended retention period, add backup and operational headroom, and validate the estimate with a sustained load test. Avoid unsupported claims about how many PLCs a particular Raspberry Pi or industrial PC can handle.

Understand the Modbus data before building the flow

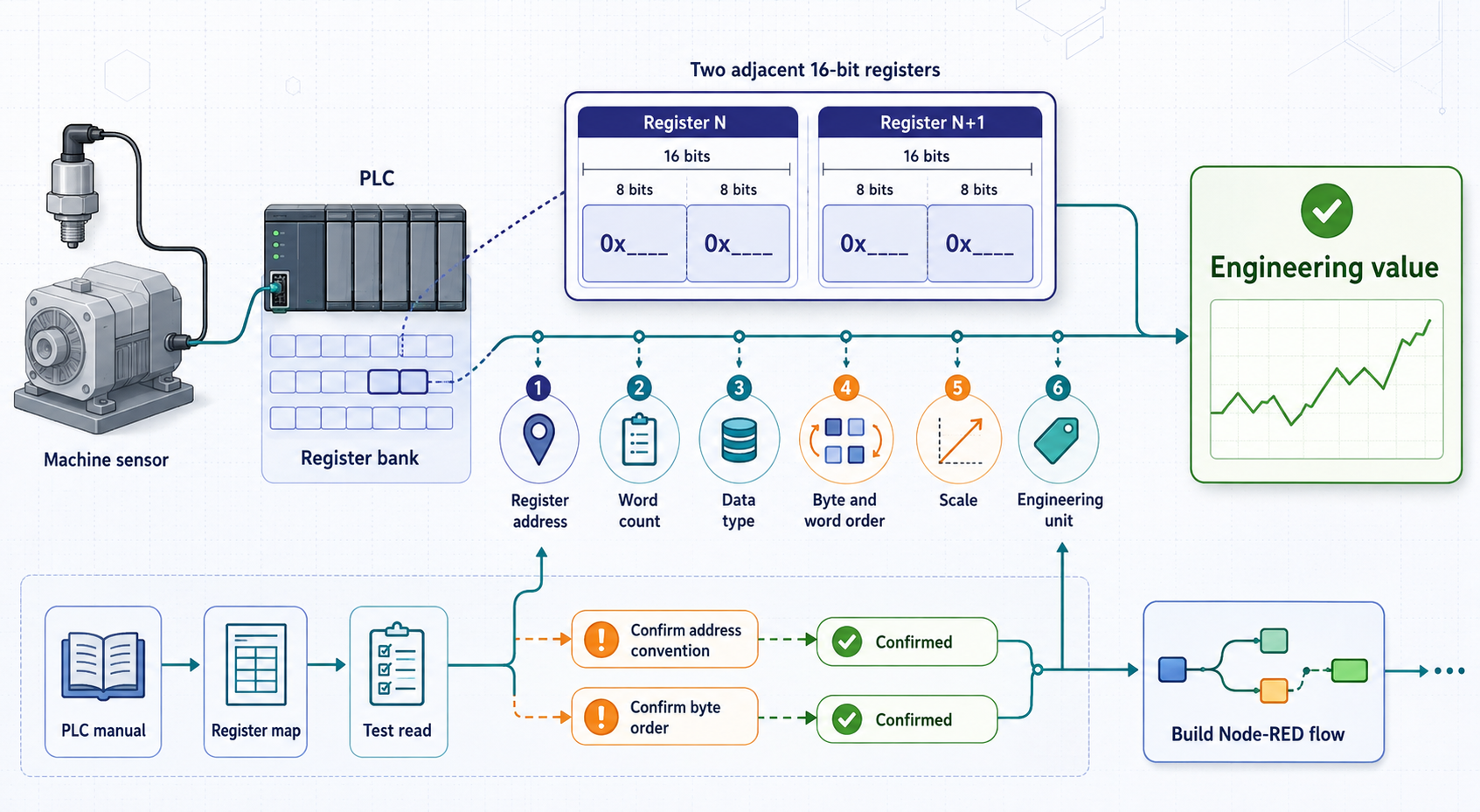

Modbus registers are 16-bit storage locations at the protocol level, but that does not mean every value is an unsigned 16-bit integer. A device can encode a signed integer in one register, combine two registers into a 32-bit integer or IEEE 754 floating-point number, combine four registers into a 64-bit value, use bit fields, or apply a vendor-defined representation. Multi-register values also require the correct word order and byte order.

Polling also creates load. Group contiguous values only when the device supports the requested range, set realistic connection and response timeouts, avoid overlapping requests, and add backoff after repeated failures. Log Modbus exception codes and timeouts with the device identity and requested address range. A communication failure should produce an explicit stale or unavailable state, not a fabricated zero.

Modbus RTU integration choices

A protocol-converting Modbus RTU-to-TCP gateway accepts Modbus TCP requests and generates corresponding RTU transactions on an RS-485 network. A transparent serial device server transports serial bytes over a network but may not perform Modbus TCP protocol conversion. A USB-to-RS485 adapter merely gives the local gateway a physical serial interface. It does not, by itself, expose a Modbus TCP server.

Choose the Node-RED connection method that matches the actual hardware. A protocol gateway may be addressed as Modbus TCP. A local USB adapter normally requires a Modbus serial client configuration, correct device permissions, baud rate, parity, stop bits, unit address, and RS-485 wiring. Do not treat these three integration methods as interchangeable.

Design and secure the MQTT layer

Use a predictable topic hierarchy that identifies the source without embedding secrets or uncontrolled user input. One suitable pattern is:

factory/<site>/<line>/<machine>/telemetry

Keep high-cardinality details such as event IDs in payload fields rather than creating an unbounded number of topics. Define topic ownership, payload schema, units, timestamp format, quality indicators, and compatibility rules before connecting multiple machines.

Create separate accounts and access-control rules

If every MQTT client is on the same gateway, bind Mosquitto to loopback so port 1883 is not reachable from the LAN. Disable anonymous access. Create a dedicated publisher account for Node-RED and a dedicated subscriber account for Telegraf. Enter passwords interactively with the current Mosquitto password utility so they are not exposed as command arguments or saved in shell history.

listener 1883 127.0.0.1
allow_anonymous false
password_file /etc/mosquitto/passwd
acl_file /etc/mosquitto/acl

An illustrative ACL for one normalized topic tree is:

user nodered_pub
topic write factory/+/+/+/telemetry

user telegraf_sub
topic read factory/+/+/+/telemetry

Validate wildcard behavior against the topic structure you actually deploy. Restrict the broker configuration, password file, and ACL file to the broker service account and administrative users. Do not make credential files world-readable. Test configuration syntax before restarting Mosquitto, then inspect its service logs for listener, authentication, and ACL errors.

Choose QoS and retained-message behavior deliberately

MQTT QoS 0 provides best-effort delivery and can lose messages during a disconnect. QoS 1 provides at-least-once delivery, which improves delivery assurance but permits duplicates. A consumer and storage path must therefore tolerate repeated events. QoS 2 adds protocol overhead and should be selected only after confirming that its guarantees and costs match the requirement.

A retained telemetry message lets a newly connected subscriber receive the most recently published value immediately. That is convenient, but the value may be old. Include a source timestamp and quality state, and configure dashboards to mark data stale after a defined interval. If retained messages are used, establish how they are cleared when a machine is decommissioned or a topic changes.

MQTT persistence and queue limits determine what happens during a consumer outage. Node-RED, Mosquitto, Telegraf, and InfluxDB do not create an unlimited lossless pipeline automatically. Document the expected behavior for broker restart, subscriber disconnect, database outage, full disk, and gateway reboot. If telemetry must survive those events, test the selected persistence and queue settings under realistic outage durations.

Build the Node-RED, MQTT, Telegraf, and InfluxDB pipeline

Install the Modbus nodes through Node-RED's supported palette-management process for the tested Node-RED and Node.js versions. Protect the Node-RED editor with authentication and keep it unavailable from public networks. Configure Node-RED to start through the approved managed-service method before relying on it operationally.

The transformation logic must be adapted to the verified register map. The following structure is an example for three already-decoded values, not a universal Modbus decoder:

const values = msg.payload;

if (!Array.isArray(values) || values.length < 3) {
    node.error("Incomplete Modbus response", msg);
    return null;
}

const temperature = values[0] / 100;
const pressure = values[1] / 10;
const motorSpeed = values[2];

if (!Number.isFinite(temperature) ||
    !Number.isFinite(pressure) ||
    !Number.isFinite(motorSpeed)) {
    node.error("Invalid decoded telemetry", msg);
    return null;
}

msg.topic = "factory/site1/line1/press_01/telemetry";
msg.payload = {
    temperature_c: temperature,
    pressure_bar: pressure,
    motor_speed_rpm: motorSpeed,
    quality: "good",
    source_time: new Date().toISOString(),
    site: "site1",
    line: "line1",
    machine: "press_01"
};

return msg;

Replace the divisions, field types, ranges, units, and decoding logic with values confirmed by the equipment documentation. For 32-bit or floating-point values, decode bytes and words explicitly rather than indexing each register as an independent measurement.

Configure Telegraf with an explicit schema

Telegraf should subscribe with its read-only MQTT account and write to InfluxDB with a separate bucket-scoped token. Use a deliberate measurement name such as machine_telemetry. Treat machine identity as tags only when the set of values is bounded and controlled. Store numeric process values as fields. Changing a field from a number to a string later can create type conflicts.

[[inputs.mqtt_consumer]]
  servers = ["tcp://127.0.0.1:1883"]
  topics = ["factory/+/+/+/telemetry"]
  username = "telegraf_sub"
  password = "REPLACE_THROUGH_A_PROTECTED_SECRET_MECHANISM"
  qos = 1
  data_format = "json"
  name_override = "machine_telemetry"
  tag_keys = ["site", "line", "machine", "quality"]
  json_time_key = "source_time"
  json_time_format = "2006-01-02T15:04:05.999999999Z07:00"

[[outputs.influxdb_v2]]
  urls = ["http://127.0.0.1:8086"]
  token = "REPLACE_WITH_A_BUCKET_SCOPED_WRITE_TOKEN"
  organization = "factory"
  bucket = "machines"

Confirm each option against the installed Telegraf version before use. Protect the final configuration or referenced secret file with restrictive ownership and permissions. Validate the Telegraf configuration, run a controlled parse test if supported by the installed release, start the managed service, and inspect its journal for authentication, parsing, queue, and write errors.

QoS 1 can deliver duplicate messages. InfluxDB does not automatically know whether two events represent one sample unless their series identity and timestamp align appropriately. If duplicate elimination is a requirement, assign a stable source event identifier and design an idempotency policy. Do not rely on arrival order during reconnects.

Configure InfluxDB retention and access

Create a dedicated organization and bucket for machine telemetry. Set retention from operational and legal requirements rather than accepting an arbitrary default. Use one scoped token for Telegraf writes and a separate read-only token for Grafana queries. Store recovery material according to the site's credential-management policy.

Query recent data in the InfluxDB interface or with the supported CLI for the installed version. Confirm that machine_telemetry exists, tags contain the intended identities, fields are numeric, and timestamps correspond to the source events. A successful MQTT subscription does not prove that Telegraf parsed or wrote the fields correctly.

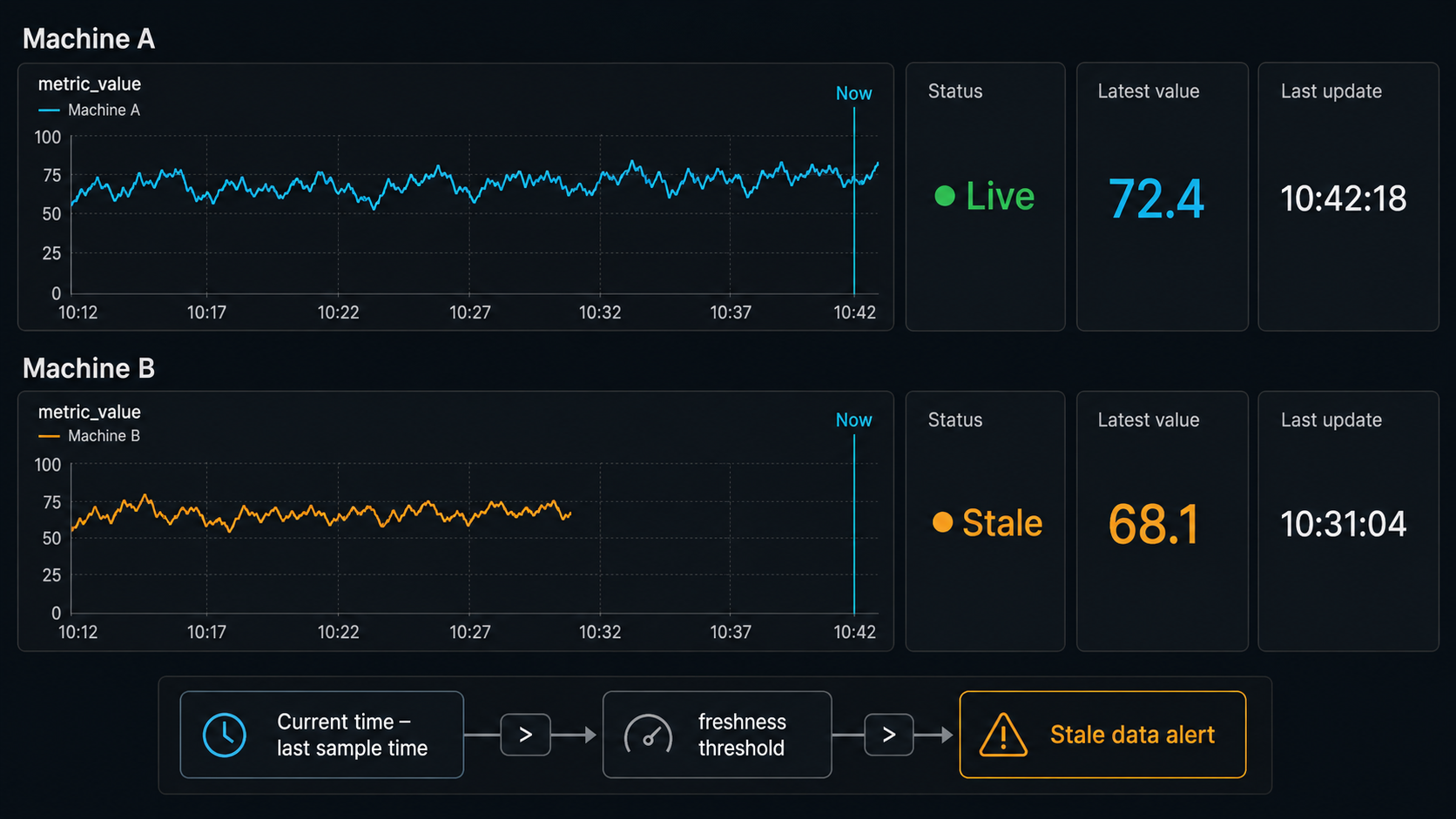

Configure Grafana, dashboards, and stale-data alerts

Start Grafana through its managed service and open its local address from an approved management workstation. A default installation commonly begins with an administrative login and prompts for an immediate password change. The exact first-login behavior depends on the package and configuration, so do not claim that this tutorial has already set the Grafana password.

Change default credentials immediately, restrict administrative accounts, and create Viewer users or teams for people who only need dashboards. Menu paths vary between Grafana releases. In current interfaces, data sources are generally under Connections, while older releases may place them under Configuration. Use the equivalent path in the tested version.

With the explicit Telegraf measurement above, a temperature query can begin as follows:

from(bucket: "machines")
  |> range(start: -1h)
  |> filter(fn: (r) => r["_measurement"] == "machine_telemetry")
  |> filter(fn: (r) => r["site"] == "site1")
  |> filter(fn: (r) => r["line"] == "line1")
  |> filter(fn: (r) => r["machine"] == "press_01")
  |> filter(fn: (r) => r["_field"] == "temperature_c")
  |> aggregateWindow(every: 30s, fn: mean, createEmpty: false)

Verify this query against the actual Telegraf output before treating it as final. If the measurement is missing, inspect Telegraf parsing rather than changing Grafana filters at random.

Expose only Grafana through Localtonet

With Localtonet, the client on the gateway establishes an outbound connection to one of our relay servers. The resulting HTTP tunnel provides a public HTTPS address for Grafana without inbound router port forwarding, firewall changes for unsolicited inbound traffic, VPN setup, or a public IP address. The tunnel does not make the rest of the gateway public unless additional tunnels are deliberately configured.

Install the current Localtonet client using the verified method presented for the gateway's operating system and architecture in the current Localtonet download experience. This article does not reproduce an unverified shell installer or service command. For the current product workflow, use the Localtonet HTTP tunnel documentation.

Add authentication in front of Grafana

Localtonet SSO acts as an authentication gateway in front of an HTTP tunnel. Configure one or more providers at the account level, then enable the desired providers for the specific Grafana tunnel. Currently documented provider types are Google, GitHub, Microsoft, OpenID Connect, and Basic username/password authentication. Optional domain or email restrictions can further narrow access.

When someone visits the tunnel address, our authentication layer checks the configured identity before forwarding the request to Grafana. Keep Grafana's own login enabled as defense in depth. Assign remote users the Grafana Viewer role unless they have an approved need to edit dashboards or administer the service. See the Localtonet SSO documentation for the current account-level and tunnel-level workflow.

Do not assume every authentication option, region, or tunnel capability is included in every subscription plan. Confirm current availability for the account before making it part of the operational design.

Verify each component and the complete path

Test one boundary at a time before testing remote access. Record the time, component version, configuration revision, machine identity, expected value, observed value, and result. This makes later troubleshooting far more reliable than changing several services at once.

Local component checks

1. Confirm the gateway clock is synchronized and record its current offset from the approved time source.
2. Verify the Modbus endpoint is reachable only from the intended gateway path.
3. Read a small approved register range and compare the decoded result with the PLC, HMI, vendor utility, or another authoritative source.
4. Confirm Node-RED rejects incomplete responses and logs Modbus exception or timeout details.
5. Publish one known telemetry event and verify that Mosquitto authorizes the publisher topic.
6. Attempt an unauthorized topic operation in a controlled test and confirm the ACL denies it.
7. Confirm Telegraf receives the message, parses numeric fields, adds the intended measurement and tags, and reports a successful InfluxDB write.
8. Query InfluxDB directly and compare stored field values and timestamps with the published payload.
9. Run the Grafana query and verify that the expected series appears without changing names to hide a schema error.
10. Stop polling briefly in an approved window and confirm that the dashboard indicates stale or missing data rather than displaying the last value as current indefinitely.

End-to-end remote checklist

1. Confirm Grafana works locally before creating the tunnel.
2. Confirm the Localtonet client is connected and associated with the intended device token.
3. Confirm the HTTP tunnel targets only 127.0.0.1:3000.
4. Start the tunnel and note the assigned HTTPS address through the dashboard.
5. Open the address from an external network that does not have direct plant-network access.
6. Verify that Localtonet SSO appears before Grafana when SSO is enabled.
7. Sign in as a Grafana Viewer and confirm dashboards are visible but administrative changes are unavailable.
8. Compare the displayed value and timestamp with the source to measure source-to-screen latency.
9. Stop the tunnel and confirm the remote endpoint becomes unavailable while local Grafana remains operational.
10. Restart the gateway during a maintenance test and confirm every required service returns through its approved startup mechanism. Record the actual data gap rather than estimating it.

Secure operation, maintenance, and failure planning

A working demonstration is not yet an operational service. Assign owners for the gateway, Node-RED flows, broker ACLs, database, dashboards, Localtonet tunnel, credentials, backups, and incident response. Store configuration in a controlled repository without secrets and require review for register-map, scaling, topic, retention, firewall, or alert changes.

Document failure behavior explicitly. During a Modbus outage, values should become stale and alarms should indicate data loss. During an MQTT or Telegraf outage, queued data may be limited or lost depending on tested settings. During an InfluxDB outage, dashboard history and writes can fail. During a Localtonet outage, local monitoring can continue while remote access is unavailable. None of these failures should affect the PLC's independent control or safety functions.

Review outbound firewall requirements with the network owner. Permit only what the gateway needs for approved DNS, time synchronization, updates, and Localtonet connectivity. Do not describe an outbound tunnel as bypassing network policy. It must be explicitly authorized and documented.

Symptom-based troubleshooting

Always start with the earliest failing boundary. If the Modbus read is wrong, changing Grafana cannot repair it. If InfluxDB has the correct point but Grafana does not show it, focus on the query and time range. If Grafana works locally but not remotely, focus on the Localtonet client, tunnel state, authentication layer, and target.
