Port Forwarding Is Broken. Here Is What Actually Works

How port forwarding works, and where it can fail

A typical home or small-office router connects a private local network to an internet service provider. Devices on the local network usually receive private IPv4 addresses such as 192.168.1.50. Network Address Translation, or NAT, lets those devices share the address assigned to the router's internet-facing interface.

For an outbound connection, the router observes which local device initiated the traffic and maintains translation state for the returning packets. An unsolicited inbound connection has no matching state. A port-forwarding rule gives the router an explicit destination, such as sending inbound TCP traffic on a selected public port to TCP port 25565 on 192.168.1.50.

That rule only controls the router on which it is configured. If another router, ISP gateway, or provider-operated NAT system exists upstream, the traffic must also pass that boundary. A rule on your own router cannot configure a device controlled by an ISP.

A globally routable IPv4 address on the router is therefore necessary for conventional direct IPv4 port forwarding, but it is not sufficient by itself. A matching WAN and externally observed IPv4 address does not prove that a port will be reachable. Firewall policy, ISP filtering, an incorrect destination, a changing LAN address, a TCP versus UDP mismatch, or a service bound only to loopback can still prevent access.

Why IPv4 scarcity led to more shared addressing

IPv4 has a limited address space. The free pools managed by the regional internet registries reached exhaustion at different times, while usable addresses continued to be transferred and reassigned. It is more accurate to describe this as long-running public IPv4 scarcity than to say that the internet suddenly ran out of every IPv4 address.

Providers can conserve public IPv4 space by sharing addresses among customers. Carrier-grade NAT, commonly shortened to CGNAT, performs address translation in the provider network. Customers behind that system can usually initiate ordinary outbound sessions, but unsolicited inbound traffic cannot be directed to a particular customer unless the provider offers and configures a corresponding mapping.

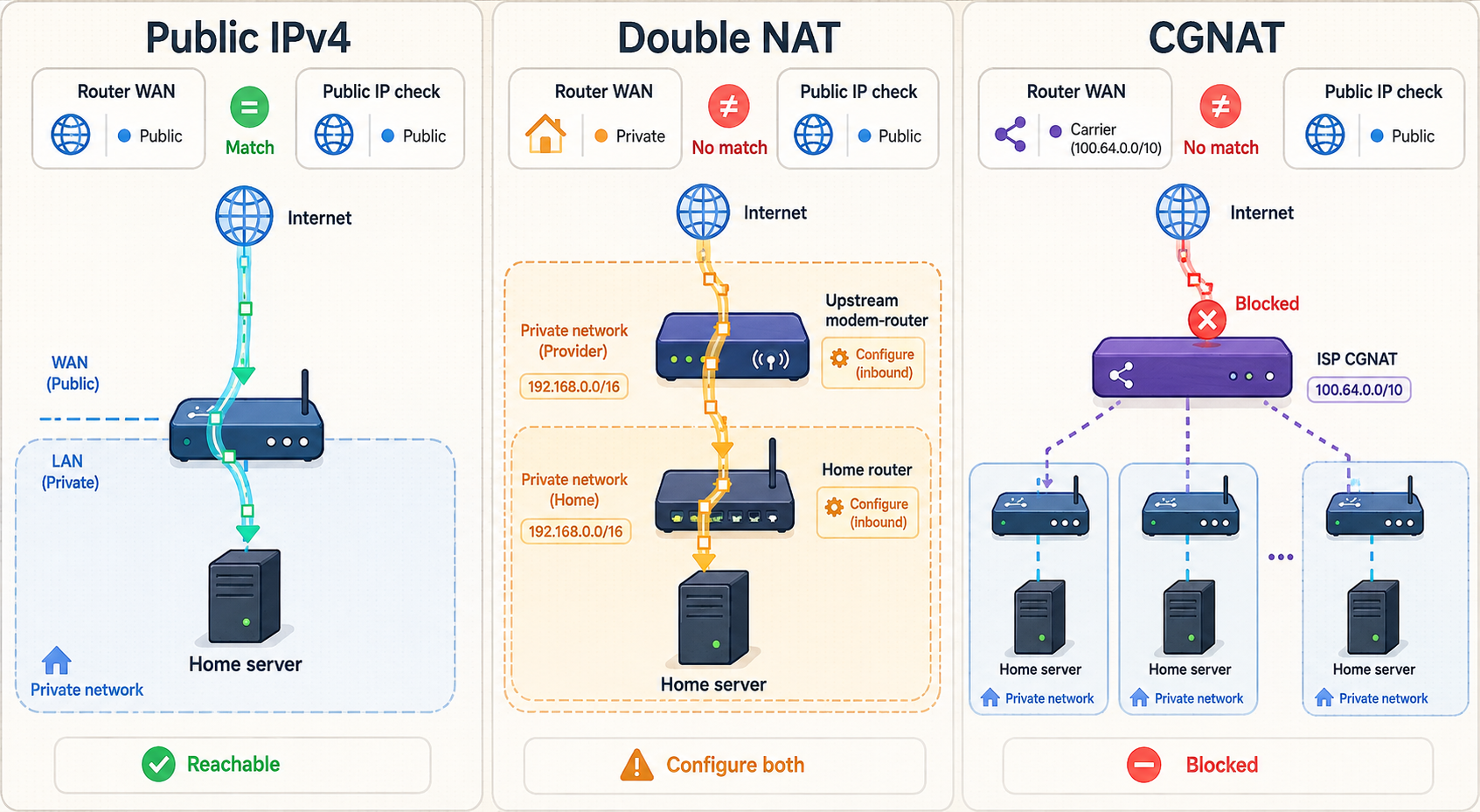

Diagnose public IPv4, double NAT, and CGNAT correctly

Diagnosis should identify each network boundary rather than relying on one port-scanner result. Start by comparing IPv4 with IPv4. If a lookup site displays IPv6 while the router page displays IPv4, the values describe different address families and cannot be compared directly.

Use port scanners carefully

Many online port-checking tools attempt a TCP connection. They only report a TCP port as open when a service is listening and completes enough of the TCP handshake to be recognized. If the destination application is stopped, bound to the wrong address, protected by a firewall, or uses UDP instead, the scanner can report a closed or filtered result even when the router rule looks correct.

UDP has no equivalent connection handshake. A useful UDP test usually requires a client that sends valid application traffic and a server that produces an observable response or log entry. Test the application, not just the port number.

Understand same-network testing

Reaching your own public address from inside the same LAN depends on NAT loopback, also called hairpin NAT. Some routers support it, some do not, and behavior can vary by firmware and configuration. A failed same-Wi-Fi test is therefore inconclusive rather than automatically false. A successful hairpin test also does not prove that an external firewall or provider permits the connection.

The most reliable check comes from a separate network, such as a phone with Wi-Fi disabled or a remote system you control. Confirm that the phone actually uses mobile data before drawing a conclusion.

Prerequisites before using Localtonet

A tunnel changes how traffic reaches the service, but it does not repair a service that is unavailable locally. Complete the local checks first. This separates application problems from router and internet-path problems.

Confirm the local target

For HTTP, TCP, UDP, combined UDP/TCP, and TLS tunnels, the target is an IP address and port on the client device or another system reachable from it. If the service is on a different computer, test that exact LAN address from the Localtonet client computer. Do not assume that reaching the service from a third machine proves the client can reach it.

A service bound only to 127.0.0.1 accepts connections solely from the same computer. That can be appropriate when Localtonet runs on that computer and targets the loopback listener. If Localtonet runs on another device, the application must listen on an appropriate LAN interface and its host firewall must allow that LAN connection.

To inspect listeners, use operating-system tools available on the service host. Exact output and privileges vary:

# Linux: show listening TCP and UDP sockets
ss -lntup

# Test an HTTP service locally
curl http://127.0.0.1:8080

# Windows: list listening sockets
netstat -ano

# Test a TCP listener from another Windows system
Test-NetConnection 192.168.1.50 -Port 8080

Replace the example address and port with your real local target. A successful TCP connection proves only that the TCP listener is reachable. For HTTP, inspect the returned status and content. For UDP, use the application's own client or another protocol-aware test.

Configure a Localtonet tunnel from client to public endpoint

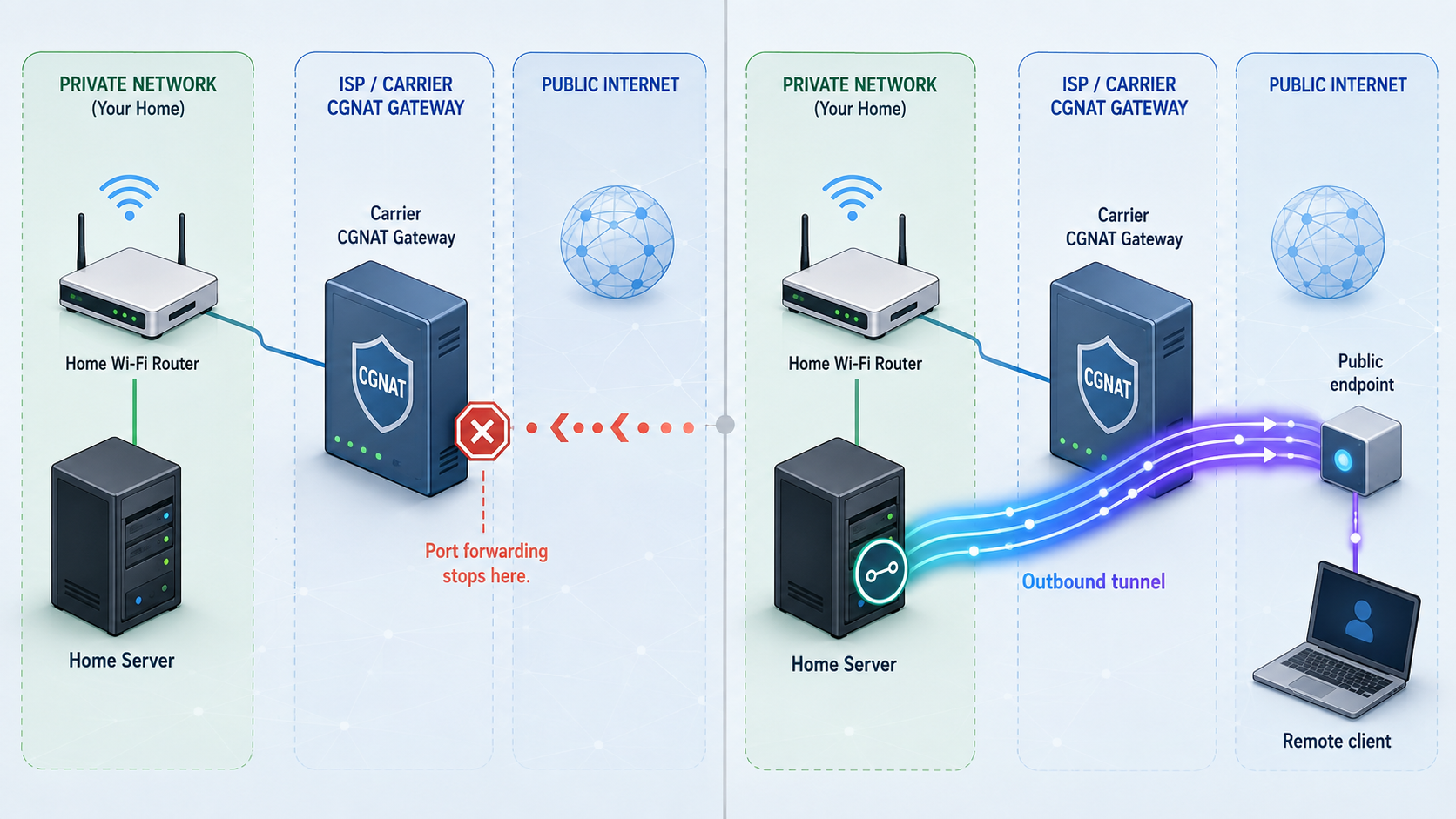

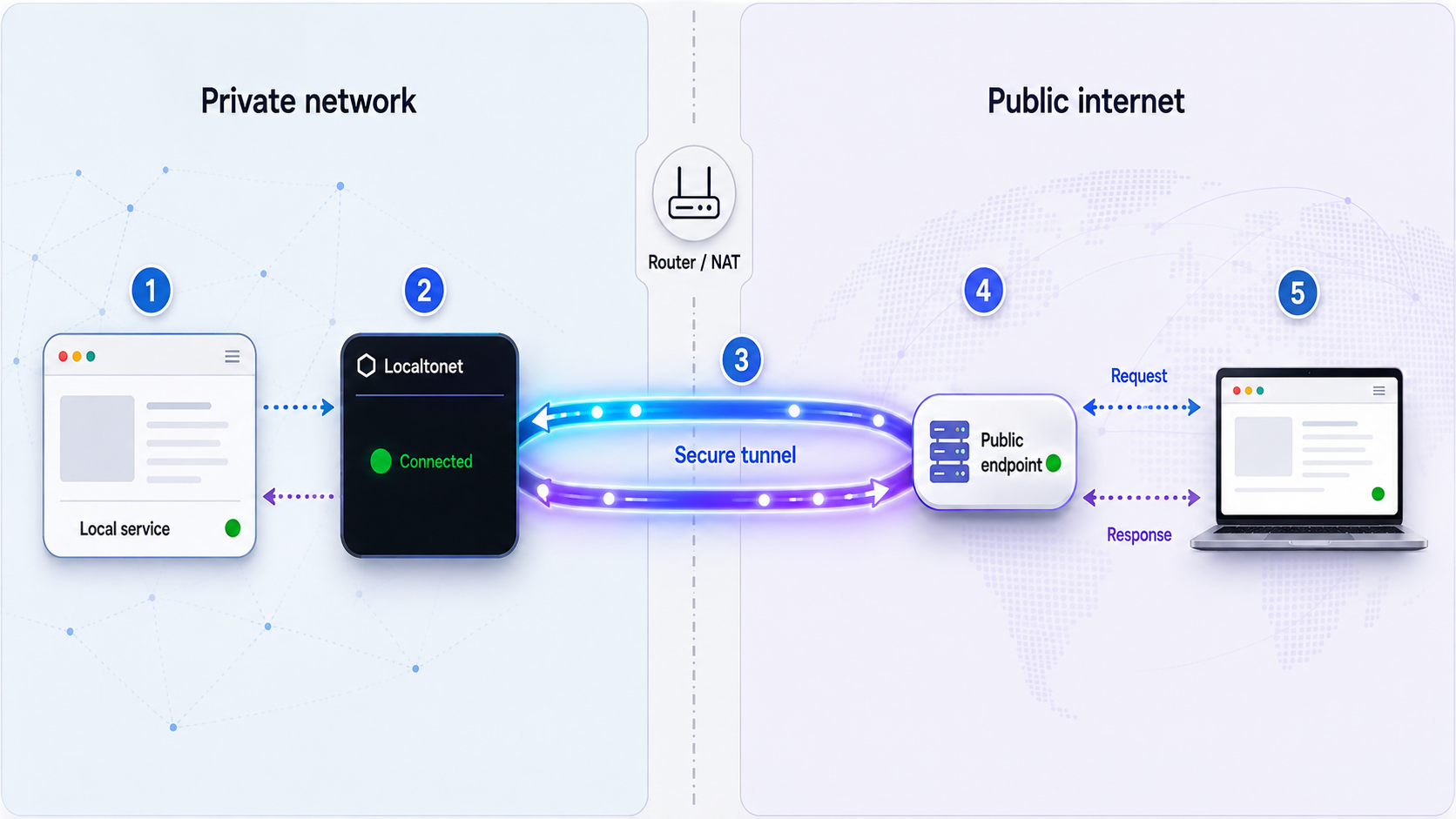

With Localtonet, the client on your device connects outward to one of our relay servers. The running tunnel then supplies a public URL or a public host and port, depending on the selected tunnel family. This avoids relying on unsolicited traffic reaching a port-forwarding rule on your router.

An outbound design is useful behind many NAT arrangements, including networks where you cannot configure the upstream translator. It is not a promise that every network will permit the connection. A workplace firewall, captive portal, outbound proxy, DNS policy, or other restriction can still prevent the client from reaching a relay.

Choose the correct tunnel family

Select the protocol the application actually uses. Choosing TCP for a UDP-only service does not convert the protocol. Likewise, an HTTP tunnel is intended for HTTP traffic and should not be treated as a generic replacement for every TCP application.

Verify the tunnel from the service to the public client

Verification should follow the path in order. Testing only the public endpoint makes it difficult to determine whether the failure is in the application, the local network, the Localtonet client, or the external client.

HTTP-specific verification

A successful browser connection to the public URL proves more than a generic TCP check because it exercises DNS, TLS at the tunnel edge, HTTP forwarding, and the application response. Test more than the home page when the application includes API routes, redirects, cookies, WebSockets, webhooks, or host-name validation.

Some development servers reject unfamiliar public host names even though the tunnel is functioning. If the public URL reaches the application but returns a host-not-allowed message, adjust the application's trusted-host configuration narrowly according to that application's documentation. Do not disable host validation globally unless you understand the effect.

TCP and UDP verification

For raw TCP, use a client that understands the service. A successful TCP connection does not guarantee that authentication, encryption, or the application handshake works. For UDP, send valid protocol traffic and look for an expected response or service-side event. Generic TCP port scanners are not valid UDP tests.

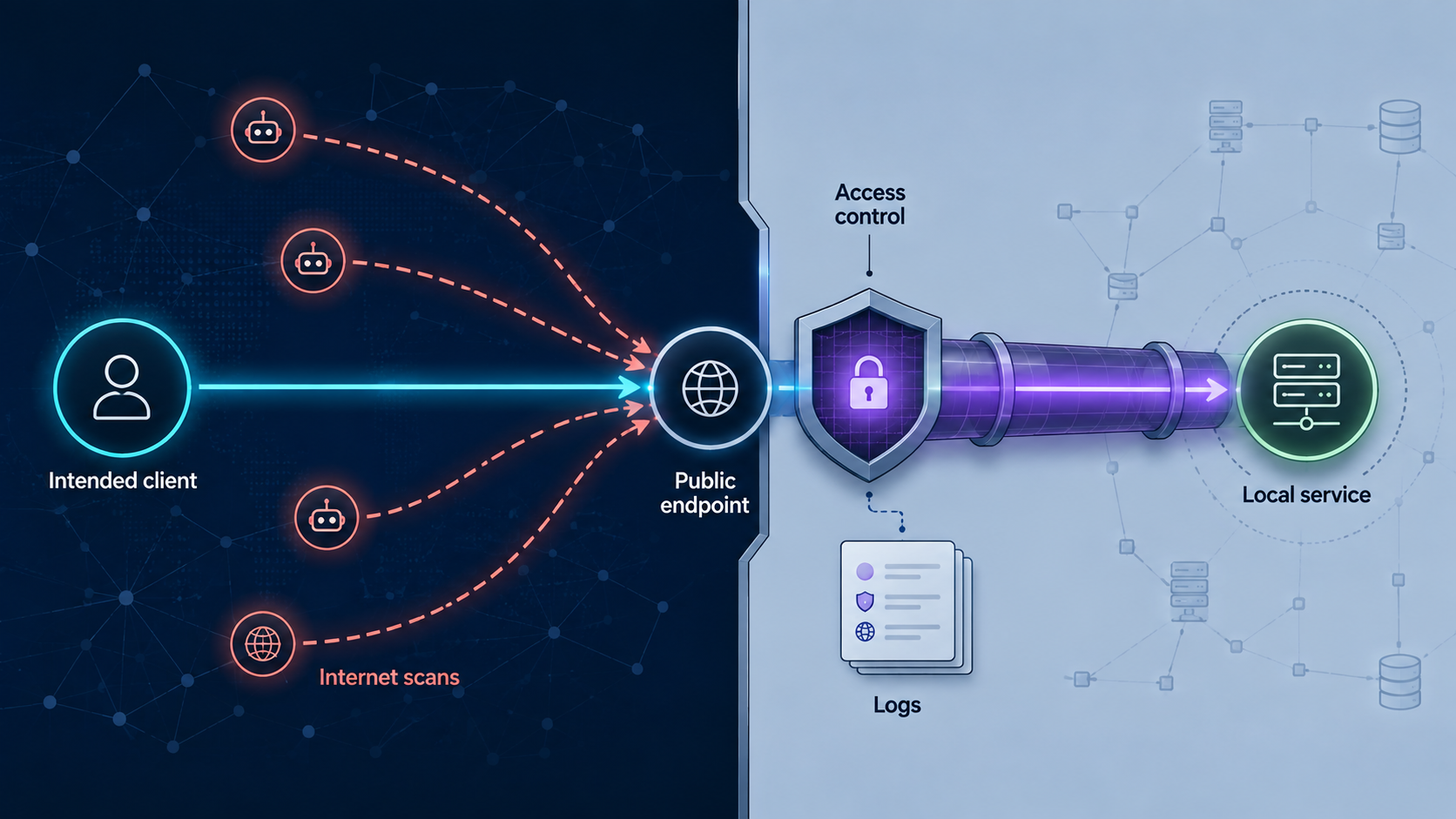

Treat every public endpoint as public attack surface

Both direct port forwarding and a public tunnel make a service reachable beyond the local network. Their network paths and trust boundaries differ, but neither approach makes an insecure application safe. A tunnel avoids exposing a router port directly and places a relay in the path, while port forwarding sends traffic through your own internet-facing router. In both cases, an unknown remote client may attempt to connect to the published endpoint.

Apply source restrictions or other access controls when the selected product configuration and application support them. Availability can vary by tunnel type, plan, and client version, so verify current controls in the dashboard rather than assuming that every option is present everywhere.

Operate the endpoint without creating a forgotten exposure

A working test is the beginning of the operational lifecycle, not the end. Record what the tunnel serves, which device owns it, who is authorized to use it, and when it should be stopped. This is especially important when several team members can create tunnels.

Keep the local target predictable

If Localtonet forwards to another LAN device, prevent its local address from changing unexpectedly. A DHCP reservation on the local network is often preferable to manually configuring an address on the server because the router remains aware of the assignment. If the target address changes, update the tunnel configuration and repeat local and external verification.

Plan for client and service availability

The tunnel is available only while the selected client device is connected and the tunnel is running. The local application must also remain running and reachable from that client. A powered-off computer, sleeping laptop, stopped application, changed Wi-Fi network, or restrictive new firewall rule can interrupt access.

Do not assume a specific public address will remain unchanged unless the active Localtonet configuration explicitly provides that behavior. HTTP Process Type and domain options, raw endpoint assignment, plan availability, and lifecycle behavior should be confirmed in the current dashboard before another system is permanently configured to depend on an endpoint.

Make changes one layer at a time

When changing the application port, local IP, tunnel family, authentication policy, or relay selection, retest the path from the beginning. Changing several layers simultaneously makes failures harder to isolate. Keep the old configuration stopped rather than running duplicate public endpoints without a clear reason.

Troubleshoot by locating the first failed boundary

Protocol mismatch

TCP and UDP are separate transports. Forwarding TCP port 12345 does not forward UDP port 12345. Some applications use both, sometimes for different functions. Read the application's network requirements and choose TCP, UDP, or combined UDP/TCP accordingly.

Incorrect local target

The tunnel target must be reachable from the device running Localtonet. If an application moves from port 8080 to 3000, or from one LAN host to another, the old target will no longer work. Test the exact new address before updating public access.

Host firewall behavior

A host firewall can classify local loopback, LAN, and other traffic differently. A service may work from its own computer while rejecting the Localtonet client on another LAN machine. Add a narrowly scoped rule for the required local traffic rather than allowing every inbound connection.

ISP filtering and router policy

With direct port forwarding, an ISP or router may filter selected inbound traffic even when the WAN address is globally routable. Router security settings can also place the rule on the wrong interface or limit it to the wrong source. Consult the provider and router documentation for the particular service and account configuration. Avoid broad claims based only on what another customer of the same ISP observed.

Client network restrictions

Localtonet removes the need for inbound router configuration, but it still requires the client to establish and maintain its outbound relay connection. If the client cannot connect, test basic DNS and internet access, complete any captive-portal sign-in, and review local or organizational firewall policy. Do not attempt to bypass a workplace, school, or provider policy without authorization.

Other ways to solve the inbound-access problem

A tunnel is one option, not the only one. The right approach depends on whether the endpoint must be public, whether remote clients support IPv6 or private-network software, and who is responsible for operating the public boundary.

Ask the ISP about public IPv4

Contact the provider and ask whether your exact service, location, and account can receive a public IPv4 address. Also ask whether it is dynamic or static and whether inbound service restrictions apply. Do not assume that a provider uses the same addressing policy for mobile, fixed wireless, fiber, and business products.

If the public address is dynamic, the port-forwarding rule can continue to work while the address changes, but remote clients need a way to discover the current address. Dynamic DNS may solve the naming problem. It does not solve CGNAT, firewall policy, or an incorrect forwarding rule.

Use IPv6 with the same security discipline

IPv6 generally does not require IPv4-style port translation when the device receives a globally routable address. That does not make the service automatically reachable. Consumer routers commonly apply stateful inbound firewall rules to IPv6, and the host firewall remains relevant.

The application must listen on an IPv6 address, the router policy must permit the intended inbound traffic, DNS must publish the correct record if a name is used, and the remote client must have working IPv6 connectivity. Exposing a service directly over IPv6 creates public attack surface just as direct IPv4 exposure does.

Keep self-managed relay guidance appropriately scoped

A VPS can act as a public relay through software such as a private tunnel or VPN, but installing one component is not a complete production setup. The operator must configure packet forwarding or an application proxy, firewall the VPS, restrict administrative access, protect credentials, persist configuration across reboots, apply updates, monitor availability, and verify both IPv4 and IPv6 behavior where relevant.

Because provider interfaces, operating systems, and relay designs vary, a partial command sequence can be more dangerous than useful. Choose this route only when you can maintain the complete public server lifecycle.
