How to Set Up a Digital Signage System on a Raspberry Pi and Manage It Remotely

Architecture, security boundaries, and tutorial scope

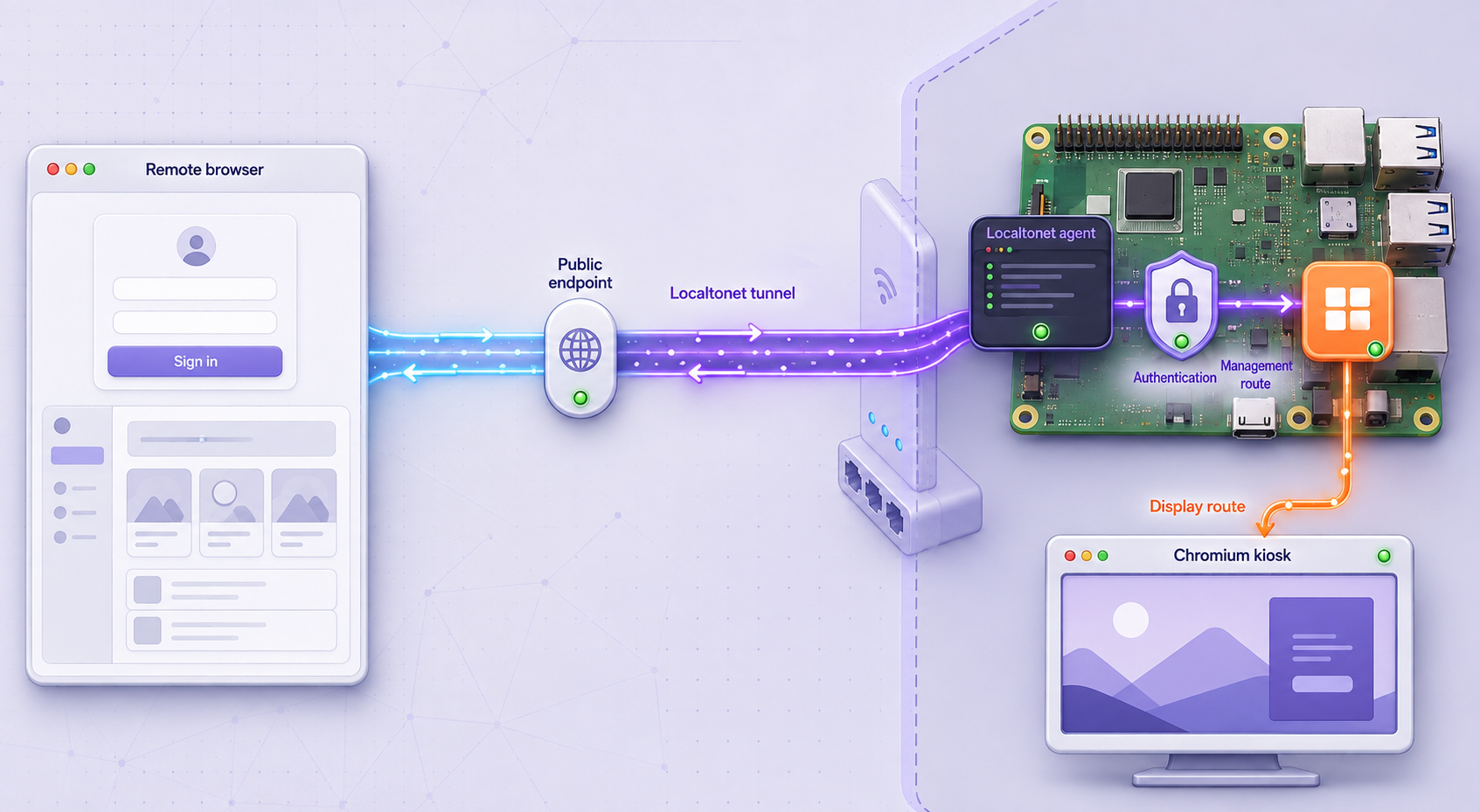

This design has four distinct components. Chromium displays a page from an Express service on 127.0.0.1. A system service starts Express independently of the graphical desktop. A per-user desktop autostart entry launches Chromium only after the local health endpoint responds. The Localtonet client creates an outbound connection to a relay and publishes the local HTTP target through an assigned HTTPS address.

The supplied application deliberately has a narrow management scope. An administrator can choose from local slide files that were deployed to the Pi, set a rotation interval, or select an HTTPS URL whose origin was approved in advance. It does not upload files, install software, execute commands, accept arbitrary filesystem paths, or turn the browser into a general-purpose remote control system.

That limitation is intentional. File upload requires additional controls such as content-type inspection, storage quotas, filename normalization, authorization boundaries, malware handling, and a publishing workflow. If operators need to publish files remotely, use a separately designed content pipeline rather than adding an unrestricted upload route to this service.

How configuration reaches the screen

The display page requests /api/display every five seconds. When the normalized configuration changes, the page updates its iframe immediately. Slide rotation uses the validated interval from the latest response. This replaces the previous ineffective reload endpoint and avoids waiting for a five-minute HTML refresh.

Configuration values are never inserted into generated HTML or JavaScript source. The browser receives JSON, and the display script assigns an approved URL to the iframe through the DOM. The server rejects unknown properties, unsupported modes, invalid intervals, unapproved origins, malformed local slide paths, missing files, URL credentials, and non-HTTPS remote destinations.

Understand iframe compatibility before deployment

Remote URL mode uses an iframe. The destination must permit framing. Many sites send an X-Frame-Options response header or a Content Security Policy containing frame-ancestors that prevents another page from embedding them. Localtonet and the signage application cannot override a destination's browser security policy.

Test the exact destination in the kiosk before deployment. If framing is refused, use a destination-provided embed URL, publish a dedicated signage view that explicitly permits the kiosk origin, or deploy the content as a local slide. Do not attempt to strip or bypass security headers from a site you do not control.

Hardware, OS, account, network, and access prerequisites

Complete the following preparation before installing the application. Raspberry Pi OS desktop details can change between releases, so this tutorial avoids mixing X11 utilities such as xset and unclutter with a Wayland session. It targets a current Raspberry Pi OS 64-bit desktop installation using the labwc desktop session. If your installed release uses a different desktop, use that release's documented autostart and display-blanking controls.

Prepare Raspberry Pi OS

Use Raspberry Pi Imager to install the current Raspberry Pi OS 64-bit desktop image. In the customization screen, choose a unique username and strong password, configure the hostname and network, and enable SSH only if your operating policy permits remote shell administration. Do not assume the username is pi.

After the first boot, sign in and confirm the desktop, display, audio if required, network, DNS, and system clock all work. Open a terminal and record the actual account and home directory:

id -un
printf '%s\n' "$HOME"
getent passwd "$(id -un)"

The examples below use YOUR_USER and /home/YOUR_USER as placeholders. Replace both with the values returned on your Pi. Do not copy the placeholders into a service file.

Apply operating system updates during commissioning, then reboot before adding the kiosk:

sudo apt update
sudo apt full-upgrade
sudo reboot

Install Node.js, npm, and curl from the repositories configured for your Raspberry Pi OS release:

sudo apt install nodejs npm curl
node --version
npm --version
curl --version

Confirm which Chromium executable exists instead of assuming a historical binary name:

command -v chromium || command -v chromium-browser

Keep the returned path for troubleshooting. The kiosk launcher supplied later performs the same check at runtime.

Enable desktop autologin

Run the interactive Raspberry Pi configuration tool:

sudo raspi-config

Select the boot or auto-login option provided by your installed release and choose desktop autologin for the dedicated signage account. Menu wording can vary between Raspberry Pi OS releases. Reboot and verify that the graphical desktop opens without manual credentials. Autologin should be used only for a dedicated physical display account with minimal privileges.

Build the validated local signage application

Create the project as the dedicated signage user, not as root:

mkdir -p "$HOME/signage/public/slides"
cd "$HOME/signage"
npm init -y
npm install express

The completed project has this exact structure:

signage/
├── content.json
├── package.json
├── package-lock.json
├── server.js
├── start-kiosk.sh
└── public/
    ├── admin.html
    ├── admin.js
    ├── display.html
    ├── display.js
    ├── signage.css
    └── slides/
        ├── slide1.html
        └── slide2.html

Create server.js

'use strict';

const crypto = require('crypto');
const express = require('express');
const fs = require('fs');
const path = require('path');

const app = express();
const HOST = '127.0.0.1';
const PORT = 3000;
const ROOT = __dirname;
const PUBLIC_DIR = path.join(ROOT, 'public');
const SLIDES_DIR = path.join(PUBLIC_DIR, 'slides');
const CONTENT_FILE = path.join(ROOT, 'content.json');

const ADMIN_USER = process.env.SIGNAGE_ADMIN_USER || '';
const ADMIN_PASSWORD = process.env.SIGNAGE_ADMIN_PASSWORD || '';
const ALLOWED_ORIGINS = new Set(
  (process.env.SIGNAGE_ALLOWED_ORIGINS || '')
    .split(',')
    .map(value => value.trim())
    .filter(Boolean)
);

if (!ADMIN_USER || ADMIN_PASSWORD.length < 16) {
  console.error('Set SIGNAGE_ADMIN_USER and a SIGNAGE_ADMIN_PASSWORD of at least 16 characters.');
  process.exit(1);
}

const sessions = new Map();
const loginAttempts = new Map();
const SESSION_LIFETIME_MS = 8 * 60 * 60 * 1000;
const LOGIN_WINDOW_MS = 60 * 1000;
const MAX_LOGIN_ATTEMPTS = 5;

app.disable('x-powered-by');

app.use((req, res, next) => {
  res.setHeader(
    'Content-Security-Policy',
    "default-src 'self'; script-src 'self'; style-src 'self'; img-src 'self' data:; frame-src 'self' https:; object-src 'none'; base-uri 'none'; form-action 'self'; frame-ancestors 'none'"
  );
  res.setHeader('Referrer-Policy', 'no-referrer');
  res.setHeader('X-Content-Type-Options', 'nosniff');
  res.setHeader('Permissions-Policy', 'camera=(), microphone=(), geolocation=()');
  next();
});

app.use(express.json({ limit: '8kb', strict: true }));
app.use(express.static(PUBLIC_DIR, { index: false, dotfiles: 'deny' }));

function safeEqual(left, right) {
  const a = Buffer.from(String(left));
  const b = Buffer.from(String(right));
  return a.length === b.length && crypto.timingSafeEqual(a, b);
}

function defaultConfig() {
  return {
    mode: 'slides',
    url: '',
    slides: ['/slides/slide1.html', '/slides/slide2.html'],
    interval: 10
  };
}

function validateSlide(slide) {
  if (typeof slide !== 'string' ||
      !/^\/slides\/[A-Za-z0-9._-]+\.html$/.test(slide)) {
    throw new Error('Every slide must be an approved /slides/name.html path.');
  }

  const relativeName = slide.substring('/slides/'.length);
  const resolved = path.resolve(SLIDES_DIR, relativeName);

  if (!resolved.startsWith(path.resolve(SLIDES_DIR) + path.sep) ||
      !fs.existsSync(resolved) ||
      !fs.statSync(resolved).isFile()) {
    throw new Error(`Slide does not exist: ${slide}`);
  }

  return slide;
}

function validateUrl(value) {
  if (value === '') {
    return '';
  }

  let parsed;
  try {
    parsed = new URL(value);
  } catch {
    throw new Error('The remote URL is invalid.');
  }

  if (parsed.protocol !== 'https:') {
    throw new Error('Remote URLs must use HTTPS.');
  }

  if (parsed.username || parsed.password) {
    throw new Error('Credentials are not allowed in remote URLs.');
  }

  if (!ALLOWED_ORIGINS.has(parsed.origin)) {
    throw new Error(`Remote origin is not allowlisted: ${parsed.origin}`);
  }

  return parsed.toString();
}

function validateConfig(input) {
  if (!input || typeof input !== 'object' || Array.isArray(input)) {
    throw new Error('Configuration must be a JSON object.');
  }

  const allowedKeys = new Set(['mode', 'url', 'slides', 'interval']);
  const keys = Object.keys(input);

  if (keys.some(key => !allowedKeys.has(key)) ||
      keys.some(key => !Object.prototype.hasOwnProperty.call(input, key))) {
    throw new Error('Configuration contains an unknown property.');
  }

  if (!['slides', 'url'].includes(input.mode)) {
    throw new Error('Mode must be slides or url.');
  }

  if (!Number.isInteger(input.interval) ||
      input.interval < 5 ||
      input.interval > 3600) {
    throw new Error('Interval must be an integer from 5 to 3600 seconds.');
  }

  if (!Array.isArray(input.slides) ||
      input.slides.length < 1 ||
      input.slides.length > 20) {
    throw new Error('Provide between 1 and 20 local slides.');
  }

  const slides = input.slides.map(validateSlide);
  const url = validateUrl(input.url);

  if (input.mode === 'url' && !url) {
    throw new Error('URL mode requires an allowlisted HTTPS URL.');
  }

  return {
    mode: input.mode,
    url,
    slides,
    interval: input.interval
  };
}

function writeConfig(config) {
  const temporary = `${CONTENT_FILE}.${process.pid}.tmp`;
  fs.writeFileSync(temporary, JSON.stringify(config, null, 2) + '\n', {
    encoding: 'utf8',
    mode: 0o600
  });
  fs.renameSync(temporary, CONTENT_FILE);
}

function loadConfig() {
  if (!fs.existsSync(CONTENT_FILE)) {
    const initial = validateConfig(defaultConfig());
    writeConfig(initial);
    return initial;
  }

  const parsed = JSON.parse(fs.readFileSync(CONTENT_FILE, 'utf8'));
  return validateConfig(parsed);
}

function requireAdmin(req, res, next) {
  const match = /^Bearer ([A-Fa-f0-9]{64})$/.exec(req.get('authorization') || '');
  const session = match ? sessions.get(match[1]) : null;

  if (!session || session.expiresAt <= Date.now()) {
    if (match) {
      sessions.delete(match[1]);
    }
    return res.status(401).json({ error: 'Administrator login required.' });
  }

  session.expiresAt = Date.now() + SESSION_LIFETIME_MS;
  next();
}

function loginAllowed(key) {
  const now = Date.now();
  const state = loginAttempts.get(key);

  if (!state || state.resetAt <= now) {
    loginAttempts.set(key, { count: 1, resetAt: now + LOGIN_WINDOW_MS });
    return true;
  }

  state.count += 1;
  return state.count <= MAX_LOGIN_ATTEMPTS;
}

app.get('/', (req, res) => {
  res.redirect('/display.html');
});

app.get('/health', (req, res) => {
  try {
    loadConfig();
    res.json({ status: 'ok' });
  } catch (error) {
    res.status(500).json({ status: 'error', error: error.message });
  }
});

app.get('/api/display', (req, res, next) => {
  try {
    res.setHeader('Cache-Control', 'no-store');
    res.json(loadConfig());
  } catch (error) {
    next(error);
  }
});

app.post('/api/login', (req, res) => {
  if (!loginAllowed(req.ip)) {
    return res.status(429).json({ error: 'Too many login attempts. Try again later.' });
  }

  const username = typeof req.body?.username === 'string' ? req.body.username : '';
  const password = typeof req.body?.password === 'string' ? req.body.password : '';

  if (!safeEqual(username, ADMIN_USER) || !safeEqual(password, ADMIN_PASSWORD)) {
    return res.status(401).json({ error: 'Invalid credentials.' });
  }

  loginAttempts.delete(req.ip);

  const token = crypto.randomBytes(32).toString('hex');
  sessions.set(token, { expiresAt: Date.now() + SESSION_LIFETIME_MS });
  res.setHeader('Cache-Control', 'no-store');
  res.json({ token, expiresInSeconds: SESSION_LIFETIME_MS / 1000 });
});

app.get('/api/admin/content', requireAdmin, (req, res, next) => {
  try {
    res.setHeader('Cache-Control', 'no-store');
    res.json(loadConfig());
  } catch (error) {
    next(error);
  }
});

app.put('/api/admin/content', requireAdmin, (req, res, next) => {
  try {
    const config = validateConfig(req.body);
    writeConfig(config);
    res.json({ status: 'updated', content: config });
  } catch (error) {
    res.status(400).json({ error: error.message });
  }
});

app.use((error, req, res, next) => {
  console.error(error);
  if (res.headersSent) {
    return next(error);
  }
  res.status(500).json({ error: 'Internal server error.' });
});

setInterval(() => {
  const now = Date.now();
  for (const [token, session] of sessions.entries()) {
    if (session.expiresAt <= now) {
      sessions.delete(token);
    }
  }
}, 10 * 60 * 1000).unref();

app.listen(PORT, HOST, () => {
  console.log(`Signage server listening on http://${HOST}:${PORT}`);
});

Create the initial content.json

{
  "mode": "slides",
  "url": "",
  "slides": [
    "/slides/slide1.html",
    "/slides/slide2.html"
  ],
  "interval": 10
}

Create public/display.html

<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width,initial-scale=1">
  <title>Signage Display</title>
  <link rel="stylesheet" href="/signage.css">
  <script src="/display.js" defer></script>
</head>
<body class="display-body">
  <iframe
    id="display-frame"
    title="Digital signage content"
    referrerpolicy="no-referrer"
  ></iframe>
  <p id="display-message" role="status">Loading signage content...</p>
</body>
</html>

Create public/display.js

'use strict';

const frame = document.getElementById('display-frame');
const message = document.getElementById('display-message');

let signature = '';
let slideIndex = 0;
let rotationTimer = null;

function showSource(source) {
  frame.src = source;
  frame.hidden = false;
  message.hidden = true;
}

function applyConfig(config) {
  if (rotationTimer) {
    clearInterval(rotationTimer);
    rotationTimer = null;
  }

  slideIndex = 0;

  if (config.mode === 'url') {
    showSource(config.url);
    return;
  }

  showSource(config.slides[0]);

  if (config.slides.length > 1) {
    rotationTimer = setInterval(() => {
      slideIndex = (slideIndex + 1) % config.slides.length;
      showSource(config.slides[slideIndex]);
    }, config.interval * 1000);
  }
}

async function poll() {
  try {
    const response = await fetch('/api/display', { cache: 'no-store' });
    if (!response.ok) {
      throw new Error(`HTTP ${response.status}`);
    }

    const config = await response.json();
    const nextSignature = JSON.stringify(config);

    if (nextSignature !== signature) {
      signature = nextSignature;
      applyConfig(config);
    }
  } catch (error) {
    console.error('Unable to retrieve display configuration:', error);
    if (!frame.src) {
      message.textContent = 'The local signage service is unavailable.';
      message.hidden = false;
    }
  }
}

poll();
setInterval(poll, 5000);

Create public/admin.html

<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width,initial-scale=1">
  <title>Signage Administration</title>
  <link rel="stylesheet" href="/signage.css">
  <script src="/admin.js" defer></script>
</head>
<body class="admin-body">
  <main>
    <h1>Signage Administration</h1>

    <form id="login-form">
      <h2>Administrator login</h2>
      <label>
        Username
        <input id="username" name="username" autocomplete="username" required>
      </label>
      <label>
        Password
        <input
          id="password"
          name="password"
          type="password"
          autocomplete="current-password"
          required
        >
      </label>
      <button type="submit">Sign in</button>
    </form>

    <form id="content-form" hidden>
      <h2>Display configuration</h2>
      <label>
        Mode
        <select id="mode" name="mode">
          <option value="slides">Local slides</option>
          <option value="url">Approved HTTPS URL</option>
        </select>
      </label>
      <label>
        Approved HTTPS URL
        <input id="url" name="url" type="url" placeholder="https://dashboard.example.com/view">
      </label>
      <label>
        Local slide paths, one per line
        <textarea id="slides" name="slides" rows="6" required></textarea>
      </label>
      <label>
        Rotation interval in seconds
        <input id="interval" name="interval" type="number" min="5" max="3600" required>
      </label>
      <button type="submit">Save configuration</button>
    </form>

    <p id="status" role="status"></p>
  </main>
</body>
</html>

Create public/admin.js

'use strict';

const loginForm = document.getElementById('login-form');
const contentForm = document.getElementById('content-form');
const statusText = document.getElementById('status');

let adminToken = '';

function setStatus(message) {
  statusText.textContent = message;
}

async function request(path, options = {}) {
  const headers = {
    'Content-Type': 'application/json',
    ...(options.headers || {})
  };

  if (adminToken) {
    headers.Authorization = `Bearer ${adminToken}`;
  }

  const response = await fetch(path, {
    ...options,
    headers,
    cache: 'no-store'
  });

  const payload = await response.json();

  if (!response.ok) {
    throw new Error(payload.error || `HTTP ${response.status}`);
  }

  return payload;
}

async function loadConfiguration() {
  const config = await request('/api/admin/content');
  document.getElementById('mode').value = config.mode;
  document.getElementById('url').value = config.url;
  document.getElementById('slides').value = config.slides.join('\n');
  document.getElementById('interval').value = config.interval;
}

loginForm.addEventListener('submit', async event => {
  event.preventDefault();
  setStatus('Signing in...');

  try {
    const result = await request('/api/login', {
      method: 'POST',
      body: JSON.stringify({
        username: document.getElementById('username').value,
        password: document.getElementById('password').value
      })
    });

    adminToken = result.token;
    document.getElementById('password').value = '';
    await loadConfiguration();
    loginForm.hidden = true;
    contentForm.hidden = false;
    setStatus('Signed in. Configuration loaded.');
  } catch (error) {
    setStatus(error.message);
  }
});

contentForm.addEventListener('submit', async event => {
  event.preventDefault();
  setStatus('Saving...');

  const slides = document.getElementById('slides').value
    .split('\n')
    .map(value => value.trim())
    .filter(Boolean);

  try {
    await request('/api/admin/content', {
      method: 'PUT',
      body: JSON.stringify({
        mode: document.getElementById('mode').value,
        url: document.getElementById('url').value.trim(),
        slides,
        interval: Number(document.getElementById('interval').value)
      })
    });

    setStatus('Saved. The display will detect the update within five seconds.');
  } catch (error) {
    setStatus(error.message);
  }
});

Create public/signage.css

html,
body {
  margin: 0;
  min-height: 100%;
  font-family: system-ui, sans-serif;
}

.display-body {
  width: 100vw;
  height: 100vh;
  overflow: hidden;
  background: #000;
  color: #fff;
  cursor: none;
}

#display-frame {
  width: 100%;
  height: 100%;
  border: 0;
  background: #000;
}

#display-message {
  padding: 2rem;
  font-size: 1.5rem;
}

.admin-body {
  background: #f4f6f8;
  color: #17202a;
}

.admin-body main {
  max-width: 44rem;
  margin: 2rem auto;
  padding: 1.5rem;
  background: #fff;
}

.admin-body form {
  display: grid;
  gap: 1rem;
}

.admin-body label {
  display: grid;
  gap: 0.35rem;
  font-weight: 600;
}

.admin-body input,
.admin-body select,
.admin-body textarea,
.admin-body button {
  box-sizing: border-box;
  width: 100%;
  padding: 0.75rem;
  font: inherit;
}

.admin-body button {
  cursor: pointer;
}

Hiding the pointer through the display page avoids depending on an X11 cursor utility inside a Wayland desktop. It only hides the pointer while it is over the kiosk page.

Create the two local slides

<!-- public/slides/slide1.html -->
<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width,initial-scale=1">
  <title>Welcome</title>
</head>
<body>
  <main>
    <h1>Welcome</h1>
    <p>Replace this file with your approved signage content.</p>
  </main>
</body>
</html>

<!-- public/slides/slide2.html -->
<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width,initial-scale=1">
  <title>Information</title>
</head>
<body>
  <main>
    <h1>Information Screen</h1>
    <p>Deploy tested HTML, images, and other required assets under the public directory.</p>
  </main>
</body>
</html>

These examples are intentionally simple. Add styling and assets appropriate to your display, but keep every referenced local file below public. Do not put passwords, AuthTokens, private API keys, or administrator data in slides because static files under public are served to the display route.

Configure approved remote origins

Remote URL mode is disabled unless the destination's exact origin is listed in SIGNAGE_ALLOWED_ORIGINS. An origin contains the scheme, hostname, and optional port, but not a path. For example, approving https://dashboard.example.com permits HTTPS paths on that origin. It does not permit HTTP, sibling subdomains, embedded credentials, or unrelated domains.

Approval by origin is only one control. The destination must also be trusted, safe for unattended display, and configured to allow iframe embedding. Avoid pages that can navigate the top-level window, display sensitive user data, or depend on an administrator's personal browser session.

Run the content service with systemd

Before creating the service, find the Node.js path:

command -v node

The following unit uses /usr/bin/node. Replace it if the command on your Pi returns a different path. Replace every YOUR_USER placeholder with the dedicated account name.

Create the protected environment file

Use sudoedit so the application password is not placed in shell history:

sudoedit /etc/signage.env

Add the application administrator username, a unique password of at least 16 characters, and any approved origins:

SIGNAGE_ADMIN_USER=signage-admin
SIGNAGE_ADMIN_PASSWORD=REPLACE_WITH_A_LONG_UNIQUE_PASSWORD
SIGNAGE_ALLOWED_ORIGINS=https://dashboard.example.com,https://status.example.com

Use a separate password from the Localtonet authentication provider. Do not copy the password into source code, screenshots, shell commands, browser bookmarks, or the slide directory.

sudo chown root:root /etc/signage.env
sudo chmod 600 /etc/signage.env

Create the system unit

[Unit]
Description=Local Digital Signage Content Service
After=local-fs.target
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
User=YOUR_USER
Group=YOUR_USER
WorkingDirectory=/home/YOUR_USER/signage
Environment=NODE_ENV=production
EnvironmentFile=/etc/signage.env
ExecStart=/usr/bin/node /home/YOUR_USER/signage/server.js
Restart=on-failure
RestartSec=5
NoNewPrivileges=true
PrivateTmp=true
ProtectSystem=strict
ProtectHome=read-only
ReadWritePaths=/home/YOUR_USER/signage

[Install]
WantedBy=multi-user.target

Save it as /etc/systemd/system/signage.service, then reload systemd and start the service:

sudo systemctl daemon-reload
sudo systemctl enable signage.service
sudo systemctl start signage.service

Verify status, binding, and logs

sudo systemctl status signage.service --no-pager
curl --fail http://127.0.0.1:3000/health
ss -ltn | grep ':3000'
journalctl -u signage.service -n 50 --no-pager

The health request should return {"status":"ok"}. The listening socket should show 127.0.0.1:3000, not 0.0.0.0:3000 and not [::]:3000. A localhost-only binding prevents direct access from another machine on the LAN. The Localtonet client must run on the same Pi for this target, because another device cannot connect to the Pi's loopback address.

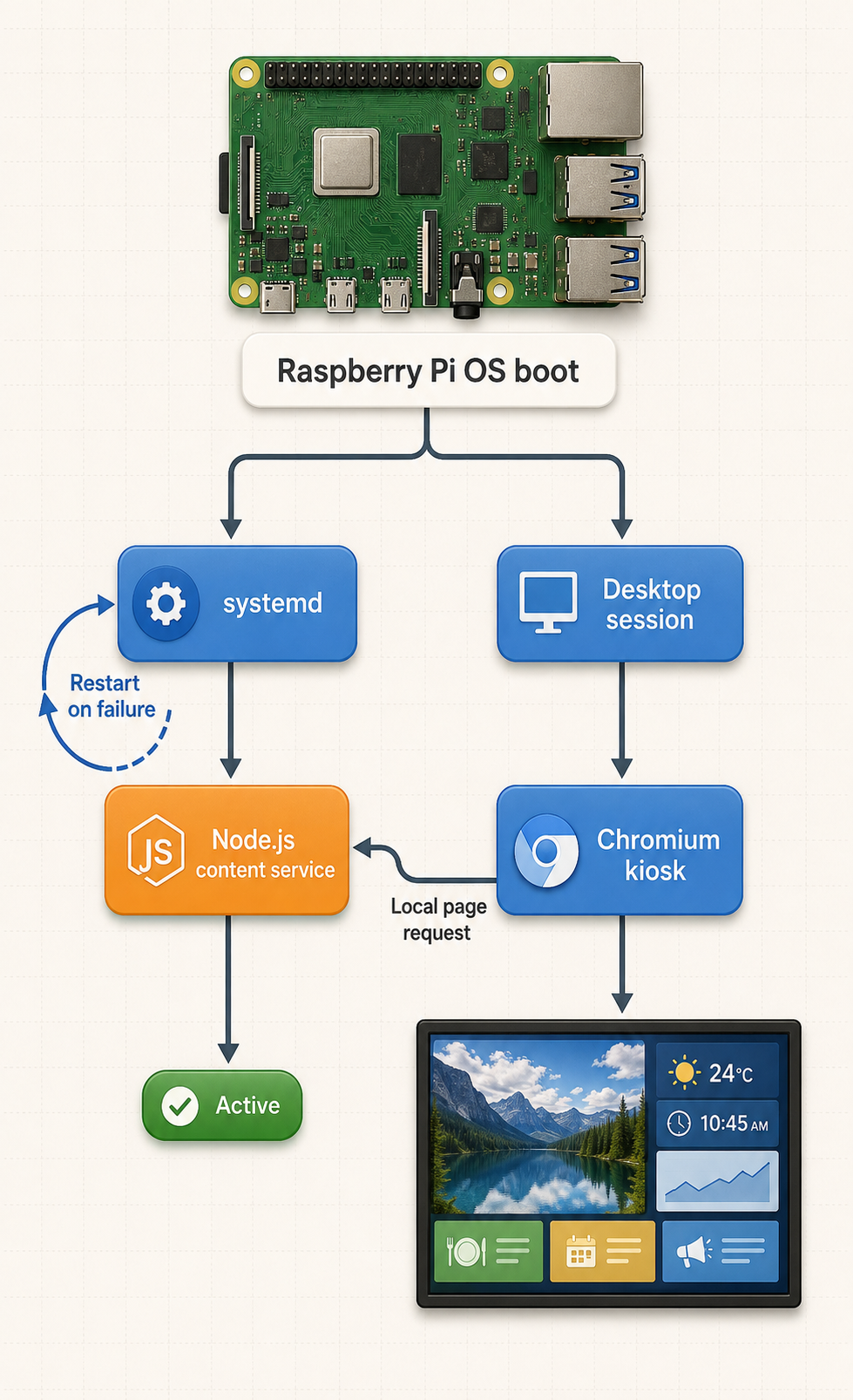

Configure Chromium kiosk startup and display behavior

The content server is a system service, but Chromium belongs to the graphical user session. Starting a GUI browser from the system unit introduces display-session, compositor, and user-environment problems. Keep the two startup paths separate.

Create the kiosk launcher

Create ~/signage/start-kiosk.sh as the signage user:

#!/bin/sh

URL="http://127.0.0.1:3000/display.html"

until curl --fail --silent --output /dev/null \
  http://127.0.0.1:3000/health
do
  sleep 2
done

BROWSER="$(command -v chromium || command -v chromium-browser || true)"

if [ -z "$BROWSER" ]; then
  echo "Chromium executable was not found." >&2
  exit 1
fi

exec "$BROWSER" \
  --kiosk \
  --no-first-run \
  --noerrdialogs \
  "$URL"

chmod 700 "$HOME/signage/start-kiosk.sh"
"$HOME/signage/start-kiosk.sh"

Run it manually from the desktop terminal first. Confirm that Chromium fills the screen and rotates between the two local slides. Exit the browser using a locally approved maintenance method before continuing.

Add it to labwc autostart

For the current Raspberry Pi OS desktop workflow using labwc, create the per-user configuration directory:

mkdir -p "$HOME/.config/labwc"
nano "$HOME/.config/labwc/autostart"

Add this line:

"$HOME/signage/start-kiosk.sh" &

Do not add DISPLAY, XAUTHORITY, xset, or unclutter instructions to this Wayland workflow. If the installed Raspberry Pi OS release does not use labwc, remove this entry and use the documented graphical autostart mechanism for that release rather than combining desktop stacks.

Configure screen blanking through the desktop

Use the screen-blanking control supplied by the installed Raspberry Pi OS desktop or its interactive configuration utility. Disable blanking only if the display should remain on continuously. Menu names can vary by release, so confirm the result on the physical display by leaving it idle longer than the previous timeout.

Avoid assuming that an X11 xset command controls a Wayland compositor. Also avoid hardcoding HDMI power commands into scheduled jobs without validating them against the Pi model, display stack, monitor behavior, and current Raspberry Pi documentation. If an operating-hours schedule is required, first test the supported method on the exact hardware and confirm the screen recovers reliably.

Reboot verification checkpoint

sudo reboot

After reboot, verify all of the following:

• The dedicated account enters the desktop automatically.
• The signage service is active.
• Chromium opens only after /health responds.
• The local slides rotate at the configured interval.
• The pointer is hidden over the display page.
• The screen remains active for the required operating period.
• Unplugging internet access does not stop already deployed local slides.

If the content service restarts while Chromium remains open, the polling loop retries every five seconds. Once the service returns, a changed configuration is applied without restarting Chromium.

Add authenticated remote management with Localtonet

Localtonet exposes the local HTTP service through an outbound client connection. The public tunnel is available only while the selected client device is connected and the tunnel is running. Creating a tunnel does not start it automatically.

Client installation details can change by operating system and release. Use the currently supported Localtonet installation option shown in our official dashboard or documentation. This tutorial intentionally does not provide an unverified shell installer, command-line flag, or service command.

Configure authentication before starting public access

The application already requires an administrator login for write operations, but tunnel-layer authentication should also be configured before the tunnel is started. Localtonet Basic Auth is suitable for a small, controlled group. For sensitive or production environments, consider an external SSO provider where appropriate.

See our Username/Password authentication documentation for the current provider controls. Basic Auth users are managed manually and this provider does not supply MFA. Use unique credentials, rotate them periodically, and prefer stronger identity controls where the risk requires them.

Create and start the HTTP tunnel

Remote command examples are intentionally omitted. A tunnel-layer authentication flow can involve an intercepted login and authenticated browser session, so an unauthenticated curl example is not equivalent to the secured configuration. It can also encourage operators to put passwords into command history or scripts. Use the browser administration page or a separately engineered automation client that follows your selected SSO flow and secret-management policy.

Stop, reconnect, and delete safely

Use Stop when remote management is not needed. Stopping the tunnel removes public reachability without deleting its configuration. Use Delete when the tunnel should no longer exist. If the Pi, Localtonet client, or network disconnects, the public address will not reach the application until the selected client reconnects and the tunnel is running again.

Confirm current client startup behavior on the installed Localtonet version instead of adding an unverified service command. After every reboot test, check the Localtonet dashboard for device connectivity, confirm the tunnel status, and open the authenticated administration page.

Routine operations, multiple displays, updates, and recovery

Change existing slides safely

The remote interface changes configuration but does not upload content. To deploy a new slide, place the reviewed HTML and its assets below ~/signage/public/slides through your controlled maintenance process. Then add its exact path, such as /slides/safety.html, in the administration page.

The server verifies that each requested HTML file exists. Paths containing directory traversal, spaces, query strings, arbitrary extensions, or nested directories are rejected by this example. If you extend the accepted file structure, update validation first and test it before changing production content.

Offline behavior

Manage several displays with least privilege

Each Pi can run its own loopback service, Localtonet client, device token, and tunnel. Maintain an inventory containing the device name, physical location, content owner, installed application version, last local verification date, and tunnel status. Do not store passwords or AuthTokens in that inventory unless it is an approved secret-management system.

Avoid a shell loop that sends unauthenticated writes to a list of public endpoints. For fleet automation, design a controller that uses the selected Localtonet authentication model, obtains authorization without embedding secrets in source code, verifies each target identity, sends the complete validated configuration, records per-device results, and stops if a display returns an unexpected response. A partial deployment should be visible to operators rather than reported as a universal success.

Update and rollback procedure

Treat operating system, Node.js dependency, application, and slide changes as separate deployments. Before changing the application, stop configuration edits, copy the project to protected backup storage, and preserve package-lock.json. Do not back up /etc/signage.env into an unencrypted source repository.

cd "$HOME"
cp -a signage "signage.backup.$(date +%Y%m%d%H%M%S)"
sudo systemctl restart signage.service
curl --fail http://127.0.0.1:3000/health
journalctl -u signage.service -n 50 --no-pager

For dependency maintenance, review the proposed changes before deployment. Test them on a spare Pi or staging display that matches the production OS and hardware. After updating, reboot once to verify the full service, desktop, browser, network, Localtonet client, and tunnel lifecycle.

To roll back, stop the service, restore the known-good project directory with its matching lockfile and configuration, confirm ownership, start the service, and check both local and remote behavior. Keep the display physically accessible during a major OS or desktop-stack upgrade because autostart behavior or the browser executable can change.

Storage and power practices

• Use reputable storage and leave free space for package updates, browser data, and logs.
• Check filesystem and kernel errors during maintenance rather than treating every failure as a browser problem.
• Use a suitable power supply and cooling for the chosen Pi and workload.
• Shut the Pi down cleanly before removing power whenever possible.
• Keep a tested replacement image and a record of the device-specific configuration.
• Test videos and animated dashboards on the real hardware. Performance varies with codecs, acceleration, stream profiles, cooling, resolution, and OS release.

Troubleshooting the local service, kiosk, display, and tunnel

Chromium shows connection refused after login

Check the content service first:

sudo systemctl status signage.service --no-pager
curl --fail http://127.0.0.1:3000/health
journalctl -u signage.service -b --no-pager

The launcher waits for the health endpoint, so a persistent error usually means the service failed, the application password environment is invalid, the path in the unit is wrong, or Node.js is at a different location. Correct the unit, run sudo systemctl daemon-reload, and restart it.

The service fails after copying the unit

Search the unit for unmodified placeholders:

sudo systemctl cat signage.service
id -un
printf '%s\n' "$HOME"
command -v node

Confirm that User, Group, WorkingDirectory, ExecStart, and ReadWritePaths match the actual account and installation. Also verify that /etc/signage.env exists, is readable by systemd, and contains a password of at least 16 characters.

Chromium does not open after reboot

Confirm desktop autologin works and that the session is actually using labwc. Then inspect the autostart file and run the launcher manually from a terminal inside the desktop:

cat "$HOME/.config/labwc/autostart"
"$HOME/signage/start-kiosk.sh"
command -v chromium || command -v chromium-browser

If manual startup works but boot startup does not, verify the autostart mechanism for the Raspberry Pi OS release currently installed. Do not compensate by setting guessed DISPLAY or XAUTHORITY values.

The screen still blanks

Recheck the current desktop's screen-blanking setting and verify it in the active signage account, not another user. Some displays also have their own sleep, energy-saving, or no-signal settings. Test both the Pi setting and the monitor configuration. Do not assume an X11 power-management command controls a Wayland session.

A remote URL is blank or says it refused to connect

Open Chromium developer tools during commissioning and inspect the console. Messages mentioning X-Frame-Options or frame-ancestors mean the destination refuses iframe embedding. Use an official embed view or a local slide. If the server rejects the URL when saving, confirm that it uses HTTPS and that its exact origin appears in SIGNAGE_ALLOWED_ORIGINS.

Configuration saves but the display does not change

Open the local display API and compare it with the administration form:

curl --fail http://127.0.0.1:3000/api/display

The display polls every five seconds. If the API contains the new configuration, inspect Chromium's console and network requests. If the API contains old data, inspect the service logs and permissions for content.json. The application writes a temporary file and renames it, so the project directory must remain writable by the service account.

Localtonet shows the device or tunnel as disconnected

Verify general network connectivity, DNS resolution, system time, and the status of the supported Localtonet client. Then confirm that the dashboard shows the intended device token as connected and that the tunnel itself is running. A connected device does not automatically mean every configured tunnel is started.

The public address reaches an error page

Test http://127.0.0.1:3000/health on the Pi. Confirm the HTTP tunnel targets 127.0.0.1 on port 3000 and that the Localtonet client is running on the same device. If the local health endpoint works, review the tunnel status and currently selected relay in the dashboard.

Authentication succeeds at one layer but not the other

There are two separate credentials. The Localtonet provider controls entry through the public address. The application login controls configuration writes after the request reaches Express. Reset or rotate the credential at the layer reporting the failure. Do not make both passwords identical merely to reduce confusion.

The Pi becomes slow or unresponsive

Do not assume a Chromium memory leak without evidence. Check CPU load, memory, storage space, temperature, kernel messages, service logs, browser page behavior, and external media workload. Complex dashboards, high-resolution video, software decoding, insufficient cooling, failing storage, and an unstable power supply can produce similar symptoms.

free -h
df -h
uptime
journalctl -p warning -b --no-pager
sudo systemctl status signage.service --no-pager

Reproduce the workload on matching hardware and simplify one component at a time. Schedule restarts only after identifying a reason and confirming that restart behavior is safe for the displayed content.

Frequently asked questions
