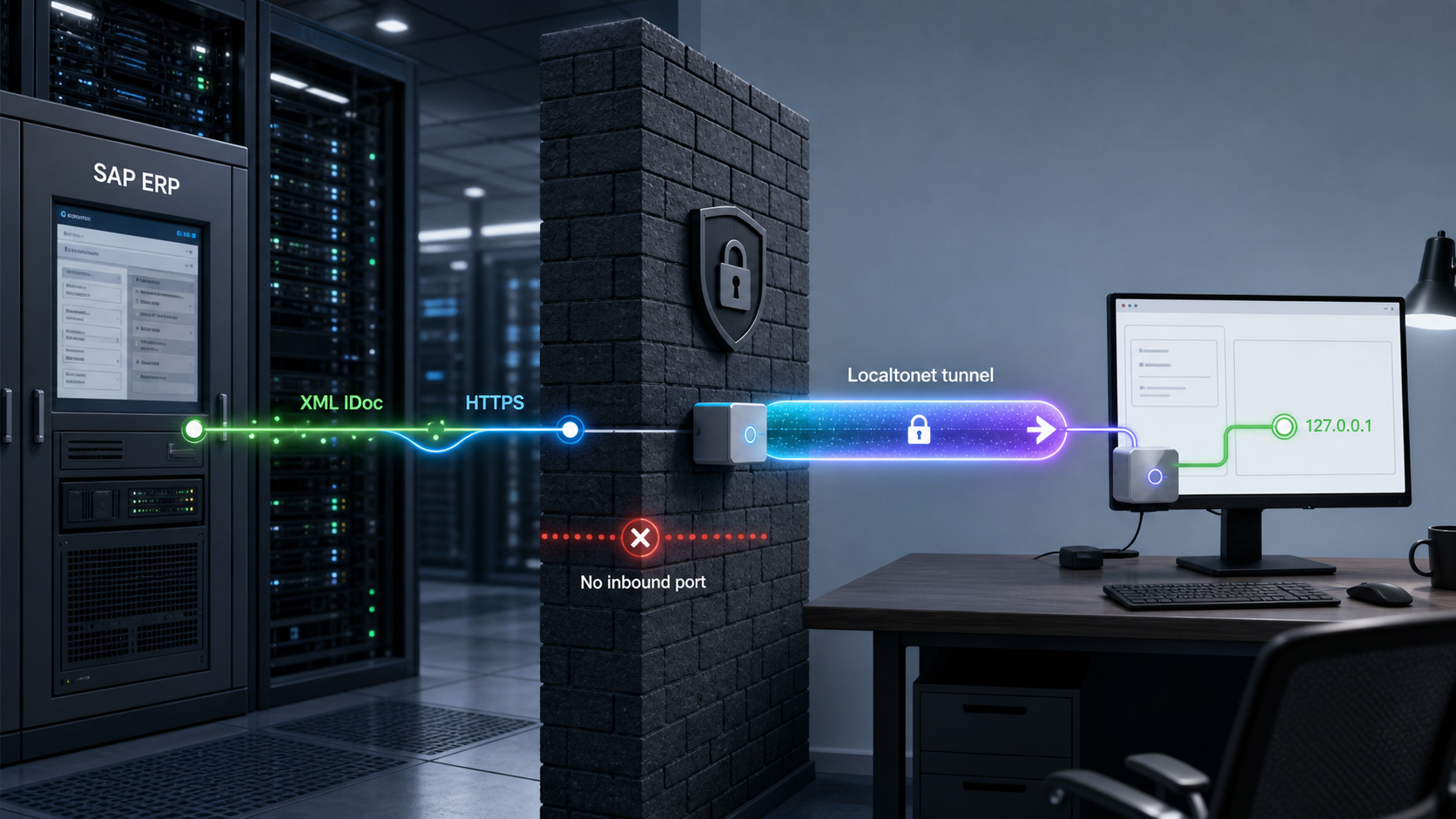

How to Send SAP ERP Data to a Local Integration Server Without Opening Firewall Ports

Scope: XML HTTP IDoc delivery to a local receiver

This tutorial covers one deliberately narrow workflow: an authorized, non-production SAP ECC or SAP S/4HANA on-premise system sends an outbound IDoc as XML over HTTPS to middleware listening locally on port 3000. A Localtonet HTTP tunnel makes that local HTTP service reachable through an assigned public HTTPS address.

The design does not remove enterprise network controls. The SAP application server must resolve the public hostname and establish an outbound HTTPS connection under the organization’s proxy, firewall, allowlisting, and routing policy. The device running the Localtonet client must also be allowed to establish its outbound connection to the selected Localtonet relay. If either outbound path is blocked, the flow will not work.

Middleware also does not inherently need a public URL. If SAP can reach an integration service through a private routed network, an approved reverse proxy, a private cloud connection, or existing enterprise middleware, use that architecture. A temporary public tunnel is most useful when a controlled non-production test requires a callback to a developer workstation, lab device, or local integration server that is not otherwise reachable.

XML HTTP is not tRFC

SAP supports multiple outbound integration mechanisms. An XML HTTP port serializes an IDoc into XML and sends it through an HTTP destination. A transactional RFC port uses SAP’s RFC mechanisms and requires an RFC-capable receiver. A custom ABAP program using a supported HTTP client API is another distinct workflow because the application controls the HTTP method, body, headers, and response handling.

Prerequisites and ownership

Complete the ownership and technical checks before creating the endpoint. SAP transaction access alone is not sufficient authorization to alter an integration landscape.

Confirm the SAP release-specific procedure

SAP GUI labels, XML record options, available authentication settings, destination behavior, and IDoc test-tool flow can vary by release and installed components. Before changing SM59, WE21, WE20, or STRUST, the Basis team should validate the procedure against the documentation and configuration standards applicable to that exact system.

This article explains the relationship among the required objects and provides a safe verification sequence. It intentionally does not prescribe an unverified XML record-type selection or assume that every ECC and S/4HANA release presents identical fields.

Do not create a logical system casually

A logical system identifies an SAP system or logical participant in ALE processing. Creating one in BD54 can affect governed landscape definitions and may require client assignment or transport coordination. Reuse the approved logical system designated by the Basis or ALE team. If a new logical system is required, its creation and assignment should be treated as a separate landscape change, not as an incidental troubleshooting step.

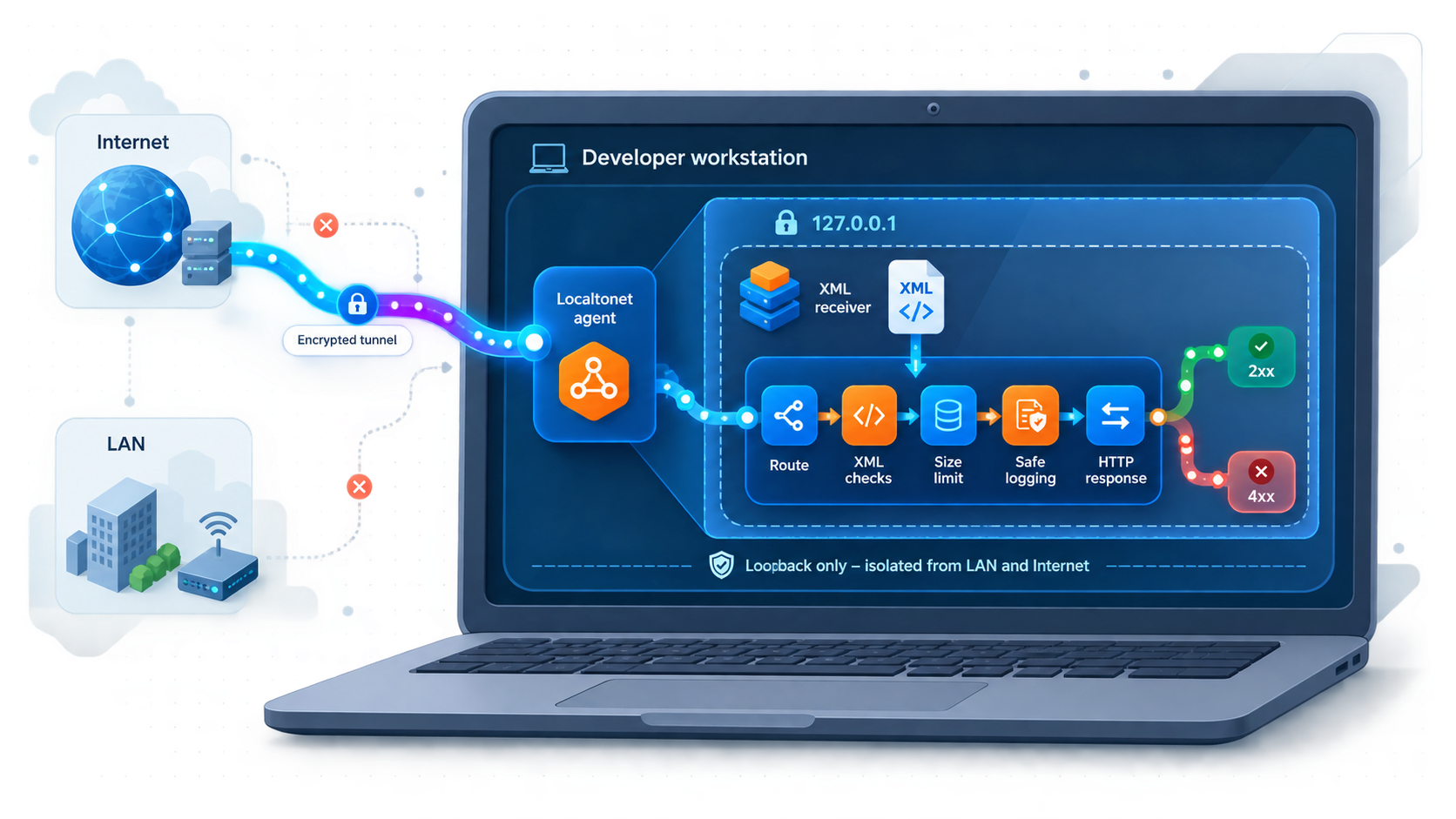

Build a hardened local XML receiver

The following Python receiver is a compact non-production reference implementation. It provides authenticated health and IDoc endpoints, limits requests to one MiB, accepts only XML media types, parses XML with defusedxml, avoids logging the payload or authorization header, and writes accepted input to a local inbox before returning success.

One MiB is an example test limit, not a statement about SAP or Localtonet limits. Select an approved limit based on your expected IDoc size and resource controls. A real integration platform should use a durable database, queue, or object store with access control, retention, encryption, monitoring, and backup appropriate to the data classification.

Install the local environment

python -m venv .venv
source .venv/bin/activate
python -m pip install Flask defusedxml

On Windows PowerShell, activate the environment with the script created under .venv\Scripts. Keep dependency versions under your organization’s normal review and pinning process before sharing or automating the project.

Create the receiver

# app.py
import hashlib
import hmac
import os
import re
from pathlib import Path

from defusedxml import ElementTree as SafeET
from flask import Flask, Response, jsonify, request

app = Flask(__name__)
app.config["MAX_CONTENT_LENGTH"] = 1024 * 1024

IDOC_USER = os.environ.get("IDOC_USER", "")
IDOC_PASSWORD = os.environ.get("IDOC_PASSWORD", "")
INBOX = Path(os.environ.get("IDOC_INBOX", "./idoc-inbox"))
ALLOWED_TYPES = {"application/xml", "text/xml"}

if not IDOC_USER or not IDOC_PASSWORD:
    raise RuntimeError("Set IDOC_USER and IDOC_PASSWORD before starting")

INBOX.mkdir(mode=0o700, parents=True, exist_ok=True)

def unauthorized():
    return Response(
        "Authentication required\n",
        401,
        {"WWW-Authenticate": 'Basic realm="SAP IDoc test receiver"'},
    )

def authenticated():
    credentials = request.authorization
    if credentials is None or credentials.type.lower() != "basic":
        return False

    valid_user = hmac.compare_digest(credentials.username or "", IDOC_USER)
    valid_password = hmac.compare_digest(credentials.password or "", IDOC_PASSWORD)
    return valid_user and valid_password

def local_name(tag):
    return tag.rsplit("}", 1)[-1]

def first_element(root, names):
    wanted = set(names)
    for element in root.iter():
        if local_name(element.tag) in wanted:
            return element
    return None

def child_text(element, name):
    if element is None:
        return None

    for child in element.iter():
        if local_name(child.tag) == name and child.text:
            return child.text.strip()
    return None

def inspect_idoc(raw_body):
    root = SafeET.fromstring(raw_body)

    if local_name(root.tag) == "IDOC":
        idoc = root
    else:
        idoc = first_element(root, {"IDOC"})

    if idoc is None:
        raise ValueError("No IDOC element found")

    control = first_element(idoc, {"EDI_DC40", "EDIDC40"})
    if control is None:
        raise ValueError("No supported IDoc control record found")

    document_number = child_text(control, "DOCNUM")
    message_type = child_text(control, "MESTYP")
    basic_type = child_text(control, "IDOCTYP")

    if not message_type or not basic_type:
        raise ValueError("Required control-record identifiers are missing")

    return {
        "document_number": document_number,
        "message_type": message_type,
        "basic_type": basic_type,
    }

def safe_identifier(value):
    cleaned = re.sub(r"[^A-Za-z0-9_.-]", "_", value or "no-docnum")
    return cleaned[:64] or "no-docnum"

def store_once(raw_body, document_number):
    digest = hashlib.sha256(raw_body).hexdigest()
    filename = f"{safe_identifier(document_number)}-{digest}.xml"
    destination = INBOX / filename

    try:
        descriptor = os.open(
            destination,
            os.O_WRONLY | os.O_CREAT | os.O_EXCL,
            0o600,
        )
        with os.fdopen(descriptor, "wb") as output:
            output.write(raw_body)
            output.flush()
            os.fsync(output.fileno())
        return destination, False
    except FileExistsError:
        return destination, True

@app.errorhandler(413)
def request_too_large(_error):
    return jsonify(error="payload_too_large"), 413

@app.route("/health", methods=["GET", "HEAD"])
def health():
    if not authenticated():
        return unauthorized()
    return jsonify(status="ready")

@app.route("/idoc", methods=["GET", "HEAD"])
def idoc_health():
    if not authenticated():
        return unauthorized()
    return jsonify(status="ready", endpoint="idoc")

@app.post("/idoc")
def receive_idoc():
    if not authenticated():
        return unauthorized()

    if request.mimetype not in ALLOWED_TYPES:
        return jsonify(error="unsupported_media_type"), 415

    raw_body = request.get_data(cache=False)
    if not raw_body:
        return jsonify(error="empty_body"), 400

    try:
        metadata = inspect_idoc(raw_body)
        _path, duplicate = store_once(
            raw_body,
            metadata["document_number"],
        )
    except ValueError as error:
        app.logger.warning("Rejected XML: %s", str(error))
        return jsonify(error="invalid_idoc_xml"), 400
    except Exception:
        app.logger.exception("Could not durably accept IDoc")
        return jsonify(error="temporary_receiver_failure"), 503

    app.logger.info(
        "Accepted IDoc docnum=%s message_type=%s basic_type=%s duplicate=%s",
        metadata["document_number"] or "missing",
        metadata["message_type"],
        metadata["basic_type"],
        duplicate,
    )

    return jsonify(
        status="accepted",
        document_number=metadata["document_number"],
        duplicate=duplicate,
    ), 200

if __name__ == "__main__":
    app.run(host="127.0.0.1", port=3000)

Set credentials without putting them in source code

export IDOC_USER="sap_idoc_test"
export IDOC_PASSWORD="replace-with-a-secret-from-your-approved-secret-store"
export IDOC_INBOX="./idoc-inbox"
python app.py

Do not paste a real password into documentation, source control, shell history, tickets, or screenshots. The environment-variable method keeps the sample readable, but managed deployments should retrieve credentials from an approved secret store and rotate them according to policy.

The Flask development server is suitable only for a controlled local exercise. It is not a production application server. Keep it bound to 127.0.0.1 when the Localtonet client runs on the same machine. If the client runs on another approved device, bind and protect the service according to your local network policy, then use a local IP address reachable from that device.

Verify the service locally first

curl -i \
  -u "$IDOC_USER:$IDOC_PASSWORD" \
  http://127.0.0.1:3000/health

Expect a successful HTTP response containing {"status":"ready"}. Resolve local application errors before introducing the tunnel or SAP configuration. This separation makes it much easier to identify which layer is failing.

Create and run the Localtonet HTTP tunnel

Localtonet exposes the local HTTP receiver by having the selected client establish an outbound connection to a Localtonet relay. The tunnel remains available only while that client is connected and the tunnel is running.

Use the current application and dashboard values rather than copying a server code, region, device token, or public hostname from an article. Available relay servers, process types, and plan-dependent options can change. The Localtonet HTTP tunnel documentation is the canonical companion page for the current interface.

Verify forwarding through the public endpoint

Put the assigned address into a shell variable without adding a trailing slash:

export TUNNEL_BASE_URL="https://your-assigned-address"

curl -i \
  -u "$IDOC_USER:$IDOC_PASSWORD" \
  "$TUNNEL_BASE_URL/health"

This checks public HTTPS routing, tunnel state, local forwarding, and authentication. It does not test SAP or IDoc parsing. Confirm that an unauthenticated request returns 401:

curl -i "$TUNNEL_BASE_URL/health"

Configure the SAP XML HTTP path under Basis control

The SAP configuration connects several separate concepts. The HTTP destination identifies the remote HTTPS service. The XML HTTP port references the technical delivery path. The partner profile determines which outbound message is sent to which receiver and port. Message type and basic IDoc type are related but are not interchangeable.

1. Prepare the HTTPS destination in SM59

Under the approved change procedure, create or update an HTTP connection to an external server in SM59. Use the host from the assigned Localtonet HTTPS address, HTTPS port 443, and the receiver path /idoc. Enter the hostname only where the destination expects a host. Do not include the URL scheme in a host-only field.

Configure the authentication method approved for the SAP release and organization. The reference receiver uses HTTP Basic authentication, so the destination must send the matching dedicated username and password. Store those credentials using the facilities approved for the SAP system, restrict who can display or modify the destination, and never reuse an interactive user’s credentials.

2. Establish TLS trust through the correct SSL client PSE

Ask Basis to inspect the certificate chain presented by the actual assigned endpoint and establish trust in the appropriate SAP SSL client PSE through STRUST and the organization’s certificate-management process. The required trust chain depends on the certificate actually presented at that time.

3. Test destination connectivity carefully

Save the destination and use the release-appropriate connection test. A connection test is not an IDoc dispatch. Depending on SAP release and destination behavior, it may use a request method or path that differs from the eventual XML POST. The sample receiver supports authenticated GET and HEAD requests on /idoc to make a simple reachability check possible, but do not assume every SM59 test will produce HTTP 200 or a particular log entry.

Treat DNS resolution, TCP connection, TLS negotiation, authentication, and HTTP application response as separate layers. Record the exact SAP error rather than reducing every failure to an endpoint outage.

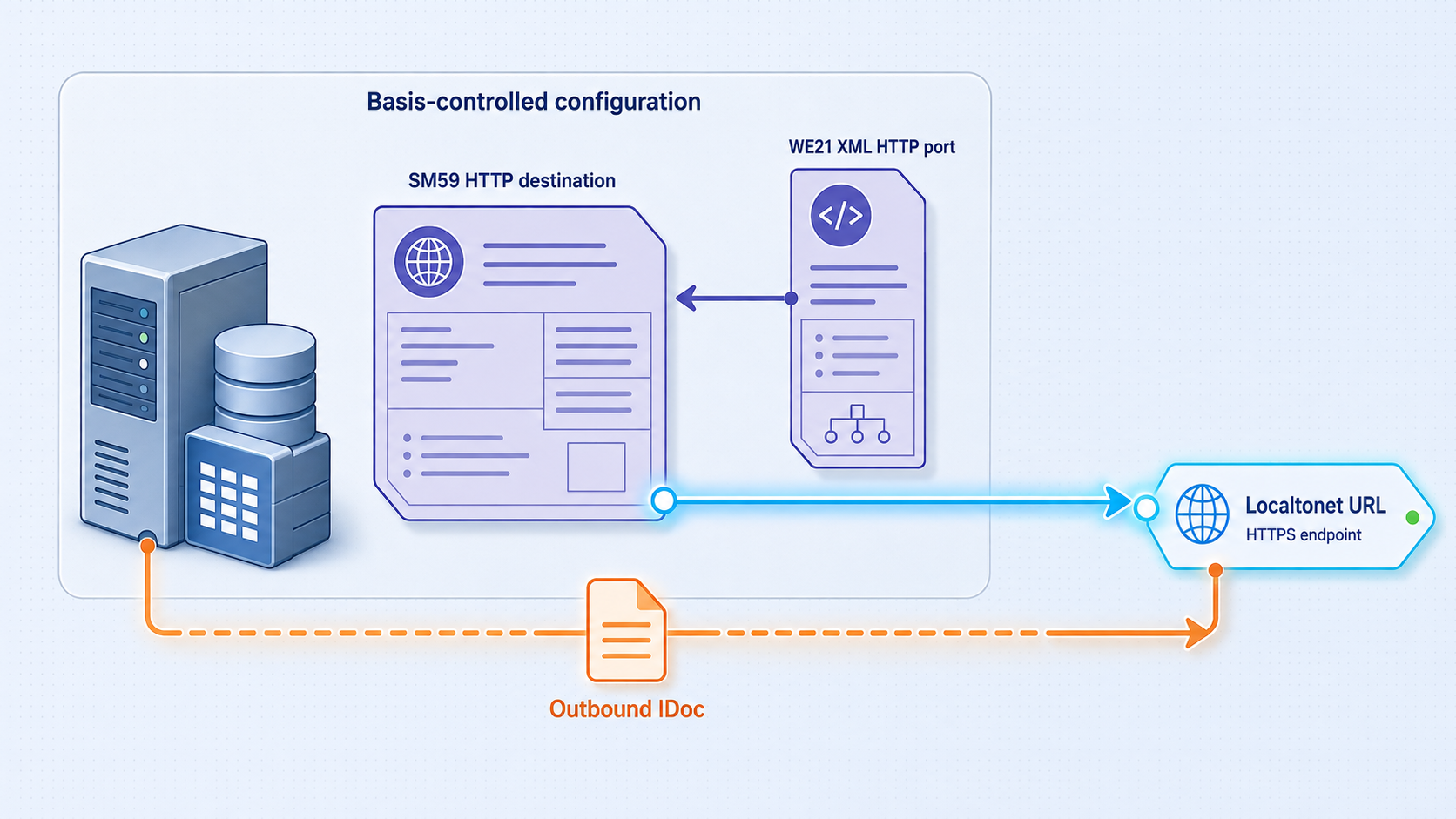

4. Create or update the XML HTTP port in WE21

In WE21, work with the XML HTTP port category applicable to the installed SAP release. Assign the approved HTTP destination created in SM59. Have Basis or the ALE owner select any XML record or serialization option based on the sender release and receiver contract. Do not copy a record-type choice from another system without checking compatibility.

Save the port under the organization’s naming and transport rules. Confirm that it is an XML HTTP port rather than a transactional RFC port.

5. Configure the outbound partner parameters in WE20

Select the approved partner profile, commonly a logical-system partner in ALE scenarios. Add or update the outbound parameter for the required business message. Enter the message type in the message-type field and the applicable basic type or extension in its separate field when required by the profile and release. Point the receiver port to the XML HTTP port from WE21.

Select immediate dispatch or background collection only according to the test plan. This choice affects when SAP attempts delivery and how failed or waiting IDocs are handled. Do not assume an HTTP error automatically creates a universal retry schedule. Retry and reprocessing depend on IDoc status, partner-profile processing mode, jobs, and system configuration.

6. Review authorization and change records

Apply least-privilege SAP authorizations to destination maintenance, partner-profile maintenance, test generation, status inspection, reprocessing, and certificate administration. Keep the Localtonet endpoint, destination name, port name, partner, message type, basic type, test window, owner, and cleanup plan in the approved change or test record.

Verify each layer before sending a real test IDoc

A reliable test proceeds from the local service outward. Do not start with WE19 and then troubleshoot every layer at once.

1. Local health verification

Call http://127.0.0.1:3000/health with the dedicated credentials. Confirm that the receiver returns success and that its inbox directory is writable. This proves only that the application is running locally.

2. Public tunnel verification

Call the same health endpoint through the assigned HTTPS address. Confirm that valid credentials succeed and missing or incorrect credentials return 401. This proves forwarding and authentication, but it is not an IDoc test.

3. Send a sanitized representative XML fixture

Save the following synthetic fixture as test-idoc.xml. It models the common envelope in which a basic-type element contains an IDOC child and an EDI_DC40 control record. It contains no real customer, employee, supplier, financial, or credential data.

<ORDERS05>
  <IDOC BEGIN="1">
    <EDI_DC40 SEGMENT="1">
      <TABNAM>EDI_DC40</TABNAM>
      <DOCNUM>0000000000000001</DOCNUM>
      <IDOCTYP>ORDERS05</IDOCTYP>
      <MESTYP>ORDERS</MESTYP>
      <SNDPOR>SANITIZED_SENDER</SNDPOR>
      <SNDPRT>LS</SNDPRT>
      <SNDPRN>SANITIZED_SENDER</SNDPRN>
      <RCVPOR>SANITIZED_RECEIVER</RCVPOR>
      <RCVPRT>LS</RCVPRT>
      <RCVPRN>SANITIZED_RECEIVER</RCVPRN>
    </EDI_DC40>
    <E1EDK01 SEGMENT="1">
      <CURCY>USD</CURCY>
    </E1EDK01>
  </IDOC>
</ORDERS05>

curl -i \
  -u "$IDOC_USER:$IDOC_PASSWORD" \
  -H "Content-Type: application/xml" \
  --data-binary @test-idoc.xml \
  "$TUNNEL_BASE_URL/idoc"

A successful response should identify the message as accepted. Confirm that exactly one protected file appears in the inbox and that the application log contains only the document number, message type, basic type, and duplicate flag. Sending the identical fixture again should return success with duplicate set to true.

4. Run the SAP destination test

Ask the Basis owner to run the appropriate SM59 connectivity test and inspect its detailed result. A successful connectivity test confirms only the aspects exercised by that test. It does not prove that the partner profile resolves correctly, that an XML IDoc can be serialized, or that downstream middleware processing succeeds.

5. Create an approved WE19 test

WE19 is an IDoc test tool. Under the approved test plan, use a sanitized existing non-production IDoc as a template or use the release-supported method for creating a test document. Review the generated control record, receiver partner, message type, basic type, and port before initiating standard outbound processing.

WE19 behavior and available actions vary across releases. Follow the test procedure approved for the target system rather than assuming that one button sequence applies universally. The test tool may create a new test IDoc and should not be treated as editing the original business document.

6. Inspect status records in WE02 or WE05

Locate the generated IDoc and read its complete status history. Status 03 means that data was passed to the port. It does not prove that middleware completed mapping, database commits, downstream API calls, or business processing.

Do not collapse different statuses into a generic endpoint error. Common outbound meanings include status 02 for an error passing data to the port, status 04 for an error within control information of the EDI subsystem, and status 29 for an error in ALE service. The status message and application log for the applicable release provide the actionable detail.

BD87 is a status-based IDoc reprocessing tool, not simply an outbound queue monitor. Use it only after identifying and correcting the cause, and select the reprocessing action appropriate to that status and system configuration. Reprocessing can create another delivery attempt, so the receiver must tolerate duplicates.

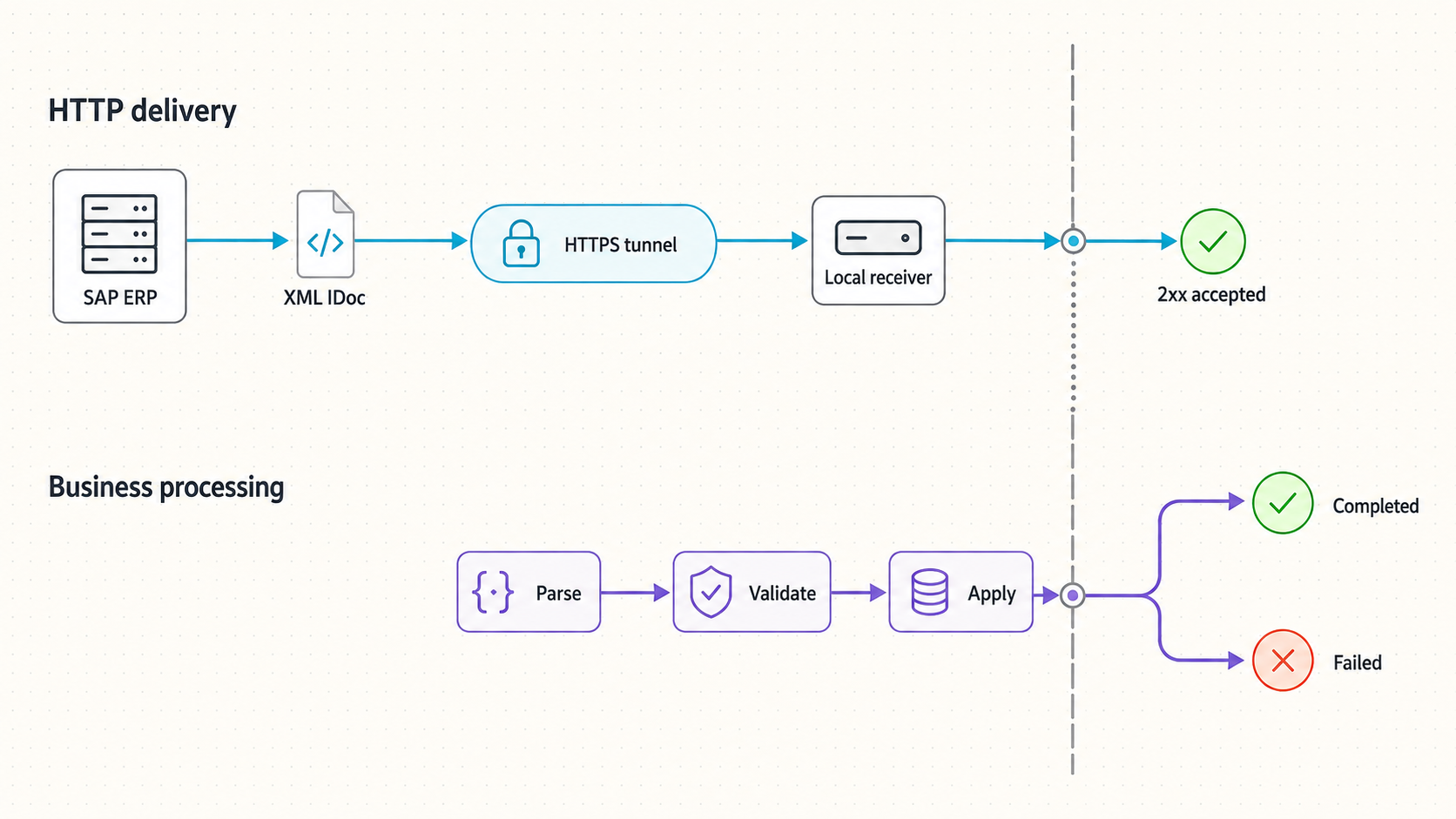

Separate HTTP acceptance from business completion

An HTTP success response has a precise but limited meaning. It should mean that the receiver accepted responsibility for the message according to its documented contract. It should not be interpreted as proof that every downstream system completed processing.

Choose an acknowledgment strategy

The sample uses durable acceptance within the limits of a local filesystem exercise. It writes and synchronizes the file before returning HTTP 200. A production design should define whether success means committed to a queue, inserted into a database transaction, stored in object storage, or fully processed.

Design for duplicate delivery

Networks fail at ambiguous moments. SAP or an operator may retry after the receiver stored an IDoc but before the response was observed. BD87 reprocessing can also produce another delivery attempt. The middleware should therefore be idempotent.

Use the SAP IDoc document number as correlation data, but do not assume it alone is globally unique across every system and client. A robust key may include the sender system, SAP client, document number, message type, and a payload digest. Decide how to handle the same identifier with different content, and alert rather than silently overwriting it.

Track downstream outcomes independently

Maintain a processing state such as accepted, validating, transformed, delivered, retrying, quarantined, or completed. Record timestamps and sanitized error categories without copying the full business payload into ordinary logs. Operators need to distinguish an SAP transport failure from a middleware transformation failure or a downstream application rejection.

A non-success HTTP response does not by itself guarantee automatic SAP retry. SAP behavior depends on how the XML HTTP port records the result, the resulting IDoc status, partner-profile settings, background jobs, and reprocessing procedures. Confirm those behaviors in the target system and document who is responsible for recovery.

Security, lifecycle, and operational controls

Outbound allowlisting and proxies

Some SAP landscapes permit HTTPS only through an outbound proxy or to approved destinations. Provide the assigned hostname, purpose, data classification, owner, and test period to the network team. If an endpoint change produces a different hostname, repeat the required approval and trust checks rather than attempting to work around policy.

Shutdown and cleanup

Troubleshooting by symptom and layer

Preserve correlation rather than payloads when gathering evidence. Useful fields include SAP system and client, IDoc document number, message type, basic type, timestamp, HTTP status, tunnel state, and middleware processing identifier. Redact destination credentials, authorization headers, device tokens, personal data, and full XML content.

Frequently asked questions
