Self-Host agenttrail and Access It with Localtonet

What this agenttrail project does

Several unrelated projects use names such as agenttrail or AgentTrail. This tutorial covers the sodiumsun/agenttrail project: an infinite-canvas project map for AI coding agents. It is not the similarly named multi-profile conversation-history viewer, Python audit-logging package, or an agent audit-trail specification. Confirm that the repository documentation describes a live project map and the command npx agenttrail before following the instructions below.

The project focuses on repository-level coding-agent observability. Rather than presenting only a transcript, it combines declared work with observed filesystem activity. A plan represents what an agent says it intends to do, while the repository watcher shows which files are actually changing. Comparing those signals can help a developer notice that an agent has moved to another component, revisited work marked complete, or stopped making visible progress.

The dashboard can work without a plan file. In that state, the live repository tree, activity signals, and supported run cards remain useful. The component map becomes richer after a coding agent creates and maintains the project plan. This means it is reasonable to start the dashboard first, inspect its basic behavior, and decide later whether to initialize the full convention.

Prerequisites and deployment decisions

Run agenttrail on the computer that contains the repository you want to observe. The process needs to read that repository and watch local file activity. Running it on an unrelated server would not provide access to files that exist only on a developer workstation unless those files were separately made available, which is outside this guide.

The documented launch path uses npx. You therefore need a functioning Node.js toolchain that includes npx, plus terminal access to the repository. The available project evidence does not specify a minimum Node.js version, so this guide does not invent one. If npx is absent or rejects the package because of a runtime requirement, install a currently supported Node.js release using the method appropriate for your operating system, then follow any explicit version message printed by the package.

Before starting, confirm the following:

• You know the exact local path of the repository to monitor.
• You can open a terminal and change into that repository.
• npx is available in the same shell that will run agenttrail.
• You understand that optional initialization changes repository-local files.
• You can keep the terminal process running while using the board.
• For remote access, you can install and run our Localtonet client on the same device as agenttrail.

Keeping the Localtonet client on the same computer is important in this workflow. agenttrail binds to 127.0.0.1, which is the loopback interface. A Localtonet client on another computer cannot reach the first computer's loopback address merely because the computers share a LAN. Running both processes on the same host lets our client connect to the exact loopback endpoint displayed by agenttrail.

Decide whether you need initialization

A basic launch and a repository initialization solve different problems. The launch command starts the local board and repository watcher. The optional initialization command adds conventions and integrations that provide a fuller component map. Start with the least invasive option when evaluating the project, especially in a repository with strict controls around instruction files and local hooks.

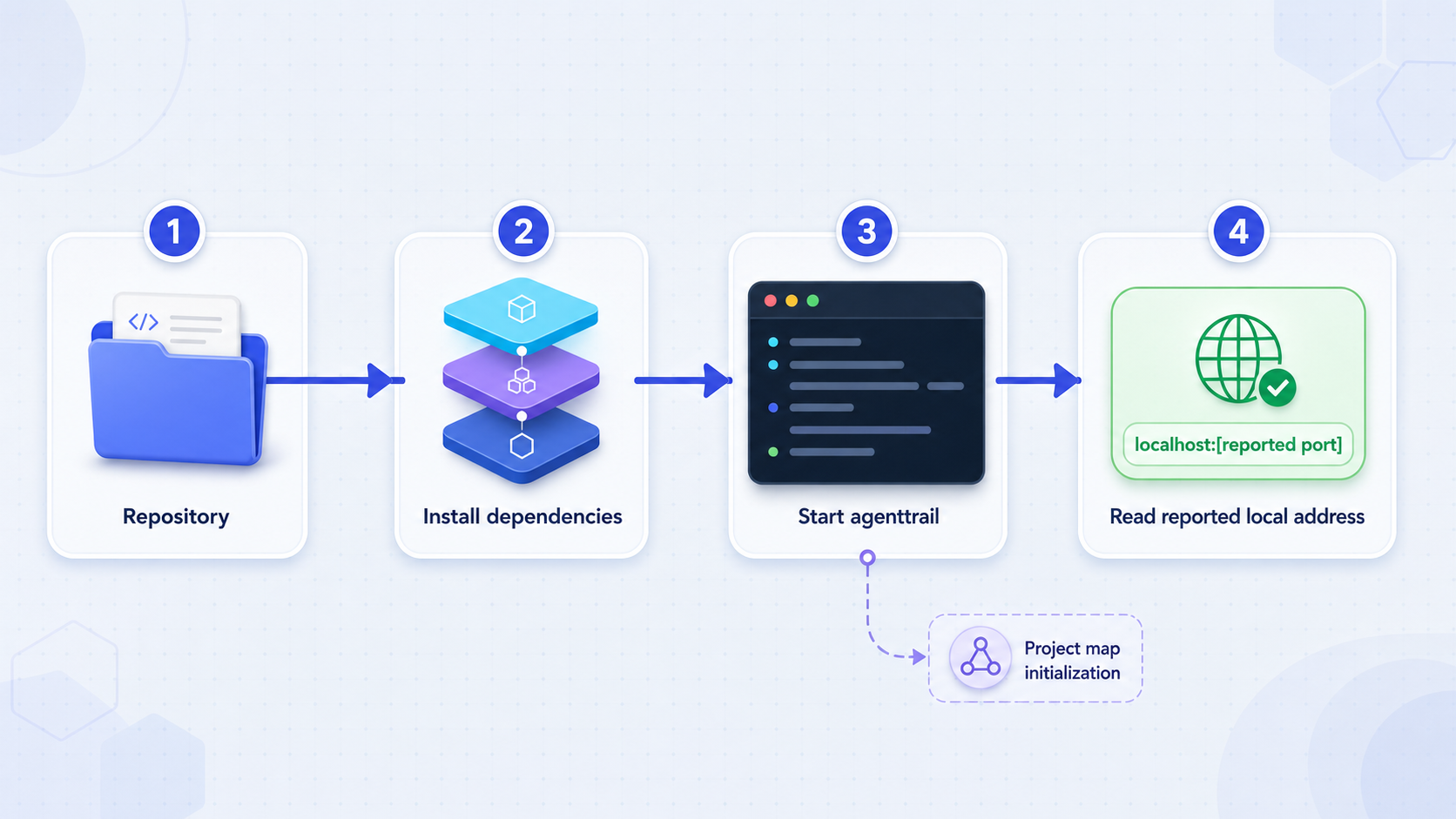

Install and start agenttrail

The primary workflow does not require a global agenttrail installation. Run the package through npx from the repository you want to observe. The working directory matters because agenttrail starts watching that repository.

A typical shell sequence is:

cd /path/to/your-repository
npx agenttrail

The repository path above is intentionally a placeholder. Use an existing project directory. Do not copy it literally unless that path actually exists on your machine.

On the first run, npx may need to retrieve the package before executing it. Read any package-manager confirmation and verify that it names the expected agenttrail package. Once started, leave the process running. Closing its terminal, ending the process, logging out without an autostart arrangement, or shutting down the host can make the board unavailable.

Initialize the optional project map

If the uninitialized board provides enough visibility, you can stop here and continue to local verification. Initialization is optional. Use it when you want agenttrail's component map, stable task identifiers, dependencies, statuses, and agent-maintained planning convention.

From the same repository, run:

npx agenttrail init

The documented initialization performs several repository-local actions. It creates a starter PLAN.md, appends the convention to the project's agent instruction files, adds .agenttrail/ to .gitignore, and installs additive local Claude Code hooks. The hooks are stored in the repository-local .claude/settings.local.json file. They relay supported events to the local daemon.

After initialization, the board can offer a backfill prompt. Use the board's Copy backfill prompt action and paste that prompt into your coding agent only after reviewing it. The intended workflow asks the agent to study the code, then Git history, then planning prose, and use that information to describe the repository as a manageable set of real components with dependencies and verifiable task states.

The plan convention uses Markdown. Components can have stable identifiers, file patterns, dependency relationships, links, owner information, and task states. The documented task markers include working, done, and stuck states. File patterns connect observed writes to the relevant component, allowing the map to compare the declared plan with current repository activity.

Inspect what initialization changed

Use your normal source-control status and diff workflow immediately after initialization. The exact version-control commands depend on the repository's tooling, but for a Git repository the standard inspection commands are:

git status
git diff

Review the new plan, changes to instruction files, the ignore rule, and any local hook configuration. A repository-local settings file may be intentionally untracked, but that does not remove the need to understand it. If your organization restricts coding-agent hooks or changes to instruction files, obtain approval before retaining those changes.

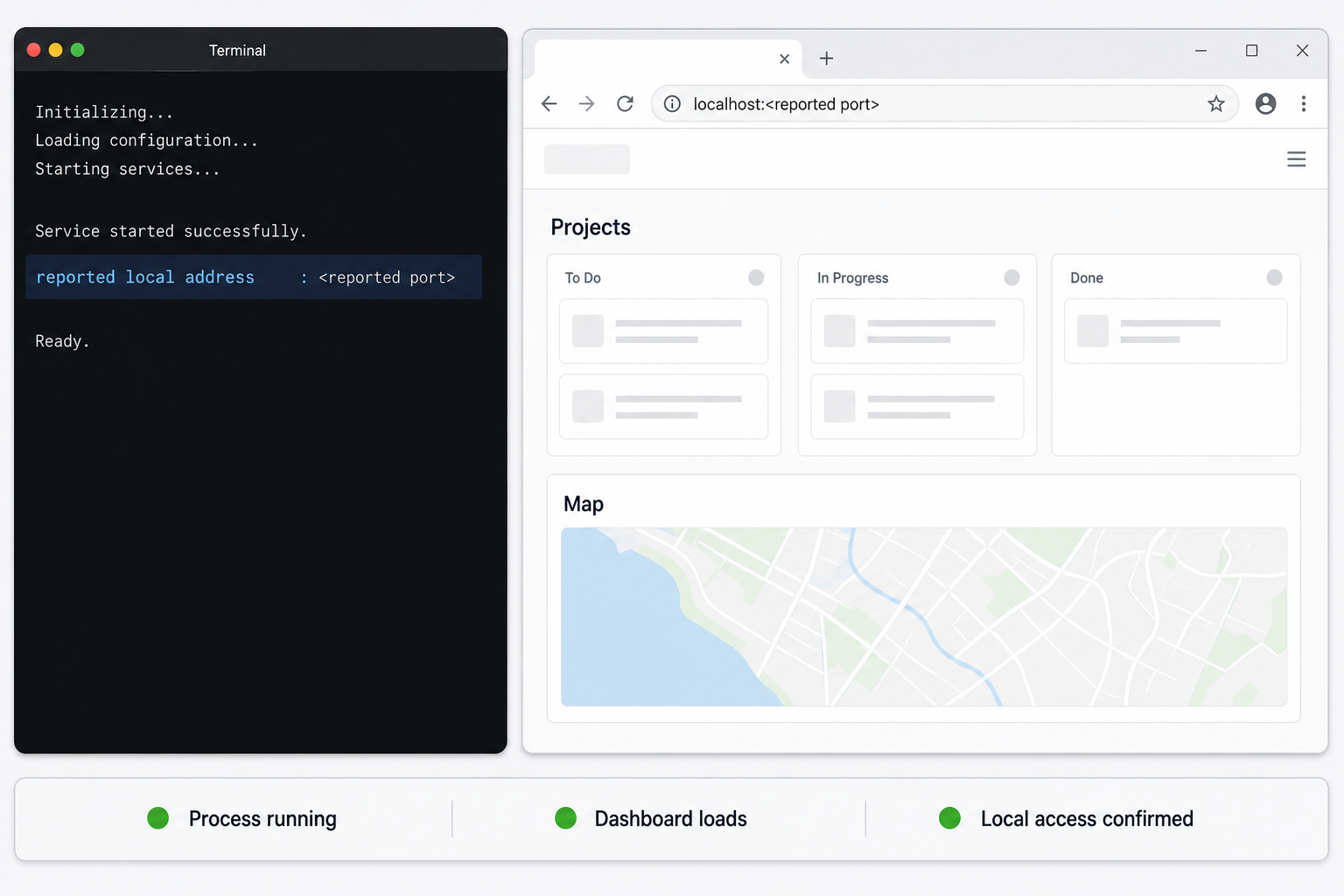

Verify the local dashboard before tunneling it

Local verification separates agenttrail problems from tunnel problems. Do not configure remote access until the board loads directly on the host. If the local endpoint is unhealthy, a tunnel can only forward that unhealthy result.

Verification should cover both initial rendering and live behavior. The board uses current repository events rather than functioning only as a static report. Depending on the coding agent, the available detail differs. Claude Code can provide richer run cards and todos through local hooks. Other agents that edit files can still produce watcher-based activity, but they should not be expected to expose the same hook-derived information.

If a plan is present, inspect whether components and file patterns correspond to the actual codebase. A generated map is an aid, not an authoritative architecture specification. Incorrect file patterns or stale plan statuses can create misleading relationships. Ask the agent to correct the plan or edit it through your approved workflow, then verify the result on the board.

Routine startup, shutdown, and repository operations

For a single active repository, the simplest operating model is to enter the project and run npx agenttrail when monitoring is needed. Keep the process attached to a terminal while evaluating the software. Stop it using the normal terminal interrupt for your environment when the board is no longer required.

After a reboot, the documented command for relaunching boards previously run with agenttrail is:

npx agenttrail up

The project also documents:

npx agenttrail autostart

This makes a repository's board start at login and provides self-healing behavior. Treat autostart as an operational choice, not a mandatory installation step. A process that starts automatically may continue observing a repository and may become reachable again if its Localtonet tunnel is also configured and started. Review startup behavior on shared workstations and sensitive development hosts.

agenttrail uses one daemon per repository and can display live boards through a shared tab switcher. Starting it in another repository adds that board to the available view, and stopping that repository's daemon removes it. This is useful for developers working across multiple codebases, but it also increases the amount of potentially sensitive project metadata visible through the interface.

What agenttrail reads and displays

The documented model is built from PLAN.md and local events. The interface can expose component names, dependencies, task status, file paths, agent identity indicators, recent tool activity, elapsed run information, and evidence that completed work is being changed again. Even when source file contents are not the main presentation, names and activity patterns can reveal internal architecture, planned features, debugging work, and development priorities.

Keep repository permissions narrow. Run the process as the ordinary developer account that already needs the project, not as a broadly privileged system account. Do not point the watcher at a parent directory containing unrelated repositories or secrets. If a board is no longer required, stop its process and stop or delete its tunnel.

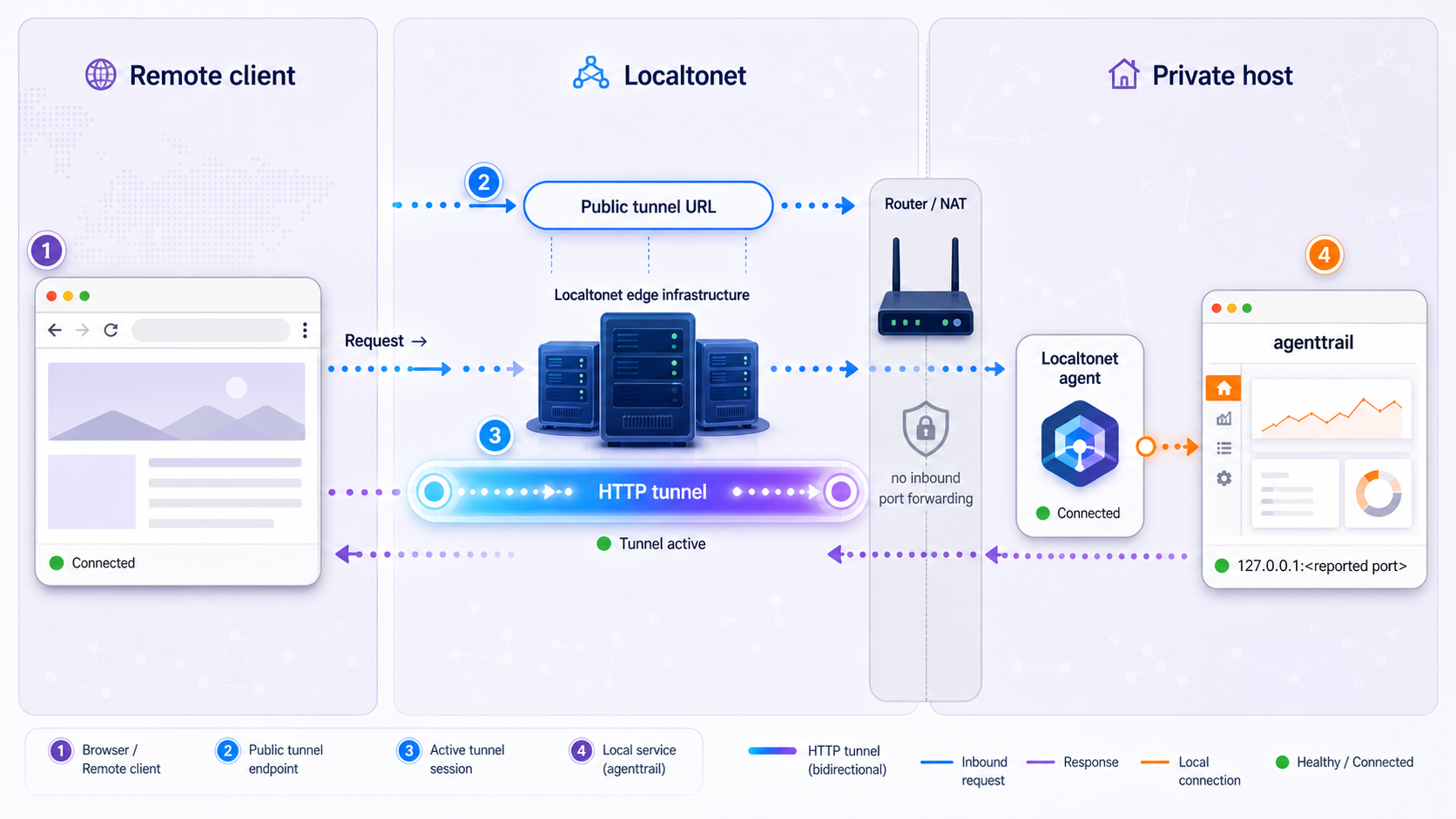

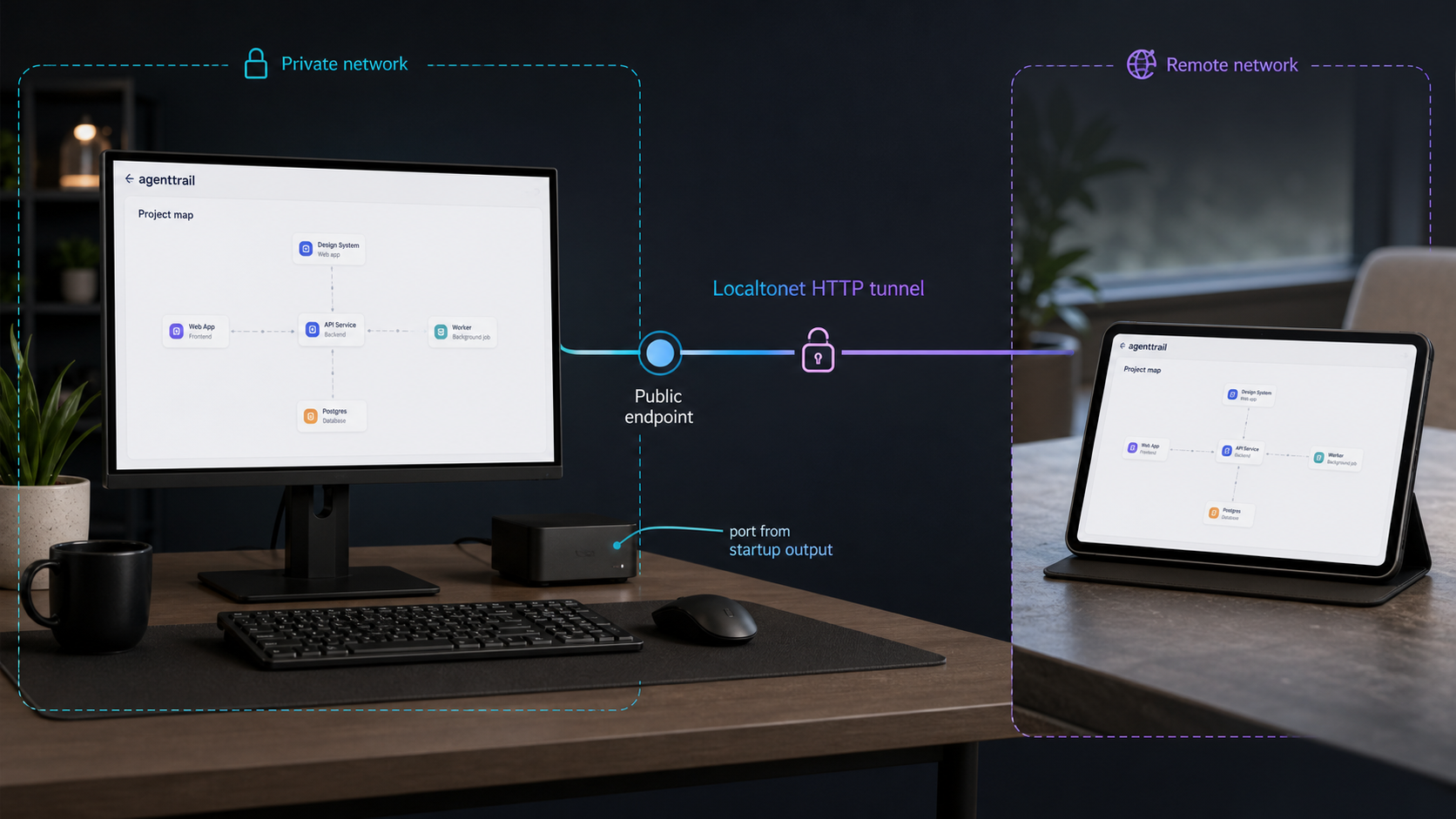

Expose the verified board with a Localtonet HTTP tunnel

Once the board works locally and its URL begins with http://, an HTTP tunnel is the natural Localtonet tunnel family for browser access. Our client establishes an outbound connection to a Localtonet relay server, so this workflow does not require inbound router port forwarding, firewall changes, VPN setup, or a public IP address.

The Localtonet client should run on the agenttrail host because the target is bound to loopback. You will use 127.0.0.1 as the local IP and the port observed from agenttrail's actual URL. Never copy a port from a different AgentTrail project or from an unrelated tutorial.

For current interface details, consult our Localtonet HTTP tunnel documentation. Exact account options, relay choices, and process types should always be taken from the current dashboard.

Security guidance for remote dashboard access

Local-first software has a smaller network exposure when it listens only on 127.0.0.1. An HTTP tunnel intentionally changes who can reach that service. It does not change agenttrail's internal authorization model, redact project information, or turn the dashboard into a security control.

The available agenttrail documentation does not establish built-in user authentication for this dashboard. It also does not establish role-based permissions for remote viewers. Do not assume that possession of an obscure public URL is sufficient authorization. Before creating a tunnel, assess whether your current Localtonet configuration and surrounding access controls are appropriate for the repository data that will be visible.

Apply these practices:

• Use the tunnel only for people who are authorized to inspect the underlying repository activity.
• Prefer temporary access. Start the tunnel when needed and stop it after the remote session.
• Keep the Localtonet device token private and rotate or replace credentials according to your operational policy if exposure is suspected.
• Run agenttrail and our client with the minimum host privileges they need.
• Verify the repository before sharing the endpoint so a similarly named or neighboring project is not exposed accidentally.
• Do not treat HTTPS delivery at the tunnel edge as a substitute for application authorization.
• Review agenttrail initialization changes and local hooks before using the board with confidential code.
• Stop or delete obsolete tunnel configurations rather than leaving forgotten entry points.

If your organization requires authenticated access, centralized authorization, audit controls, or strict restrictions on source-code metadata, validate those requirements before exposing this dashboard. The evidence supplied for this tutorial does not establish that agenttrail itself satisfies such controls, and we should not imply that an HTTP tunnel adds application features the local service does not have.

Troubleshooting agenttrail and the tunnel

npx is not found

The documented quick start depends on npx. Confirm that Node.js and its package tooling are installed and available in the current shell. Open a new terminal after installation if your environment path changed. Because the project evidence does not state a minimum Node.js version, rely on a package error or the current project documentation for any exact version requirement.

The wrong repository appears

Stop the process, change into the exact repository directory, and run npx agenttrail again. The launch location determines what agenttrail watches. Avoid starting it from a broad directory containing several unrelated projects.

The browser does not open automatically

Automatic browser launch may not work on a headless host, remote shell, or constrained desktop session. Read the terminal output and open the complete local URL manually on the same host. Do not substitute an assumed port. If no URL appears, inspect the terminal for startup or package errors before configuring Localtonet.

The board loads but has no component map

This is expected when the repository has no PLAN.md following the agenttrail convention. The live tree and activity features can work without it. If you want the richer map, run npx agenttrail init, review its repository changes, and use the board's backfill prompt with an approved coding agent.

File changes do not appear

Confirm that the daemon is still running and watching the intended repository. Generate or wait for a normal change inside that repository, then inspect the board. Hook-rich run information is not identical across agents. Claude Code has documented local hooks, while Codex, Cursor, and other editors may primarily appear through file-watcher activity.

The local board works but the public URL fails

Verify the chain from the inside out:

1. Reload the exact loopback URL on the agenttrail host.
2. Confirm that agenttrail is still running.
3. Confirm that the Localtonet client on that same host is connected.
4. Check that the tunnel target uses 127.0.0.1 and the currently observed port.
5. Confirm that the tunnel was started, not merely created.
6. Use the currently assigned public URL.

If agenttrail chose a different port after restart, update the tunnel's local target to match the new URL before testing again. The evidence does not guarantee that the port remains fixed, so verification after each relevant restart is safer than assuming persistence.

The public page opens but live information is stale

Compare the public page with the local page. If both are stale, investigate agenttrail, its repository watcher, and the coding-agent integration. If the local board updates but the public board does not, restart the remote browser session and recheck that it is using the active tunnel URL. Avoid changing multiple components at once because that makes it harder to isolate the failure.

The tunnel stopped after a reboot

agenttrail, the Localtonet client, and the tunnel each have their own lifecycle. The documented npx agenttrail up command relaunches known boards, while npx agenttrail autostart configures a repository board for login startup. Those commands do not themselves prove that our client is connected or that a Localtonet tunnel has been started. Verify each layer separately after reboot.
