What Is a WebSocket and How Does It Differ from HTTP?

How the modern HTTP request-response model works

HTTP is an application protocol built around requests and responses. A client initiates a request, and a server returns a response associated with that request. That semantic pattern does not mean the underlying transport connection must close after every response. Connection reuse has been normal for many years, and the exact behavior depends on the HTTP version, the client, the server, and any intermediaries between them.

HTTP/1.1 persistent connections

HTTP/1.1 commonly keeps a TCP connection open so the client can send additional requests without repeating a TCP handshake for every interaction. Requests and responses still follow HTTP semantics, but several exchanges can share one transport connection. Pipelining exists in the protocol, although practical deployments have generally favored a limited number of reusable connections instead of relying heavily on pipelining.

HTTP/2 multiplexing

HTTP/2 can carry multiple concurrent request-response streams over one TCP connection. Headers are compressed, and responses do not have to complete strictly one at a time. A delayed application response therefore does not automatically prevent another HTTP stream from making progress, although packet loss at the TCP layer can still affect the connection.

HTTP/3 over QUIC

HTTP/3 runs over QUIC rather than TCP. It also multiplexes requests, but QUIC provides independent streams at the transport layer. Packet loss affecting one stream does not impose TCP-style connection-wide ordering on every other stream. HTTP/3 changes transport behavior, but it retains HTTP request and response semantics.

HTTP can also deliver live or incremental information. A client can poll repeatedly, hold a long-polling request open, consume a streaming response, or subscribe to Server-Sent Events. In all of these cases, the browser still works within an HTTP-oriented model. What WebSocket adds is a standardized, message-oriented channel in which either endpoint can send after the connection has been established.

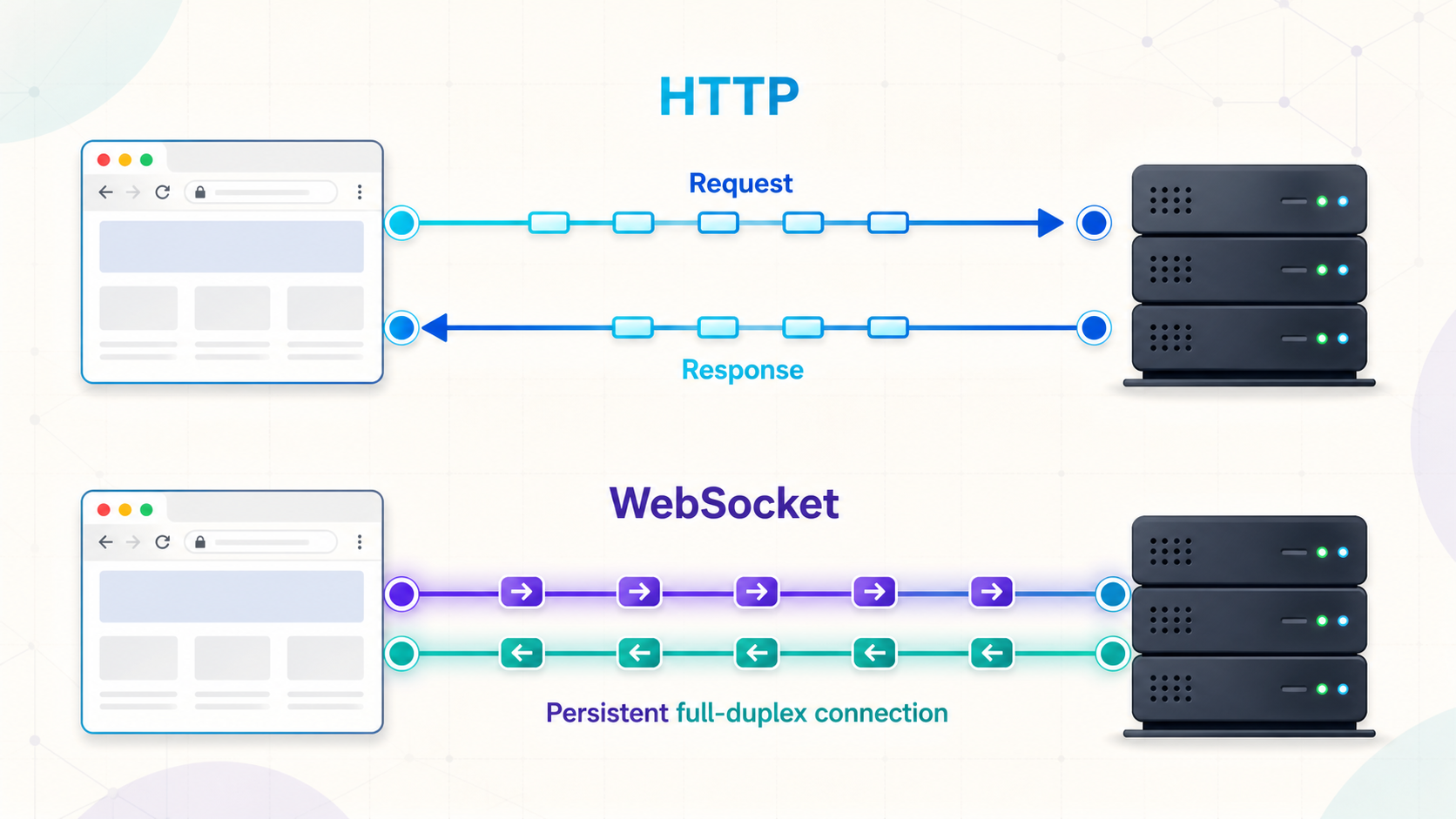

What is a WebSocket?

WebSocket is a protocol for persistent, bidirectional communication between two endpoints. The original protocol is standardized by RFC 6455. In its conventional form, it starts with an HTTP/1.1 handshake and then switches the connection from HTTP to WebSocket framing. After that switch, either side can send text or binary messages without creating a new HTTP request for each message.

A WebSocket connection is full duplex. The client can send while the server is also sending, and neither direction is inherently tied to a request-response pair. Messages are divided into frames for transport, but applications usually work with complete text or binary messages through their WebSocket library or browser API.

WebSocket is useful when both client and server need to exchange frequent, unpredictable messages. Common examples include chat, collaborative editing, interactive control panels, multiplayer coordination, and systems that combine commands with live status updates.

It is not automatically the best choice for every live interface. A dashboard that only receives updates may be simpler with Server-Sent Events. An API that returns occasional results may need only ordinary HTTP. A media application may need WebRTC, while an application requiring multiple independent streams or unreliable datagrams may need a different transport design.

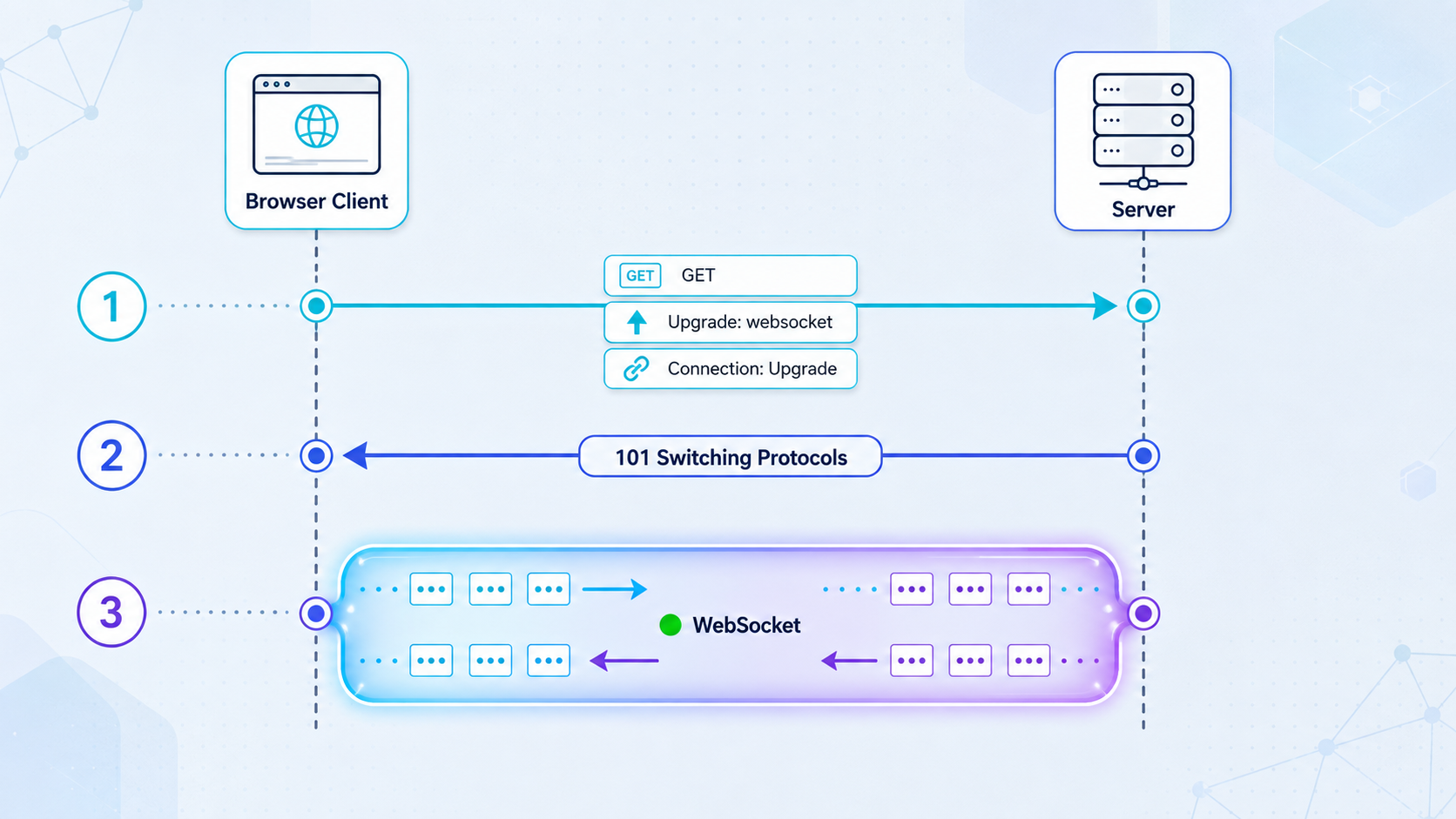

How a WebSocket connection is established

The RFC 6455 HTTP/1.1 Upgrade flow

The classic WebSocket handshake uses an HTTP/1.1 GET request. The client includes an Upgrade: websocket header, a Connection: Upgrade header, a version, and a randomly generated key. A browser also sends an Origin header. The server decides whether to accept the connection and proves that it understood the handshake by deriving the expected accept value from the client's key.

GET /chat HTTP/1.1
Host: app.example.invalid
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Version: 13
Sec-WebSocket-Key: example-generated-key
Origin: https://app.example.invalid

A successful HTTP/1.1 handshake returns status 101 Switching Protocols and the appropriate WebSocket headers:

HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: example-derived-value

The values above are illustrative and the host uses the reserved .invalid domain. A real client generates its key automatically, and a compliant server library calculates the response. Application developers should use a maintained WebSocket implementation rather than building this cryptographic handshake calculation manually.

WebSocket over HTTP/2 and HTTP/3

The familiar 101 Switching Protocols flow is specifically associated with HTTP/1.1. HTTP/2 does not use the same connection-wide Upgrade mechanism. RFC 8441 defines an extended CONNECT method that can establish WebSocket within an HTTP/2 stream. RFC 9220 defines a corresponding approach for HTTP/3.

Support for these mechanisms depends on the browser, client library, server, reverse proxy, gateway, and negotiated protocol. An application should not infer HTTP/2 or HTTP/3 WebSocket support merely because every component supports ordinary HTTP/2 or HTTP/3 traffic. In many deployments, WebSocket still reaches an intermediary through the RFC 6455 HTTP/1.1 Upgrade path.

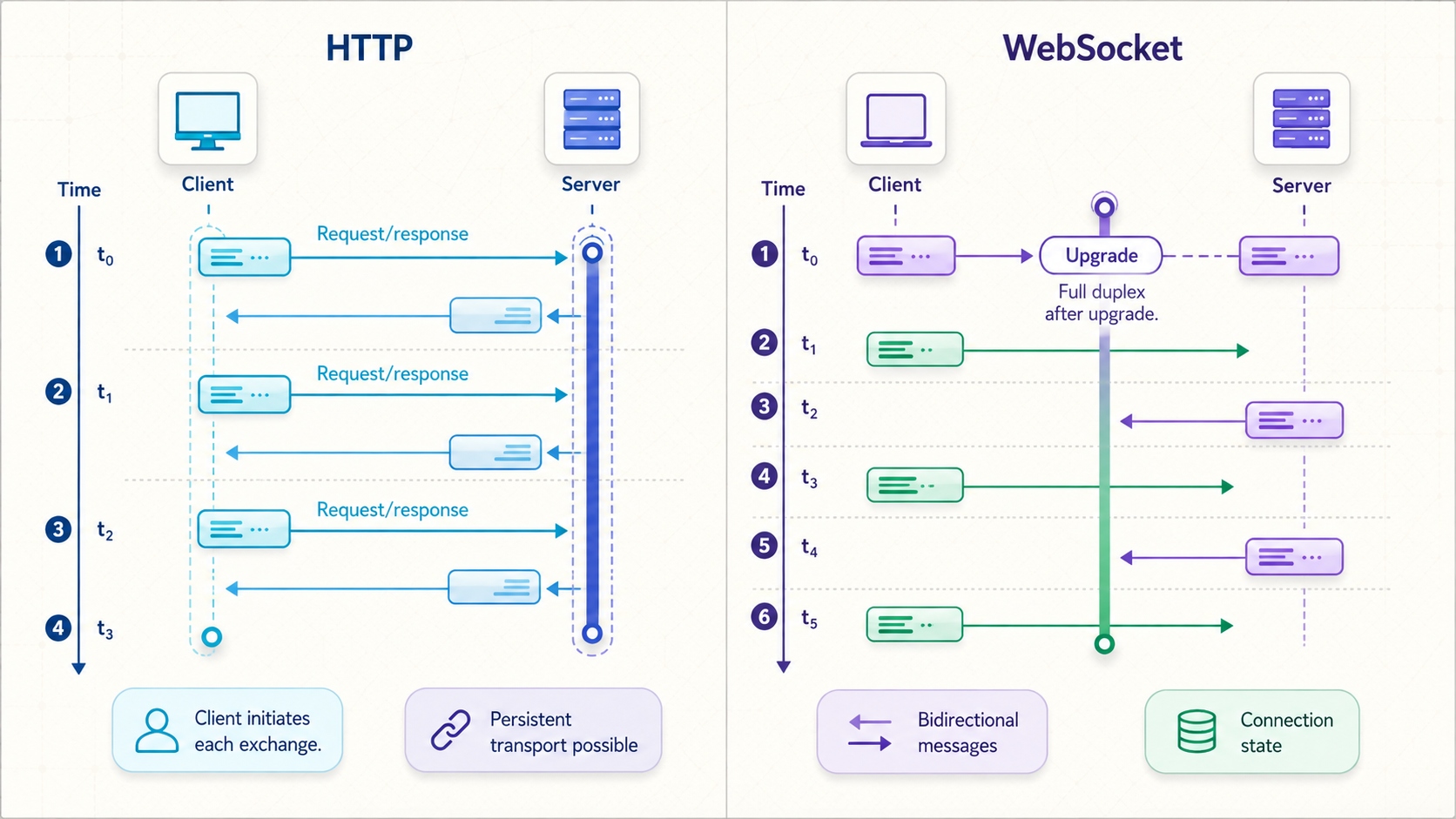

HTTP vs WebSocket: an accurate comparison

WebSocket framing is usually smaller than repeating a complete HTTP request for every tiny message. That does not justify a universal claim that WebSocket is always faster. HTTP header compression, connection reuse, multiplexing, batching, payload size, network distance, server architecture, and update frequency can matter more than the framing difference.

The practical design question is therefore not “Which protocol is faster?” It is “Which communication pattern matches this feature?” If the client asks for a resource and receives a finite answer, HTTP is usually a natural fit. If the server emits a one-way stream, SSE or a streaming HTTP response may be enough. If both endpoints send frequent independent events, WebSocket becomes more compelling.

WebSocket alternatives for live applications

Choose SSE when updates are one-way

Server-Sent Events use the browser's EventSource API and an HTTP response with an event stream media type. SSE offers named events, event identifiers, and browser reconnection behavior. It is often a strong choice for build logs, notifications, progress indicators, monitoring data, and generated text where the browser can send occasional commands through normal HTTP requests.

Choose polling when simplicity matters more than immediacy

Polling is not inherently wrong. If data changes every few minutes, keeping a connection open for every user may provide little value. Polling can work well with ordinary authentication, caching, observability, and stateless infrastructure. Add randomized intervals where appropriate so many clients do not poll at exactly the same instant.

Choose WebSocket for genuine two-way interaction

WebSocket is most useful when both directions are active and timing is unpredictable. A collaborative editor may send local operations while receiving remote operations. A control dashboard may issue commands while receiving acknowledgements and state changes. A game may exchange input and synchronized state continuously. These patterns are awkward to represent as independent polling requests.

How to secure a WebSocket service

A WebSocket endpoint is a long-lived public input surface. The initial handshake uses HTTP, but ordinary HTTP middleware does not automatically protect every message sent after the connection is accepted. Security controls must cover both connection establishment and the complete message lifecycle.

Do not rely on CORS as WebSocket authorization

Browsers attach an Origin header to a WebSocket handshake, but WebSocket does not use the normal fetch CORS permission model. A server that accepts any Origin can become vulnerable to cross-site WebSocket hijacking when browser credentials such as cookies are attached automatically. Compare the Origin against an explicit allowlist before upgrading the connection.

Origin validation is a browser-focused control, not a replacement for authentication. Non-browser clients can create or omit Origin headers. The server still needs a trustworthy identity and authorization model.

Keep credentials out of URLs and source code

Query strings can appear in browser history, reverse-proxy logs, analytics, and monitoring tools. Avoid placing long-lived API keys or session secrets in a WebSocket URL. Prefer secure cookies with suitable protections, short-lived purpose-specific credentials, or an authentication message sent immediately after the encrypted connection opens. Never commit a real credential to client JavaScript.

Plan for resource exhaustion

A client can open connections and then remain silent, send oversized payloads, send messages faster than the application can process them, or subscribe to excessive data. Apply connection quotas, handshake deadlines, per-message limits, rate limits, idle policies, and backpressure. Close clients whose outbound queues grow beyond a safe bound rather than allowing memory usage to increase indefinitely.

Use heartbeat carefully

Protocol-level ping and pong frames can identify connections that no longer reach the peer. An application can also use its own heartbeat when it needs application-level liveness information. Heartbeat intervals must fit the expected network and intermediary idle timeouts. Aggressive heartbeat traffic wastes resources, while an interval longer than a proxy timeout will not keep the connection alive.

Build a locally verifiable Node.js WebSocket project

The following mini-project serves a browser client and a WebSocket endpoint from the same local HTTP server. It requires Node.js and npm. It includes JSON validation, a first-message authentication step, an Origin allowlist, message and connection limits, heartbeat handling, retrying browser connections, and graceful server shutdown.

This is an educational baseline, not a complete production identity system. The temporary demo token remains only in server environment configuration and browser memory. For a real application, integrate your normal identity provider and issue short-lived credentials with narrowly scoped permissions.

1. Initialize the project

mkdir websocket-demo
cd websocket-demo
npm init -y
npm install ws
npm pkg set scripts.start="node server.js"

Create two files in the project directory: server.js and index.html.

2. Create the server

// server.js
const http = require('http');
const fs = require('fs');
const path = require('path');
const crypto = require('crypto');
const { WebSocketServer, WebSocket } = require('ws');

const HOST = '127.0.0.1';
const PORT = Number(process.env.PORT || 8080);
const DEMO_TOKEN = process.env.DEMO_TOKEN;
const MAX_CONNECTIONS = 100;
const AUTH_TIMEOUT_MS = 5000;
const RATE_WINDOW_MS = 10000;
const MAX_MESSAGES_PER_WINDOW = 20;

if (!DEMO_TOKEN) {
  console.error('Set DEMO_TOKEN before starting the server.');
  process.exit(1);
}

const defaultOrigins = [
  `http://127.0.0.1:${PORT}`,
  `http://localhost:${PORT}`
];

const allowedOrigins = new Set(
  (process.env.ALLOWED_ORIGINS || defaultOrigins.join(','))
    .split(',')
    .map((value) => value.trim())
    .filter(Boolean)
);

const indexPath = path.join(__dirname, 'index.html');

const server = http.createServer((request, response) => {
  if (request.method !== 'GET' || request.url !== '/') {
    response.writeHead(404, { 'Content-Type': 'text/plain; charset=utf-8' });
    response.end('Not found');
    return;
  }

  fs.readFile(indexPath, (error, content) => {
    if (error) {
      response.writeHead(500, { 'Content-Type': 'text/plain; charset=utf-8' });
      response.end('Unable to load the browser client');
      return;
    }

    response.writeHead(200, {
      'Content-Type': 'text/html; charset=utf-8',
      'Cache-Control': 'no-store',
      'X-Content-Type-Options': 'nosniff',
      'X-Frame-Options': 'DENY'
    });
    response.end(content);
  });
});

const wss = new WebSocketServer({
  noServer: true,
  maxPayload: 16 * 1024
});

function rejectUpgrade(socket, status, message) {
  socket.write(
    `HTTP/1.1 ${status}\r\n` +
    'Connection: close\r\n' +
    'Content-Type: text/plain; charset=utf-8\r\n' +
    `Content-Length: ${Buffer.byteLength(message)}\r\n\r\n` +
    message
  );
  socket.destroy();
}

server.on('upgrade', (request, socket, head) => {
  const origin = request.headers.origin;

  if (request.url !== '/socket') {
    rejectUpgrade(socket, '404 Not Found', 'Unknown WebSocket path');
    return;
  }

  if (!origin || !allowedOrigins.has(origin)) {
    rejectUpgrade(socket, '403 Forbidden', 'Origin not allowed');
    return;
  }

  if (wss.clients.size >= MAX_CONNECTIONS) {
    rejectUpgrade(socket, '503 Service Unavailable', 'Connection limit reached');
    return;
  }

  wss.handleUpgrade(request, socket, head, (webSocket) => {
    wss.emit('connection', webSocket, request);
  });
});

function equalSecret(candidate, expected) {
  const left = Buffer.from(String(candidate));
  const right = Buffer.from(String(expected));

  return left.length === right.length && crypto.timingSafeEqual(left, right);
}

function sendJson(socket, value) {
  if (socket.readyState === WebSocket.OPEN) {
    socket.send(JSON.stringify(value));
  }
}

function broadcast(value) {
  const payload = JSON.stringify(value);

  for (const client of wss.clients) {
    if (client.readyState === WebSocket.OPEN && client.authenticated) {
      if (client.bufferedAmount > 64 * 1024) {
        client.close(1013, 'Client is not keeping up');
        continue;
      }
      client.send(payload);
    }
  }
}

wss.on('connection', (socket) => {
  socket.isAlive = true;
  socket.authenticated = false;
  socket.rateWindowStarted = Date.now();
  socket.messagesInWindow = 0;

  const authTimer = setTimeout(() => {
    if (!socket.authenticated) {
      socket.close(4001, 'Authentication timeout');
    }
  }, AUTH_TIMEOUT_MS);

  socket.on('pong', () => {
    socket.isAlive = true;
  });

  socket.on('message', (data, isBinary) => {
    if (isBinary) {
      socket.close(1003, 'Binary messages are not supported');
      return;
    }

    const now = Date.now();
    if (now - socket.rateWindowStarted >= RATE_WINDOW_MS) {
      socket.rateWindowStarted = now;
      socket.messagesInWindow = 0;
    }

    socket.messagesInWindow += 1;
    if (socket.messagesInWindow > MAX_MESSAGES_PER_WINDOW) {
      socket.close(1008, 'Message rate exceeded');
      return;
    }

    let message;
    try {
      message = JSON.parse(data.toString('utf8'));
    } catch {
      sendJson(socket, { type: 'error', error: 'Malformed JSON' });
      return;
    }

    if (!message || typeof message !== 'object' || Array.isArray(message)) {
      sendJson(socket, { type: 'error', error: 'Message must be an object' });
      return;
    }

    if (!socket.authenticated) {
      if (
        message.type !== 'authenticate' ||
        typeof message.token !== 'string' ||
        !equalSecret(message.token, DEMO_TOKEN)
      ) {
        socket.close(4001, 'Authentication failed');
        return;
      }

      socket.authenticated = true;
      clearTimeout(authTimer);
      sendJson(socket, { type: 'authenticated' });
      return;
    }

    if (
      message.type !== 'message' ||
      typeof message.text !== 'string' ||
      message.text.length === 0 ||
      message.text.length > 1000
    ) {
      sendJson(socket, {
        type: 'error',
        error: 'Expected non-empty text of at most 1000 characters'
      });
      return;
    }

    broadcast({
      type: 'broadcast',
      text: message.text,
      timestamp: new Date().toISOString()
    });
  });

  socket.on('close', () => {
    clearTimeout(authTimer);
  });

  socket.on('error', (error) => {
    console.error('WebSocket error:', error.message);
  });
});

const heartbeat = setInterval(() => {
  for (const socket of wss.clients) {
    if (!socket.isAlive) {
      socket.terminate();
      continue;
    }

    socket.isAlive = false;
    socket.ping();
  }
}, 30000);

function shutdown(signal) {
  console.log(`${signal} received, closing connections`);
  clearInterval(heartbeat);

  for (const socket of wss.clients) {
    socket.close(1001, 'Server shutting down');
  }

  server.close(() => {
    process.exit(0);
  });

  setTimeout(() => {
    for (const socket of wss.clients) {
      socket.terminate();
    }
    process.exit(1);
  }, 5000).unref();
}

process.on('SIGINT', () => shutdown('SIGINT'));
process.on('SIGTERM', () => shutdown('SIGTERM'));

server.listen(PORT, HOST, () => {
  console.log(`Open http://${HOST}:${PORT}`);
  console.log(`Allowed origins: ${Array.from(allowedOrigins).join(', ')}`);
});

3. Create the browser client

<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <title>WebSocket Demo</title>
</head>
<body>
  <h1>WebSocket Demo</h1>

  <label>
    Temporary demo token
    <input id="token" type="password" autocomplete="off">
  </label>
  <button id="connect" type="button">Connect</button>

  <form id="message-form">
    <label>
      Message
      <input id="message" maxlength="1000" disabled>
    </label>
    <button id="send" type="submit" disabled>Send</button>
  </form>

  <pre id="log" aria-live="polite"></pre>

  <script>
    const tokenInput = document.querySelector('#token');
    const connectButton = document.querySelector('#connect');
    const form = document.querySelector('#message-form');
    const messageInput = document.querySelector('#message');
    const sendButton = document.querySelector('#send');
    const logElement = document.querySelector('#log');

    let socket;
    let retryCount = 0;
    let retryTimer;
    let shouldReconnect = false;

    function log(message) {
      logElement.textContent += `${message}\n`;
    }

    function socketUrl() {
      const scheme = location.protocol === 'https:' ? 'wss:' : 'ws:';
      return `${scheme}//${location.host}/socket`;
    }

    function scheduleReconnect() {
      if (!shouldReconnect) return;

      const baseDelay = Math.min(1000 * (2 ** retryCount), 30000);
      const delay = baseDelay + Math.floor(Math.random() * 500);
      retryCount += 1;

      log(`Reconnecting in ${delay} ms`);
      clearTimeout(retryTimer);
      retryTimer = setTimeout(connect, delay);
    }

    function connect() {
      const token = tokenInput.value;
      if (!token) {
        log('Enter the temporary demo token first.');
        return;
      }

      clearTimeout(retryTimer);
      shouldReconnect = true;
      connectButton.disabled = true;
      log(`Connecting to ${socketUrl()}`);

      socket = new WebSocket(socketUrl());

      socket.addEventListener('open', () => {
        socket.send(JSON.stringify({
          type: 'authenticate',
          token
        }));
      });

      socket.addEventListener('message', (event) => {
        let message;

        try {
          message = JSON.parse(event.data);
        } catch {
          log('Server returned malformed JSON.');
          return;
        }

        if (message.type === 'authenticated') {
          retryCount = 0;
          messageInput.disabled = false;
          sendButton.disabled = false;
          log('Authenticated.');
          return;
        }

        if (message.type === 'broadcast') {
          log(`${message.timestamp}: ${message.text}`);
          return;
        }

        if (message.type === 'error') {
          log(`Server error: ${message.error}`);
          return;
        }

        log('Received an unsupported message type.');
      });

      socket.addEventListener('close', (event) => {
        messageInput.disabled = true;
        sendButton.disabled = true;
        connectButton.disabled = false;
        log(`Closed with code ${event.code}: ${event.reason || 'no reason'}`);

        if (event.code === 4001) {
          shouldReconnect = false;
          log('Authentication failed. Check the token before reconnecting.');
          return;
        }

        scheduleReconnect();
      });

      socket.addEventListener('error', () => {
        log('A WebSocket transport error occurred.');
      });
    }

    connectButton.addEventListener('click', connect);

    form.addEventListener('submit', (event) => {
      event.preventDefault();
      const text = messageInput.value.trim();

      if (!text || !socket || socket.readyState !== WebSocket.OPEN) {
        return;
      }

      socket.send(JSON.stringify({ type: 'message', text }));
      messageInput.value = '';
    });

    window.addEventListener('beforeunload', () => {
      shouldReconnect = false;
      clearTimeout(retryTimer);

      if (socket && socket.readyState === WebSocket.OPEN) {
        socket.close(1000, 'Page closed');
      }
    });
  </script>
</body>
</html>

4. Start and verify locally

Set a temporary value for DEMO_TOKEN in your shell or development secret manager, then start the server. The following syntax is for shells that support command-scoped environment variables:

DEMO_TOKEN='replace-with-a-random-temporary-value' npm start

Open http://127.0.0.1:8080 in two browser tabs. Enter the same temporary token in both tabs and connect. Send a message from one tab. Both authenticated tabs should display the broadcast. This verifies the HTTP page, WebSocket handshake, authentication message, and bidirectional delivery locally.

To test malformed input, use a WebSocket-capable development client and send invalid JSON after authenticating. The server should return a structured error rather than crash. To test graceful shutdown, press Ctrl+C in the terminal. Connected browsers should receive close code 1001, and their retry logic should begin attempting to reconnect.

Evaluate public WebSocket access with Localtonet

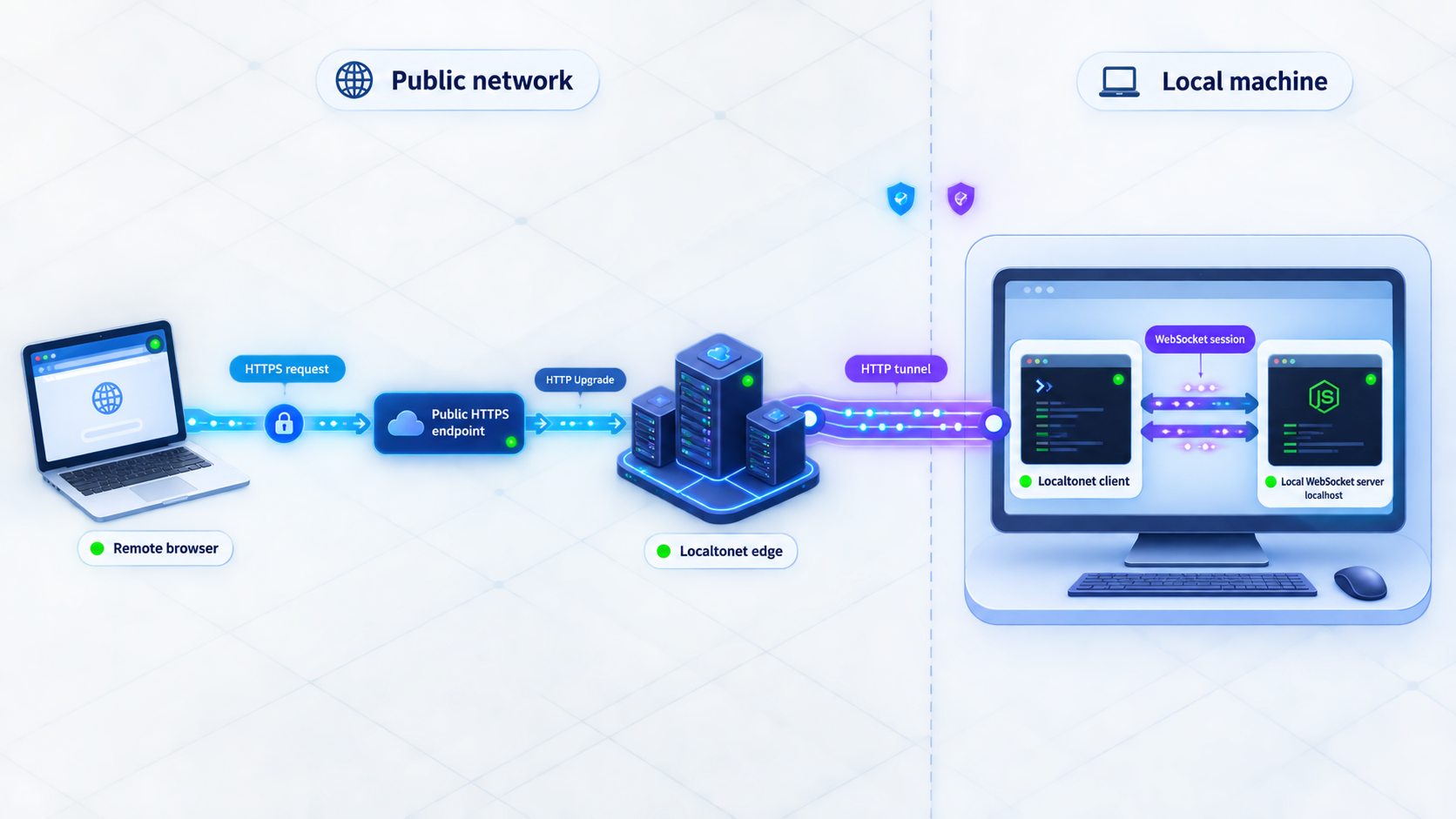

Localtonet exposes services running on your machine without inbound router port forwarding, firewall changes, VPN setup, or a public IP address. Our client on the device establishes an outbound connection to a Localtonet relay. A configured tunnel provides a public URL or public host and port while the selected client is connected and the tunnel is running.

Localtonet supports HTTP/s, TCP, UDP, TLS, combined UDP/TCP, File Server, proxy, and VPN-related product families. However, the supplied product evidence does not confirm the exact WebSocket behavior of an HTTP tunnel, the public URL format, backend TLS behavior, or support for particular WebSocket frameworks. For that reason, do not assume that an HTTP tunnel preserves RFC 6455 Upgrade or modern extended CONNECT traffic until the current dashboard and public documentation confirm it for your selected tunnel type.

Start from the public Localtonet documentation, not the account-only tunnel management URL. Check the current HTTP, TCP, and TLS tunnel guidance and select the option whose documented behavior matches your client, server, and encryption requirements.

If the public documentation does not explicitly describe the WebSocket path you require, treat support as unconfirmed. A raw TCP tunnel may transport a TCP-based protocol, but that alone does not guarantee a browser-trusted certificate, an HTTPS page, or the WSS behavior your browser client expects. Validate the complete client-to-endpoint and endpoint-to-local-service path before relying on it.

Lifecycle, scaling, and troubleshooting

Design reconnection as a state recovery process

A reconnect creates a new WebSocket session. The server may no longer know the client's subscriptions, room membership, last acknowledged event, or outstanding commands. After reconnecting, authenticate again and deliberately restore required state. If events cannot be lost, assign event identifiers and let clients request data after their last confirmed identifier.

Use exponential backoff with jitter rather than reconnecting in a tight loop. Jitter prevents many clients from reconnecting simultaneously after a shared outage. Stop automatic retries after permanent failures such as invalid credentials, revoked access, or a client version that the server no longer supports.

Handle backpressure

A server can generate data faster than a slow client can receive it. Monitor queued bytes or library-specific buffered amounts. Decide whether to pause production, combine replaceable updates, discard stale values, or close the slow client. Never let an unbounded outbound queue consume server memory.

Scale connection state deliberately

With multiple server instances, a connection belongs to one process at a time. If any instance can generate an event for that user, the system needs a way to route or publish the event to the process holding the connection. Load-balancer affinity can help with reconnection patterns, but it does not replace a shared authorization model, event distribution mechanism, or durable state where the application requires one.

Deployments also need connection-aware draining. Stop accepting new upgrades, notify existing clients, allow a reasonable reconnection window, and then close remaining sessions. Abruptly killing every process at once can create a reconnect surge.

Observe connections and messages without leaking secrets

Useful operational signals include accepted and rejected handshakes, active connection count, authentication failures, close codes, connection duration, inbound and outbound message rates, malformed payloads, rate-limit actions, heartbeat failures, queue depth, and reconnect frequency. Do not log authentication tokens, cookies, complete sensitive payloads, or private endpoint values.

Frequently asked questions
