How to Install and Self-Host evcc with Localtonet

What evcc does and where Localtonet fits

evcc is an extensible EV charge controller and home energy management system. Its stated goal is to provide local energy management without depending on cloud services. It runs on hardware at your property, gathers information from compatible energy devices, and uses that information to coordinate charging and other controllable loads.

A typical deployment can combine grid import and export measurements, solar production, household consumption, a home battery, an EV charger, and vehicle state information. Depending on the equipment and configuration, evcc can use these inputs for solar-surplus charging, dynamic electricity tariffs, charging plans, load management, battery coordination, and control of supported heat pumps or electric heaters.

evcc provides a responsive browser-based interface for monitoring and control. It also documents REST and MQTT APIs for integration with home automation systems. The browser interface is the relevant part of this Localtonet workflow: first we establish that the evcc HTTP service works on the local network, and only then do we create an HTTP tunnel pointing to that same local service.

Why local verification comes first

A tunnel forwards traffic to an existing service. It does not install evcc, generate a working evcc configuration, connect a charger, or repair communication between evcc and an energy meter. If the local page is unavailable, incomplete, or returning errors, the public URL normally cannot correct the underlying condition.

This separation gives the setup a clear boundary. Everything through local startup and browser verification belongs to the evcc installation. Localtonet is a distinct remote-access step performed only after the local target address is known and tested.

Prerequisites and deployment planning

An evcc deployment is more than a web application installation. The host must be able to communicate with the chargers, meters, inverters, batteries, heat pumps, vehicles, or online services referenced by the configuration. Before installing software, identify the components you expect evcc to read or control and determine how each one is reachable.

The official evcc site identifies Raspberry Pi, Docker, and other environments as ways to get started. The project repository also contains packaging material and a Dockerfile. Those facts confirm that multiple deployment approaches exist, but they do not establish one universal command sequence, image invocation, compose file, operating-system package, service name, data path, configuration path, or default network port.

Host requirements to establish before installation

• A continuously available host: choose hardware that can remain powered while charging automation is expected to operate.
• Network reachability: the host must be able to reach locally connected energy devices and any external services required by the chosen integrations.
• Stable addressing: devices referenced by network address should not unexpectedly move to another address. Use an appropriate reservation or static-addressing strategy supported by your network.
• Administrative access: you need enough access to install the officially supported evcc package or runtime and to review its logs.
• Device documentation: collect connection details for the charger, meter, inverter, battery, vehicle, or heating system you intend to configure.
• A browser for testing: local verification must happen before configuring the public tunnel.
• A Localtonet client location: the client must run either on the evcc host or on another device that can reach the evcc HTTP service over the local network.

Choose an installation model intentionally

For most operators, the best installation model is the current officially documented path that fits the existing host and that they can maintain confidently. A source build is usually more appropriate for contributors or operators with a specific reason to compile the project. The existence of source code should not be treated as evidence that a source build is the recommended production route.

Install and start evcc without guessing platform details

Because the available official extract does not establish exact platform commands, this guide cannot responsibly provide a copy-and-paste installer. It can, however, define the complete installation outcome and the checks that apply to any supported method. Use the current evcc getting-started documentation for the selected platform, then complete the following installation sequence using the exact package names, commands, paths, and service controls shown for that method.

A successful installation has four observable results: the evcc process remains running, its configuration can be loaded, its local web interface opens at the documented address, and the expected devices either report data or produce a specific diagnostic message that can be investigated. Merely seeing a process in a task list is not enough.

Version awareness

The supplied release evidence identifies evcc 0.315.0 as a release containing new features, breaking changes, and many device-specific updates. This demonstrates why installation and upgrade procedures should be tied to the version actually being deployed. Do not assume that examples written for another release have identical configuration keys or behavior.

Before an upgrade, review the intervening release notes for breaking changes that affect your configuration or integrations. Preserve a recoverable copy of the working configuration and any persistent state according to the official instructions for your installation method. After upgrading, repeat local verification before relying on remote access or unattended charging behavior.

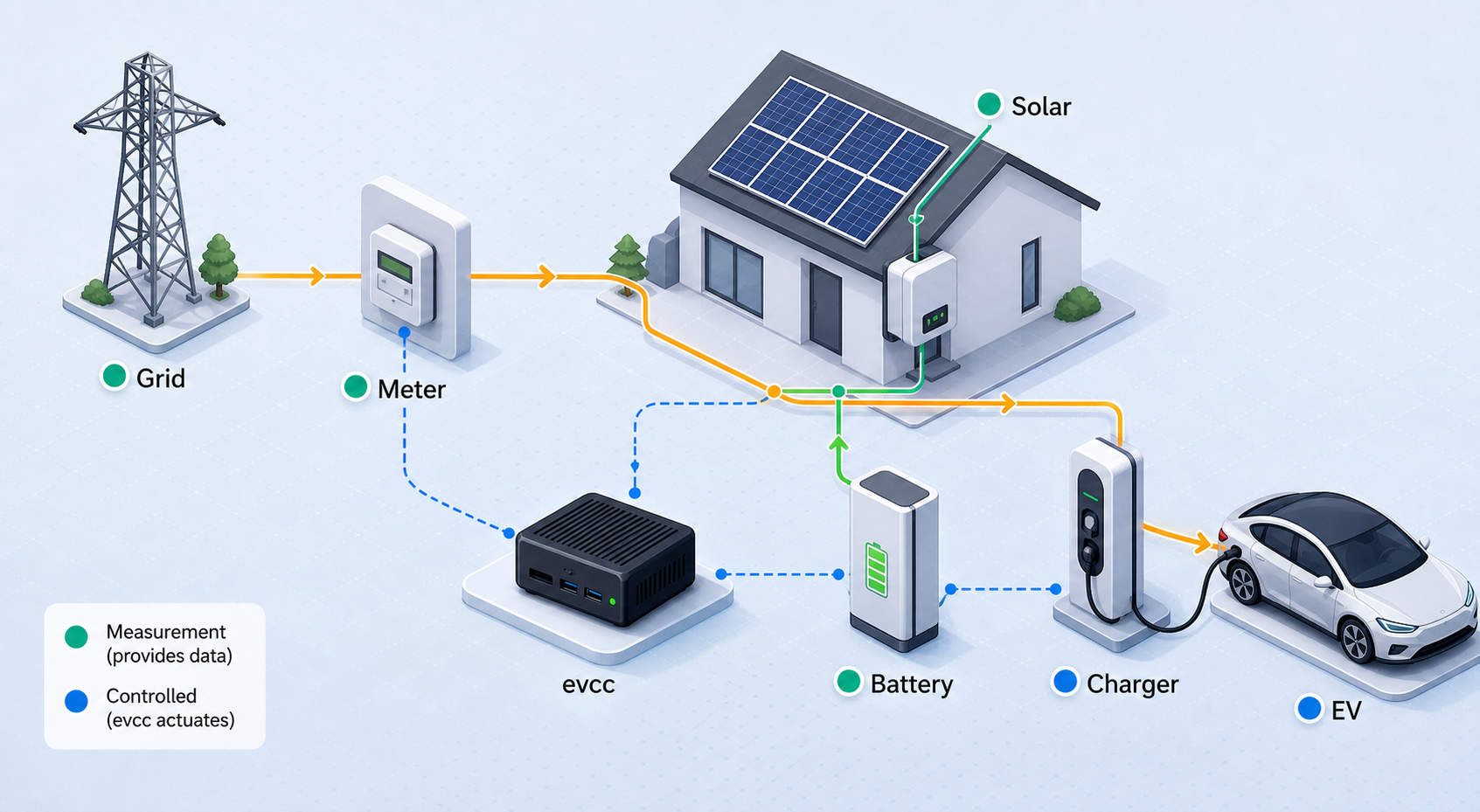

Configure the energy system methodically

evcc supports a broad set of chargers, meters, solar inverters, battery systems, vehicles, smart switches, heat pumps, and related integrations. Support for a manufacturer does not mean every model offers the same readings or control functions. Configuration should therefore be based on the exact device model, firmware, connection method, and evcc integration template.

Start with the minimum useful topology

Avoid configuring every optional integration at once. Begin with the components required to represent one functioning charging path. Depending on the property, that may include the site-level energy measurement and one charger. Add vehicle state, tariffs, a battery, heating equipment, messaging, or home automation only after the foundational measurements and controls behave correctly.

Treat credentials and device controls carefully

Some integrations can require local device credentials, service accounts, API credentials, or network identifiers. Store them only through mechanisms documented by evcc for the selected installation. Do not embed secrets in screenshots, public repositories, support posts, browser bookmarks, or a Localtonet tunnel definition.

Use an account with only the permissions needed for the integration where the device or service supports that model. Remember that charger, battery, and heating controls affect physical equipment. Validate commands while physically present and able to stop the test safely.

Review the web interface before adding integrations

Once the basic system works, use the evcc interface to inspect whether values are plausible rather than merely present. A reversed meter sign, stale vehicle state, or incorrect site model can produce a polished dashboard while still leading to incorrect decisions. Compare displayed values against the charger, inverter, utility meter, or another trusted local reading.

Add one optional integration at a time and observe the system after each change. This creates a useful rollback point and makes log messages easier to attribute to the most recent modification.

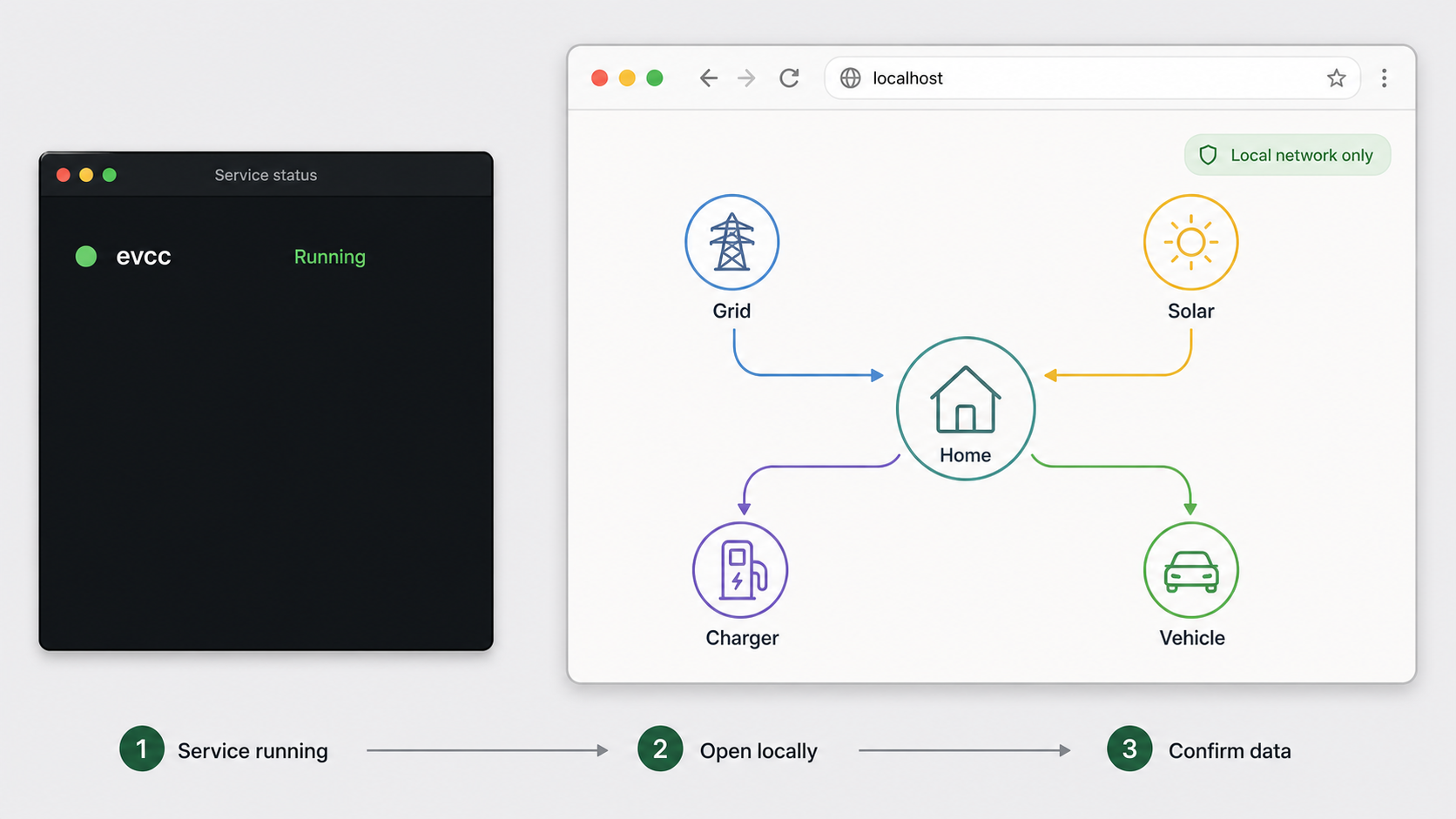

Verify evcc locally before exposing it

The available evidence confirms that evcc has a web interface and REST API, but it does not establish a universal URL, listening port, bind address, authentication default, or HTTPS mode. Use the local address explicitly reported by the installation method or evcc startup output. Do not assume a common port from an unofficial example.

Local verification checklist

1. Open the documented evcc URL from a browser on the host or local network, as permitted by the configured bind address.
2. Confirm that the complete interface loads rather than only an empty page or partial static assets.
3. Refresh the page and verify that live values continue updating.
4. Check that configured devices appear and that obvious readings are plausible.
5. Exercise only low-risk controls at first and confirm that the physical device responds as expected.
6. Review evcc logs for repeated communication failures, authentication errors, configuration warnings, or restart loops.
7. Restart evcc using the documented service mechanism and confirm that the same interface returns.
8. If unattended operation is required, reboot the host during a safe maintenance window and verify documented automatic startup.

Determine the correct Localtonet target

The local target has two parts: an IP address and a port. Use the same endpoint that successfully serves evcc to a browser from the Localtonet client device.

• If Localtonet runs on the same host as evcc and evcc accepts loopback connections, the verified loopback address can be appropriate.
• If Localtonet runs on another device, use an evcc host address reachable from that client over the local network.
• If evcc runs in a container, use an endpoint published or routed to the Localtonet client. A container-internal address that the client cannot reach will not work.
• If the browser reaches evcc through an existing reverse proxy, decide whether Localtonet should target that proxy or the evcc service directly. Preserve any routing behavior the chosen endpoint requires.

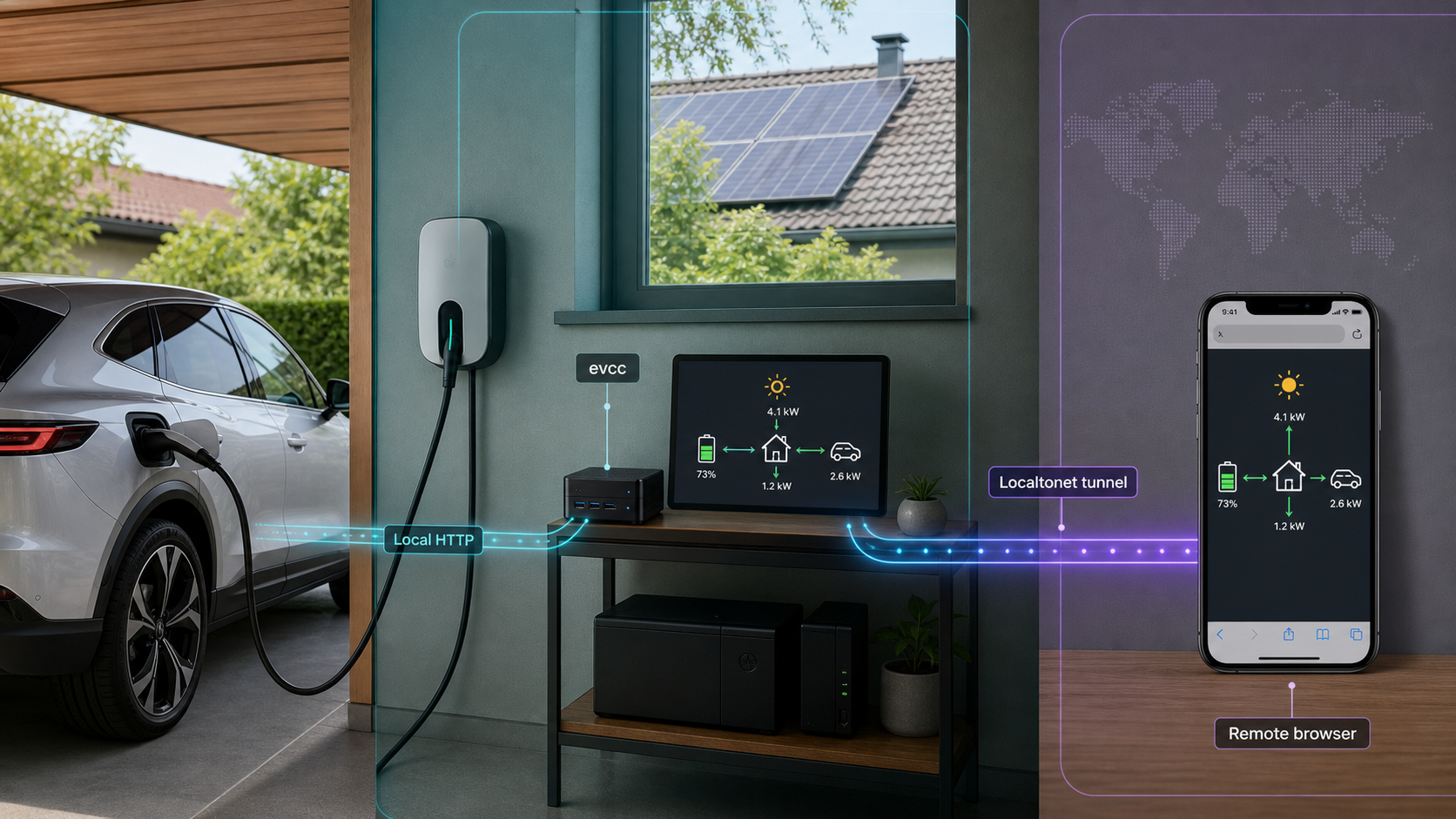

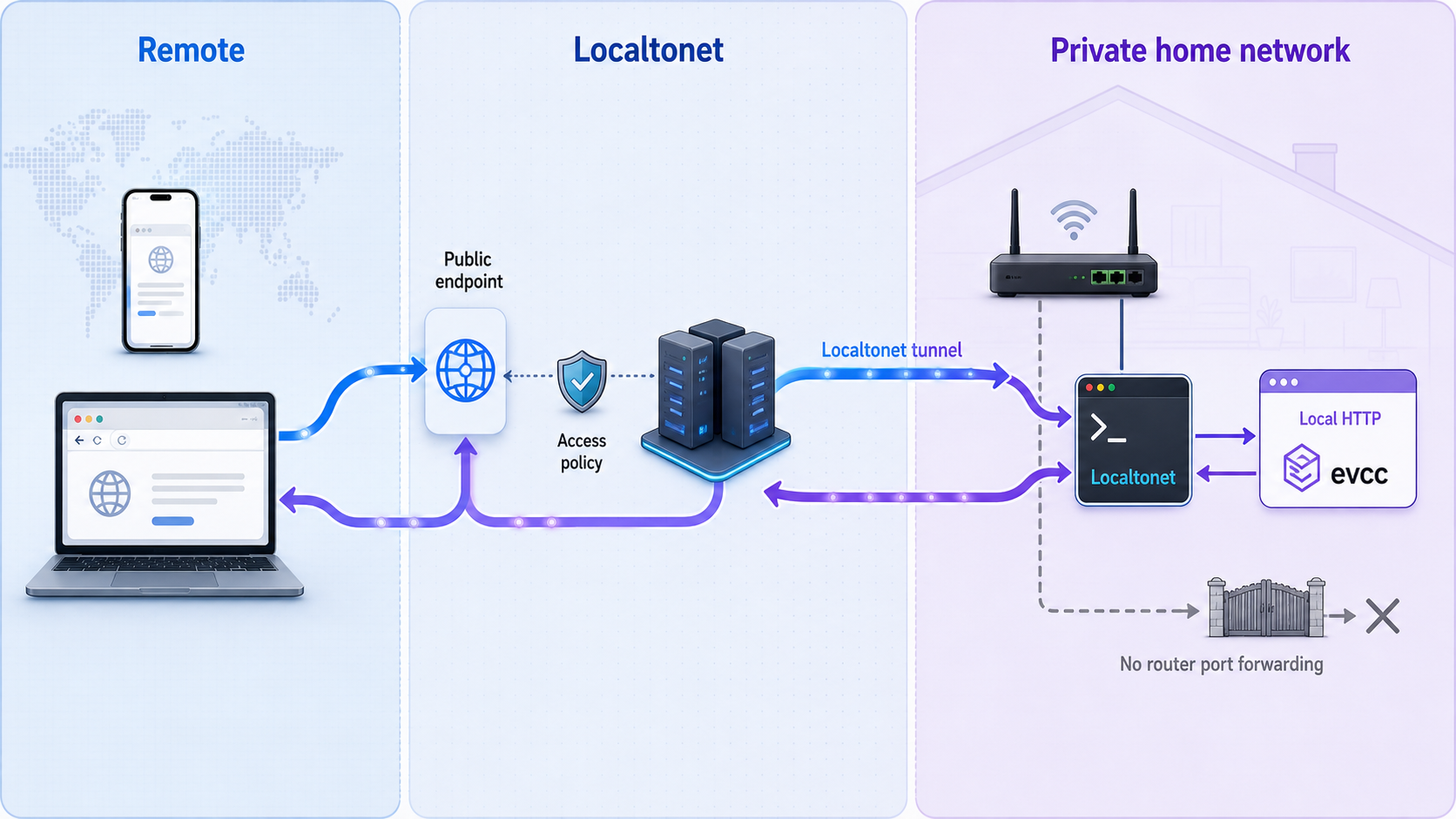

Expose the verified evcc HTTP service with Localtonet

After evcc works locally, Localtonet can provide a public HTTPS address that forwards to its local HTTP service. The Localtonet client makes an outbound connection to our relay server, so this workflow does not require inbound router port forwarding, firewall changes, VPN setup, or a public IP address.

The client must run on a device that can reach the verified evcc endpoint. A tunnel remains available only while the selected client device is connected and the tunnel itself is running.

Manage the tunnel from the Localtonet dashboard or REST API. For the regular interactive setup above, the dashboard keeps the local target, device selection, relay selection, lifecycle state, and public endpoint visible in one place.

Why HTTP is the appropriate tunnel family

This workflow publishes a browser-based HTTP service, so an HTTP tunnel matches the application layer. Raw TCP forwarding is intended for services that need a public host and port rather than a public web URL. UDP, combined UDP/TCP, TLS, File Server, proxy, and VPN Manager solve different networking problems and should not be substituted merely because they are available on our platform.

Secure the remote-access boundary

A public URL changes the threat model. A service previously reachable only from the host or local network can receive internet traffic through the tunnel. The tunnel solves connectivity, but it does not automatically make every application action appropriate for anonymous public access.

The supplied evcc evidence does not establish a universal authentication default for the local interface or API. Verify the behavior of the version and configuration you actually run. If adequate application authentication is unavailable for your intended exposure, place a properly configured authentication layer in front of evcc or avoid public exposure. Do not claim that an endpoint is protected simply because its public URL is difficult to guess.

Practical hardening checklist

• Update before exposure: use a maintained evcc release and review release notes for security changes and breaking configuration updates.
• Verify authentication: test the public URL in a private browser session that has no existing cookies. Confirm whether an unauthenticated visitor can view data or issue controls.
• Protect APIs: assume that API routes deserve at least the same protection as the visible interface. A hidden link is not an authorization mechanism.
• Minimize credentials: use restricted device or service accounts where integrations support them.
• Protect the Localtonet token: the device authentication token is device-specific and must not appear in logs, screenshots, repositories, or support messages.
• Limit availability: start the tunnel only when it is required if continuous public access is unnecessary.
• Monitor behavior: review evcc and Localtonet status when unexpected access, control changes, or connection interruptions occur.
• Retain local safeguards: remote control must not weaken the physical and electrical protections around the charger and energy system.

HTTPS at the public edge

HTTP Process Types on Localtonet serve the tunneled content at a public HTTPS address. This describes the public-facing connection to the tunnel edge. It does not establish that the local hop to evcc uses HTTPS, nor does the supplied evcc evidence establish universal local HTTPS support. Configure the local target according to the protocol actually served by the verified evcc endpoint.

Do not represent edge TLS as application authorization. Encryption in transit and permission to use an energy-management control are separate concerns, and both need deliberate treatment.

Routine operation, updates, and troubleshooting

Normal operating sequence

During ordinary use, keep evcc, its host, relevant network equipment, and required device integrations operational. If remote access is needed, the Localtonet client must also be connected and the HTTP tunnel must be running. A public URL can stop responding even while evcc remains healthy if the client device shuts down or loses connectivity.

When making a configuration change, validate it locally first. Watch the evcc logs, verify the browser interface, and confirm that physical behavior remains correct. Test the public URL only after the local service has returned to a known-good state.

Updating evcc safely

1. Identify the version currently installed and the version you plan to install.
2. Read the intervening release notes, paying particular attention to breaking changes and device-specific updates.
3. Preserve the configuration and persistent state through the backup method applicable to the selected installation.
4. Apply the official update procedure for that same installation model.
5. Review startup status and logs before changing the tunnel.
6. Verify device data and controls locally.
7. Confirm remote access only after local verification succeeds.

Updating a container, package, or source build may require different commands and rollback procedures. Do not substitute one method's update instructions for another.

The local evcc page does not open

• Confirm that the evcc process or container remains running.
• Review the startup logs for a rejected configuration, missing file, permission failure, or occupied listening address.
• Use the address and port reported by the current installation rather than an assumed default.
• If testing from another device, confirm that evcc is listening on an interface reachable from the local network.
• For a container deployment, confirm that the official procedure publishes or routes the web service appropriately.
• Temporarily separate device-integration errors from web-server startup. A failing device should produce a diagnosable error, but the exact effect depends on the integration and configuration.

The local page works but the public URL does not

• Confirm that the Localtonet client is connected on the selected device.
• Confirm that the tunnel was started. Creation alone does not make it run.
• Verify that the selected tunnel is associated with the intended device token and current relay selection.
• Retest the target from the Localtonet client device itself.
• Check for a mismatch between the target IP address, port, and the endpoint verified locally.
• If evcc is containerized, avoid targeting an isolated container address that is inaccessible from the Localtonet client.
• Confirm that the evcc service did not restart on a different or unavailable endpoint.

The interface opens but controls or live values fail

This usually narrows the problem to the application or one of its integrations rather than basic tunnel connectivity. Inspect browser-visible errors and evcc logs, then test the same action through the local URL. If local behavior also fails, troubleshoot evcc, the device integration, credentials, firmware, or network path. If only the public URL fails, review whether the application expects a particular host, origin, proxy behavior, or session context. The supplied evidence does not establish universal settings for those behaviors, so use the documentation for the deployed evcc version.

The tunnel disconnects intermittently

Check whether the Localtonet client device is sleeping, rebooting, losing internet access, or being stopped by host service management. Also distinguish a disconnected tunnel from a connected tunnel whose local evcc target is unavailable. These conditions can look similar in a browser but require different fixes.

Use status notifications without confusing webhook systems

If operational automation is required, Localtonet has platform-wide Token/Tunnel webhooks that report Connected and Disconnected changes for tokens or tunnels in a selected Token Group. Their JSON request identifies the relevant tunnel ID or authentication token, the action date, the type as Token or Tunnel, and the status as Connected or Disconnected.

These lifecycle webhooks do not report evcc charger events or energy data. They also differ from Localtonet File Server file-event webhooks. Keep these systems conceptually separate when building monitoring.
