Self-Host a Clodex Headless Node with Localtonet

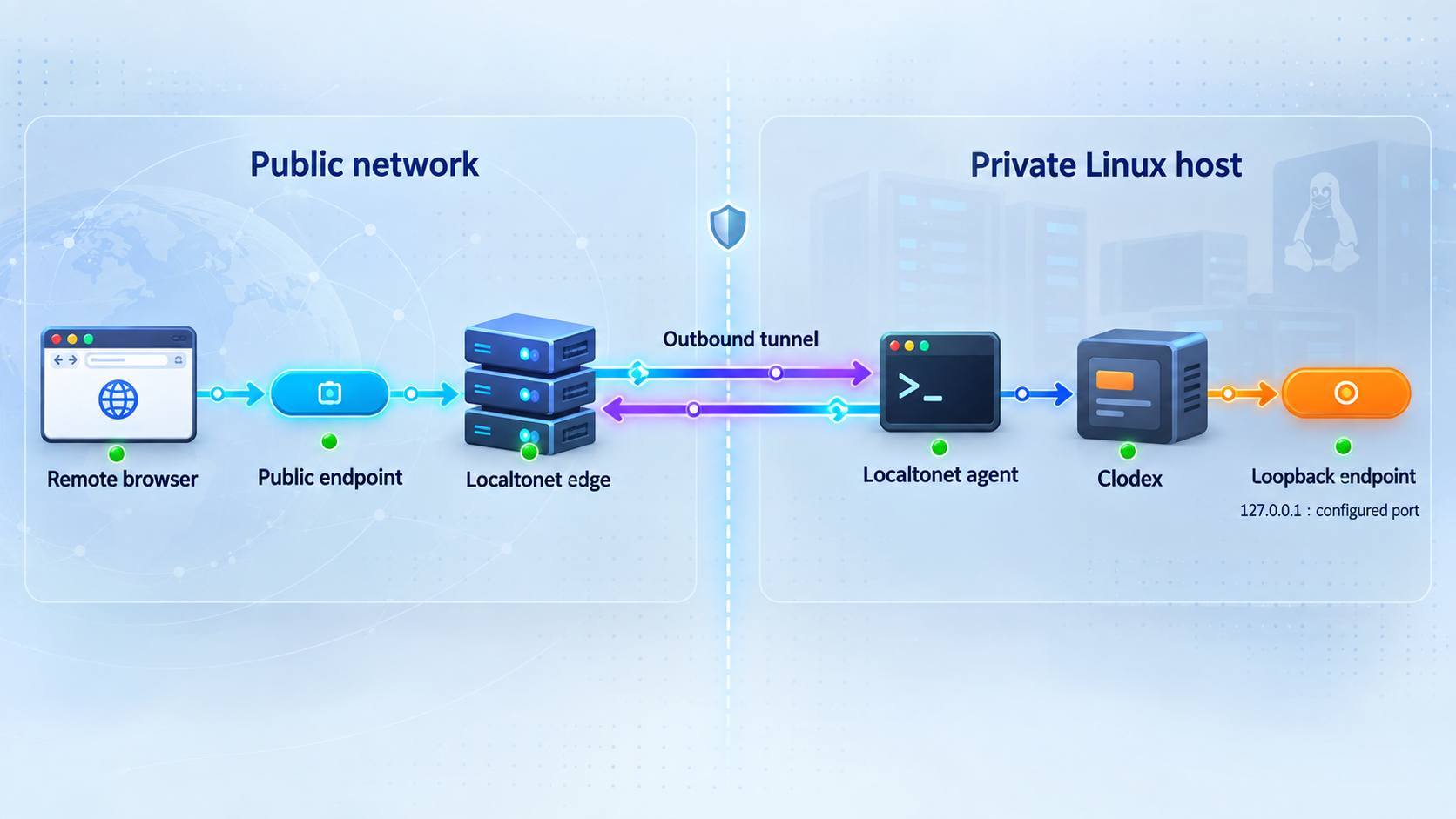

Understand the Clodex headless architecture

Clodex is a session manager for fleets of coding agents. It can run Claude Code and Codex sessions as terminals while adding a visual session list, agent coordination, session telemetry, and connections between machines. The project uses the term headless node for the Linux deployment that runs without the macOS desktop interface. A headless node can serve the Clodex GUI in a browser.

That browser endpoint is the relevant target for this tutorial. The project describes the browser GUI as being served through an HTTP and WebSocket host. Clodex also has a separate peer service that uses HTTP and server-sent events for peering and phone access. These are different interfaces with different purposes. Publishing the browser GUI does not automatically mean that the peer service should also be exposed.

With Localtonet, the client on the Linux host establishes an outbound connection to one of our relay servers. An HTTP tunnel then maps a public address to the Clodex browser service running on, or reachable from, that host. This removes the need to create an inbound router port-forwarding rule, obtain a public IP address, set up a VPN, or open an inbound firewall port for the application.

The resulting tunnel is available only while the selected Localtonet client is connected and the tunnel is running. Creating a tunnel configuration alone does not start it. This lifecycle is useful for administrative tools because you can stop the public route when remote access is not required.

Prepare the Linux host and agent environment

Start with a Linux machine that can remain online for as long as you want the Clodex node to operate. This could be a development workstation, a dedicated server, or another Linux system capable of running the agent command-line tools and the projects they need to access. The host must have sufficient permissions and resources for the sessions you plan to run.

Clodex drives external coding-agent CLIs rather than replacing them. Install and authenticate the CLI or CLIs you intend to use according to their own supported procedures. The Clodex project identifies Claude Code through a claude executable in PATH and Codex through a codex executable in PATH. Verify these executables under the same Linux account that will run the headless node.

command -v claude
command -v codex

Run only the check that applies to the CLI you intend to use. A returned executable path establishes that the shell can find the command. It does not by itself prove that the CLI is authenticated, authorized for the selected model, or able to access a project.

Confirm project access from the service account

The account running Clodex needs appropriate access to every project directory it will manage. Confirm that it can enter the project directory, read the repository, and perform only the file and Git operations required by your workflow. Avoid running the node as a highly privileged account merely to work around ownership problems.

If agent sessions need Git credentials, package-registry credentials, model-provider credentials, or environment variables, configure them for the actual runtime account. An interactive shell and a background service can have different environment variables and different PATH values. A CLI that works in your login shell may therefore be missing when Clodex starts through a service manager.

Obtain the current Clodex requirements

Clodex changes actively, so installation requirements and launch options can change between releases. The project repository points Linux headless, Docker, source-build, server deployment, and everyday clodexctl instructions to its docs/how-to.md document. Use the version of that document corresponding to the release or commit you deploy.

The currently available evidence confirms Node.js 20 or later for the standalone clodexctl client workflow. It does not establish that Node.js 20 is the complete or only prerequisite for every Linux headless deployment path. Likewise, the macOS DMG instructions and macOS source-build command are not valid evidence for a Linux headless installation. Do not adapt those commands by changing platform names or architecture flags.

Install the Clodex headless node on Linux

Choose one documented Linux deployment path and follow it consistently. The Clodex project identifies source-build, headless, Docker, and server-deployment instructions as available in its official how-to document. Container and direct-host installations can have different filesystem, process, environment, networking, and upgrade behavior, so commands from one path should not be mixed into another.

Direct-host installation

For a direct-host installation, use the current Linux headless section to install the required runtime dependencies, obtain the Clodex source or release content, install its dependencies, and invoke the documented headless entry point. Record the release tag or commit used. Pinning the deployed revision makes troubleshooting and rollback more predictable than silently following a moving branch.

Do not use the Apple Silicon DMG installation procedure on Linux. That package is the macOS desktop application. The release notes also show a source-build command for producing an Intel macOS DMG, but that command targets macOS packaging and does not establish a Linux headless build procedure.

Container installation

If you choose the official Docker deployment, follow the project's documented image-build or container-start procedure. Confirm which directories must be persisted, which project paths must be mounted, how agent credentials are supplied, and how the browser endpoint is published to the host. These values are deployment-specific and are not established by the evidence available for this draft.

Treat a container port and a host port as separate values. Clodex may listen on one port inside a container while Docker publishes it on a different host port. Localtonet must target the host-side address and port that are reachable from the Localtonet client, not an isolated container-only address.

Optional standalone control client

The project documents a standalone clodexctl client for Node.js 20 or later. The following commands are evidenced for cloning the repository and installing its CLI package globally:

git clone https://github.com/avirtual/clodex
npm i -g ./clodex/cli

Installing clodexctl is not the same as installing or starting a Linux headless node. The CLI controls a node after an appropriate connection has been configured. Do not treat the successful installation of this package as proof that the browser service is running.

The project also demonstrates verbs such as selecting a configured node and retrieving sessions:

clodexctl use node local
clodexctl get sessions

The name local in that example presumes that a matching node connection already exists. Use the node name created by your documented setup rather than assuming that every deployment provides a connection with that name.

Configure the browser endpoint and runtime safely

Before starting the headless node, identify the exact option or configuration entry that controls the browser GUI host and port. The available evidence does not establish a universal default hostname, bind address, or port. Read the startup output and the release-matched headless documentation rather than assuming common development ports such as 3000, 5173, or 8080.

Choose the narrowest practical bind scope

If Clodex supports binding its browser service to the loopback interface and the Localtonet client runs on the same Linux host, loopback is generally the narrowest network scope. If Localtonet runs on a separate device, the Clodex endpoint must instead listen on an address reachable from that device. Use only a bind configuration explicitly supported by Clodex.

Do not expose the Clodex port directly through a router and then place a tunnel in front of it. That creates two inbound paths and defeats the purpose of using an outbound tunnel as the controlled remote-access route. Review host and cloud firewall rules for older test configurations.

Separate GUI access from peer connectivity

Identify whether the configured listener is the browser GUI host or the peer service. The browser interface is the endpoint intended for this HTTP tunnel. The peer service has its own HTTP and server-sent-event behavior and should not be published merely because the browser GUI needs remote access.

If you later need remote peering, document and assess it as a separate service. Give each endpoint its own access decision, target, and verification process. Avoid sending multiple administrative protocols through one route unless Clodex explicitly documents that architecture.

Protect credentials and repositories

A Clodex node can control agent sessions that read and modify source code. Its browser GUI should therefore be treated as an administrative interface. Before exposing it, determine whether the installed Clodex version provides authentication for the browser endpoint and configure that authentication according to the project documentation. The evidence supplied for this article does not specify its authentication procedure, so we cannot safely provide field names or commands.

Apply least privilege to the Linux runtime account. Limit its repository access to intended projects, keep model-provider credentials out of repositories, and avoid embedding credentials in shell history or service files with overly broad permissions. Review what an authenticated coding agent can execute, not only what the GUI itself displays.

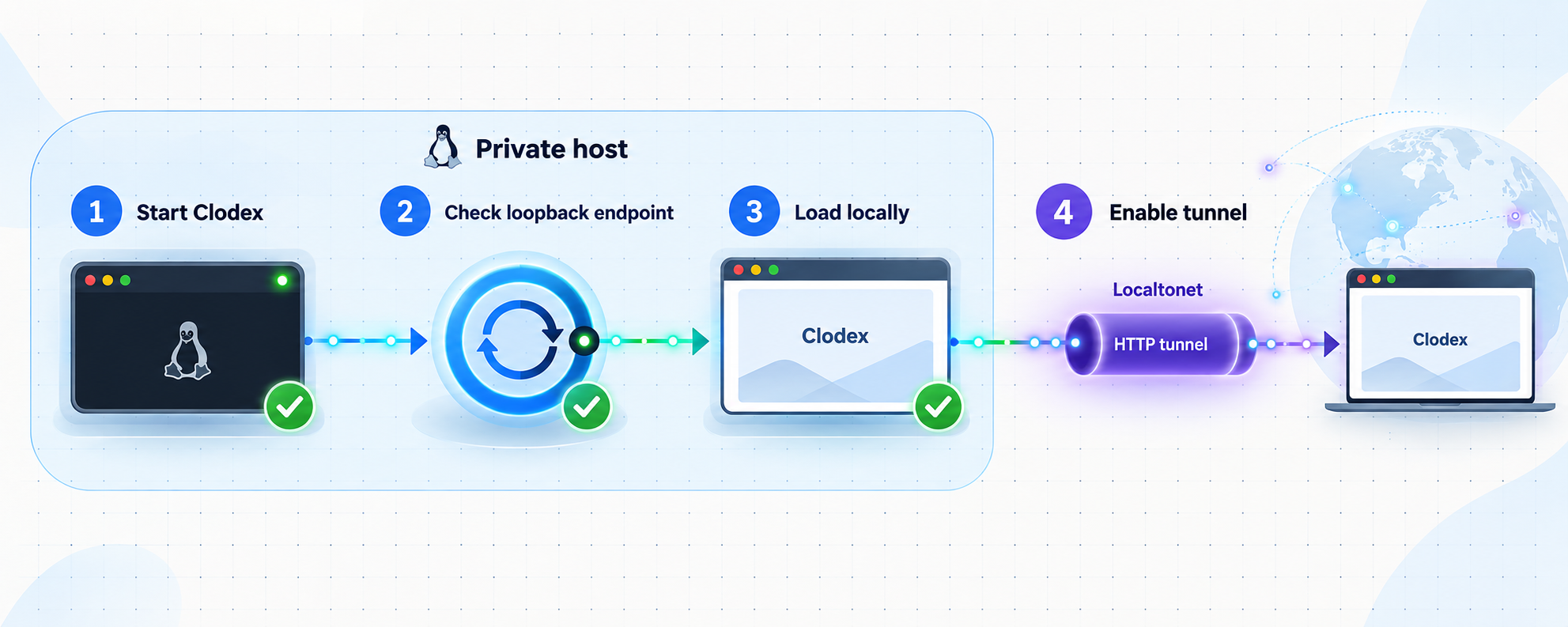

Start and verify Clodex locally first

Start the headless node using the exact command or service definition documented for your chosen release and installation path. Keep the first launch in the foreground when practical so that you can inspect startup output. Record the actual listening address, port, configuration location, and any warnings without publishing secrets from the logs.

Verification should proceed from the smallest scope outward. First establish that a Clodex process remains running. Next confirm that the expected port is listening. Then request the browser endpoint from the Linux host. Finally, open it in a browser on the local network if the chosen bind scope permits that.

Inspect the listening socket

On Linux, use the operating system's socket inspection tools and filter the result using the port reported by Clodex. The following command lists listening TCP sockets without assuming a Clodex port:

ss -ltnp

Confirm that the process associated with the documented endpoint is Clodex or its expected runtime. Pay attention to the listening address. A loopback address is reachable only from the same host, while an all-interface or LAN address has a broader local exposure. Do not change the bind address solely to make testing easier.

Test the HTTP endpoint

Use the actual URL printed by Clodex or assembled from its documented address and port. A browser is the best final local test because the GUI may rely on more than the initial HTML response. A command-line HTTP request can still help establish whether the base endpoint responds:

curl -i http://ACTUAL_LOCAL_HOST:ACTUAL_PORT/

Replace both placeholders with verified values. Do not paste that example unchanged into automation. A successful response confirms only that an HTTP server answered. It does not prove that the browser's WebSocket connection, session loading, terminal interaction, agent CLI authentication, or repository permissions work.

Exercise a minimal Clodex workflow

Open the GUI locally and verify that it loads without repeated connection errors. Confirm that the expected node or sessions appear. If you create a test session, use a disposable project with no sensitive credentials and verify that the chosen agent CLI starts. Check that a page refresh and browser reconnection behave as expected.

If you installed and configured clodexctl, retrieve sessions from the intended node as an additional control-plane check. A CLI connection and a browser connection test different paths, so success in one does not automatically diagnose the other.

Expose the verified browser GUI with Localtonet

Add remote access only after the Clodex GUI works through its local address. This separation prevents application startup failures from being mistaken for tunnel failures. For the browser interface, select an HTTP tunnel because the target is an HTTP service. Do not select a raw TCP, UDP, File Server, proxy, or VPN configuration simply because the node is remote.

HTTP tunnels can use a random subdomain, a custom subdomain where supported, or a custom domain. These process types serve the same target content at a public HTTPS address. Availability can vary by current product configuration or plan, so use the options presented in your dashboard rather than assuming that every option is available.

For the current dashboard workflow and field descriptions, consult our HTTP tunnel documentation while creating the tunnel. Use the values obtained from your running Clodex node rather than values from unrelated examples.

Operate and maintain the deployment

Once local and remote access both work, decide how Clodex should start after a reboot. Use the process-management approach documented for your selected Clodex deployment. A direct-host process might use a Linux service manager, while a container deployment might use a container restart policy or orchestration system. The current evidence does not establish an official service unit, service name, container name, or restart command, so those details must come from the release-matched project instructions.

Preserve the correct runtime environment

Compare the environment used by the managed process with the environment used during successful interactive testing. Confirm the working directory, PATH, home directory, project paths, and credentials available to the runtime account. If the node starts but cannot launch an agent, a missing CLI path or credential in the background environment is a likely distinction to investigate.

Upgrade deliberately

Review Clodex release notes before upgrading. Stop or quiesce active work according to the project's instructions, preserve required state, install the selected release through the same deployment path, and repeat local verification before restarting the public tunnel.

Avoid combining a Clodex upgrade, a container change, a bind-address change, and a tunnel reconfiguration in one maintenance action. Changing one layer at a time makes failures easier to isolate. Keep enough information to return to the previous working release if the project's supported rollback process permits it.

Review exposure over time

Periodically confirm that the tunnel still targets the intended IP address and port. This is particularly important after container recreation, network changes, or moving the Localtonet client. Review whether remote access is still necessary and stop unused tunnels.

Never include the Localtonet device token, Clodex credentials, model-provider secrets, private repository URLs, or private tunnel details in diagnostic posts. Redact sensitive values before sharing logs. If a token is exposed, replace it through the appropriate account workflow rather than merely deleting the public copy.

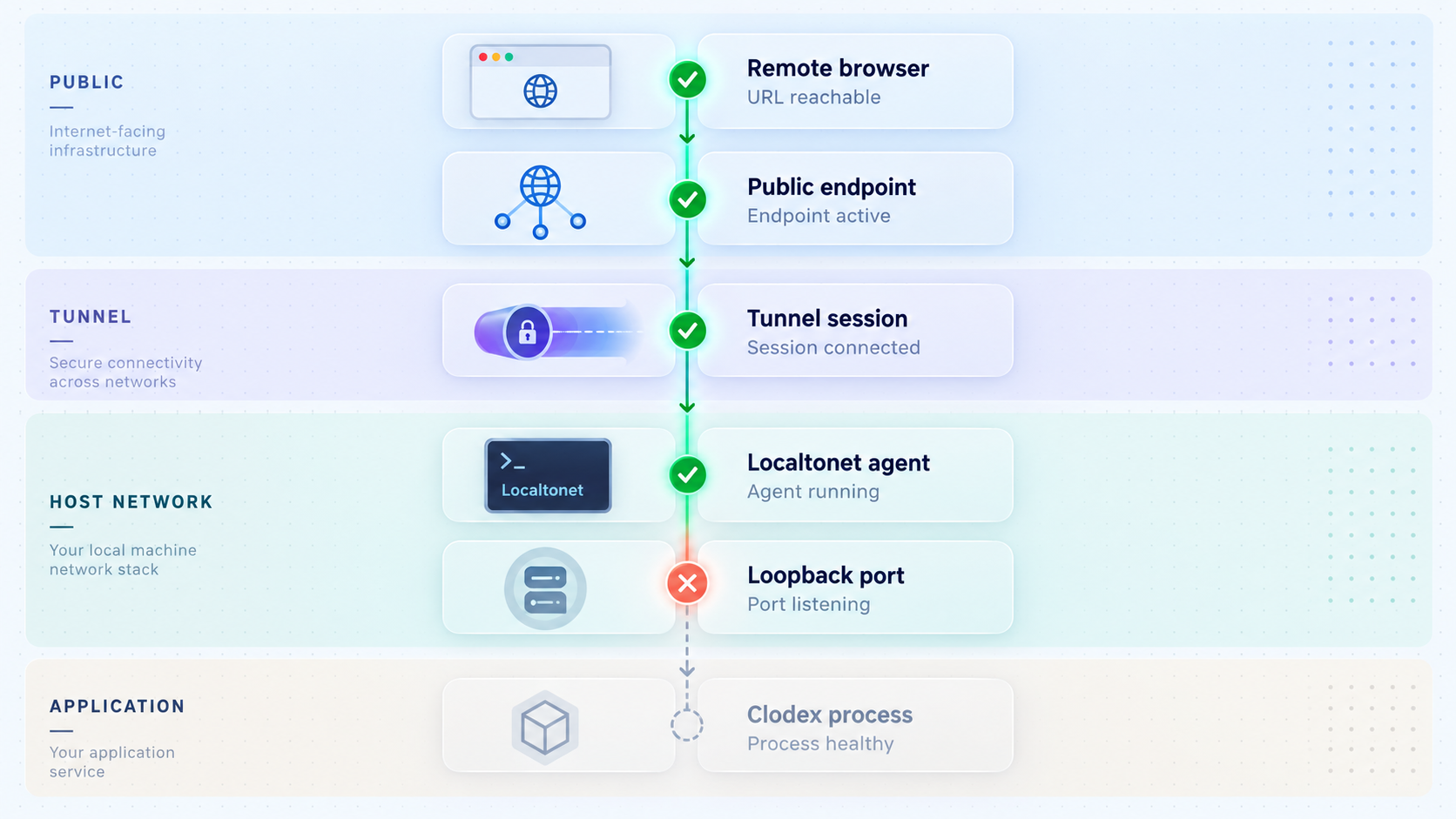

Troubleshoot Clodex and tunnel failures by layer

Troubleshooting is faster when you identify the first failing layer. Start with the process, then the local socket, then local HTTP behavior, then the Localtonet client's reachability, and finally the public browser session.

Local target is unreachable from the client

If Localtonet runs on the same Linux host, verify the exact Clodex URL from that host. If it runs on another device, test the target from that device rather than from your laptop. A loopback-bound service on the Clodex host is not reachable through another machine's loopback interface.

The browser page loads but appears disconnected

A successful initial HTML response does not guarantee that Clodex's live browser transport is working. Use the browser's developer tools to look for failed network requests or WebSocket connections. Compare the result with the locally verified browser session. Also check whether Clodex needs an externally visible origin or URL setting, but configure one only if the project's current documentation defines it.

The node cannot find Claude Code or Codex

Run the executable check as the same account and within the same process environment used by Clodex. If the CLI exists only through an interactive shell initialization file, a background service may not inherit its location. Correct the runtime environment through the documented deployment method instead of launching the whole node with unnecessary elevated privileges.

The tunnel exists but has no public response

Confirm three separate states: the selected Localtonet device is connected, the tunnel configuration is started, and the Clodex target responds locally. A tunnel can exist in the dashboard without running. It also becomes unavailable when its assigned client disconnects.
