Docker Compose HTTPS: Avoid Double TLS Tunnels

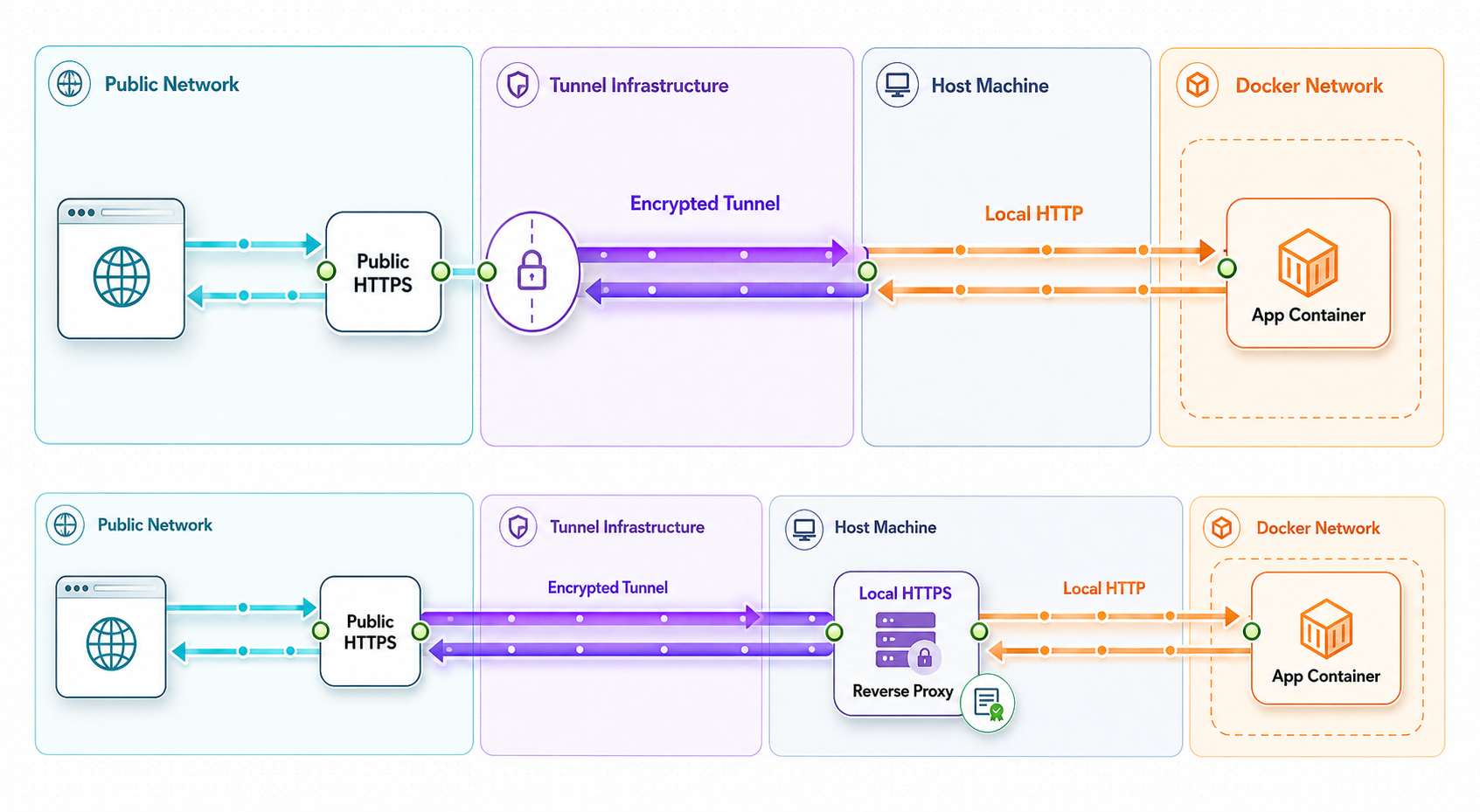

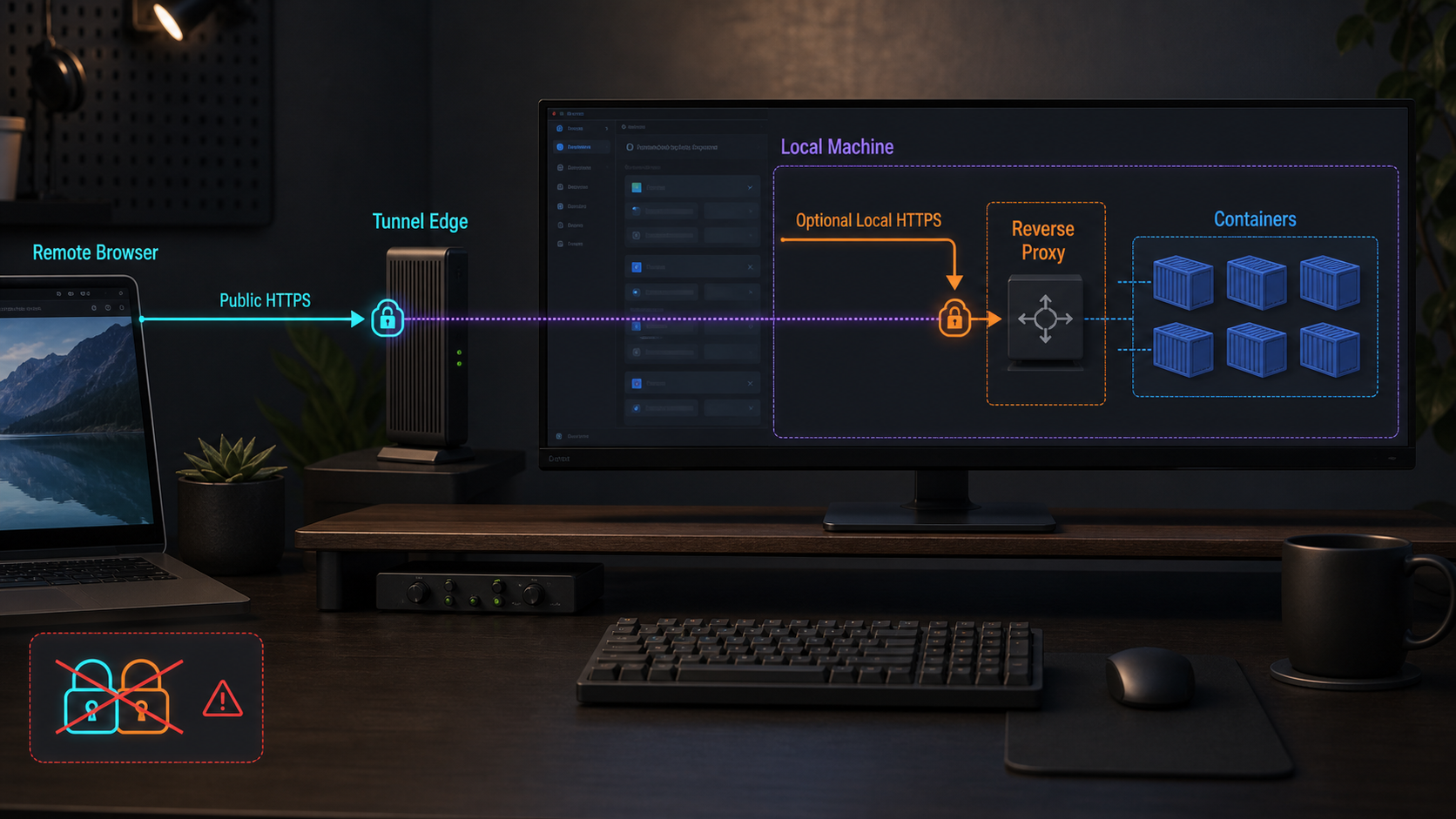

Understand the local and public TLS boundaries

A Docker Compose application can encounter HTTPS at more than one point. A developer may open a locally trusted address such as https://foo.test:8443, where nginx terminates TLS with a certificate created by mkcert. A remote browser can separately open a public HTTPS address assigned to a Localtonet HTTP tunnel. Those connections are not one continuous TLS session.

In the reference project below, the application itself listens for plain HTTP on container port 8080. Docker publishes that listener as 127.0.0.1:8080. nginx reaches the application through the Compose network at app:8080, publishes local HTTP at 127.0.0.1:8081, and publishes local HTTPS at 127.0.0.1:8443.

The recommended Localtonet topology targets 127.0.0.1:8080, not nginx port 8443. Public users receive an HTTPS URL from the HTTP tunnel, while the verified local target speaks ordinary HTTP. Local nginx remains available for browser tests that specifically require a secure local origin.

Choose the simplest topology that meets the test

Decide what must be tested before selecting a target. If the requirement is simply to make a working local web application reachable through a public HTTPS address, target a verified HTTP listener. If nginx performs required path routing, authentication, header normalization, or other application behavior, the tunnel may need to target nginx instead. That choice should be explicit.

This tutorial recommends separate local and public entry points. Developers use nginx at https://foo.test:8443. Localtonet targets the application's plain HTTP listener at 127.0.0.1:8080. That public route does not traverse nginx, so it does not need to validate the workstation-only certificate.

Install Docker, Compose, mkcert, and local trust

The reference project requires Docker Desktop, or Docker Engine with the Docker Compose plugin, plus mkcert on the workstation. Confirm Docker and Compose before creating files:

docker version
docker compose version

Both commands should print version information without a connection error. The project uses Compose service names and features supported by the current Docker Compose plugin. It does not require the legacy standalone docker-compose command.

Install mkcert for the workstation platform

Use one platform-appropriate installation path. Package availability can vary with operating-system and repository versions, so review the package presented before approving installation.

• macOS with Homebrew:

  brew install mkcert
  brew install nss

  The optional nss package supports Firefox trust integration when Firefox uses its own trust store.
• Windows with Chocolatey in an elevated terminal:

  choco install mkcert

• Debian or Ubuntu when mkcert is available from the configured repositories:

  sudo apt update
  sudo apt install mkcert libnss3-tools

• Fedora when mkcert is available from the configured repositories:

  sudo dnf install mkcert nss-tools

If the operating-system repository does not provide mkcert, use the installation method published by the mkcert project. Do not download an executable from an unrelated mirror.

After installation, create and install the local development CA:

mkcert -install

This is a per-workstation trust step. It does not install the CA in other developers' machines, remote clients, containers, or the Localtonet relay path.

Create the project directories

mkdir -p docker-compose-https/app
mkdir -p docker-compose-https/nginx
mkdir -p docker-compose-https/certs
cd docker-compose-https

On PowerShell, create the same directory structure using the filesystem tools available on the workstation. All paths below are relative to the project root.

Generate a certificate for foo.test

Once mkcert is installed and initialized, this certificate-generation command is portable across supported mkcert platforms:

mkcert \
  -cert-file certs/foo.test.pem \
  -key-file certs/foo.test-key.pem \
  foo.test localhost 127.0.0.1 ::1

The resulting leaf certificate covers foo.test, localhost, and the listed loopback addresses. The nginx configuration uses the exact filenames supplied above. The certificate hostname does not include a port, so it remains valid when the browser uses https://foo.test:8443.

Exclude certificate material from Git

Create a project-level .gitignore:

certs/*
!certs/.gitkeep
.env
*.log

Add an empty certs/.gitkeep only if the repository needs to retain the directory:

touch certs/.gitkeep

Each developer should generate their own certificate and private key. Do not commit foo.test-key.pem. Although the leaf certificate itself is not secret, ignoring the entire generated certificate directory reduces the chance of committing the private key by mistake.

Resolve foo.test to the local machine

On macOS and Linux, add this entry to /etc/hosts:

127.0.0.1 foo.test

On Windows, add the same line to:

C:\Windows\System32\drivers\etc\hosts

Editing the hosts file normally requires administrator privileges. This mapping applies only to the configured workstation. It does not create public DNS and does not make foo.test reachable from another device.

Build the complete nginx and Docker Compose project

The reference implementation uses nginx as the local reverse proxy and a small dependency-free Node.js HTTP service as the application. The application exposes a health endpoint and reports a limited set of request properties so that the proxy behavior can be verified without installing a framework.

The example pins maintained major image lines rather than using latest. Before adopting it in a long-lived repository, review the image tags, apply current security updates, and consider pinning approved image digests through the project's normal dependency process.

Create the application

Save the following as app/index.js:

const http = require('node:http');

const port = Number(process.env.PORT || 8080);

const server = http.createServer((req, res) => {
  if (req.url === '/health') {
    res.writeHead(200, { 'content-type': 'text/plain; charset=utf-8' });
    res.end('ok\n');
    return;
  }

  const response = {
    message: 'Hello from Docker Compose',
    method: req.method,
    path: req.url,
    host: req.headers.host || null,
    forwardedHost: req.headers['x-forwarded-host'] || null,
    forwardedProto: req.headers['x-forwarded-proto'] || null,
    forwardedForPresent: Boolean(req.headers['x-forwarded-for'])
  };

  res.writeHead(200, { 'content-type': 'application/json; charset=utf-8' });
  res.end(`${JSON.stringify(response, null, 2)}\n`);
});

server.listen(port, '0.0.0.0', () => {
  console.log(`app listening on 0.0.0.0:${port}`);
});

Save this as app/Dockerfile:

FROM node:22-alpine

WORKDIR /app

COPY index.js ./index.js

ENV NODE_ENV=production
ENV PORT=8080

EXPOSE 8080

USER node

CMD ["node", "index.js"]

Binding to 0.0.0.0 inside the container is important. If the process bound only to container loopback, nginx in another container could not reach it through the Compose network.

Create the nginx configuration

Save the following as nginx/default.conf:

map $http_upgrade $connection_upgrade {
    default upgrade;
    '' close;
}

upstream compose_app {
    server app:8080;
    keepalive 16;
}

server {
    listen 80;
    server_name foo.test localhost;

    location / {
        proxy_pass http://compose_app;
        proxy_http_version 1.1;

        proxy_set_header Host $http_host;
        proxy_set_header X-Forwarded-Host $http_host;
        proxy_set_header X-Forwarded-Proto http;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
    }
}

server {
    listen 443 ssl;
    server_name foo.test localhost;

    ssl_certificate /etc/nginx/certs/foo.test.pem;
    ssl_certificate_key /etc/nginx/certs/foo.test-key.pem;
    ssl_protocols TLSv1.2 TLSv1.3;

    location / {
        proxy_pass http://compose_app;
        proxy_http_version 1.1;

        proxy_set_header Host $http_host;
        proxy_set_header X-Forwarded-Host $http_host;
        proxy_set_header X-Forwarded-Proto https;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
    }
}

nginx routes to app:8080, where app is the Compose service name and 8080 is the application's container port. It does not route to localhost:8080. Inside the nginx container, localhost refers to nginx itself.

The HTTPS server sets X-Forwarded-Proto to https because nginx directly accepted the TLS connection. The HTTP server sets it to http. nginx also replaces the forwarded host values with information from the request it accepted instead of blindly passing arbitrary client-supplied X-Forwarded-Host or X-Forwarded-Proto values.

Create the Compose file

Save this as compose.yaml:

services:
  app:
    build:
      context: ./app
    environment:
      PORT: "8080"
    expose:
      - "8080"
    ports:
      - "127.0.0.1:8080:8080"
    healthcheck:
      test:
        - CMD
        - node
        - -e
        - "require('node:http').get('http://127.0.0.1:8080/health', r => process.exit(r.statusCode === 200 ? 0 : 1)).on('error', () => process.exit(1))"
      interval: 5s
      timeout: 3s
      retries: 10
      start_period: 3s
    restart: unless-stopped

  proxy:
    image: nginx:1.27-alpine
    depends_on:
      app:
        condition: service_healthy
    ports:
      - "127.0.0.1:8081:80"
      - "127.0.0.1:8443:443"
    volumes:
      - ./nginx/default.conf:/etc/nginx/conf.d/default.conf:ro
      - ./certs/foo.test.pem:/etc/nginx/certs/foo.test.pem:ro
      - ./certs/foo.test-key.pem:/etc/nginx/certs/foo.test-key.pem:ro
    restart: unless-stopped

The certificate, key, and nginx configuration are mounted read-only. Both services join the default Compose network automatically, which allows nginx to resolve app. The application port is published only on host loopback so that the Localtonet client running on the same Docker host can reach 127.0.0.1:8080.

Validate and start the stack

First ask Compose to parse and render the project:

docker compose config

Expected result: Compose prints the normalized configuration and exits successfully. A missing certificate file, invalid YAML structure, or unsupported Compose feature should be corrected before startup.

Build and start both services:

docker compose up -d --build
docker compose ps

Expected result: app becomes healthy and proxy is running. The published ports should include loopback mappings for 8080, 8081, and 8443.

Caddy as an adaptation

nginx is the complete maintained implementation in this tutorial. Caddy can implement the same architecture, but it is not a drop-in file replacement. A Caddy adaptation must load the generated foo.test certificate and key, listen on the intended HTTP and HTTPS ports, reverse proxy to app:8080, preserve the host, and communicate the original scheme to the application.

If a project chooses Caddy, keep the same Compose port model and the same recommended Localtonet target. Do not enable a second automatic certificate workflow for foo.test while also manually mounting mkcert files. Validate the configuration against the documentation for the exact Caddy image version selected by the project.

Verify the application, proxy, certificate, and headers locally

Check the direct HTTP target

curl --fail-with-body http://127.0.0.1:8080/health

Expected response:

ok

This proves that a process on the Docker host can reach the application through the published HTTP listener. If this request fails, do not create the tunnel yet.

Check nginx over HTTP

curl --fail-with-body http://foo.test:8081/

Expected result: an HTTP 200 JSON response containing "message": "Hello from Docker Compose", a host similar to foo.test:8081, and "forwardedProto": "http". The exact forwarded client address is intentionally not printed.

Check nginx over HTTPS

curl --fail-with-body https://foo.test:8443/

Expected result: the certificate validates without -k or --insecure, the response status is 200, and the JSON includes values similar to:

{
  "message": "Hello from Docker Compose",
  "method": "GET",
  "path": "/",
  "host": "foo.test:8443",
  "forwardedHost": "foo.test:8443",
  "forwardedProto": "https",
  "forwardedForPresent": true
}

Open https://foo.test:8443 in the local browser as a separate trust-store check. A command-line client and a browser can use different certificate stores, especially on systems where Firefox maintains separate trust settings.

Review focused logs

docker compose logs app
docker compose logs proxy

Use continuous logs only while diagnosing a request:

docker compose logs --follow --tail=100 app proxy

Stop following logs with Ctrl+C. This does not stop the containers.

Expose the verified HTTP listener with Localtonet

The Localtonet client must run on the Docker host or another device that can reach the selected local target. In this project, the application is bound to host loopback, so a client running on the same host can use 127.0.0.1:8080. A client running in another container, virtual machine, or physical device cannot assume that its own 127.0.0.1 refers to the Docker host.

With Localtonet, the client establishes an outbound connection to our relay. You do not need inbound router port forwarding, firewall changes, VPN setup, or a public IP address for this workflow. Creating the tunnel and starting it remain separate lifecycle actions.

For the current dashboard sequence and HTTP/s options, use the Localtonet HTTP/s tunnel documentation. HTTP tunnels may use a generated subdomain, a selected subdomain where supported, or a custom domain. Check current DNS requirements before configuring a custom domain.

Expected public result

If the assigned address is represented as https://your-public-host.example, test:

curl --fail-with-body https://your-public-host.example/health
curl --fail-with-body https://your-public-host.example/

Replace the placeholder with the exact address shown by the running tunnel. The health request should return ok. The root request should return the application's JSON response with a 200 status. The exact host and forwarded-header values depend on the active public path, so inspect what actually arrives instead of assuming that every tunnel configuration emits the same headers.

The public address remains available only while the selected device is connected and the tunnel is running.

Connect forwarded-header trust to the actual proxy path

The nginx configuration in this tutorial explicitly sets Host, X-Forwarded-Host, X-Forwarded-Proto, and X-Forwarded-For. For the local HTTPS path, nginx knows it accepted TLS and therefore sets X-Forwarded-Proto to https. For the local HTTP path, it sets the value to http.

This metadata allows a framework behind nginx to reconstruct the client-visible origin, but only if the framework's trusted-proxy feature is enabled correctly. Blindly trusting forwarded headers from any caller is unsafe. A direct client can send its own X-Forwarded-Proto: https, false host, or false client address unless the trusted ingress replaces those values and the application accepts them only from known proxy paths.

The recommended Localtonet path bypasses nginx and targets 127.0.0.1:8080. Therefore, the nginx header configuration governs local proxy tests but does not automatically govern public requests. We do not claim that every Localtonet HTTP tunnel configuration supplies the same forwarded headers. Inspect the public request received by the application and use the application's documented external-origin and trusted-proxy settings.

For applications that require one stable public origin, configure the exact assigned public HTTPS origin through the application's supported setting. This is often more predictable than deriving an origin from arbitrary incoming headers. If the public address changes, update callback registrations and application configuration together.

Cookies, OAuth, and generated links

A cookie scoped to foo.test will not be sent to the public tunnel hostname. Local and public origins are distinct even when they reach the same container. Review Domain, Path, Secure, expiration, and SameSite independently.

OAuth callback URLs normally require an exact scheme, hostname, port, and path match. Do not register foo.test with a provider that must call the public endpoint. Use the public HTTPS origin and update stale registrations when the assigned development URL changes.

The same principle applies to webhook endpoints, password-reset links, email-verification links, asset URLs, and API documentation. Correct the application's canonical-origin behavior rather than adding broad host allowlists or disabling validation.

Troubleshoot the project by symptom and layer

Compose reports that a certificate path does not exist

Confirm that the mkcert command created certs/foo.test.pem and certs/foo.test-key.pem in the same project directory as compose.yaml. File names and capitalization must match the volume mounts and nginx directives.

nginx exits immediately

Inspect docker compose logs proxy. Certificate-loading errors usually indicate a missing file, unreadable mount, or invalid certificate. Configuration errors identify the affected nginx directive. Do not debug the public tunnel until nginx stays running locally.

nginx returns 502 Bad Gateway

Confirm that the application is healthy and listening on 0.0.0.0:8080. The nginx upstream must remain app:8080. Do not replace it with localhost:8080 or host port 8080. The proxy and application communicate through the Compose network using the container port.

foo.test does not resolve

Recheck the workstation hosts file and confirm that it contains 127.0.0.1 foo.test. Browser DNS caches, VPN software, managed DNS settings, or an incorrectly edited hosts file can affect resolution. The mapping must be configured on the machine performing the local test.

The browser reports an untrusted certificate

Confirm that mkcert -install completed for the active user and trust store. Verify that the browser is opening foo.test, not another hostname. Regenerate the certificate if the requested hostname is absent. Firefox may require NSS integration or separate trust handling depending on the platform.

curl works only with -k

The listener is probably reachable, but the command-line client's trust store does not trust the mkcert CA or the requested hostname does not match the certificate. Do not leave certificate verification disabled. Repair trust or use the intended plain HTTP path for components that do not need local TLS.

Port 8080, 8081, or 8443 is already allocated

Identify and stop the conflicting local process, or choose another host port. If changing a host port, keep the container-side port unchanged unless the service configuration also changes. Update verification commands and the Localtonet target when changing host port 8080.

The public URL returns a gateway error or resets

From the exact device running our client, request http://127.0.0.1:8080/health. Confirm that the tunnel targets port 8080, not TLS-only port 8443. Also confirm that the selected client is connected and the tunnel was started after creation.

The site works locally but public redirects are wrong

Docker reachability is probably working. Inspect the application's canonical external URL and the request metadata received through the public path. A public browser may use HTTPS while the final local hop uses HTTP. Configure the framework's supported public-origin or trusted-proxy mechanism instead of writing ad hoc header parsing.

The application redirects forever

Inspect the Location response header. A loop often occurs when the application sees HTTP at the final hop and repeatedly redirects to HTTPS even though the browser already used HTTPS. Fix scheme reconstruction for the actual trusted path and verify that an arbitrary client cannot spoof the accepted headers.

A secure cookie is set but never returned

Compare the hostname used when the cookie was issued with the hostname of the next request. A cookie for foo.test does not belong to the public hostname. Inspect Domain, Path, Secure, and SameSite in browser developer tools.

An OAuth callback is rejected

Compare the complete callback URL character by character, including scheme, hostname, optional port, and path. Confirm that the provider registration and application configuration both contain the current public HTTPS origin rather than foo.test, localhost, or a stale tunnel address.

WebSockets or live reload fail publicly

The nginx configuration includes conventional upgrade headers for the local proxy path, but the recommended public tunnel bypasses nginx. Determine which host, path, port, and protocol the browser is attempting to use. Framework-specific live-reload behavior and current tunnel support must be checked against the actual application and current dashboard rather than inferred from ordinary HTTP success.

A container cannot trust https://foo.test:8443

Containers do not inherit the workstation trust store. This project intentionally sends inter-container traffic over HTTP at app:8080, so containers do not need the mkcert CA. If another container must deliberately call the local HTTPS endpoint, install only the required CA certificate into that client's trust store using an approach appropriate for its base image and runtime. Never disable all TLS verification globally.

Operate, inspect, and shut down the exposure safely

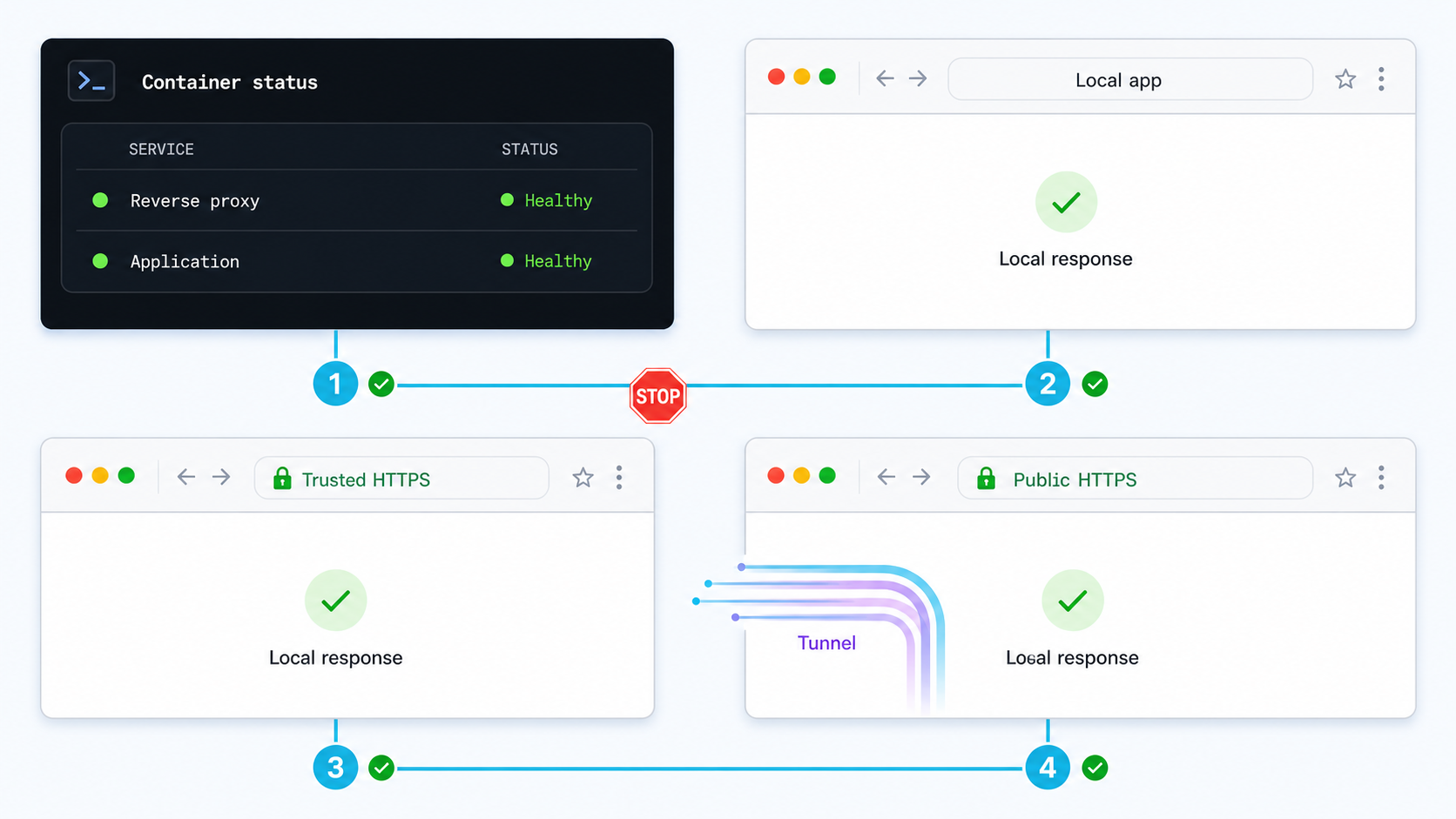

Use a staged routine whenever the project changes:

1. Run docker compose config.
2. Start the stack with docker compose up -d --build.
3. Verify http://127.0.0.1:8080/health.
4. Verify http://foo.test:8081/.
5. Verify https://foo.test:8443/ without disabling certificate checks.
6. Start the Localtonet tunnel targeting 127.0.0.1:8080.
7. Test the assigned public HTTPS origin.
8. Stop the tunnel and Compose stack when the test is complete.

View current container status with:

docker compose ps

Restart one service after a configuration change:

docker compose restart proxy

If the nginx file changed and you want Compose to recreate the service predictably, use:

docker compose up -d --force-recreate proxy

Stop and remove the project's containers and default network:

docker compose down

Add --volumes only when intentionally removing project volumes. This reference project does not define a named data volume, but copied commands may affect an expanded application that does.

Stop the Localtonet tunnel separately in our dashboard. Stopping Docker does not delete the tunnel configuration, and creating a tunnel does not mean it is running. Delete the tunnel if the configuration should not be retained.

Keep device tokens outside repositories and images. Use synthetic data and least-privilege accounts. Turn off verbose diagnostics after testing, particularly if a real application can log authorization headers, session cookies, OAuth codes, webhook signatures, or personal data.

Document the chosen topology in the project README. State that local HTTPS is served at foo.test:8443, nginx routes internally to app:8080, and the recommended Localtonet target is host listener 127.0.0.1:8080. If the architecture later changes so the public path must traverse nginx, record the new protocol and trust assumptions explicitly.

Frequently asked questions
