How to Self-Host Grafana and Access Your Dashboards from Anywhere

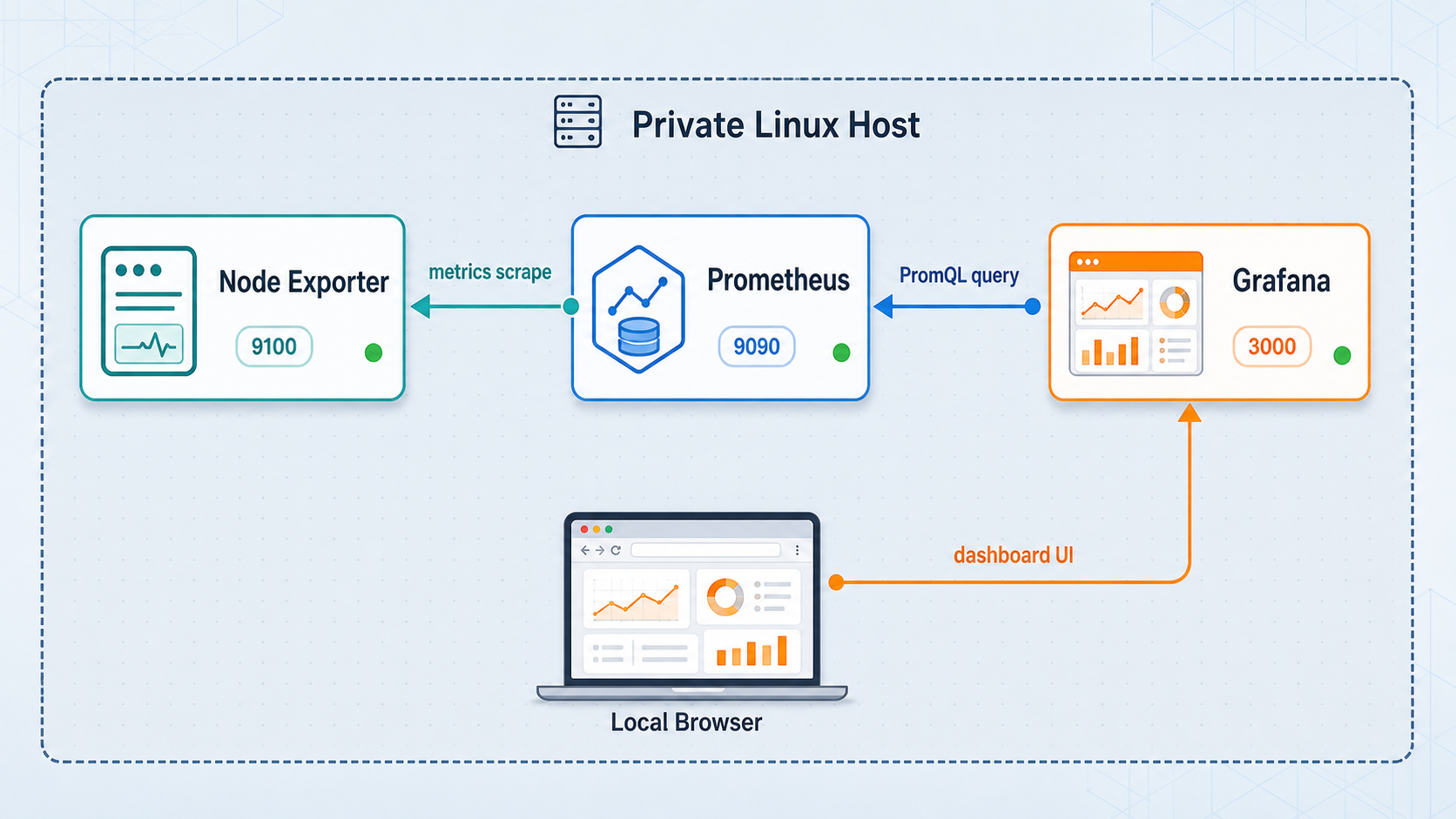

Understand the Grafana monitoring architecture

Grafana is an analytics and visualization application. It displays data obtained from configured data sources, but installing Grafana alone does not automatically collect operating-system metrics. In the stack built here, Prometheus stores time-series metrics and Node Exporter exposes Linux host measurements such as CPU, memory, filesystem, and network activity. Grafana queries Prometheus and turns those measurements into dashboards.

Remote access is a separate concern. The Grafana process listens on TCP port 3000, but this tutorial restricts that listener to the host's loopback interface. The Localtonet client runs on the same device, establishes an outbound connection to a Localtonet relay server, and forwards an assigned public HTTPS address to 127.0.0.1:3000. This does not make Prometheus or Node Exporter public.

Prerequisites and sizing

The native path below targets a currently supported Ubuntu or Debian installation using systemd. Grafana also documents support for RHEL or Fedora, SUSE or openSUSE, macOS, and Windows, but package commands and service configuration differ. Use the Docker path on a Linux host when you prefer containerized lifecycle and storage management.

Grafana's published minimum recommendation is 512 MB of memory and one CPU core for the Grafana process. That minimum does not include Prometheus, Node Exporter, the operating system, image rendering, or other workloads. Current Grafana sizing guidance suggests that a small deployment should start with two CPU cores, 2 to 4 GB of memory, and 10 to 20 GB of SSD storage for the Grafana database host. Concurrent users, alert rules, data-source type, dashboard panel count, and refresh intervals all affect actual resource use.

Prometheus needs separate capacity planning. Its disk use depends on the number of active time series, scrape interval, retention period, and label cardinality. The example uses one Node Exporter and a 15-second scrape interval, but no single disk estimate is valid for every host. Monitor the Prometheus data directory, leave free disk headroom, and adjust retention only after observing your workload.

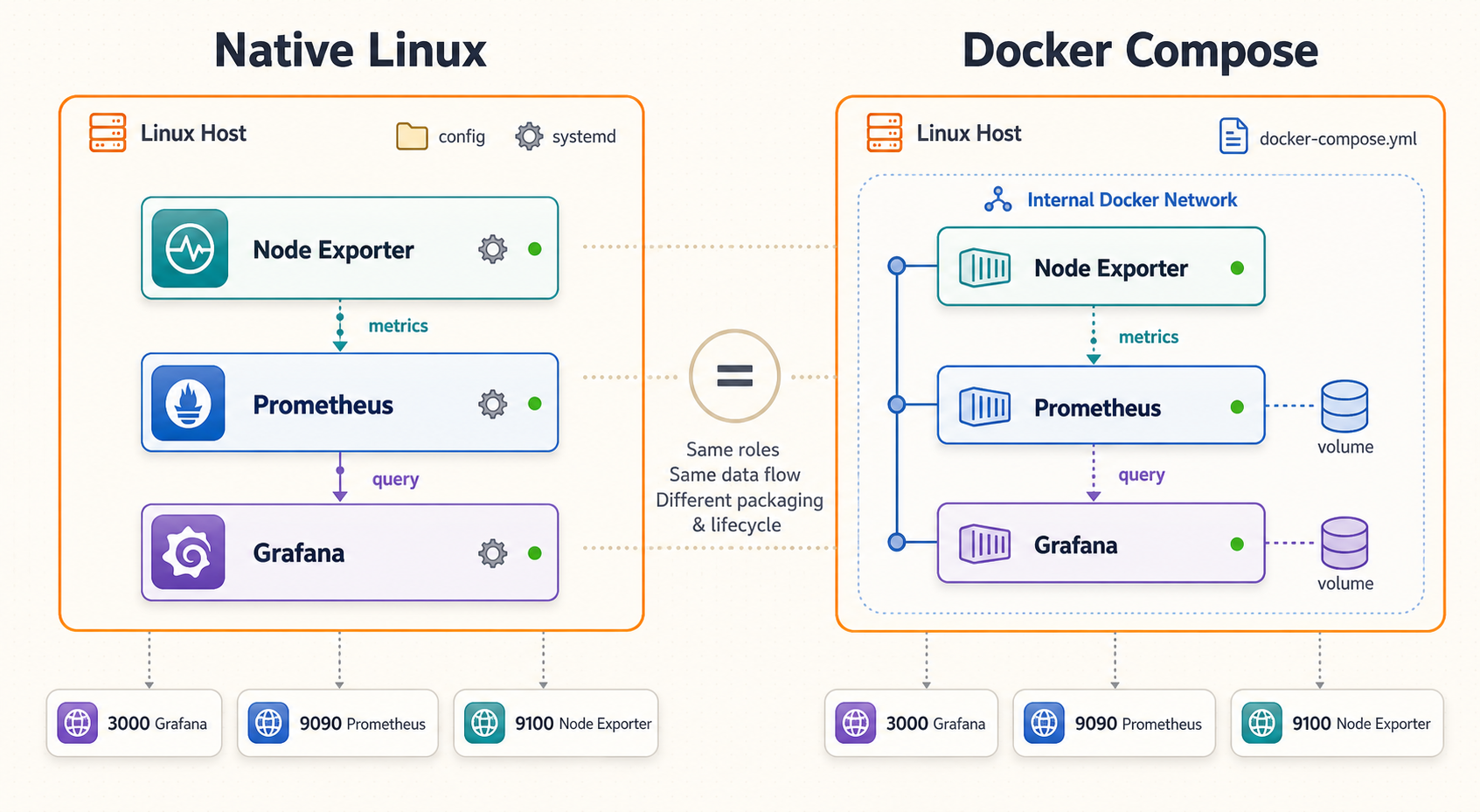

Choose one installation path. Do not run both examples unchanged on the same host because both attempt to use ports 3000, 9090, and 9100.

This tutorial uses Grafana OSS. Before production deployment, select explicit tested image versions instead of relying indefinitely on floating image tags. Read release notes and test upgrades against a restored backup before updating the live stack.

Option A: Install Grafana, Prometheus, and Node Exporter natively

This path installs Grafana from Grafana's APT repository and installs Prometheus and Node Exporter from the Ubuntu or Debian package repositories. Repository versions vary by operating-system release, so review the package versions offered by your distribution before using this method in production.

sudo apt-get update
sudo apt-get install -y apt-transport-https software-properties-common wget gpg

sudo mkdir -p /etc/apt/keyrings
wget -q -O - https://apt.grafana.com/gpg.key \
  | gpg --dearmor \
  | sudo tee /etc/apt/keyrings/grafana.gpg > /dev/null

echo "deb [signed-by=/etc/apt/keyrings/grafana.gpg] https://apt.grafana.com stable main" \
  | sudo tee /etc/apt/sources.list.d/grafana.list

sudo apt-get update

sudo apt-get install -y grafana prometheus prometheus-node-exporter

[server]
http_addr = 127.0.0.1
http_port = 3000

An empty Grafana http_addr can allow listening on more than loopback. Setting it explicitly avoids relying on a default that may expose port 3000 to another interface.

sudo cp /etc/prometheus/prometheus.yml /etc/prometheus/prometheus.yml.backup
sudo editor /etc/prometheus/prometheus.yml

global:
  scrape_interval: 15s
  evaluation_interval: 15s

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["127.0.0.1:9090"]

  - job_name: "node"
    static_configs:
      - targets: ["127.0.0.1:9100"]

Validate the file before restarting Prometheus:

promtool check config /etc/prometheus/prometheus.yml

sudo editor /etc/default/prometheus
sudo editor /etc/default/prometheus-node-exporter

In the Prometheus defaults file, set:

ARGS="--web.listen-address=127.0.0.1:9090"

In the Node Exporter defaults file, set:

ARGS="--web.listen-address=127.0.0.1:9100"

sudo systemctl daemon-reload
sudo systemctl enable --now grafana-server
sudo systemctl enable --now prometheus
sudo systemctl enable --now prometheus-node-exporter

sudo systemctl status grafana-server --no-pager
sudo systemctl status prometheus --no-pager
sudo systemctl status prometheus-node-exporter --no-pager

sudo ss -lntp | grep -E ':(3000|9090|9100)\b'
curl -f http://127.0.0.1:3000/api/health
curl -f http://127.0.0.1:9090/-/ready
curl -f http://127.0.0.1:9100/metrics > /dev/null

Open http://127.0.0.1:3000 from a browser on the host. A fresh Grafana package installation commonly begins with the administrator username admin and password admin, then requires a password change. If the package or an administrator has changed the initial credentials, use the credentials defined for that installation.

Option B: Run the complete stack with Docker Compose

Install a maintained Docker Engine release and the Docker Compose plugin using the installation method appropriate for your operating system. Confirm that both are available before continuing:

docker version
docker compose version

The following stack uses the official Grafana OSS image, Prometheus, and Node Exporter. Grafana and Prometheus are published only on host loopback for local testing. Node Exporter has no published host port because Prometheus reaches it through the private Compose network.

mkdir -p grafana-stack/secrets
cd grafana-stack
chmod 700 secrets
editor secrets/admin_password
chmod 600 secrets/admin_password

The password file should contain only the initial Grafana administrator password. Add secrets/ to your repository ignore rules if this project is stored in version control.

editor prometheus.yml

global:
  scrape_interval: 15s
  evaluation_interval: 15s

scrape_configs:
  - job_name: "prometheus"
    static_configs:
      - targets: ["prometheus:9090"]

  - job_name: "node"
    static_configs:
      - targets: ["node-exporter:9100"]

editor compose.yml

services:
  grafana:
    image: grafana/grafana:latest
    restart: unless-stopped
    ports:
      - "127.0.0.1:3000:3000"
    environment:
      GF_SECURITY_ADMIN_USER: admin
      GF_SECURITY_ADMIN_PASSWORD__FILE: /run/secrets/admin_password
      GF_USERS_ALLOW_SIGN_UP: "false"
      GF_AUTH_ANONYMOUS_ENABLED: "false"
    secrets:
      - admin_password
    volumes:
      - grafana_data:/var/lib/grafana
    depends_on:
      - prometheus

  prometheus:
    image: prom/prometheus:latest
    restart: unless-stopped
    ports:
      - "127.0.0.1:9090:9090"
    command:
      - "--config.file=/etc/prometheus/prometheus.yml"
      - "--storage.tsdb.path=/prometheus"
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml:ro
      - prometheus_data:/prometheus

  node-exporter:
    image: quay.io/prometheus/node-exporter:latest
    restart: unless-stopped
    pid: host
    command:
      - "--path.rootfs=/host"
    volumes:
      - "/:/host:ro,rslave"

secrets:
  admin_password:
    file: ./secrets/admin_password

volumes:
  grafana_data:
  prometheus_data:

docker compose -f compose.yml config
docker compose -f compose.yml pull
docker compose -f compose.yml up -d
docker compose -f compose.yml ps

docker compose -f compose.yml logs --tail=100 grafana
docker compose -f compose.yml logs --tail=100 prometheus
docker compose -f compose.yml logs --tail=100 node-exporter

curl -f http://127.0.0.1:3000/api/health
curl -f http://127.0.0.1:9090/-/ready

Open http://127.0.0.1:3000 and sign in as admin with the password stored in secrets/admin_password. Change and protect credentials according to your account policy. Do not delete the named volumes when merely restarting or recreating the containers.

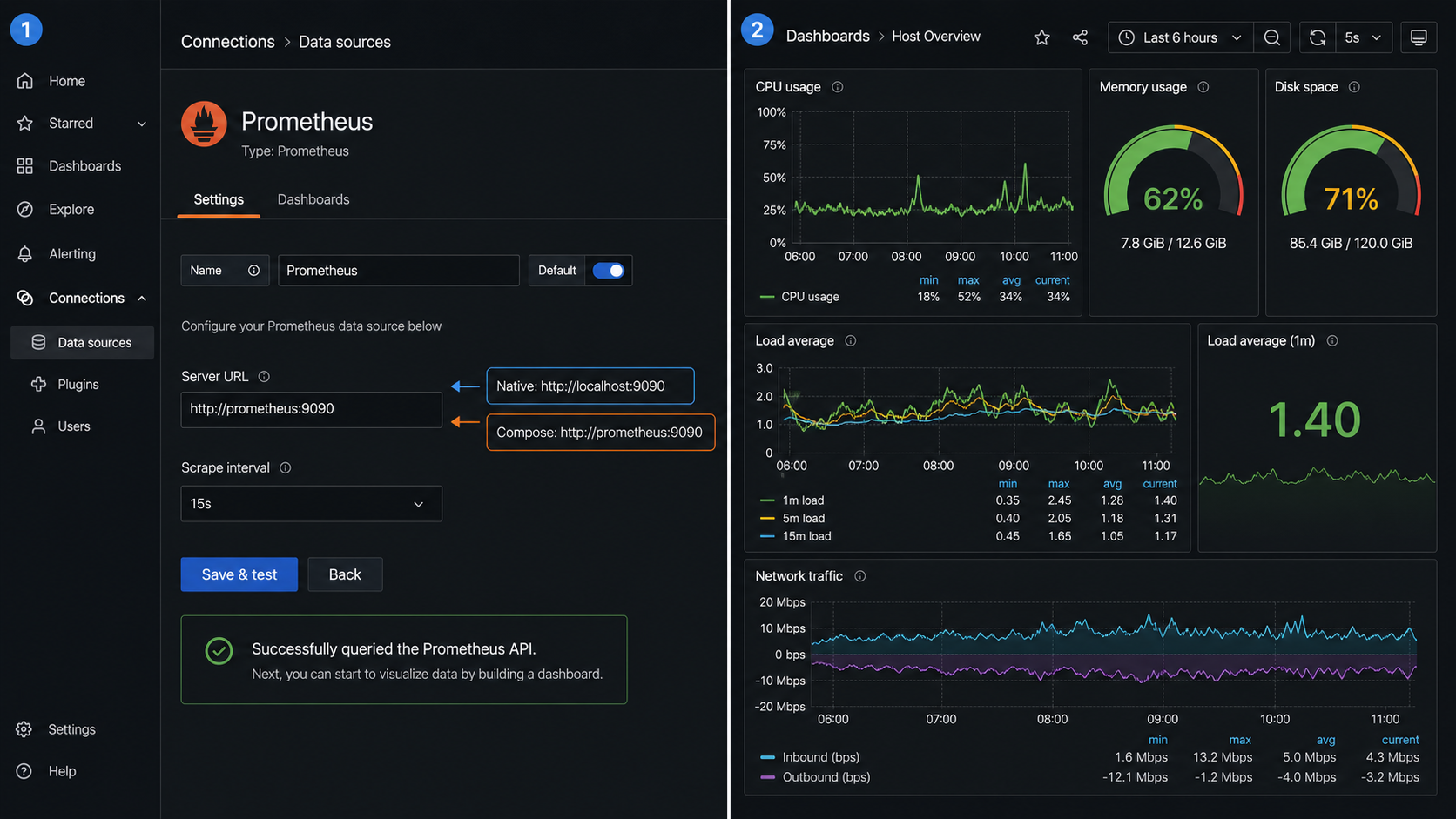

Connect Grafana to Prometheus and create a host dashboard

The correct Prometheus URL depends on where Grafana runs. A native Grafana service can use http://127.0.0.1:9090 because Prometheus is another process on the same host. The Compose deployment must use http://prometheus:9090, where prometheus is the service name resolved by Docker's internal DNS.

Verify local health, scrape targets, and dashboard data

Verification should cover each boundary separately. A working Grafana login does not prove that Prometheus is collecting metrics, and an active Localtonet tunnel does not prove that Grafana authentication or redirects work correctly.

1. Verify Grafana locally

Run the health request on the Grafana host:

curl -f http://127.0.0.1:3000/api/health

Then sign in through http://127.0.0.1:3000. Confirm that anonymous visitors cannot see dashboards and that the account you intend to use remotely has only the required role.

2. Verify Prometheus readiness and targets

For both installation paths, Prometheus is locally available at http://127.0.0.1:9090. Check readiness:

curl -f http://127.0.0.1:9090/-/ready

Open http://127.0.0.1:9090/targets from the host. The prometheus and node targets should both be shown as healthy. A target marked down includes a scrape error that usually identifies a DNS, networking, or exporter problem.

3. Verify queryable host metrics

In the Prometheus expression browser or Grafana Explore, query:

up

Next, query a Node Exporter metric:

node_uname_info

The first query confirms target availability. The second confirms that Node Exporter host metrics are present. If a dashboard remains empty while these queries return data, inspect the dashboard's expected job name, labels, variables, and selected data source.

4. Confirm that ports are not broadly published

On Linux, inspect listening sockets:

sudo ss -lntp | grep -E ':(3000|9090|9100)\b'

Grafana should be associated with 127.0.0.1:3000. In the Docker path, Prometheus should be associated with 127.0.0.1:9090, while Node Exporter is not published as a host port by Compose. Also apply an appropriate host firewall policy because loopback binding and firewall rules provide separate safeguards.

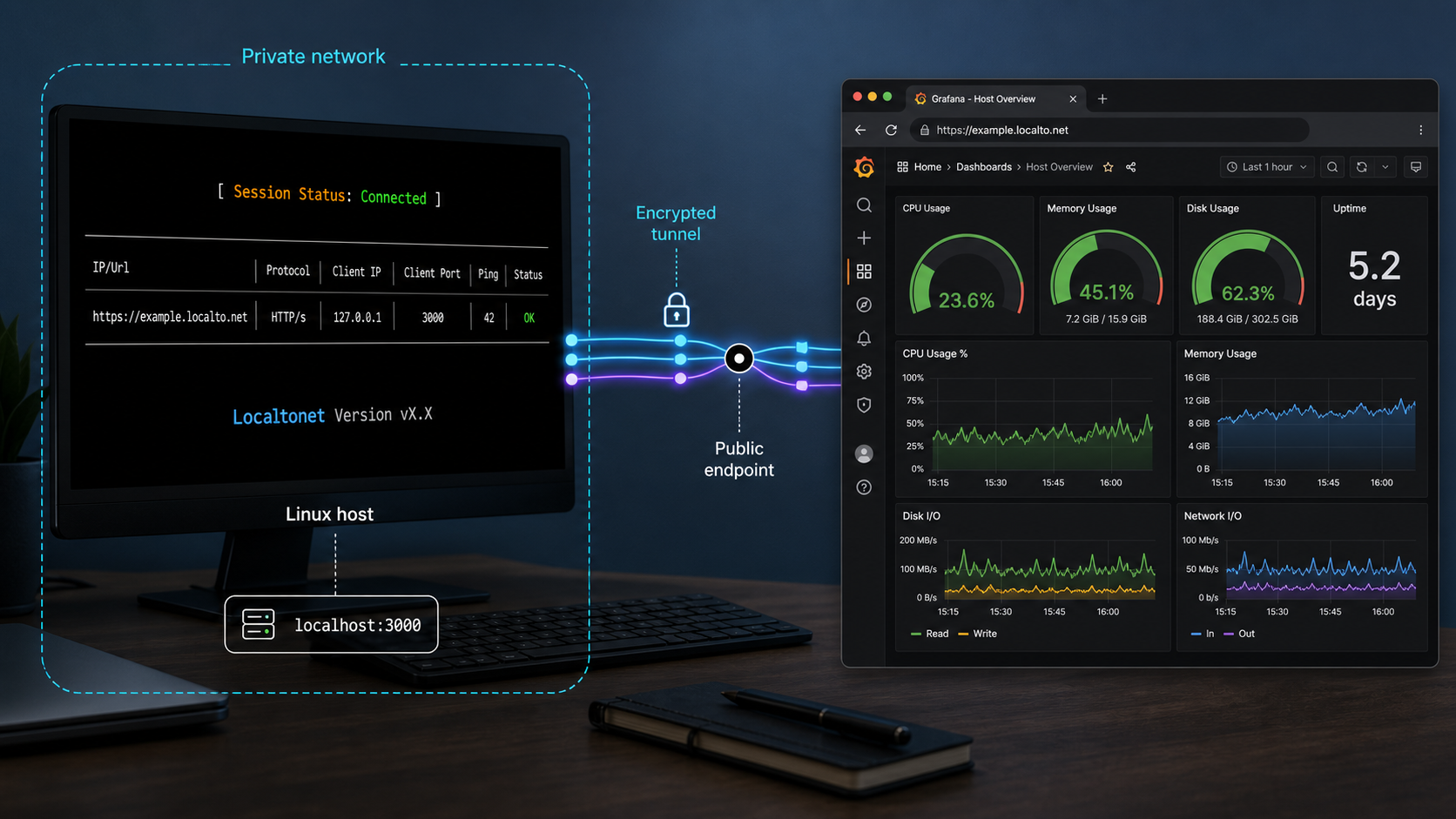

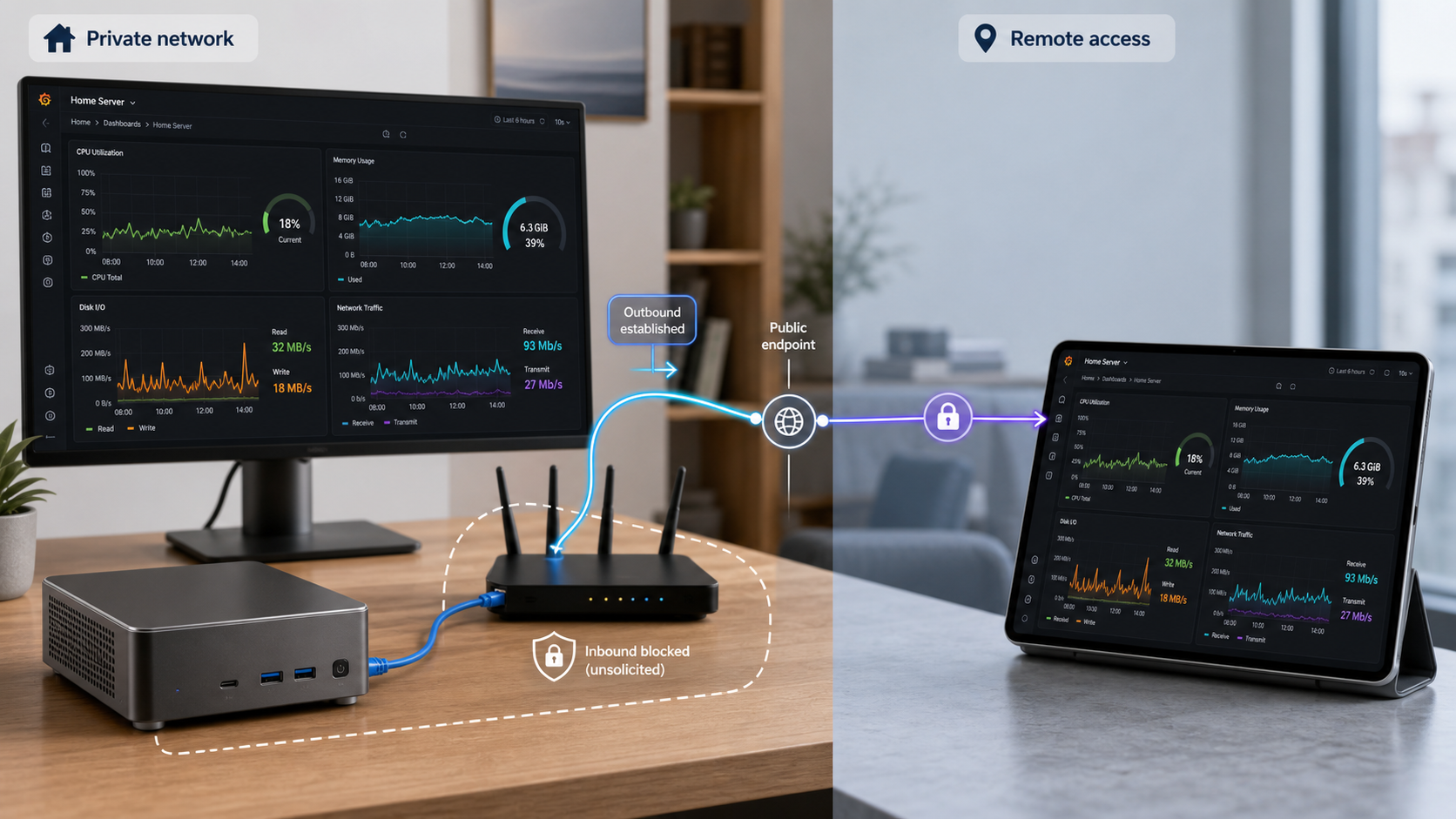

Access Grafana remotely with Localtonet

With Localtonet, the client application on the Grafana host establishes an outbound connection to one of our relay servers. An HTTP tunnel then provides a public HTTPS address that forwards to the local Grafana target. This avoids inbound router port forwarding, firewall changes, VPN setup, and the requirement for a public IP address.

The public address changes the exposure boundary. Anyone who can reach that URL can interact with Grafana's login surface, so Grafana authentication, role assignment, session controls, and patching remain essential. Localtonet does not replace Grafana authorization.

Stop the tunnel when remote access is no longer needed. Stopping preserves the configuration for later use, while deleting removes it. A tunnel is available only while the selected client is connected and the tunnel is running.

Optional Localtonet service mode

If continuous access is intentional, Localtonet can run as a background service on supported platforms. On a Linux host with systemd, the current download instructions provide these commands:

sudo localtonet --install-service --authtoken <YOUR_TOKEN>
sudo localtonet --start-service --authtoken <YOUR_TOKEN>

Replace the placeholder privately on the host. Do not publish the resulting command with a real token. Check the service and its logs with:

systemctl status localtonet
journalctl -u localtonet -f

Service mode keeps the client available after logout or reboot, but the configured tunnel must still be in its started state. Use service mode only when persistent remote availability matches your security policy.

Secure a publicly reachable Grafana deployment

A loopback listener reduces direct network exposure, but the Localtonet HTTPS URL intentionally makes Grafana reachable through the relay. Security therefore depends on the complete chain: Localtonet device-token handling, Grafana login security, user roles, session settings, updates, data-source credentials, and the dashboards or sharing features enabled inside Grafana.

Review session and sharing behavior

Use Grafana's current security documentation to set session lifetime and cookie behavior appropriate for your deployment. Do not treat a personal device as permanently trusted merely because the public endpoint uses HTTPS. Sign out on shared devices, revoke accounts promptly, and review active users after staffing or access changes.

Audit dashboard sharing features before publication. A public dashboard or externally shared snapshot can bypass the normal expectation that every viewer signs in. Disable or avoid sharing modes that do not match the sensitivity of infrastructure names, labels, annotations, queries, and alert details.

Limit access to monitoring backends

Keep Prometheus and Node Exporter on loopback or a private container network. Prometheus can be configured with TLS and basic authentication through its web configuration, but those controls do not provide Grafana's complete user and role model. Backend restrictions are still appropriate even when authentication is configured.

Understand data movement

Self-hosting does not guarantee that all information always remains on one machine. Grafana queries configured data sources and may contact notification endpoints, plugin repositories, external renderers, or other integrations you enable. A remote browser also receives dashboard data through the public endpoint. Inventory integrations and network destinations rather than making a blanket assumption that no data leaves the environment.

Routine operations, backups, restores, and upgrades

Service and container management

For the native installation, use:

sudo systemctl status grafana-server prometheus prometheus-node-exporter
sudo systemctl restart grafana-server
sudo systemctl restart prometheus
sudo systemctl restart prometheus-node-exporter

sudo journalctl -u grafana-server -n 100 --no-pager
sudo journalctl -u prometheus -n 100 --no-pager
sudo journalctl -u prometheus-node-exporter -n 100 --no-pager

For Compose:

docker compose -f compose.yml ps
docker compose -f compose.yml logs --tail=100
docker compose -f compose.yml restart grafana
docker compose -f compose.yml restart prometheus
docker compose -f compose.yml stop
docker compose -f compose.yml start

The restart: unless-stopped policy requests container restart after failures and Docker restarts, unless an operator deliberately stopped the container. It does not replace health monitoring, backups, or post-reboot verification.

Back up the native installation

Back up Grafana's configuration and data, including /etc/grafana and the Grafana data directory used by your package. Back up Prometheus configuration separately. Prometheus storage needs a consistent backup procedure designed for its time-series database. Do not assume that copying live storage files produces a reliable restore.

Before a backup or restore, confirm the actual paths from the active service configuration. Stop the affected service when your backup method requires an offline copy. Protect backup archives because Grafana configuration can contain data-source details and other sensitive metadata.

Back up Docker volumes

The Compose file stores Grafana and Prometheus data in the grafana_data and prometheus_data named volumes. A database-consistent backup should be created using a tested process while writes are stopped or through an application-supported snapshot procedure. At minimum, retain copies of compose.yml, prometheus.yml, the protected secret material, and the persistent volume data.

Test restoration

A backup is not complete until it has been restored successfully in an isolated environment. Verify that Grafana starts, users can sign in, dashboards and data sources exist, Prometheus opens its data, and the up query returns current targets. Keep restoration credentials and encryption keys separate from the backup where appropriate.

Upgrade native packages

Read the Grafana, Prometheus, and distribution release notes first. Create and verify a backup, record the installed versions, update package metadata, and upgrade in a maintenance window. Afterward, inspect logs, run the local health checks, query Prometheus, and test the Localtonet URL.

dpkg-query -W grafana prometheus prometheus-node-exporter
sudo apt-get update
sudo apt-get install --only-upgrade grafana prometheus prometheus-node-exporter

Upgrade containers

Replace floating tags with explicit tested version tags for production. Back up the volumes, edit the image tags, pull the new images, and recreate the stack:

docker compose -f compose.yml pull
docker compose -f compose.yml up -d
docker compose -f compose.yml ps
docker compose -f compose.yml logs --tail=100

If an upgrade fails, use your tested rollback and restore procedure. Do not assume that data-format changes are reversible simply by selecting an older image.

Troubleshooting common Grafana and tunnel problems

Port 3000 is already in use

Identify the listener before changing ports:

sudo ss -lntp | grep ':3000'
sudo lsof -iTCP:3000 -sTCP:LISTEN

Stop the unintended process or deliberately assign Grafana another local port. If you change it, update the Localtonet target and local verification commands. Do not solve the conflict by publishing Docker on an unrestricted interface.

A native service will not start

Inspect its status and recent logs:

sudo systemctl status grafana-server --no-pager
sudo journalctl -u grafana-server -n 200 --no-pager
sudo journalctl -u prometheus -n 200 --no-pager

Common causes include malformed configuration, an occupied port, unreadable files, insufficient disk space, or incorrect ownership. Validate Prometheus configuration with promtool check config before restarting it.

A container exits or repeatedly restarts

docker compose -f compose.yml ps -a
docker compose -f compose.yml logs --tail=200 grafana
docker compose -f compose.yml logs --tail=200 prometheus
docker inspect grafana-stack-grafana-1

Look for invalid YAML, an unreadable secret, storage permission errors, incompatible image changes, or a malformed Prometheus configuration. Compose-generated container names may differ, so obtain the actual name from docker compose ps.

Grafana cannot reach Prometheus

First confirm which installation path you used. Native Grafana should use http://127.0.0.1:9090. Compose Grafana should use http://prometheus:9090. Using localhost:9090 inside the Grafana container points back to Grafana's own container and normally fails.

For Compose, verify that both services share the Compose network and that Prometheus is listening:

docker compose -f compose.yml ps
docker compose -f compose.yml logs --tail=100 prometheus
docker compose -f compose.yml exec grafana getent hosts prometheus

Prometheus shows Node Exporter as down

Open the Prometheus targets page and read the scrape error. In the native path, confirm that Node Exporter is running on 127.0.0.1:9100. In Compose, the target must be node-exporter:9100, not localhost:9100.

sudo systemctl status prometheus-node-exporter --no-pager
curl -f http://127.0.0.1:9100/metrics > /dev/null

docker compose -f compose.yml ps node-exporter
docker compose -f compose.yml logs --tail=100 node-exporter

The dashboard loads but has no data

Query up and node_uname_info in Grafana Explore. If they return values, inspect the dashboard variables, selected data source, expected job label, and query filters. Imported dashboards may expect a job name other than node or additional recording rules.

Grafana reports permission errors

Native packages normally create and manage the Grafana service account and data directories. Do not run Grafana as root to hide an ownership problem. Inspect the configured data and log paths, then compare their owner and mode with the package defaults.

For Docker, the named volume usually avoids host bind-mount ownership issues. If you replace it with a bind mount, ensure that the Grafana process inside the container can write to it. Review container logs before changing permissions, and avoid broad modes such as world-writable access.

The Localtonet URL does not open

Test http://127.0.0.1:3000 on the host first. Then confirm that the selected Localtonet device is connected, the HTTP tunnel targets 127.0.0.1:3000, and the tunnel has been explicitly started. Creating it is not enough. If the client runs as a Linux service, inspect:

systemctl status localtonet
journalctl -u localtonet -n 200 --no-pager

If local Grafana works but the remote URL fails, review the tunnel status and selected device in the dashboard. Stop and start the tunnel after correcting its target. Delete and recreate it only when you no longer need the existing configuration.

Grafana redirects to localhost or an incorrect URL

Grafana normally works through a straightforward HTTP forwarding URL, but absolute redirects, cookie behavior, or links can be affected by its configured server root URL. Check the active [server] settings and any GF_SERVER_ROOT_URL environment value. If you set a root URL, it must match the public HTTPS address users actually open.

Do not copy an old public URL into Grafana after the tunnel address changes. Remove an unnecessary override or update it deliberately, restart Grafana, and test both login and logout remotely. Custom-domain DNS and availability can vary by current configuration and plan, so consult current Localtonet dashboard guidance before relying on exact domain behavior.

The stack fails after reboot

For native services, check whether Grafana, Prometheus, Node Exporter, and Localtonet are enabled and active. For Docker, confirm that Docker started and inspect Compose container state. The Grafana stack and the Localtonet client have separate lifecycles, and the tunnel must also remain started.
