Install Keel on Kubernetes with Helm and Localtonet

How Keel, Harbor, Kubernetes, and Localtonet fit together

Keel's maintained source repository describes Keel as a Kubernetes operator for automating updates to Deployments, StatefulSets, DaemonSets, and supported Helm releases. It uses providers to update resources and triggers to discover candidate images. Kubernetes and Helm providers determine what Keel can manage, while registry webhooks, polling, and supported pub/sub integrations determine how Keel learns that an image may have changed.

A trigger does not decide whether every discovered image should be deployed. Keel evaluates policy metadata on an opted-in workload. For example, a semantic-version policy can accept patch or minor releases while rejecting a major release. A force policy can work with a mutable tag, but it requires more careful change tracking because the tag itself does not identify immutable image content.

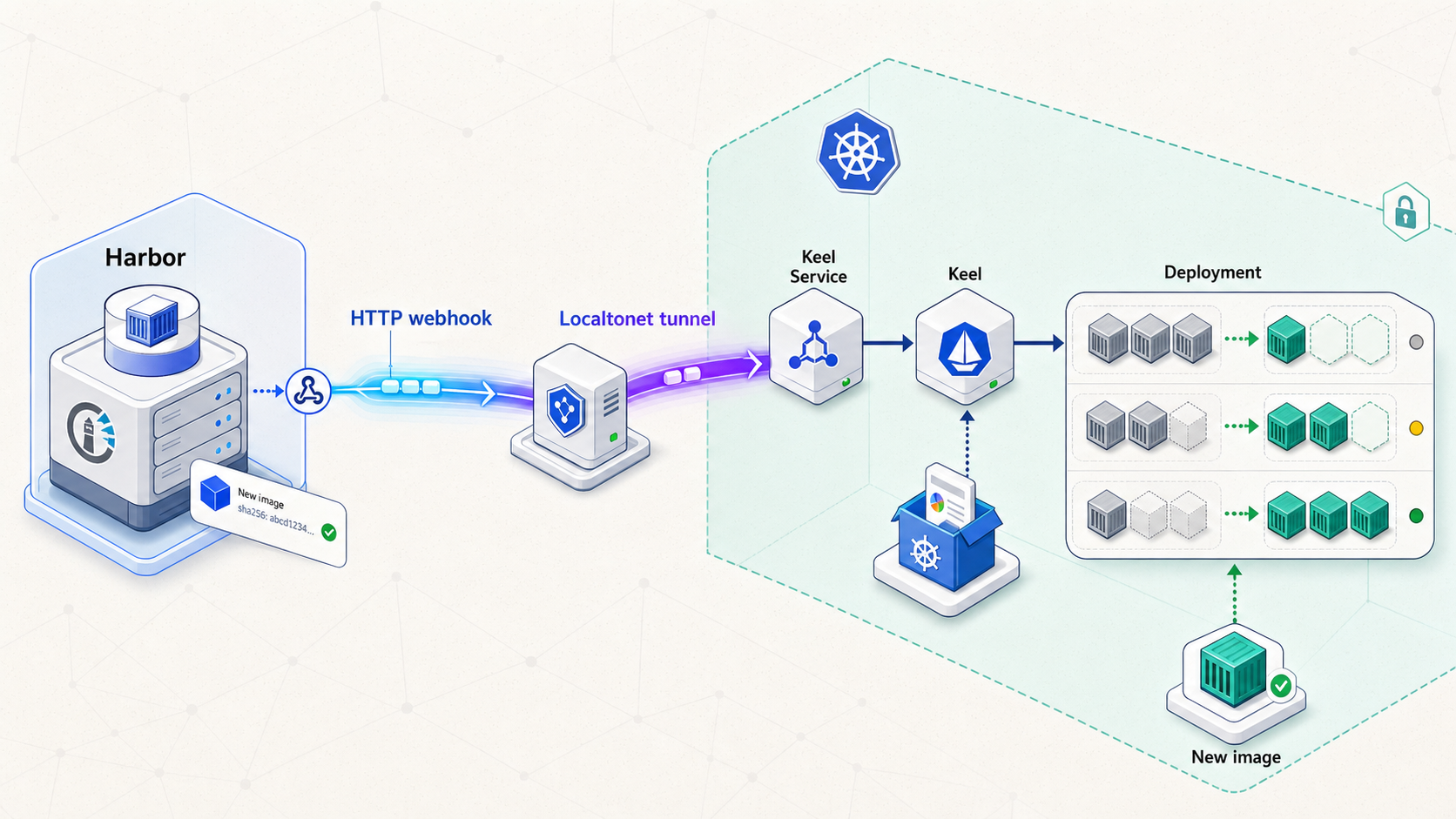

Harbor can send an HTTP notification after an artifact is pushed. Keel's native Harbor route is POST /v1/webhooks/harbor. Keel uses the event's repository and artifact information to find relevant workloads, then evaluates their annotations and update policy. Installing Keel alone does not enroll every workload in the cluster.

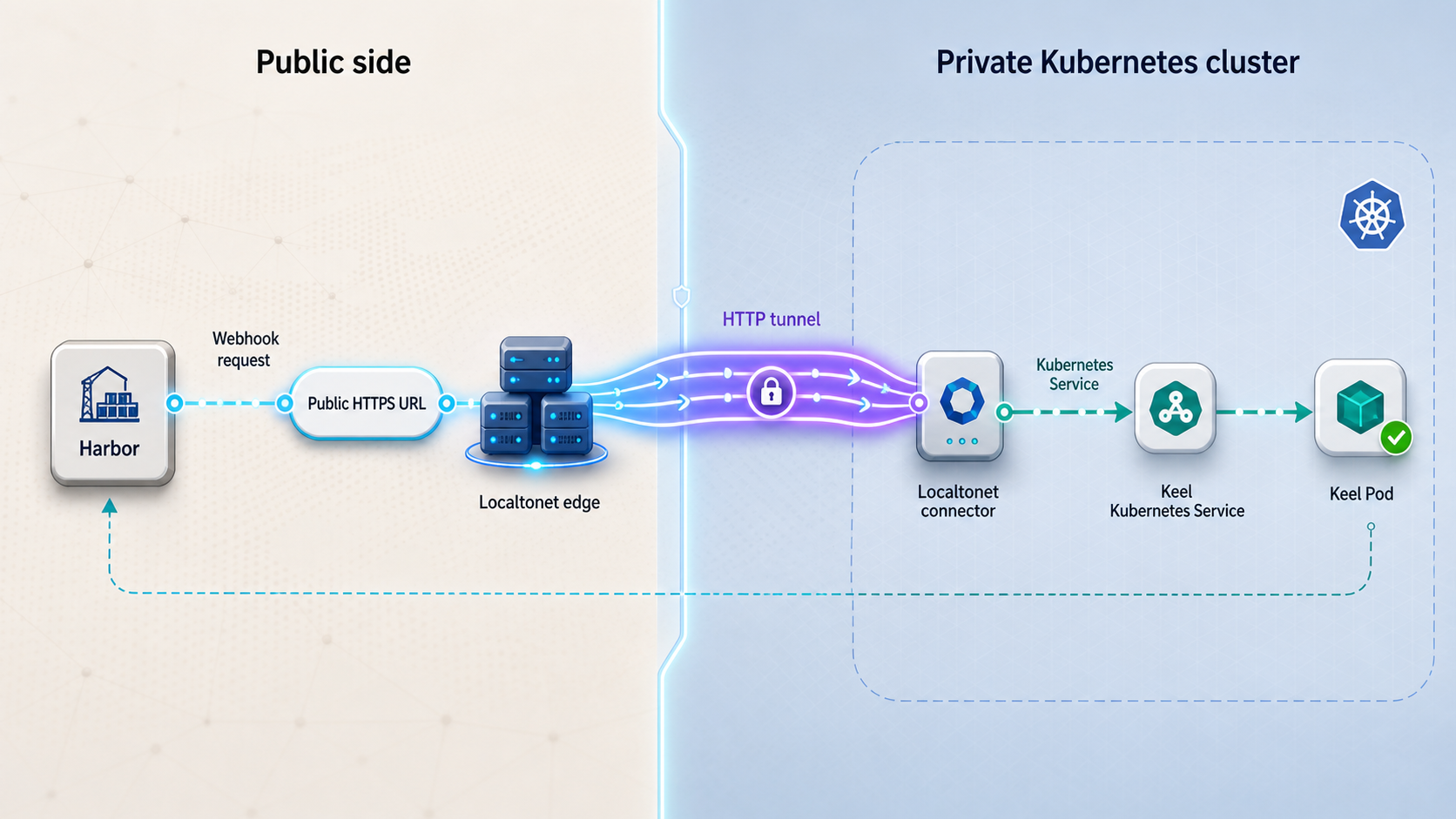

The Keel Service normally remains inside the Kubernetes network. In this tutorial, kubectl port-forward connects a listener on a trusted management host to that internal Service. A protective local reverse proxy sits in front of the listener for the internet-facing stage. It accepts only authenticated POST requests to the Harbor path and forwards accepted requests to Keel. The Localtonet HTTP tunnel targets the proxy's local port, not the Kubernetes API server, a worker node, or a broad cluster ingress.

Our Localtonet client creates an outbound connection to a selected relay server. A running HTTP tunnel provides a public HTTPS address without inbound router port forwarding, firewall changes, VPN setup, or a public IP address. Harbor calls that address, our relay forwards the request to the local proxy, and the proxy validates the request before sending it through the port forward to Keel.

Prerequisites and decisions to make first

Perform the installation from a trusted management workstation or host that can reach the target Kubernetes cluster. The examples assume that the same host runs kubectl port-forward, the protective reverse proxy, and the Localtonet client. Another device can run the Localtonet client only if it can reach the proxy's listener. A loopback-only listener is reachable only on the machine where it runs.

Required tools and access

You need a working Kubernetes cluster, kubectl configured for that cluster, and Helm. Consult the primary kubectl documentation and Helm documentation if these tools are not already installed and connected to your environment.

kubectl version --client
helm version
kubectl config current-context
kubectl cluster-info

The first two commands confirm that the clients are available. kubectl cluster-info is the important connectivity check because it contacts the selected cluster. If you manage several clusters, compare the current context with the intended environment before installing an operator.

The supplied evidence does not establish a universal minimum Kubernetes or Helm version for every Keel release. Check the chart, the selected Keel release, and your cluster version before production installation. Do not infer compatibility from a successful repository-add command.

Permissions and namespace selection

The Helm identity must be allowed to create and manage the resources rendered by the Keel chart. Verification requires permission to inspect Helm releases, Deployments, Pods, Services, endpoints, events, and logs. Keel also needs the Kubernetes permissions created by the chart so it can inspect and update enrolled workloads.

The maintained Keel repository's default quick start installs the release named keel into kube-system. That namespace normally exists. This guide preserves that documented path. If organizational policy does not allow application operators in kube-system, review the chart's current namespace and provider requirements before changing the command.

Registry and workload information

Identify the exact Harbor project, repository, image tags, and Kubernetes workloads that Keel should manage. Harbor project names remain part of repository paths. An image in the library project is addressed as something like harbor.example.com/library/example-app:1.2.3, not harbor.example.com/example-app:1.2.3.

Private projects require valid registry access. The workload can reference a Kubernetes Docker registry pull secret through imagePullSecrets, and Keel also documents an image-pull-secret annotation. Keep registry passwords out of manifests, ordinary annotations, shell history, screenshots, and public logs.

Harbor and reverse-proxy administration

You need permission to manage webhooks for the relevant Harbor project. Harbor documentation places project webhook configuration under the project's Webhooks page. The exact interface can vary by Harbor release, so compare the labels in this tutorial with the current Harbor webhook documentation.

You also need an approved HTTP reverse proxy that can listen locally, validate an Authorization header, restrict requests to POST /v1/webhooks/harbor, and forward accepted requests to the local Keel port. Proxy-specific syntax is intentionally not invented here. Configure it according to the selected proxy's official documentation and your organization's credential-management standard.

Localtonet requirements

You need a Localtonet account, a device-specific authentication token, and the current Localtonet client for the host that can reach the protected proxy listener. Tokens identify client devices and must remain secret. Obtain available relay server or region values from the current dashboard rather than copying a hardcoded value from an article.

Install Keel on Kubernetes with Helm

The maintained Keel repository publishes its chart repository at https://keel-hq.github.io/keel/ and describes the Helm chart as the recommended installation method. The older keel.sh documentation site remains useful for concepts, but it visibly includes historical repository addresses, Helm 2 and Tiller guidance, old Kubernetes API examples, and commands that should not be mixed with the maintained repository instructions.

Use the following internally consistent Helm 3 workflow from the current repository:

kubectl config current-context
helm repo add keel https://keel-hq.github.io/keel/
helm repo update
helm upgrade --install keel --namespace=kube-system keel/keel

A successful Helm command confirms that Helm accepted the release operation. It does not prove that the Keel Pod is ready, that the Service has endpoints, or that registry access works. Complete the verification section before enrolling workloads.

Alternative installation without the Helm provider

Teams that manage ordinary Kubernetes manifests and do not need Keel to update Helm releases can use the alternative maintained command. Unlike kube-system, the keel namespace might not exist. Ensure it exists explicitly before targeting it:

kubectl create namespace keel
helm upgrade --install keel --namespace=keel keel/keel --set helmProvider.enabled="false"

If kubectl create namespace keel reports that the namespace already exists, inspect that namespace and confirm that it is the intended target before continuing. This is an alternative to the default installation, not an additional release to install afterward. Commands in the remaining tutorial use the default kube-system path. Substitute the namespace consistently if you chose the alternative.

Keel is stateless for its core operation and obtains required workload information from the cluster. It does not require a database or persistent disk for that core workflow. Optional audit or historical features can have separate persistence considerations, so inspect current chart values before assuming all records survive a restart.

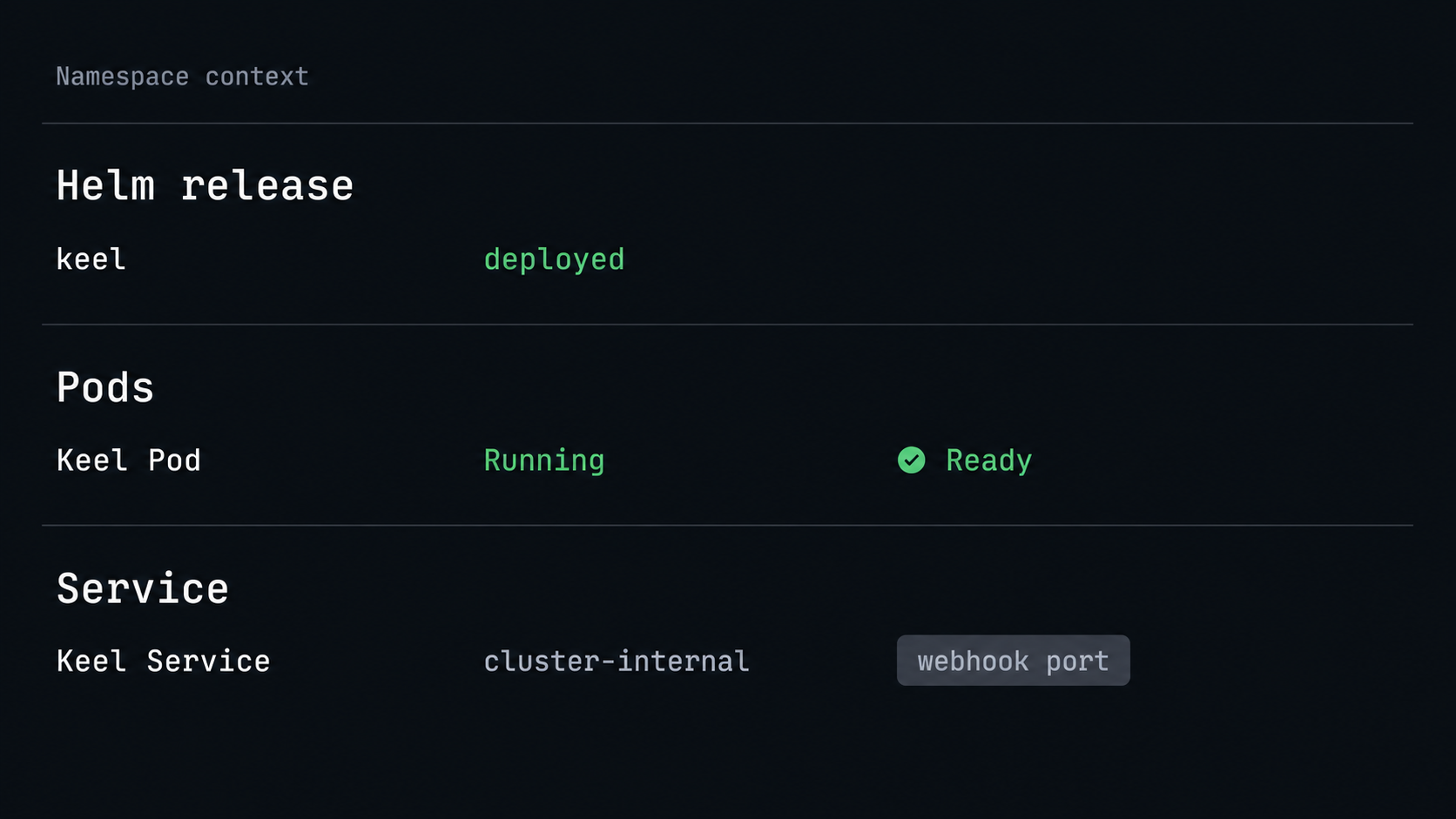

Verify the Keel release, Pod, and Service

Inspect the Helm release

helm status keel --namespace kube-system
helm list --namespace kube-system

Confirm that the release appears in kube-system and review its status and chart notes. If Helm cannot find it, check the active Kubernetes context and namespace before repeating the installation.

Inspect Kubernetes resources

kubectl -n kube-system get deployments
kubectl -n kube-system get pods
kubectl -n kube-system get services
kubectl -n kube-system get all -l app.kubernetes.io/instance=keel

Discover generated resource names from the output instead of assuming them. A healthy Pod should eventually be running with its expected containers ready. If the chart version does not expose every resource through the Helm label selector, use the unfiltered commands and inspect the rendered release:

helm get manifest keel --namespace kube-system

Wait for the Deployment and read logs

Copy the Keel Deployment name from kubectl -n kube-system get deployments, then substitute it below:

kubectl -n kube-system rollout status deployment/<keel-deployment-name>
kubectl -n kube-system logs deployment/<keel-deployment-name>

Do not paste the angle brackets literally. If the Pod has multiple containers, select the relevant container as prompted by kubectl. For startup failures, inspect detailed status and events:

kubectl -n kube-system describe pod <keel-pod-name>

Discover the Service and endpoints

kubectl -n kube-system get services
kubectl -n kube-system describe service <keel-service-name>
kubectl -n kube-system get service <keel-service-name> -o yaml
kubectl -n kube-system get endpoints <keel-service-name>

Record the actual Service name and applicable value under spec.ports. The installed Service is the source of truth. An empty endpoint list usually means the Service selector does not match a ready Pod. Resolve that condition before adding a port forward.

Create and test a loopback port forward

Choose an unused local port and map it to the discovered Service port:

kubectl -n kube-system port-forward service/<keel-service-name> <local-keel-port>:<service-port>

Keep the process running. In another terminal, make a harmless reachability request:

curl -i http://127.0.0.1:<local-keel-port>/v1/webhooks/harbor

The integration expects POST, so a GET might return 404, 405 Method Not Allowed, or another application response. Such a response can demonstrate that an HTTP server answered, but it does not validate a Harbor event. Connection refused indicates that the listener is absent or the wrong local port was used.

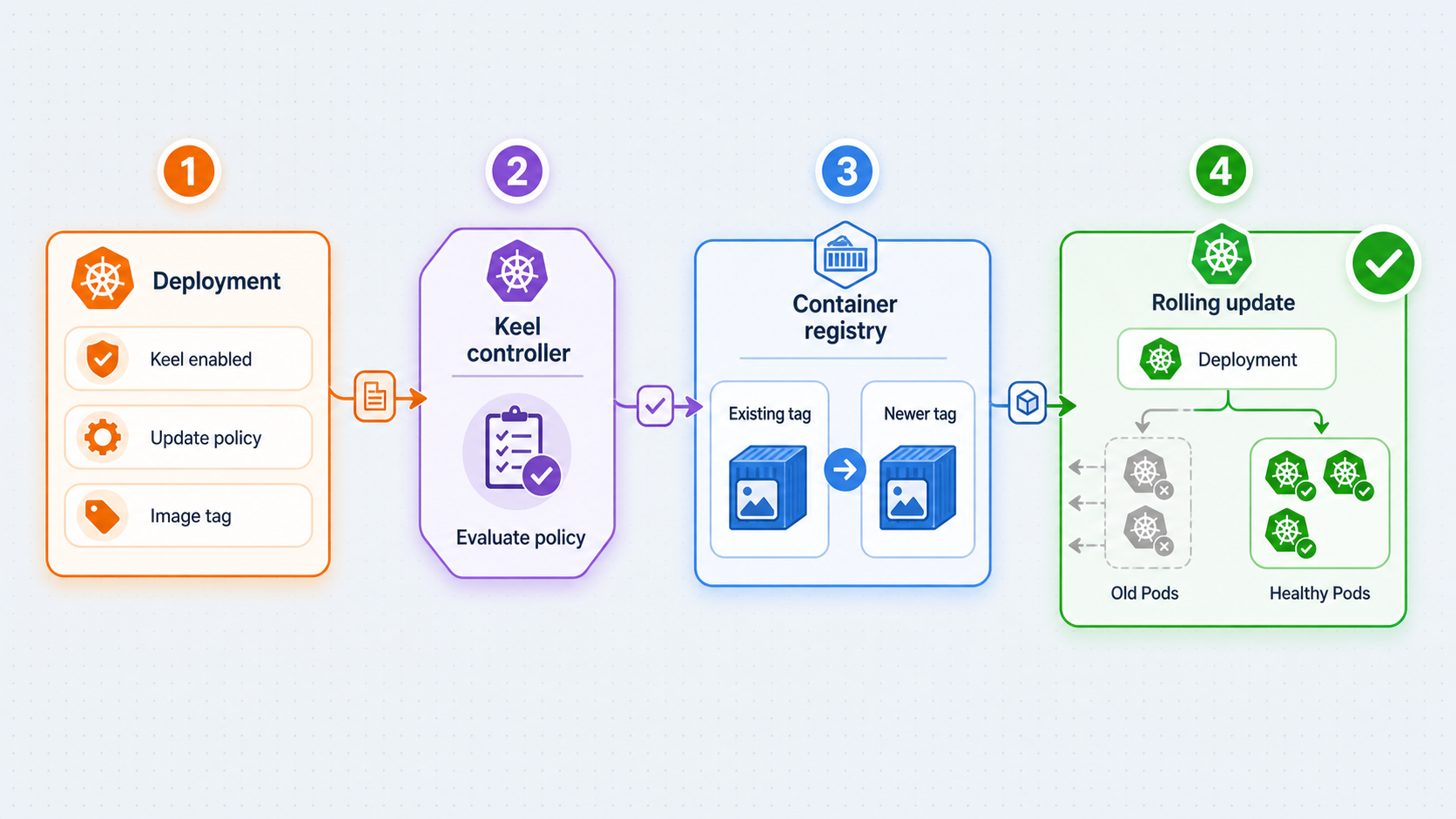

Configure and verify a workload for Keel updates

Keel supports Kubernetes Deployments, StatefulSets, and DaemonSets, plus Helm releases through its Helm provider. The following complete Deployment uses a public semantic-versioned image and polling so you can apply and inspect a real workload before introducing Harbor. It includes the required selector and matching Pod-template labels.

Apply a complete semantic-version example

apiVersion: apps/v1
kind: Deployment
metadata:
  name: keel-example
  namespace: default
  labels:
    app.kubernetes.io/name: keel-example
  annotations:
    keel.sh/policy: minor
    keel.sh/trigger: poll
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: keel-example
  template:
    metadata:
      labels:
        app.kubernetes.io/name: keel-example
    spec:
      containers:
        - name: nginx
          image: nginx:1.27.0
          imagePullPolicy: Always
          ports:
            - name: http
              containerPort: 80
          readinessProbe:
            httpGet:
              path: /
              port: http
            initialDelaySeconds: 3
            periodSeconds: 5

Save the manifest as keel-example.yaml, then apply it using the standard Kubernetes declarative workflow documented for Deployments:

kubectl apply -f keel-example.yaml
kubectl rollout status deployment/keel-example --namespace default

Verify the image, annotations, selector, and Pod-template labels:

kubectl get deployment keel-example --namespace default \
  -o jsonpath='{.spec.template.spec.containers[*].image}{"\n"}'

kubectl get deployment keel-example --namespace default \
  -o jsonpath='{.metadata.annotations}{"\n"}'

kubectl get deployment keel-example --namespace default \
  -o jsonpath='{.spec.selector.matchLabels}{"\n"}'

kubectl get deployment keel-example --namespace default \
  -o jsonpath='{.spec.template.metadata.labels}{"\n"}'

The image output should contain nginx:1.27.0. The annotations should include keel.sh/policy: minor and keel.sh/trigger: poll. The selector and Pod-template label must match. Kubernetes rejects a Deployment when its selector does not match the template labels, which is why abbreviated examples must not be presented as directly applicable manifests.

Inspect Keel logs after applying the workload:

kubectl -n kube-system logs deployment/<keel-deployment-name> --since=10m

Log wording can differ by Keel version. Look for discovery, polling, image, policy, or workload messages associated with keel-example or nginx. Absence of an immediate update is not a failure. A candidate image must exist and satisfy the policy before Keel changes the Deployment.

Use a Harbor image for the webhook workflow

After verifying the public-image example, copy the manifest to a non-production test workload and replace the image with your complete Harbor path:

image: harbor.example.com/library/example-app:1.2.3

Remove keel.sh/trigger: poll if the workload should rely on Harbor webhooks. Keel documents webhook behavior as the default when the polling trigger is not specified. Apply the revised manifest, confirm that Kubernetes can pull the current Harbor image, and wait for its rollout before testing a new push.

Select an update policy deliberately

Configure mutable tags with the correct annotation

For a mutable tag such as latest, Keel documents force with the hyphenated annotation key keel.sh/match-tag:

metadata:
  annotations:
    keel.sh/policy: force
    keel.sh/trigger: poll
    keel.sh/match-tag: "true"

The key is keel.sh/match-tag, not keel.sh/matchTag. With same-tag matching enabled, Keel can evaluate a changed digest while keeping the tag fixed. Mutable tags reduce auditability because a tag no longer uniquely identifies content. Record deployed digests and preserve previous images for rollback.

Verify a Keel-driven update

After a valid candidate image is published or a controlled Harbor event is delivered, inspect the Deployment image and rollout:

kubectl get deployment <managed-deployment> --namespace <workload-namespace> \
  -o jsonpath='{.spec.template.spec.containers[*].image}{"\n"}'

kubectl rollout status deployment/<managed-deployment> \
  --namespace <workload-namespace>

kubectl rollout history deployment/<managed-deployment> \
  --namespace <workload-namespace>

kubectl -n kube-system logs deployment/<keel-deployment-name> --since=15m

Also inspect the workload annotations directly:

kubectl get deployment <managed-deployment> \
  --namespace <workload-namespace> \
  -o jsonpath='{.metadata.annotations}{"\n"}'

Configure and verify the Harbor webhook

Keel's Harbor receiver is:

POST /v1/webhooks/harbor

The final destination combines that path with the public HTTPS address assigned to the running Localtonet tunnel:

https://<assigned-public-host>/v1/webhooks/harbor

Complete the reverse-proxy and Localtonet sections before saving the active Harbor policy. Do not use the placeholder host.

Establish the authenticated proxy boundary

Configure the selected reverse proxy to implement all of these requirements:

• Listen on a local IP address and dedicated local port reachable by the Localtonet client.
• Accept only POST /v1/webhooks/harbor.
• Reject requests with a missing or incorrect Authorization header using 401 Unauthorized or 403 Forbidden.
• Reject unrelated paths and methods.
• Forward accepted requests to http://127.0.0.1:<local-keel-port>/v1/webhooks/harbor.
• Use a long, randomly generated credential stored through an approved secret-management mechanism.
• Avoid logging the authorization value or unnecessary webhook payload content.

Harbor's webhook policy supports an Auth Header value for HTTP notifications. Configure the same complete authorization value in Harbor that the proxy expects, such as an organization-approved bearer-style value. The proxy is the enforcement point in this architecture. Do not assume that a header becomes protective merely because Harbor sends it.

Before starting the tunnel, verify that an unauthenticated request to the proxy is rejected:

curl -i -X POST http://127.0.0.1:<proxy-port>/v1/webhooks/harbor

A 401 or 403 response confirms the expected unauthenticated behavior. Do not place the real authorization value directly in a shared command transcript or article. Test the authenticated path using your proxy's secure operational procedure, then confirm that the request reaches Keel without exposing the credential in shell history.

Create the Harbor webhook policy

Inspect the Harbor delivery result

Return to the project's Webhooks page and open the policy's delivery, execution, or history view. Harbor labels differ somewhat between releases, but the policy record should provide delivery status and execution details. Confirm the event type, destination URL, creation time, HTTP result, and any reported error.

Interpret the outcome by layer:

• A DNS, connection, or timeout error indicates that Harbor did not complete the public transport path.
• 401 or 403 indicates that the request reached the authentication boundary but its Auth Header was missing or incorrect.
• 404 suggests a wrong path or route-filtering mismatch.
• A successful HTTP delivery proves transport and request acceptance, but not workload update eligibility.
• A successful delivery with no update requires inspection of Keel logs, repository matching, annotations, policy, tags, and registry credentials.

Correlate Harbor's delivery time with Keel logs:

kubectl -n kube-system logs deployment/<keel-deployment-name> --since=15m

Then inspect the managed workload's image, rollout status, rollout history, and Kubernetes events. This establishes whether Harbor delivered the event, Keel accepted and evaluated it, and Kubernetes completed any resulting update.

Expose the protected endpoint with Localtonet

Complete this section only after Keel works through the local port forward and the proxy rejects unauthenticated requests. This order separates Kubernetes, application, proxy, and tunnel failures.

Install and run the current Localtonet client on the device that can reach the proxy. Obtain current installation details through our platform and follow the Localtonet HTTP tunnel documentation for the current dashboard workflow.

Verify the public security boundary

Before adding the Harbor credential, make an unauthenticated request through the public address:

curl -i -X POST https://<assigned-public-host>/v1/webhooks/harbor

The expected result is 401 Unauthorized or 403 Forbidden from the protective boundary. That result demonstrates that the public transport path is reachable and that an unauthenticated request is not forwarded as an accepted Harbor event.

Also test an unrelated route and a disallowed method. Both should be rejected rather than exposing other Keel routes. Do not place the real authorization credential in a command that will be retained in shared shell history.

Understand the lifecycle and availability chain

The endpoint is available only while every required component is operational:

1. The Keel Pod is ready.
2. The Keel Service selects a healthy endpoint.
3. The kubectl port-forward process is running.
4. The protective reverse proxy is running and has the expected credential.
5. The Localtonet client is connected.
6. The HTTP tunnel is started.
7. Harbor can resolve, authenticate to, and reach the public HTTPS address.

A tunnel saved in the dashboard is not necessarily running. A connected Localtonet client does not imply that every tunnel assigned to it is started. Monitor client and tunnel states separately.

Routine operations, upgrades, removal, and troubleshooting

Keep long-running components supervised

This topology includes kubectl port-forward, a protective proxy, and the Localtonet client. Terminal closure, host sleep, network interruption, loss of Kubernetes API connectivity, proxy failure, a disconnected client, or a stopped tunnel can interrupt Harbor delivery.

For durable operation, run these components on a trusted host under an approved process supervisor. The supervisor should restart failures, protect credentials, retain bounded logs, and keep internal listeners restricted to the necessary interfaces. Process-manager commands vary by operating system and deployment policy, so use the official procedure for your selected environment.

Troubleshoot from the cluster outward

helm status keel --namespace kube-system
kubectl -n kube-system get pods
kubectl -n kube-system get services
kubectl -n kube-system get endpoints <keel-service-name>
kubectl -n kube-system logs deployment/<keel-deployment-name>
curl -i http://127.0.0.1:<local-keel-port>/v1/webhooks/harbor
curl -i -X POST http://127.0.0.1:<proxy-port>/v1/webhooks/harbor
curl -i -X POST https://<assigned-public-host>/v1/webhooks/harbor

Upgrade Keel deliberately

helm get values keel --namespace kube-system
helm get manifest keel --namespace kube-system
helm repo update
helm upgrade --install keel --namespace=kube-system keel/keel

Review chart changes, release notes, image versions, values, and rendered resources before a production upgrade. Configuration output can contain sensitive values, so store it according to your secret-handling policy. After upgrading, verify the Deployment, Pod, Service, endpoints, local port forward, protected public route, and controlled Harbor delivery again.

Stop remote access without uninstalling Keel

Stop the Localtonet tunnel when Harbor no longer needs the callback. Stopping the port-forward process or proxy also breaks the path while leaving Keel installed. Stop and delete are separate tunnel lifecycle actions. Stop for a temporary suspension and delete when the public tunnel configuration is no longer needed.

If deleting and recreating a tunnel changes its public address, update the Harbor policy. Disable or remove retired Harbor policies so Harbor does not continue attempting delivery to an intentionally unavailable endpoint. Revoke the webhook credential when the integration is retired or when exposure is suspected.

Uninstall Keel

helm uninstall keel --namespace kube-system
helm list --namespace kube-system
kubectl -n kube-system get all -l app.kubernetes.io/instance=keel

Never delete kube-system to remove this release. It contains essential Kubernetes components unrelated to Keel. If you used the dedicated keel namespace alternative, verify that no other resources use that namespace before considering namespace removal.

Uninstalling Keel does not necessarily revert image changes it previously made. Review managed workloads and Helm releases separately. Remove or revise Keel annotations when automation is no longer desired.

Security checklist

• Publish the webhook only when event-driven delivery is required.
• Keep Kubernetes API servers, nodes, and internal Service addresses private.
• Require an authenticated proxy before starting the public tunnel.
• Permit only POST /v1/webhooks/harbor through that proxy.
• Reject missing or incorrect authorization headers.
• Keep TLS certificate verification enabled in Harbor.
• Protect Localtonet device tokens, Harbor webhook credentials, registry credentials, and pull secrets.
• Apply least privilege to Keel's service account and registry access.
• Monitor Harbor delivery failures, unexpected routes, repeated requests, Keel decisions, and Kubernetes rollouts.
• Rotate credentials and stop or delete the tunnel when the integration is retired.
• Use Keel polling instead if a public endpoint cannot meet your security requirements.

Frequently asked questions
