Self-Host Hocuspocus with SQLite and Localtonet

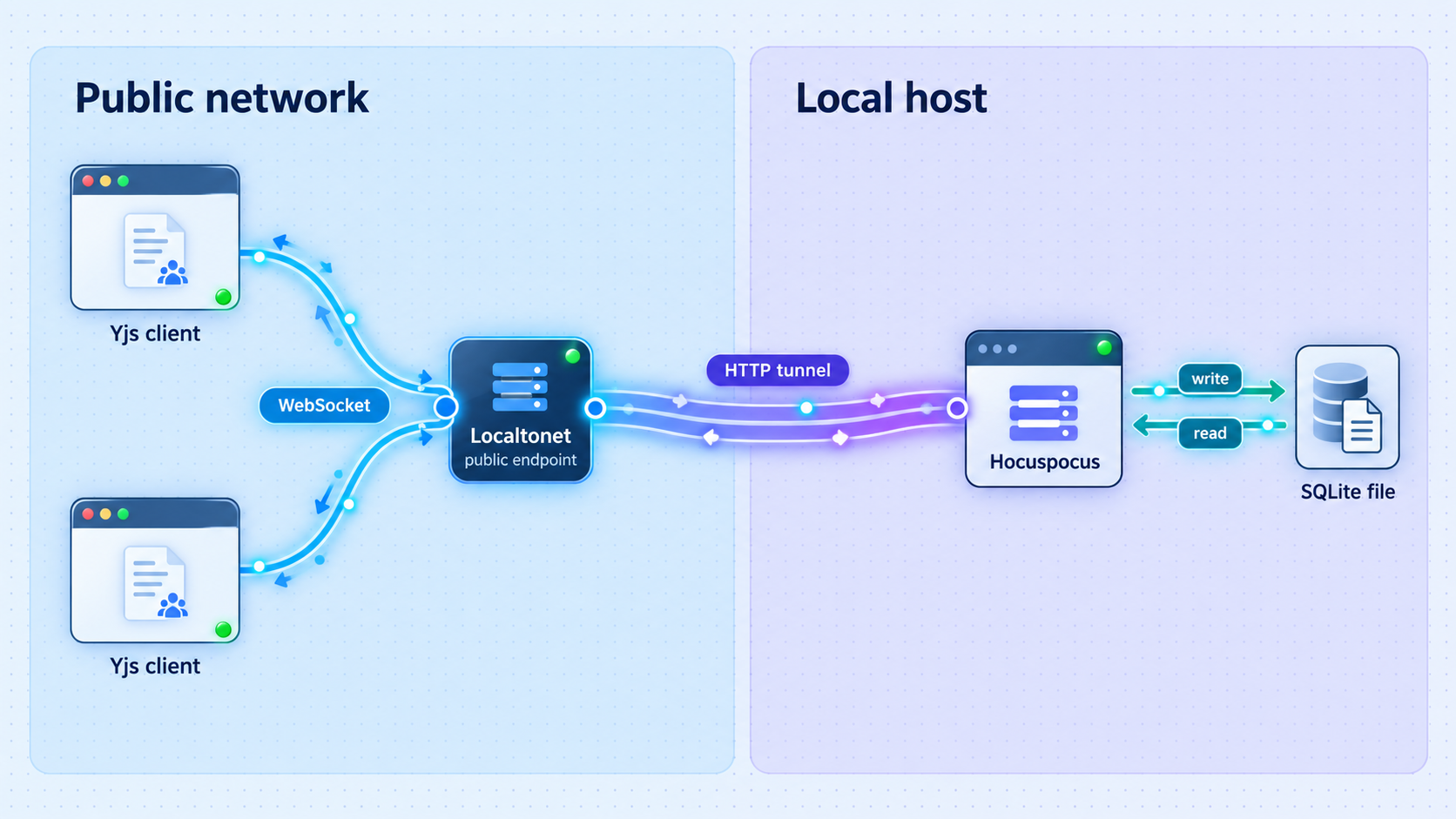

How Hocuspocus, Yjs, SQLite, and Localtonet fit together

Hocuspocus is a collaboration backend built around Yjs. Yjs uses a conflict-free replicated data type, commonly abbreviated as CRDT, to merge changes made by multiple clients. The order in which compatible updates arrive does not determine whether they can be merged. This model supports real-time collaboration as well as offline-first applications that synchronize changes later.

The Hocuspocus server provides the WebSocket backend through which clients exchange those Yjs updates. An editor or application connects to a named document, receives its current state, and sends subsequent updates through the same collaboration protocol. Hocuspocus can be integrated with editors and application frameworks, but the server is not itself a complete collaborative editor. A client application still needs to create or open Yjs documents and connect them to the server.

Persistence is a separate concern. Without persistent storage, a process restart can discard server-side document state. Hocuspocus exposes document loading and storage hooks for custom database integrations, and it also provides database extensions that implement those hooks. For this deployment, we use the ready-to-use SQLite extension and point it at a file named db.sqlite.

SQLite is especially convenient for a small self-hosted deployment because the database resides in a local file. It does not require a separate database service for this workflow. The Hocuspocus documentation describes the SQLite extension as suitable for local development. Whether it is appropriate for a production deployment depends on workload, concurrency, backup requirements, process architecture, and operational expectations. This guide does not treat a single SQLite file as a universal scaling strategy.

Localtonet enters the workflow only after the Hocuspocus service works locally. Our client establishes an outbound connection from the host to a Localtonet relay server. An HTTP tunnel then maps a public HTTPS address to the local Hocuspocus IP address and port. This removes the need to open an inbound router port, but it does not replace Hocuspocus authentication, application authorization, document-level access rules, or responsible secret management.

Prerequisites and known limitations

Prepare a JavaScript project directory on the computer that will run Hocuspocus. The example uses ECMAScript module syntax and a file with the .mjs extension. You also need a supported JavaScript runtime and a package manager that can install the Hocuspocus server, SQLite extension, and native better-sqlite3 dependency.

Hocuspocus version 4 documentation states that the wider Hocuspocus server runs on Node.js, Bun, Deno, and Cloudflare Workers. This exact tutorial uses file-backed SQLite through better-sqlite3, so it focuses on a Node.js host where that native dependency can be installed. The supplied project evidence does not specify an exact supported Node.js version for this setup. We therefore do not recommend guessing a version number. Select a Node.js release supported by the current Hocuspocus and better-sqlite3 documentation, and verify compatibility before deploying.

The official SQLite extension instructions provide its npm installation commands, but the supplied Hocuspocus README does not state a separate package-installation command for @hocuspocus/server. Add the current Hocuspocus server package to the same project using the installation method supported by the version you select. Do not assume that an old command, lockfile, or copied dependency range matches the current release.

For the Localtonet stage, install and run our client on the Hocuspocus host or another device that can reach the Hocuspocus listener. You will also need a Localtonet device authentication token and an available relay server selection from the current dashboard. Tokens are device-specific and must not be placed in source code, committed to a repository, copied into screenshots, or included in public troubleshooting output.

What to have ready

• A dedicated project directory with a package manifest appropriate for your package manager.
• A compatible Node.js environment for the selected Hocuspocus and better-sqlite3 versions.
• Permission to create and update db.sqlite in the server process working directory.
• A client application or test client that speaks the Hocuspocus and Yjs collaboration protocol for end-to-end document tests.
• The Localtonet client on a device that can reach 127.0.0.1:1234 when the client runs on the same host.
• A private, safely stored Localtonet device token and a relay selection obtained from the current dashboard.

Install the Hocuspocus server and SQLite dependencies

Work inside the project directory that will contain your server file and database. First add @hocuspocus/server using the current package installation instructions for the Hocuspocus version you have selected. The package name is established by the official server example, but the supplied evidence does not establish a canonical standalone installation command, runtime version, or version pin. That uncertainty is important because native dependencies and major-version migrations can affect installation.

The official SQLite extension documentation gives the following npm commands for the extension, its runtime database dependency, and TypeScript declarations:

npm install @hocuspocus/extension-sqlite better-sqlite3
npm install -D @types/better-sqlite3

The type declaration package is a development dependency. It is useful for TypeScript projects and editor tooling. A plain JavaScript file does not normally need declarations at runtime, but following the documented installation keeps the project prepared for type-aware development.

Starting with Hocuspocus version 4, the SQLite extension uses better-sqlite3 instead of the older sqlite3 dependency. If this is an upgrade from Hocuspocus version 3, remove the old dependency as documented:

npm uninstall sqlite3

Existing SQLite database files are documented as compatible, so this dependency change does not by itself require a data migration. A custom version 3 schema or custom queries need closer attention: version 4 uses named parameters without the $ prefix. Custom query parameters such as $name and $data need to become name and data.

Configure Hocuspocus with file-backed SQLite persistence

Create a file named server.mjs in the project directory. The following configuration uses the server and SQLite extension imports shown by the project, explicitly listens on port 1234, writes the database to db.sqlite, and logs a small connection indicator when a client connects.

import { Server } from '@hocuspocus/server'
import { SQLite } from '@hocuspocus/extension-sqlite'

const server = new Server({
  port: 1234,

  async onConnect() {
    console.log('Client connected')
  },

  extensions: [
    new SQLite({
      database: 'db.sqlite',
    }),
  ],
})

server.listen()

The database path is relative. As a result, db.sqlite is resolved from the process working directory, which is usually the directory from which the server command is launched. Start the service consistently from the intended directory, or adapt the application to use an explicit path that matches your deployment layout. The evidence does not establish a universal operating-system path, so this guide does not invent one.

The SQLite extension accepts a filename, :memory:, or an empty string. A filename such as db.sqlite persists data on disk. The :memory: value creates an anonymous in-memory database. An empty string creates an anonymous disk-based database. The anonymous choices are not persistent after the database handle closes, so they are inappropriate when restart persistence is the objective.

By default, the extension creates a documents table with a unique document name and a binary data column. The documented default schema is:

CREATE TABLE IF NOT EXISTS "documents" (
  "name" varchar(255) NOT NULL,
  "data" blob NOT NULL,
  UNIQUE(name)
)

The binary column matters. Hocuspocus documentation explains that Yjs documents should be stored as the Uint8Array produced by Yjs. Do not reduce a Yjs document to JSON and later recreate a new Yjs document from that JSON when a user connects. Doing so discards information needed for correct Yjs update merging and can cause duplicated content on subsequent connections.

Start and verify the local Hocuspocus service

Launch the module from the project directory with Node.js:

node server.mjs

Keep the terminal open during initial testing so startup errors and connection messages remain visible. With the documented example configuration, Hocuspocus listens locally on port 1234. The corresponding local addresses are http://127.0.0.1:1234 and ws://127.0.0.1:1234, depending on whether a tool expresses the endpoint as HTTP or WebSocket.

A successful TCP or WebSocket connection proves that a process is accepting connections. It does not prove that a complete Hocuspocus client can synchronize, store, disconnect, reconnect, and recover the same Yjs document. Use verification in layers so networking faults are not confused with protocol or persistence faults.

A minimal transport check in a browser console can be performed with:

const socket = new WebSocket('ws://127.0.0.1:1234')

socket.addEventListener('open', () => {
  console.log('WebSocket transport opened')
})

socket.addEventListener('error', event => {
  console.error('WebSocket transport failed', event)
})

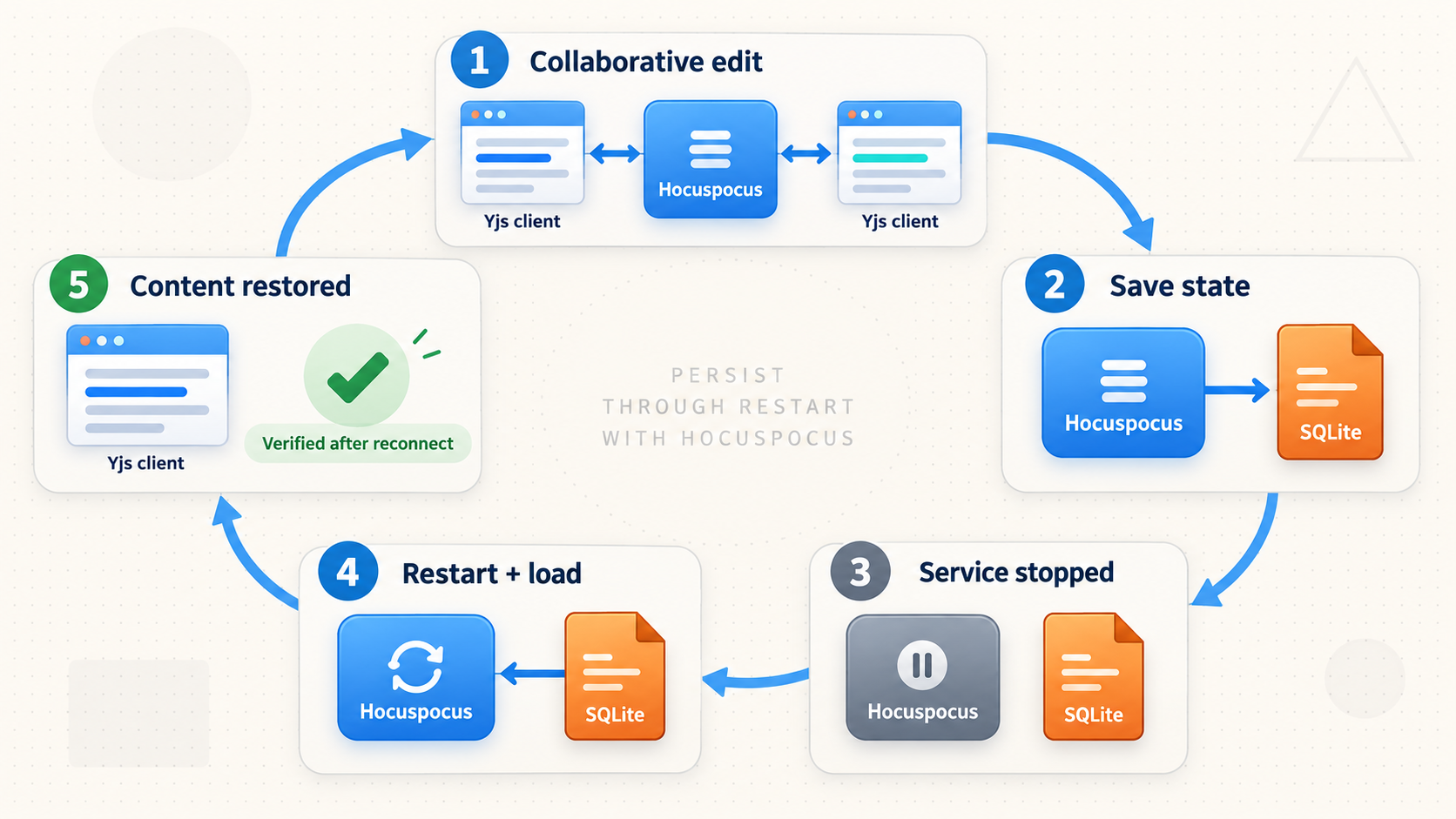

Test SQLite persistence correctly

Persistence should be tested with an actual document update, not merely by checking whether db.sqlite exists. SQLite may create a database and schema before a meaningful collaboration document has been stored. A proper test changes a named document through a compatible Hocuspocus client, stops the server cleanly, starts it again, and reconnects to the same document name.

1. Start Hocuspocus from the directory associated with the intended db.sqlite file.
2. Connect a compatible client to a clearly named test document.
3. Add recognizable test content and allow the client and server enough time to process the update.
4. Close the client and stop the server cleanly.
5. Confirm that the expected db.sqlite file remains in the intended directory.
6. Start the server again from the same working directory.
7. Reconnect to the same document name and verify that the saved state loads.

Document names are storage identities in the default schema because the name column is unique. Reconnecting under a different name can create or load a different document, which may look like data loss even when the original document remains intact.

The extension is built on the Hocuspocus persistence hooks. At a lower level, Hocuspocus can load documents through onLoadDocument and store them through onStoreDocument. The store hook includes debounce behavior. The SQLite extension provides an abstraction over these hooks, so custom hook code is unnecessary for the straightforward file-backed setup in this guide.

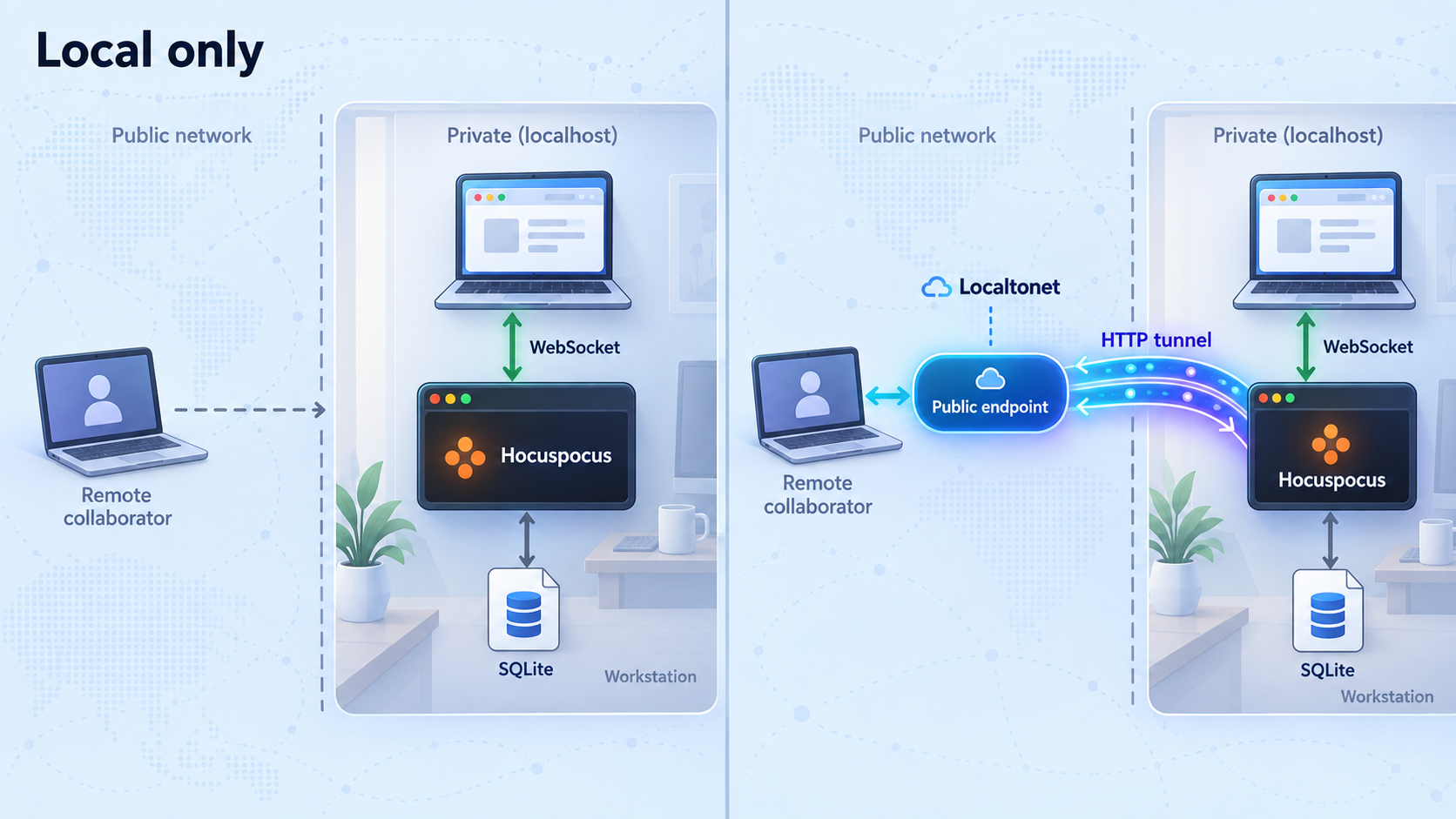

Connect remote collaborators through Localtonet

Do not create the public route until the local collaboration and restart tests pass. Separating these stages makes diagnosis much easier. If the local client cannot synchronize against ws://127.0.0.1:1234, adding a tunnel will not correct the Hocuspocus configuration.

For this workflow, use a Localtonet HTTP tunnel. HTTP tunnels are appropriate for a web-facing service whose clients establish WebSocket connections through the HTTP upgrade mechanism. HTTP and File Server tunnels can use a generated subdomain, a selected subdomain where supported, or a custom domain. The exact options available can vary, so obtain current values from the dashboard rather than assuming a particular hostname or plan capability.

Our standard workflow is to run the Localtonet client on the device that can reach the service, select that device with its token, choose an available relay server, create the tunnel with the local target, and then start it. Creating a configuration does not make the tunnel active. It must be started, and it remains available only while the selected client is connected and the tunnel is running.

The Localtonet edge provides the public HTTPS address for the HTTP tunnel. A WebSocket client normally represents the secure form of that same endpoint with the wss:// scheme. Preserve any path or document-related configuration required by your Hocuspocus client rather than assuming that changing only the hostname is sufficient for every application.

For the current dashboard workflow, consult our Localtonet HTTP tunnel documentation. Exact domain and DNS instructions should always be checked against current documentation before configuring a custom domain.

Operate the deployment safely

Keep both processes supervised

Remote access depends on two separate processes: Hocuspocus and the Localtonet client. If Hocuspocus stops, the tunnel may remain configured but have no healthy local target. If the Localtonet client disconnects or the tunnel stops, the local Hocuspocus service can remain healthy while remote clients lose access. Monitor them independently.

Protect the database and project secrets

Restrict filesystem access to the service account and administrators who need it. The SQLite file contains collaboration data in binary form, but binary encoding is not a substitute for access control. Keep Localtonet device tokens and any future application credentials outside committed source files.

Use stable startup behavior

A relative database path is convenient during development but sensitive to the process working directory. A service manager, container, scheduled task, or shell can start the same module from a different directory and silently create another db.sqlite. Record the intended working directory and confirm it after deployment changes.

Plan upgrades deliberately

Pin dependency versions through the package manifest and lockfile according to your project policy. Review Hocuspocus release notes before major upgrades, especially when using custom schemas, custom persistence queries, authentication hooks, or client packages that must remain protocol-compatible.

Stop access when it is no longer required

A Localtonet tunnel can be stopped or deleted from its lifecycle controls. Stop temporary collaboration access after the session ends. Deleting a tunnel removes its configuration, while stopping it preserves the configuration for later use. Neither action deletes the local Hocuspocus database.

Troubleshooting common failures

The server reports that it cannot locate the better-sqlite3 bindings

better-sqlite3 includes prebuilt native bindings, but a newly released Node.js version, operating system, or processor combination may not have a matching prebuilt file. The official Hocuspocus SQLite guidance recommends rebuilding the dependency from source:

npm rebuild better-sqlite3 --build-from-source

This requires a working C++ build toolchain. The documented examples are Xcode Command Line Tools on macOS, build-essential on Debian or Ubuntu, and Visual Studio Build Tools on Windows. If rebuilding still fails, compare the installed Node.js version and architecture with the versions supported by the selected better-sqlite3 release.

The database file is created in an unexpected directory

The value db.sqlite is relative to the process working directory. Check the directory from which the service is launched. Stop the service before reorganizing files, identify which database contains the expected documents, and avoid merging or replacing files without a verified backup.

The server restarts but the document appears empty

Confirm that the configuration uses db.sqlite, not :memory: or an empty string. Verify that the process starts from the same working directory, the client reconnects with the exact same document name, and the original update was sent through a compatible Hocuspocus client. The presence of a database file alone does not prove that a document update was stored.

Local connections work but remote connections fail

Confirm that the Localtonet client is connected, the HTTP tunnel is started, and its local target points to the address and port reachable from that client device. A target of 127.0.0.1 refers to the Localtonet client device itself. It cannot refer to a different machine on the LAN.

Also check that the remote application uses the assigned public endpoint and the secure WebSocket scheme expected for an HTTPS tunnel. Browser developer tools can reveal mixed-content errors, failed WebSocket upgrades, authentication rejection, or an incorrect path.

The tunnel exists but there is no public service

Creating a Localtonet tunnel does not start it. Use the Start control and verify that the selected device remains connected. The public endpoint is available only while the tunnel is running through a connected client.

Two users connect but do not see the same content

Check that both clients use the same endpoint and exactly the same document name. Then inspect application authentication or tenant-prefix logic that may intentionally map the users to different documents. A successful WebSocket connection does not guarantee that two sessions joined the same collaborative document.
